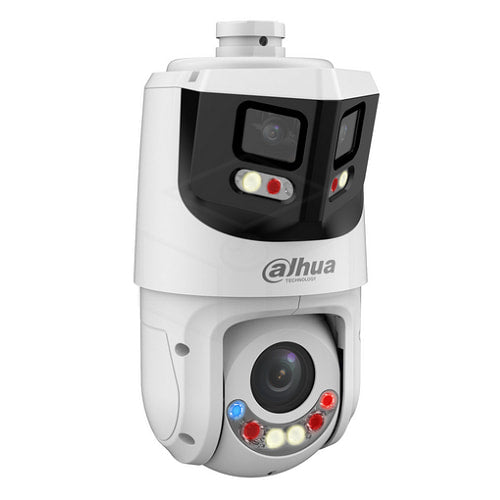

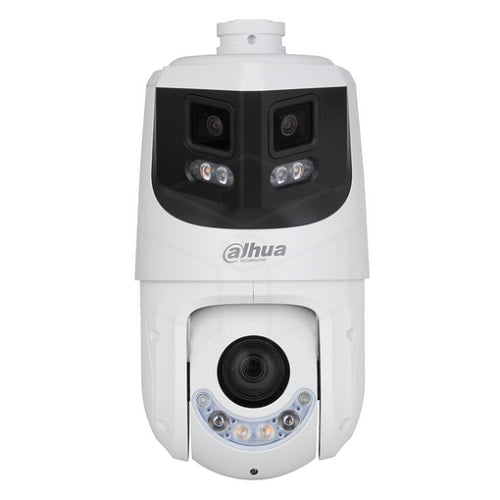

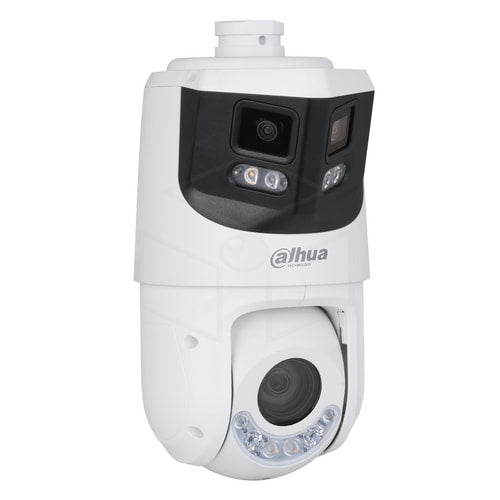

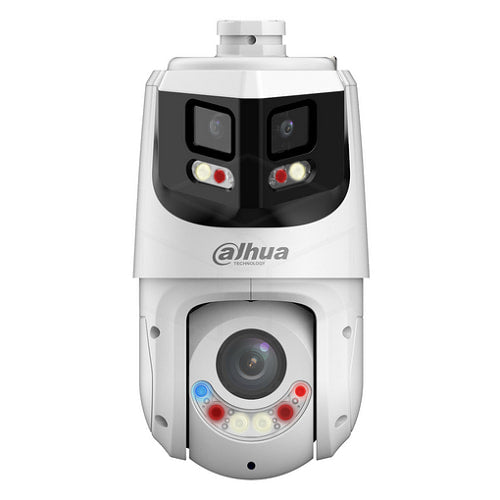

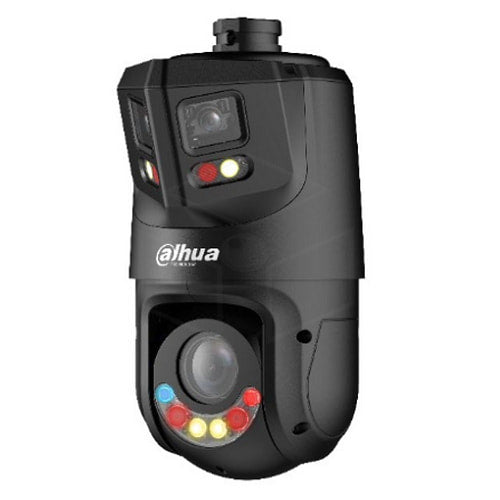

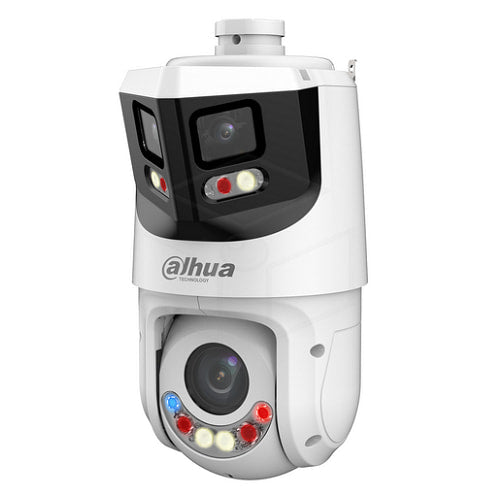

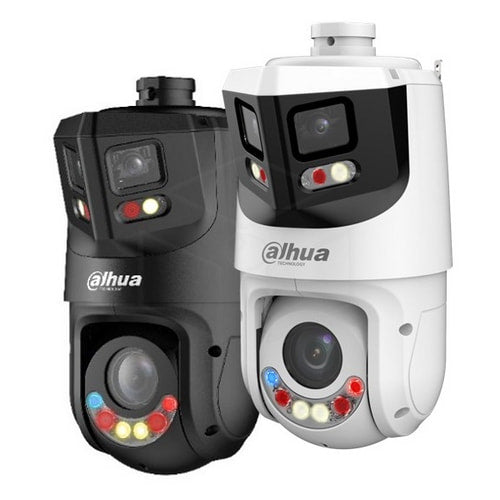

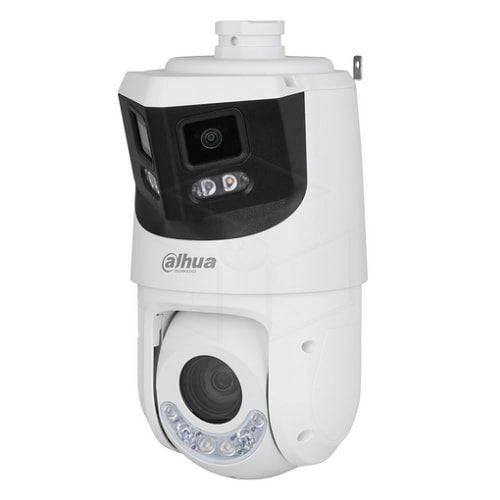

Dahua 8+4MP 25x TiOC Network Panoramic PTZ-camera (SDT4E425-8P-GB-A-PV1-SL)
Normale prijs
€1.022,54
Inclusief belasting.
Verzendkosten worden berekend bij de checkout.
Productbeschrijving
De Dahua SDT4E425-8P-GB-A-PV1-SL is een hybride CCTV-camera die een 4 MP 180° panoramisch beeld combineert met een 8 MP PTZ-camera met 25x optische zoom. Uitgerust met TiOC (Three-in-One Camera) en WizSense-technologieën biedt hij intelligente detectie, adaptieve verlichting en actieve afschrikking. Ontworpen voor geavanceerde buitenbewaking, is hij ideaal voor locaties die een brede dekking en proactieve inbraakrespons vereisen.
Specificaties
| Camera | |
| Beeldsensor | Overzichtskanaal: 1/2,7" CMOS; Detailkanaal: 1/2,8" CMOS |
| Pixel | Overzichtskanaal: 8 MP; Detailkanaal: 4 MP |
| Maximale resolutie | Overzichtskanaal: 4096 (H) × 1860 (V); Detailkanaal: 2560 (H) × 1440 (V) |
| ROM | Overzichtskanaal: 4 GB; Detailkanaal: 4 GB |
| RAM | Overzichtskanaal: 2 GB; Detailkanaal: 1 GB |
| Elektronische sluitertijd | 1 s–1/30.000 s |
| Scansysteem | Progressief |
| Minimale verlichting | Overzichtskanaal: 0,005 lux@F1.4 (kleur, 30 IRE); 0,0005 lux@F1.4 (zwart-wit, 30 IRE); 0 lux (illuminator aan) Detailkanaal: 0,005 lux@F1.6 (kleur, 30 IRE); 0,0005 lux@F1.6 (zwart-wit, 30 IRE); 0 lux (illuminator aan) |
| Verlichtingsafstand | Overzichtskanaal: 30 m (98,43 ft) (IR); 30 m (98,43 ft) (wit licht); Detailkanaal: 100 m (328,08 ft) (IR); 50 m (131,23 ft) (wit licht) |
| Aan/uit-regeling van de verlichting | Overzichtskanaal: Handmatig; Automatisch; Uit Detailkanaal: Zoom Prio; Handmatig; Automatisch; Uit |
| Illuminatornummer | Overzichtskanaal: 2 (IR-licht); 2 (Wit licht); Detailkanaal: 2 (IR-licht); 2 (Warm licht) |
| Lens | |
| Brandpuntsafstand | Overzichtskanaal: 2,8 mm; Detailkanaal: 5 mm–125 mm |
| Maximaal diafragma | Overzichtskanaal: F1.4; Detailkanaal: F1.6-F3.6 |
| Gezichtsveld | Overzichtskanaal: H: 180°; V: 86°; Detailkanaal: H: 51,9°–3,0°; V: 39,7°–2,2°; D: 63,1°–3,7° |
| Optische zoom | Overzichtskanaal: NA; Detailkanaal: 25× |
| Focusregeling | Automatisch; handmatig; semi-automatisch |
| Korte scherpstelafstand | Overzichtskanaal: 0,6 m (1,97 ft); Detailkanaal: 0,1 m–0,5 m (0,33"–1,64") |
| Irisbestrijding | Overzichtskanaal: N.v.t.; Detailkanaal: Automatisch; handmatig; irisprioriteit |
| PTZ | |
| Pan/Tilt-bereik | Pan: 0° tot 360° eindeloos Kantelen: –15° tot +90°, automatisch 180° omdraaien |
| Handmatige snelheidsregeling | Pan: 0,1°/s–180°/s; kanteling: 0,1°/s–90°/s |
| Vooraf ingestelde snelheid | Pan: 0,1°/s–180°/s; kanteling: 0,1°/s–90°/s |
| Vooraf ingesteld | 300 |
| Tour | 8 (tot 32 presets per tour) |
| Patroon | 5 |
| Scannen | 5 |
| Uitschakelgeheugen | Ja |
| Stationaire beweging | Voorinstelling; Patroon; Tour; Scan |
| Intelligentie | |
| IVS (Perimeterbeveiliging) | Struikeldraad; indringing; detectie van het passeren van een hek; detectie van rondhangen; achtergelaten/vermist object; snel bewegend; parkeerdetectie; mensen verzamelen; classificatie van menselijke alarmen; koppelingstracking |
| SMD | SMD 4.0 |
| Actieve afschrikking | |
| Lichte waarschuwing | Waarschuwing voor rood-blauw licht; Flitsduur: 5 s–30 s; Flitsfrequentie: hoog, gemiddeld, laag |
| Geluidswaarschuwing | Biedt 11 geluidsalarmen en 10 aangepaste geluidsalarmen die geïmporteerd kunnen worden. Het geluid kan ingesteld worden van 0% tot 100%. De afspeeltijden kunnen ingesteld worden van 1 tot 10. |
| Video | |
| Videocompressie | Slimme H.265+;H.265;Smart H.264+;H.264B;H.264M;H.264H;MJPEG(Substroom 1) |
| Streaming-mogelijkheid | 3 streams |
| Resolution | Overzichtkanaal: 8M (4096 × 1860); 2M (2048 × 928); 1080p (1920 × 1080); 720p (1280 × 720); 1024 × 448; D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240); Detailkanaal: 4M (2560 × 1440); 3M (2304 × 1296); 1080p (1920 × 1080); 1,3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240) |
| Videoframesnelheid | Overzichtkanaal: Hoofdstream: 4096 × 1860 @(1–25/30 fps) Substream 1: 1024 × 448/D1/VGA/CIF @(1–25/30 fps) Substream 2: 2048 × 928/1080p/1,3M/720p @(1–25/30 fps); Detailkanaal: Hoofdstream: 4M/3M/1080p/1,3M/720p @(1–25/30 fps) Substream 1: D1/VGA/CIF @(1–25/30 fps) Substream 2: 1080p/1,3M/720p/ @(1–25/30 fps) |
| Bitsnelheidsregeling | CBR/VBR |
| Videobitsnelheid | Overzichtskanaal: H264: 128 kbps–16.384 kbps H265: 51 kbps–13.312 kbps; Detailkanaal: H264: 96 kbps–16.384 kbps H265: 38 kbps–10.240 kbps |
| Dag/Nacht | Overzichtskanaal: Auto; Kleur; Zwart-wit; Elektronisch Detailkanaal: Auto; Kleur; Zwart-wit; Elektronisch |
| BLC | Ja |
| WDR | Overzichtskanaal: DWDR; Detailkanaal: 120 dB |
| HLC | Ja |
| Witbalans | Overzicht kanaal: Auto; binnen; buiten; tracking; handmatig; natriumlamp; natuurlijk licht; straatlantaarn Detail kanaal: Auto; binnen; buiten; tracking; handmatig; natriumlamp; natuurlijk licht; straatlantaarn |
| Krijg controle | Overzicht kanaal: Auto; handmatig; versterkingsprioriteit Detail kanaal: Auto; handmatig; versterkingsprioriteit |
| Noise Reduction | Overview channel: 2D NR; 3D NR Detail channel: Auto: 2D NR; 3D NR |
| Motion Detection | Yes |
| Region of Interest (RoI) | Yes |
| Image Stabilization | Overview channel: NA Detail channel: Electronic Image Stabilization (EIS) |
| Defog | Overview channel: Electronic Detail channel: Electronic |
| Digital Zoom | Overview channel: NA; Detail channel: 16× |
| Image Rotation | Overview channel: NA Detail channel: 180 |
| S/N Ratio | Overview channel: ≥55 dB Detail channel: ≥55 dB |
| Audio | |
| Audio Compression | PCM, G.711A, G.711Mu, G.726, MPEG2-Layer2, G.722.1, G.729 |
| Network | |
| Network Port | RJ-45 (100/1,000 Base-T) |
| Network Protocol | HTTP; HTTPS; TCP/IP; IPv4; RTSP; UDP; SMTP; NTP; DHCP; DNS; DDNS; IPv6; 802.1x; SSL; QoS; FTP; UPnP; ICMP; SNMP; IGMP; ARP; RTCP; RTP; PPPoE; RTMP; Bonjour; NFS |
| Interoperability | ONVIF (Profile S & Profile G & Profile T);CGI;SDK;P2P |
| Streaming Method | Unicast/Multicast |
| User/Host | 20 (total bandwidth: 64 M) |
| Storage | Micro SD card (512 GB); FTP/SFTP; NAS |
| Browser | web5.0: IE 9 and later versions; Chrome 41 and later versions; Firefox 52 and later versions; Safari 10 and later versions |
| Management Software | DMSS; DSS Pro |
| Mobile Client | iOS; Android |
| Management Software | DMSS; DSS Pro |
| Mobile Client | iOS; Android |
| Certification | |
| Certifications | CE: EN 50130-4 EN 55032 EN 55035 EN 61000-3-3 EN IEC 61000-3-2 EN 62368-1 NEMA 4X |
| Port | |
| Audio Input | 1 channel (LINE IN, bare wire) |
| Audio Output | 1 channel (LINE OUT,bare wire;built-in speaker (mutually exclusive)) |
| Alarm Input | 2 (on-off value input: 0–5 VDC) |
| Alarm Output | 1 channel |
| Alarm Linkage | Capture; recording; send email; preset; tour; pattern; alarm digital output; audio; warning light |
| Alarm Event | Motion/tampering detection; network disconnection detection; IP conflict detection; memory card state detection; memory space detection |
| Alarm Event | Motion/tampering detection; audio detection; network disconnection detection; IP conflict detection; memory card state detection; memory space detection |
| Power | |
| Power Supply | 12 VDC, 3 A ± 10%;PoE (802.3at) |
| Power Consumption | Basic: 14 W; Max: 25 W (illuminator + heating glass + Siren and Light Active Deterrence + ICR + PTZ) |
| Power Adapter | Optional |
| Environment | |
| Operating Temperature | –40 °C to +65 °C (–40 °F to +149 °F) |
| Operating Humidity | ≤95% |
| Protection | IP66; TVS 6000 V lightning proof; surge protection; voltage transient protection |
| Structure | |
| Product Dimensions | 194.2 mm × 160 mm × 311 mm (7.65" × 6.30" × 12.24") (L × W × H) |
| Net Weight | 3.1 kg (6.83 lb) |
| Gross Weight | 4.6 kg (10.14 lb) |
