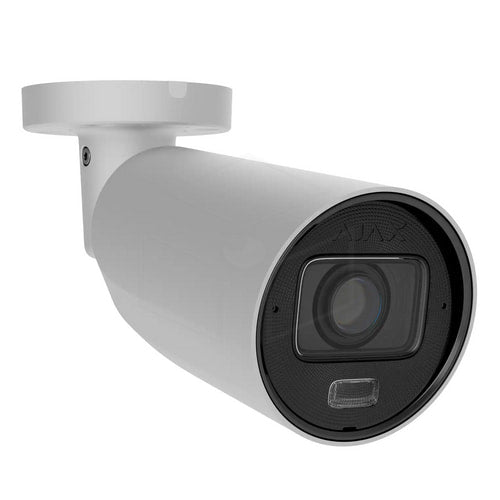

Ajax BulletCam HLVF (5 Mp/2,8 - 12 mm) Kleur: Wit Camera’s
Ajax BulletCam HLVF (5 Mp/2,8 - 12 mm) Camera’s
Ajax BulletCam HLVF (5 Mp/2,8 - 12 mm) Camera’s
Ajax BulletCam HLVF (5 Mp/2,8 - 12 mm) Camera’s
Ajax BulletCam HLVF (5 Mp/2,8 - 12 mm) Camera’s
Ajax BulletCam HLVF (5 Mp/2,8 - 12 mm) Camera’s
Ajax BulletCam HLVF (5 Mp/2,8 - 12 mm) Camera’s
Ajax BulletCam HLVF (5 Mp/2,8 - 12 mm) Camera’s
Ajax BulletCam HLVF (5 Mp/2,8 - 12 mm) Camera’s

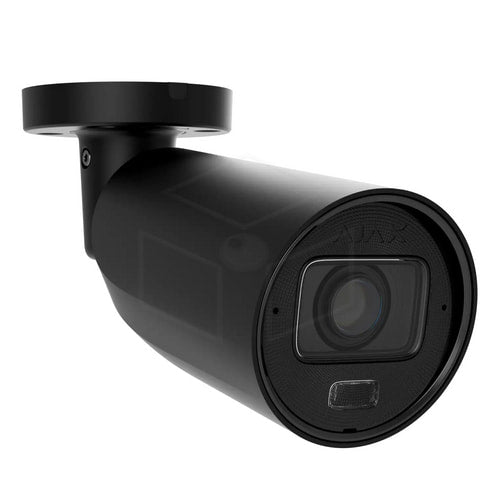

Ajax BulletCam HLVF (5 Mp/2,8 - 12 mm) Kleur: Zwart Camera’s
Ajax BulletCam HLVF (5 Mp/2,8 - 12 mm) Camera’s
Ajax BulletCam HLVF (5 Mp/2,8 - 12 mm) Camera’s
Ajax BulletCam HLVF (5 Mp/2,8 - 12 mm) Camera’s
Ajax BulletCam HLVF (5 Mp/2,8 - 12 mm) Camera’s
Ajax BulletCam HLVF (5 Mp/2,8 - 12 mm) Camera’s
Ajax BulletCam HLVF (5 Mp/2,8 - 12 mm) Camera’s

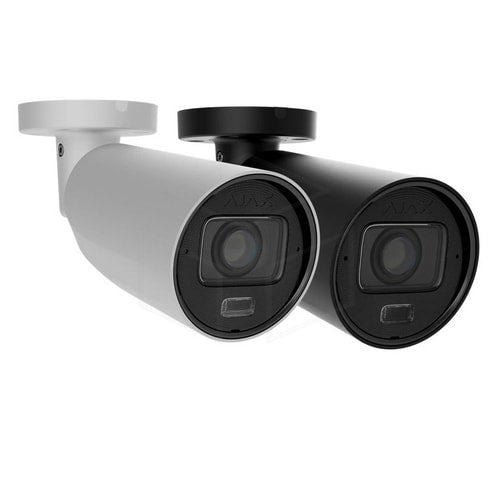

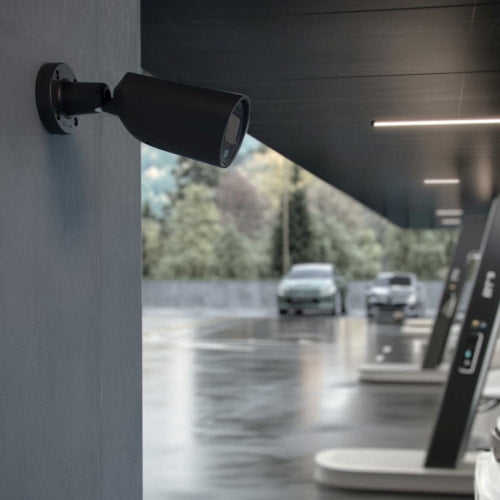

Ajax BulletCam HLVF (5 MP/2.8 - 12 mm)

Regular price €409,- €0,- Unit price per
Tax included. Shipping calculated at checkout.

Op werkdagen vóór 14:00 uur besteld?
Verwachte levering binnen 1–2 werkdagen.

Product description

BulletCam HLVF provides clear evidence in any environment or installation scenario. The motorized varifocal lens provides the right visual context, from detailed close-ups to a wide overview. The camera ensures images are sharp and balanced thanks to real-time autofocus and True WDR technology. Even in the dark, the device retains color images by combining IR and white light. Thanks to built-in audio and alarm inputs/outputs, BulletCam HLVF can be easily integrated into third-party systems, significantly enhancing existing solutions.

More features

Scene in frame, context in sight
BulletCam HLVF is designed to capture every critical moment in the frame, without missing blind spots or details. The varifocal lens with autofocus can zoom in on faces, signs, or license plates, or zoom out to capture the entire scene. A single device provides optimal coverage, whether it is a busy event venue or a small checkout. The camera is also available in 5 MP and 8 MP resolution options to meet the required level of detail.

See color in the dark
Thanks to hybrid illumination, BulletCam HLVF records in color even at night. When motion or an object is detected, the camera automatically switches from infrared (IR) to white light to capture every detail. The sudden flash of white light also acts as a deterrent to potential intruders.

Even illumination in every frame
BulletCam HLVF offers rich colors and precise details in every light. True WDR technology merges differently exposed frames into one evenly lit image. As a result, the camera produces razor-sharp, detailed images without overexposed highlights or hidden shadows. This also offers flexibility in placement: whether opposite windows and entrances, under bright lights, or in shadowed corners.

See the essentials with the power of AI
BulletCam HLVF saves time and storage space thanks to built-in AI-powered object recognition. The camera can distinguish between people, pets, and vehicles, and only records and notifies when selected types of objects are detected. The AI settings can be easily configured and monitored via the Ajax apps. Whether it is a vehicle parking in a restricted area or a person appearing after closing time, the system ensures that users can focus on what is important while simultaneously saving storage space.

Smooth navigation through the archive
With the Ajax apps, you can find recorded events faster than ever. Thanks to our patented JetSparrow technology, the system reacts instantly, ensuring smooth playback and easy navigation through the event timeline. Users can press any event to jump directly to the relevant footage, filter recordings by date or object type, and export them within seconds, all within one intuitive interface.

Suitable for upgrades and retrofits
BulletCam HLVF integrates easily into existing systems. The alarm inputs and outputs provide a direct way to connect third-party detectors, flashers, sirens, or door locks for automated recording and response to events. With the audio ports, you can connect existing microphones and speakers. Thanks to these additions, the camera can be the centerpiece of a full-fledged detection and notification system.

Simple integration via ONVIF and RTSP
Ajax video devices support ONVIF and RTSP protocols: no special tricks, no extra effort. This offers countless possibilities to upgrade existing video installations with advanced security features. With just a few taps, you can connect Ajax cameras and NVRs to a third-party surveillance or video management system (VMS). A special wizard in the Ajax apps simplifies the configuration process by automatically loading all necessary network data. Enjoy smooth streaming and flexible image configurations, whether you are setting up a new installation or expanding an existing one.

A device without a hidden agenda
All system data is securely stored within the European Union and fully complies with European data protection standards.

The Ajax BulletCam HLVF is NDAA-compliant, meaning that every component is sourced from manufacturers trusted and approved by the US government. Furthermore, BulletCam HLVF has successfully passed independent cybersecurity tests, proving the security and reliability of the device.



Specifications

Camera
Image sensor 5 MP CMOS, type 1/2.7"
Lens focal length 2.8 - 12.0 mm
Maximum aperture f/1.6
Lens iris type Fixed
Lens focus type varifocal
Field of view horizontal: 31° - 111°
vertical: 17° - 57°
diagonal: 35° - 135°
Maximum illumination distance White LED: up to 40 m
IR LED: up to 60 m
Minimum illumination color: 0.005 lx
Black and white: 0 lx
Signal-to-noise ratio (SNR) more than 52 dB
Video
Resolution 5 MP (2880 × 1620)
4 MP (2560 × 1440)
3 MP (2304 × 1296)
2 MP (1920 × 1080)
0.6 MP (1024 × 576)
Frame rate 25 fps
Image rotation 0°, 90°, 180°, 270°
Video codec H.265, H.264
Dynamic range 120 dB (True WDR)
Storage MicroSD
Ajax NVR
Audio
Built-in digital microphone Yes
Audio codec G711-ULAW, G711-ALAW, G726, G722
Intelligent video analysis
Motion detection Yes
AI object detection Humans
Pets
Vehicles
Line crossing
Network
Port 1 × RJ-45 self-adaptive Ethernet (10/100 Mbps)
Protocol HTTP, HTTPS, TCP/IP, IPv4, IPv6, SNMP, RTSP, UDP, DHCP, DNS, DDNS
Interoperability ONVIF (Profile S/T*)
Alarm port
Cables for third-party devices 2
Alarm type NO, NC
Alarm IN maximum voltage 5 V⎓
Alarm OUT operating range 48 V⎓, 300 mA
Audio port
Cables for third-party devices 2
Type audio IN input for external microphone
Audio IN settings gain
on/off
Type audio OUT output for speaker
Main features
Video protocol JetSparrow
Focal length change autofocus
manual focus
Visual verification of Ajax alarms The system allows you to configure a scenario where Ajax detectors trigger specific cameras to start recording. The registered event is immediately displayed in the mobile or desktop Ajax PRO app.
Privacy Advanced privacy controls offer a high level of protection for your personal data. All access rights, including those for mobile app users, installers, and monitoring company operators via Ajax PRO Desktop, can be fully configured by the device owner. This ensures that only authorized persons have access to video streams, history, or device settings, exactly as the owner intends.
Tamper protection
mTLS Support
Authentication Ajax Cloud
Secure Boot Support
OTA signature verification Secure automatic firmware update.
Accelerometer Alarm upon attempts to move or dismantle the camera.
Power supply
PoE standard 802.3at/af (Class 3)
External power connector type screw terminal (2-pin)
Power consumption Maximum: up to 12 W
Average: up to 6 W
Power supply unit 12 V ± 20% ⎓, 1 А
Housing
Dimensions 242 × 90 × 90 mm
Weight 940 g
Operating temperature range -40 to +60 °C
Operating humidity up to 90%
Protection class IP67, IK10, IK08
Color White, Black
Complete set BulletCam HLVF (5 MP)
Installation template
Installation kit
3 screw terminals
Quick start guide
