Ajax Tag wireless
Product Description

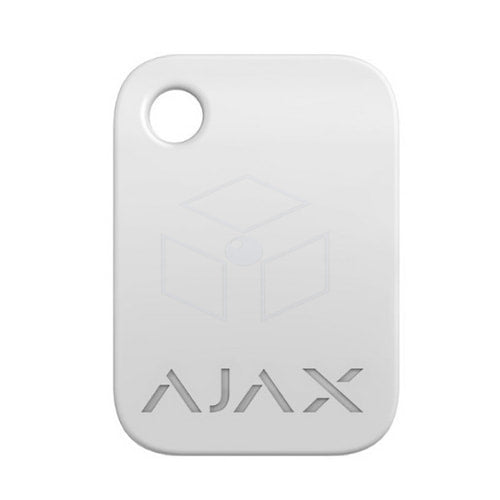

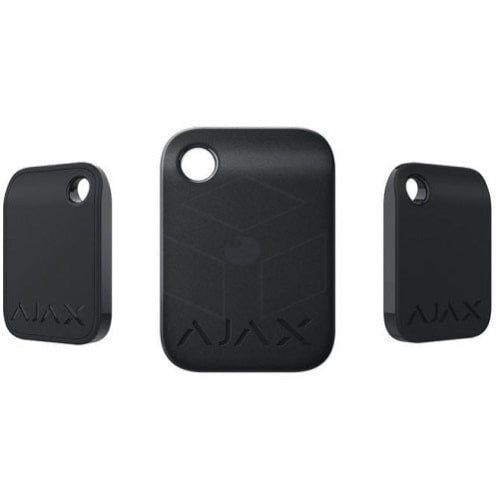

Tag and Pass are encrypted contactless access devices for managing the security modes of the Ajax security system. They have the same functions and differ only in their body: Tag is a key fob, and Pass is a card.
Tag and Pass allows you to manage the security of an object without an account, access to the Ajax app or knowing the password - all that is required is to activate a compatible keypad and place the key fob or card on it. The security system or a specific group will be armed or disarmed.
To identify users quickly and securely, KeyPad Plus uses DESFire® technology. DESFire® is based on the international STANDARD ISO 14443 and combines 128-bit encryption and copy protection.
Tag and Pass usage is recorded in the event feed. The system administrator can revoke or restrict access rights of the contactless identification device at any time via the Ajax app.
Specifications
| Technology used | Desfire® |
| Operational standard | ISO 14443-A (13.56 MHz) |
| Coding | + |
| Authentication | + |
| Protection against signal interception | + |
| Ability to assign the user | + |
| Maximum number of bound hubs | Up to 13 |
| Compatibility | Keyboard Plus |
| Operating temperature range | From -10°C to +40°C |
| Operating humidity | Up to 75% |
| General dimensions | Tag: 45 × 32 × 6 mm Pass: 86 × 54 × 0.8 mm |
| Weight | Tag: 7 g Pass: 6 g |
