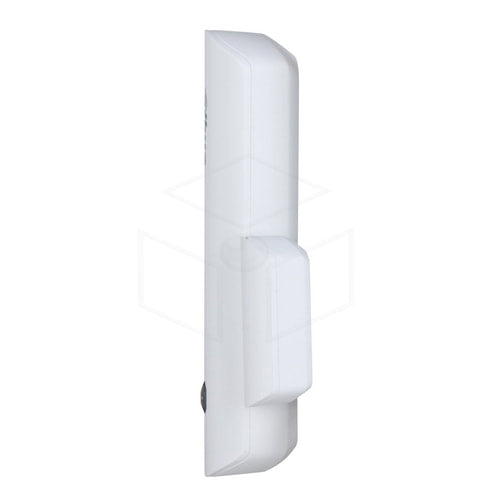

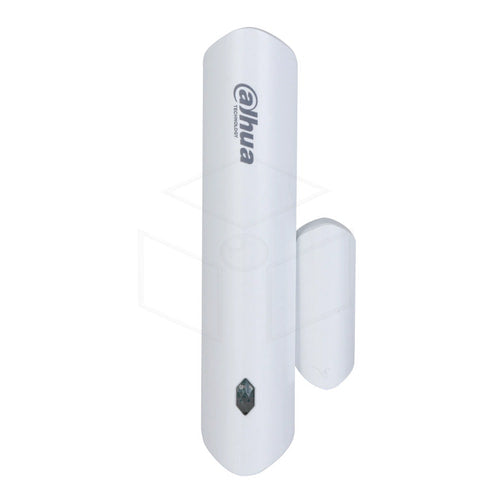

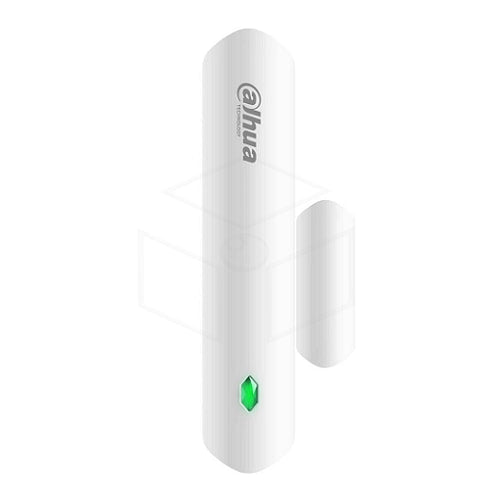

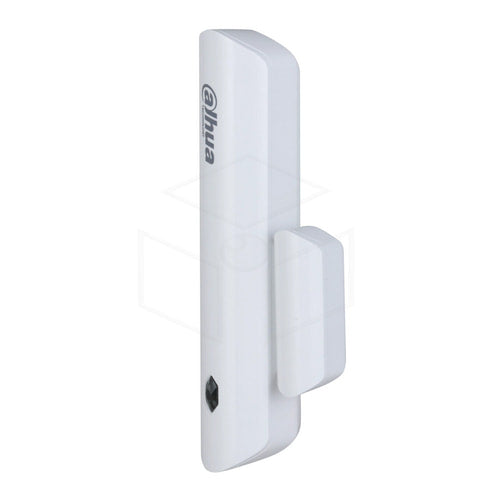

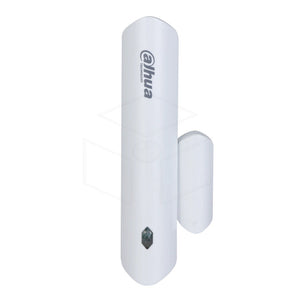

Dahua DHI-ARD323-W2(868S) AirShield Wireless Magnetic Door Detector
Regular price
€31,50
Tax included.
Shipping calculated at checkout.
Product Description
The Dahua Wireless Magnetic Contact, ARD323-W2(868S) has a strong signal detection and is equipped with a temperature sensor. With a bidirectional communication technology, this device offers the possibility of updating in the Cloud and in case of a failed update you get automatic recovery of the information.
Furthermore, the integration into the DMSS mobile application makes it possible to view and report any changes in real time. So if the door is open, an alarm is automatically activated thanks to the magnetic sensor, which sends the signal to the hub.
Specifications
| Indicator light | 1 × green alarm indicator |
| Knob | 1 × On/Off button |
| Sabotage alarm | Yes |
| Upgrade remotely | Cloud update |
| Low battery alarm | Yes |
| Test mode | Yes |
| Search Query | Signal strength detection |
| Carrier frequency | 868.0 MHz–868.6 MHz |
| Transmitter power (EIRP) | Limit 25 mW |
| Communication distance | Up to 1,200 m (3,937.01 ft) in open space |
| Communication mechanism | Two-way traffic |
| Frequency hopping | Yes |
| Encryption mode | AES128 |
| Power supply | CR123A battery |
| Power consumption | Max. 125 mW |
| Operating temperature | –10 °C to +55 °C (+14 °F to +131 °F) (indoor) |
| Operating humidity | 10%–90% (RH) |
| Product dimensions | 100.2 mm × 20.3 mm × 20.3 mm (3.94” × 0.82” × 0.80”) (L × W × H) |
| Packaging dimensions | 135.0 mm × 98.5 mm × 27.8 mm (5.31" × 3.88" × 1.09") (L × W × H) |

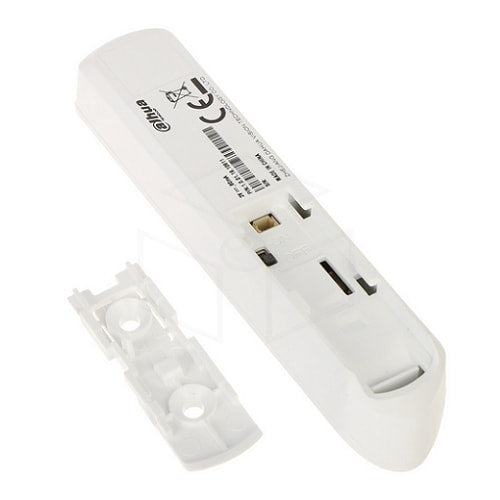

| Installation | Bracket mounting |
| Net weight | 70 grams (0.15 pounds) |
| Gross weight | 115 grams (0.25 pounds) |
| Certifications | CE EN 50131-1:2006+A1:2009+A2:2017+A3:2020 EN 50131-6:2017 EN 50131-5-3:2017 EN 50131-2-6:2008 Safety class 2 Environmental class II |
| Battery life | 4 years (The external input type is NO) 2 years (The external input type is NC or Pulse) |
| Casing material | PC + ABS |
| Measuring range | –15 °C to +65 °C (+5 °F to +149 °F) (indoor) |
| Precision measurement | ±1 °C (±1.8 °F) |
| Resolution | 1 °C (33.8 °F) |
| Sensor | Reed switch |
| Scenario | Non-metallic doors |
| Movement distance | < 40 mm (1.57") |
| External zone | 1 channel dry contact input |
