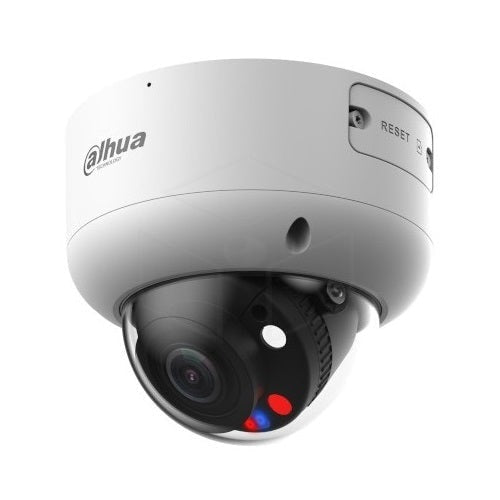

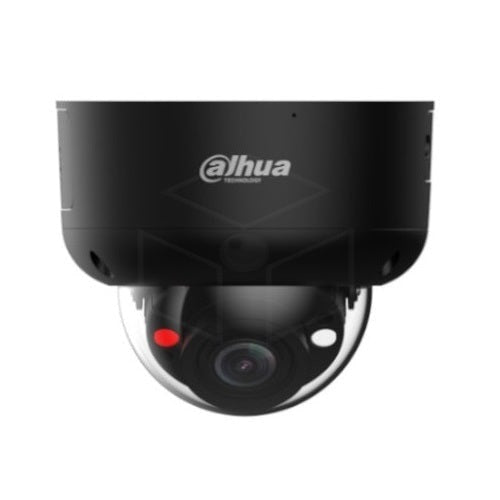

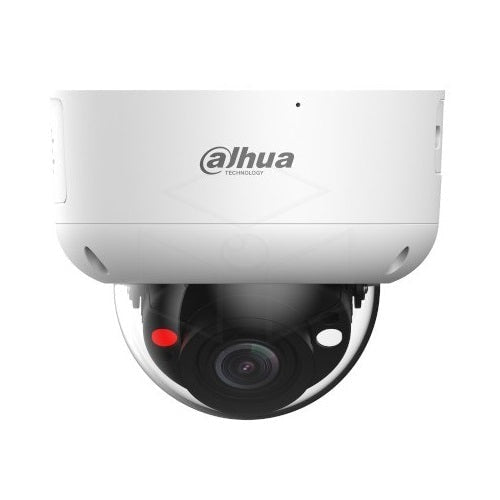

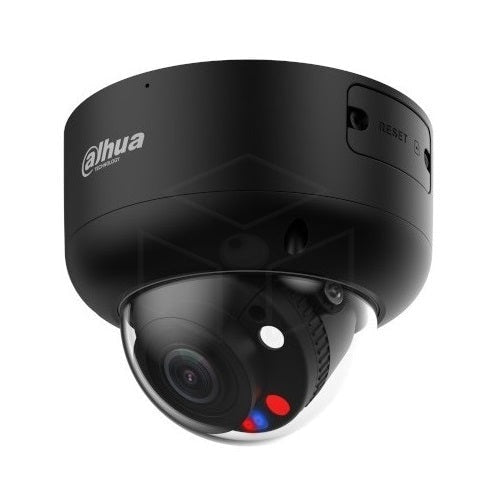

Dahua IPC-HDBW3549R1-ZAS-PV Dome 5MP with WizSense TiOC Camera
Product Description
This camera is part of the WizSense product line, an AI technology with deep learning algorithms, designed to recognize people and vehicles, but also to predict certain events. For example, WizSense technology allows a target/intruder to be detected quickly after an event, thanks to the use of active deterrence. In the event of an accident, users can be warned in real time via push notifications and informed of its cause.
The IPC-HDBW3549R1-ZAS-PV surveillance camera records at 5MP resolution and provides clear images rich in detail. The camera also benefits from a 2.7-13.5mm varifocal lens and has a viewing angle of 113°-36°.
Part of the Smart Dual Illuminators series, the camera captures full color images without light pollution to disturb the neighbors.
Dahua developed technology enables automatic turning on of the white light LED when motion is detected, to record clear and colorful images at a distance of 40 meters. Once the target is no longer in the monitored area, the camera turns off the white light and turns on the IR illuminator, thus capturing black and white images at a distance of 50 meters.
The quality of the images is also ensured by the WDR (Wide Dynamic Range) function, which evens out the brightness of the image to create a comprehensible level in both brightly lit areas and in areas with lower brightness.
IPC-HDBW3549R1-ZAS-PV is equipped with WizSense technology, which provides motion detection and classification of intruders in people or vehicles. The camera can filter out non-target objects such as animals or other objects to reduce false alarms. In addition, you can view the captured images live, directly from your mobile via the DMSS application. You will be informed of any changes thanks to push notifications sent directly to your phone and you can make various settings from the application.
With a built-in microphone and speaker, this camera also benefits from an audible and visual alarm (red and blue LED), to discourage people with bad intentions. This way, your home is protected from possible burglary attempts.
The camera also has a microSD card slot, on which you can store images. The maximum supported capacity is up to 256 GB.
The camera can be powered classically at 12V or via a PoE network cable, which simplifies the installation process as power supply and data transmission take place via a single cable.
In addition, the device has a hermetically sealed housing, classified with the IP67 index, for protection against water and dust. The camera's operating temperature is between -30°C and +60°C. In addition, the housing also benefits from IK10, which provides protection against vandalism.
The mobile application compatible with this camera is called DMSS and is available for free on the Google Play Store and the App Store.
Specifications
| Image sensor | 1/2.7" CMOS |
| Max. Solution | 2960 (H) x 1668 (V) |
| rum | 128 MB |
| RAM | 512 MB |
| Scanning system | Progressive |
| Electronic shutter speed | Automatic/Manual 1/3 s–1/100,000 s |
| Min. light | 0.003 lux@F1.0 (color, 30 IRE) |
| 0.0003 lux@F1.0 (black and white, 30 IRE) | |
| 0 lux (lights on) | |
| Lighting distance | Up to 50 m (164.04 ft) (IR) |
| Up to 40 m (131.23 ft) (warm light) | |
| Exposure on/off control | Automatic/Manual |
| Number of the lighting | 2 (IR LED) |
| 2 (warm light) | |
| Angle adjustment | Pans: 0°–360° |
| Tilt: 0°–90° | |
| Rotation: 0°–360° | |
| Type of lenses | Motorized varifocal |
| Mounting type | φ16 |
| Focal length | 2.7mm–13.5mm |
| Max. Opening | F1.0 |
| Field of view | Horizontal: 113°–36° |
| Vertical: 57°–20° | |
| Diagonal: 137°–40° | |
| Type of iris | Fixed |
| Close focus distance | 1.5 m (4.92 feet) |
| IVS (perimeter security) | tripwire; intrusion (supports accurate classification and detection of vehicles and people) |
| SMD 4.0 | Less false alarms, longer detection distance |
| Quick selection | AI NVR allows you to quickly select human/vehicle targets of interest to users at SMD events |
| Smart search | Work together with Smart NVR to refine smart search, event extraction and event video merging |
| Video compression | H.265; H.264; H.264H; H.264B; MJPEG (only supported by secondary stream) |
| Smart codec | Smart H.265+; Smart H.264+ |
| AI coding | AI H.265; AI H.264 |
| Video frame rate | Main stream: 2960 x 1668@(1fps–20fps)/2688 x 1520@(1fps–30fps) |
| Substream: 704 x 576@(1 fps–25 fps)/704 x 480@(1 fps–30 fps) | |
| Third stream: 1920 x 1080@(1fps–30fps) | |
| Resolution | 5M (2960x1668/2880x1620); 4M (2688x1520/2560x1440); 3M (2304x1296); 1080p (1920 x 1080); 720p (1280x720); D1 (704x576/704x480); CIF (352x288/352x240) |
| Day night | Auto (ICR)/Color/B/W |
| BLC | Yes |
| HIC | Yes |
| WDR | 120dB |
| Self-adjustment scene | Yes |
| white balance | Auto; Natural; Street lamp; Outdoor; Manual; Regional custom |
| Get control | Auto; manual |
| Noise reduction | 3D NR |
| Built-in microphone | Yes, built-in dual microphone |
| Built-in speaker | Yes, built-in speaker |
| Network | RJ-45 (10/100 Base-T) |
| SDKs and APIs | Yes |
| Cyber Security | Video encryption; firmware encryption; configuration encryption; digest; WSSE; account blocking; security logs; IP/MAC filtering; X.509 certification generation and import; system log; HTTPS; 802.1x; reliable boot; reliable execution; reliable upgrade |
| Protocol | IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTPs; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP; P2P |
| Interoperability | ONVIF (profile S; profile G; profile T); CGI |
| Browser | IE: IE8/9/11 |
| Chrome | |
| Firefox | |
| Management software | SmartPSS Lite; DSS; DMS |
| Audio input | 1 channel (RCA port) |
| Audio output | 1 channel (RCA port) |
| Alarm input | 1 input channel: 5 mA 3V–5 VDC |
| Alarm output | Output 1 channel: 300 mA 12 VDC |
| Power supply | 12 VDC/PoE (802.3af) |
| Energy consumption | Basic: 3.3 W (12 VDC); 4.7W (PoE) |
| Max. (H.265+mainstream/IR intensity+warm light on): 7.7W(12VDC); 9W(PoE) |
Download
Datasheet: Click here to download
