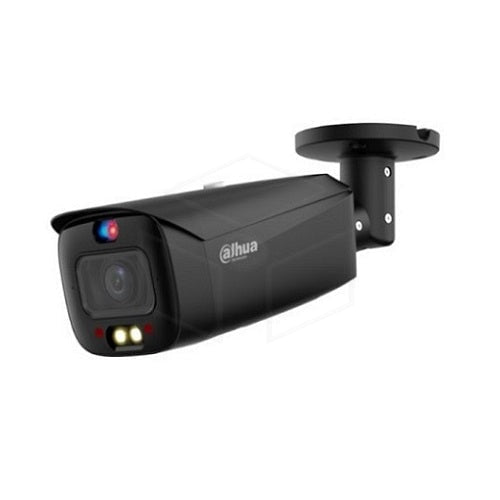

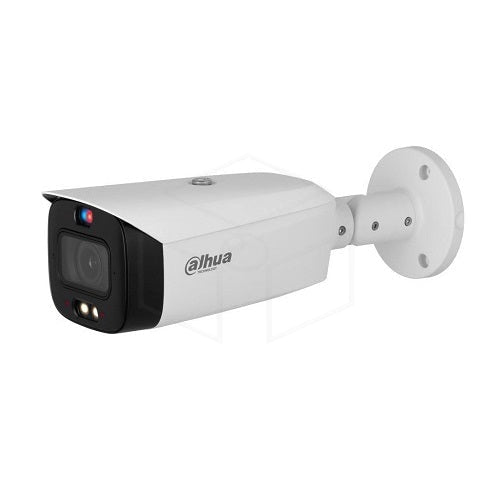

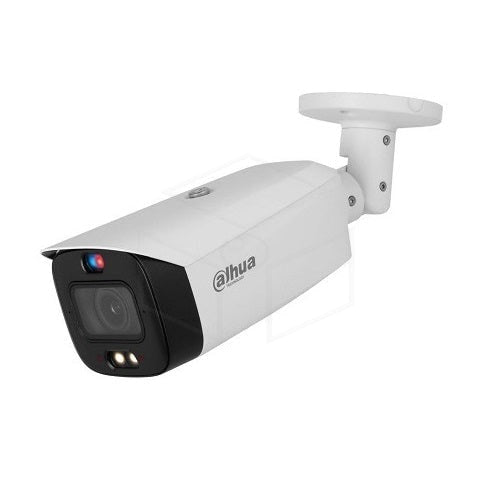

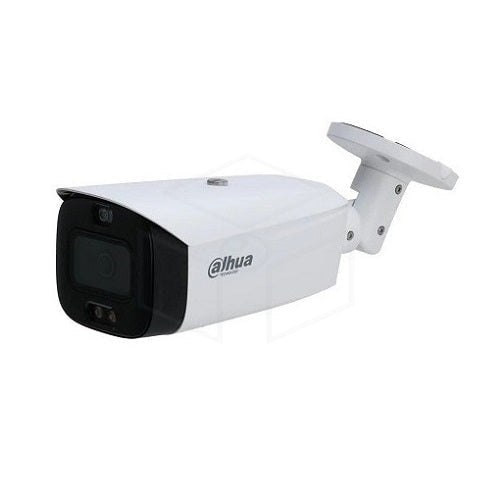

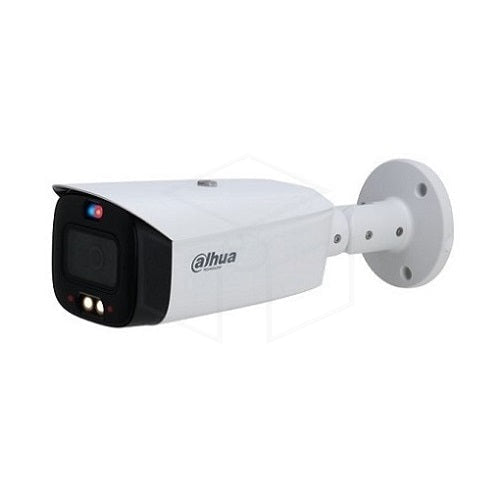

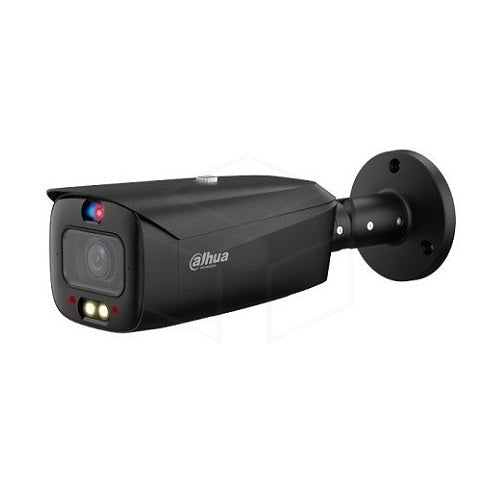

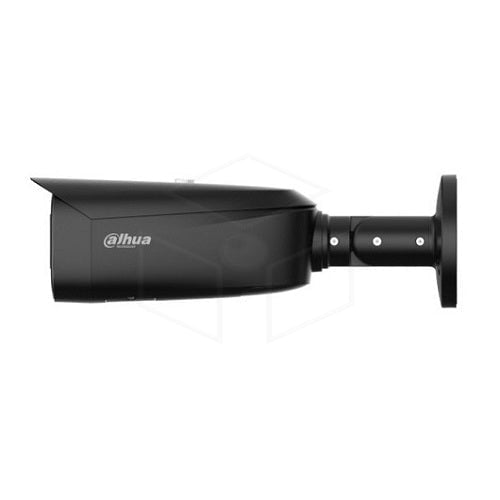

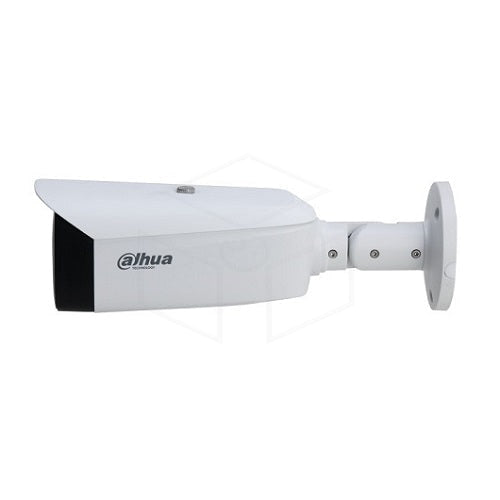

Dahua IPC-HFW3849T1-AS-PV-S4 Bullet 8MP with AI WizSense, TIOC Camera
Product Description
This camera is part of the WizSense product series, an AI technology with deep learning algorithms, designed to recognize people and vehicles, but also to predict certain events. Via WizSense technology, a target/intruder can therefore be detected quickly.
This also allows the demarcation of the area intended for surveillance, so that motion detection only occurs in the desired area. False alarms caused by other objects or animals will be significantly reduced.
The camera is also equipped with a microphone and speaker to provide audio information from the monitored location. In addition, it allows you to activate an optical and acoustic alarm to deter intruders and keep your home safe.
The surveillance camera has a resolution of up to 8 MP and provides clear images rich in details. It has a fixed 2.8 mm lens and a powerful 1/2.8" CMOS sensor.
This camera benefits from Intelligent Dual Lighting, allowing it to record full color without light pollution.
The function is developed by Dahua, it enables night illumination using IR LEDs when there is no target in the monitored frame. Once motion is detected in that space, the camera will automatically turn on the white LEDs to record the color video. The images can be captured at a distance of 30 meters at night.
Since the camera is equipped with a microphone and speaker, it enables bidirectional communication with the people in the monitored area and at the same time video recording benefits from the audio part.
Images and recordings are stored on the microSD card, because the camera is equipped with a slot for it. The maximum supported capacity is up to 256 GB.
The camera can be powered both classically on 12V and via a PoE network cable. This cable enables both power supply and data transmission.
The camera has a hermetically sealed housing with the IP67 index. This guarantees protection against external factors such as water or dust.
The mobile application compatible with this camera is called DMSS and is available for free on the Google Play Store and the App Store.
Specifications
| Image sensor | 1/2.8" CMOS |
| Maximum resolution | 3840 (H) × 2160 (F) |
| Scanning system | Progressive |
| Electronic shutter speed | Auto/Manual 1/3 s–1/100,000 s |
| Minimum lighting | 0.004 lux@F1.0 (Color, 30 IRE) 0.0004 lux@F1.0 (B/W, 30 IRE) 0 lux (illuminator on) |
| S/N ratio | >56dB |
| Lighting distance | Up to 30 m (IR) Up to 30 m (warm light) |
| Lens type | Fixed-focal |
| Focal length | 2.8 mm |
| Field of view | 2.8mm: H: 106°; V: 55°; D: 125° |
| Number of the lighting | 2 (IR LED) |
| Pan/Tilt/Rotation Range | Pan: 0°–355°; Tilt: 0°–80°; Rotation: 0°–355° |
| Port | Audio Input 1 channel (RCA port) Audio Output 1 channel (RCA port) Alarm Input 1 channel in: 5mA 3V–5 VDC Alarm Output 1 channel out: 300mA 12 VDC |
| Certifications | CE-LVD: EN 62368-1; CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU; FCC: 47 CFR FCC Part 15, Subpart B; UL/CUL:UL62368-1 & CAN/CSA C22.2 No. 62368-1-14; |
| Current | Basic: 4.5 W (12 VDC); 5.5W (PoE) Max. (pulling stream+warning light+speaker+warm light on): 7.6 W (12 VDC); 9.1W (PoE) |
| IVS (perimeter security) | Tripwire, Intrusion (supports classification and accurate detection of vehicle and human) |
| AI SSA | Yes |
| Compression | Video: H.265; H.264; H.264H; H.264B; MJPEG (only supported by the substream) Audio: G.711a; G.711Mu; PCM; G.726; G.723 |
| Smart codec | Smart H.265+; Smart H.264+ |
| Video frame rate | Main stream: 3840 × 2160@ (1 fps–30 fps) Sub stream: 704 × 576@ (1 fps–25 fps)/704 × 480@ (1fps–30 fps) Third stream:1920 × 1080@ (1 fps–30 fps) |
| Resolution | 8 MP 3840 (H) × 2160 (F) |
| Bit rate control | CBR/VBR |
| Day night | Auto(ICR)/Color/B/W |
| BLC | Yes |
| HLC | Yes |
| WDR | 120dB |
| Scene Self-Adjustment (SSA) | Yes |
| Area of Interest (RoI) | 4 areas |
| Privacy Masking | 4 areas |
| Network port | RJ-45 (10/100 Base-T) |
| Protocol | IPv4; IPv6; HTTP;TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP |
| Interoperability | ONVIF (Profile S/Profile G/Profile T); CGI; P2P; Milestone; Genetec |
| Storage | FTP; SFTP; Micro SD card (support max. 256G); NAS |
| Browser | IP: IE11 Chrome Firefox |
| Mobile client | iOS; Android |
| Material | Metal + plastic |

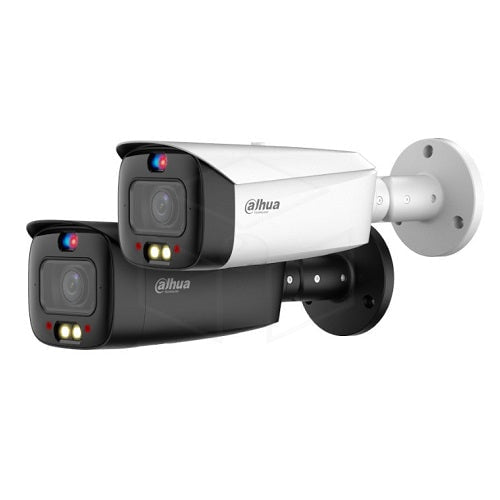

| Colour | White / Black |
| Dimensions | 288.4mm × 94.4mm × 84.7mm (L × W × H) |
| Weight | 1.0 kg |
| Operating temperature | –40 °C to +60 °C (–40 °F to +140 °F)/Less than 95% RH |
| Store temperature | –40 °C to +60 °C (–40 °F to +140 °F) |
| Protection | IP67 |
Download
Datasheet: Click here to download
