Dahua LR1002-1EC Single-Port Long Reach Ethernet over Coax Receiver
Product Description
Dahua has released an innovative device DH-LR1002-1EC to transmit video signal to external devices through IP coaxial line, which can safely receive Ethernet data using IEEE802.3, IEEE802.3u or IEEE802.3x protocols, and PoE protocols IEEE802.3af and IEEE802.3at for power supply, thanks to the latest technologies. When establishing a network, RG59 coaxial cable is used, which adopts MDI/MDIX self-diagnosis.
DH-LR1002-1EC receiver for signal conversion from RJ45 interface to BNC interface.

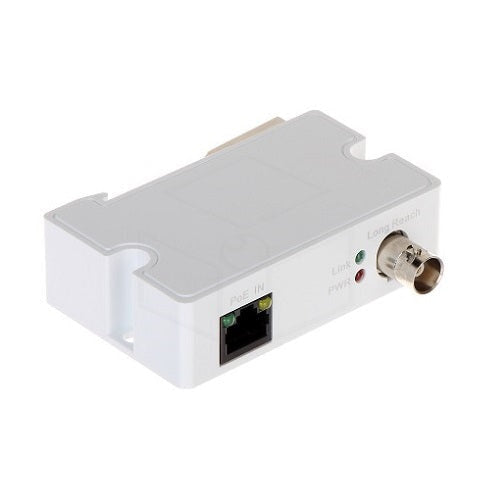

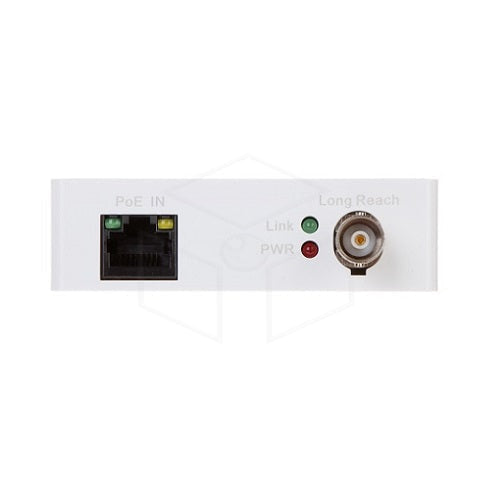

Quality video comes from a transmitter with minimal distortion at a considerable distance of 1000 meters at 10 Mbps or 400 meters at 100 Mbps. This model is equipped with a BNC connector on the input and an RJ45 Base TX connector on the output. The RJ45 connector has dual yellow and green indicators, and there are Link and PWR indicators near the BNC port.
The device is easy to install and maintain. The industrial design of white plastic housing ensures high reliability at the working temperature of -30℃ to +65℃ with relative humidity of 5% ~ 95%. The model consumes power ≤2W. The receiver and transmitter are identical and equipped with lightning protection.
Specifications
Datasheet: Click here to download
