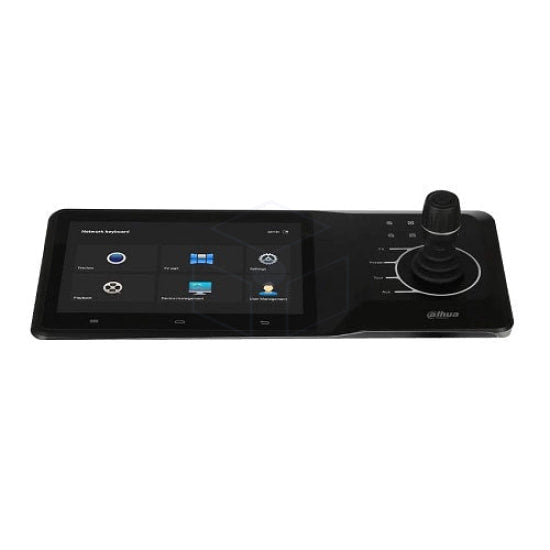

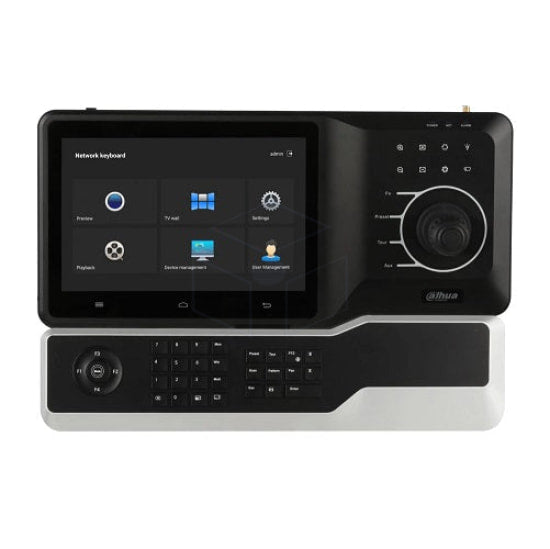

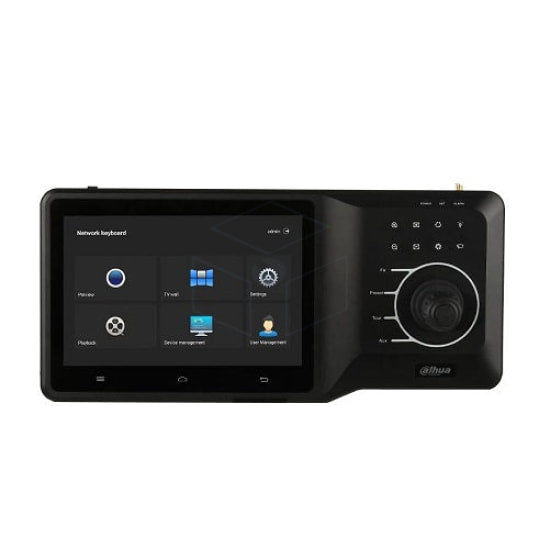

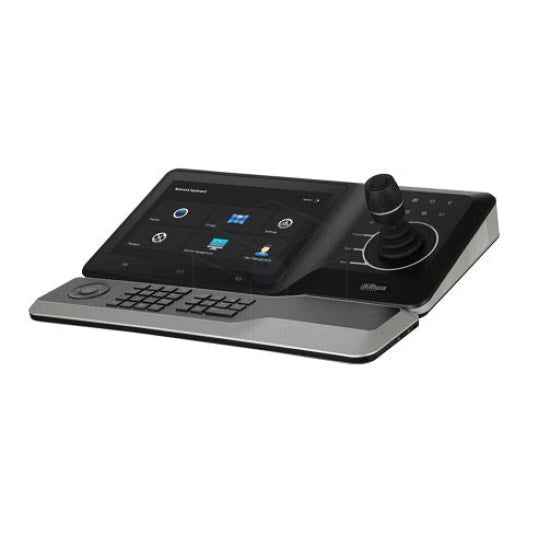

Dahua NKB5200-F Dahua Android Network Control Keyboard
Regular price
€1.150,00
Tax included.
Shipping calculated at checkout.
Product Description
NKB5200-F is a new version of the Dahua control keyboard, which is used to control the operation of professional video surveillance systems. The network desktop provides fast and seamless communication with Dahua network speed dome cameras. The device is characterized by a modern design and a very high functionality. The DH NKB5200 F control keyboard from Dahua is perfect for large and complex CCTV surveillance systems. This is due to its very high functionality and the ability to control many devices simultaneously. It is used in security rooms and gives the observer easy control over the system and ensures that the camera can quickly perform the right maneuver if something suspicious is detected.
Specifications
| Model | NKB5200(-F) |
| Main processor | huge processor |
| Operating system | ANDROID 7.1 |
| Video output | 1-channel VGA or 1-channel HDMI (expansion encoding screen 720P resolution) |
| Type of current | H.265, H.264 |
| Decoding capability | 1CH@4K (30fps) / 4CH@1080P (30fps) / 9CH@720P (30fps) |
| Joystick | 4D joystick |
| Split screen | 1/4/9 splits, MxN splits |
| Screen | 10.1" TFT LCD touch screen (1280*800) |
| Audio control | 1× volume button, 1× mute button and touchscreen control |
| Loudspeaker | 1 speaker to play audio |
| Audio input | 1-channel 3.5mm |
| Audio output | 1-channel 3.5mm |
| Loudspeaker | 1 for audio playback |
| Network interface | 1×RJ-45 port (10/100/1000M), WLAN |
| USB connection | 1 USB3.0, 2 USB2.0 |
| RS485 | 1 for ptz control support PELCO |
| Maximum number of users | 32 (including 'administrator') |
| Max. RS485 addresses (each user) | 8 |
| Max. number of PTZ (IPC) that can be added via network (each user) | 10000 |
| Access Protocol | Dahua Private Protocol |
| Wireless frequency range | 2.4GHz 5GHz |
| Wireless transmission speed | 150 Mbps |
| Power supply | 12 VAC 4A max adapter, POE |
| Power consumption | < 48 W |
| The working temperature | -10°C ~+55°C |
| The work Humidity | 10% ~ 95% |
| Size | Host: 425mm x 194mm x 59mm (W×D×H) (excluding joystick) Mini board keys: 421 mm x 105 mm x 26 mm (W×D×H) |
| Gross weight | 3.85 kg (NKB5200 excluding package) 4.22 kg (NKB5200-F excluding package) |
| Net weight | 1.90 kg (NKB5200 excluding package) 2.36 kg (NKB5200-F excluding package) |
Download
Datasheet: Click here to download
