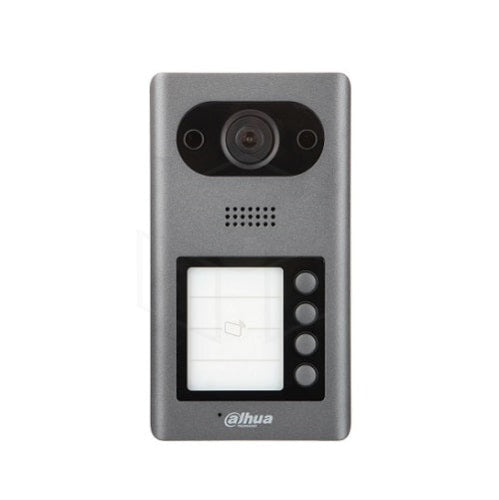

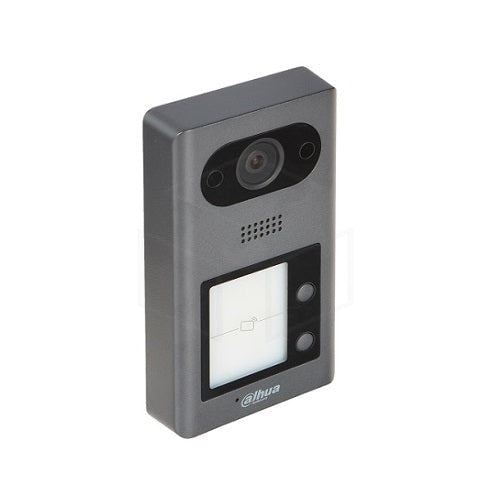

Dahua VTO3211D-P1/P2/P4-S2
Product Description

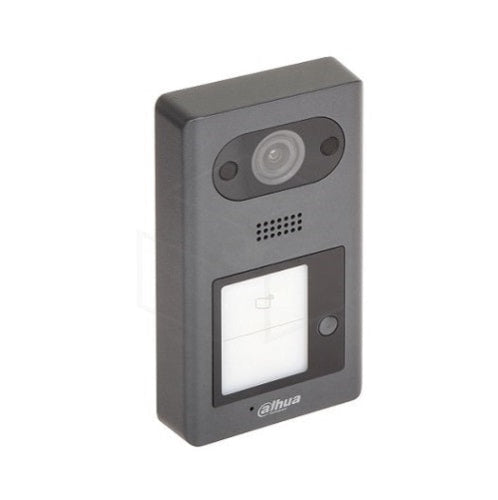

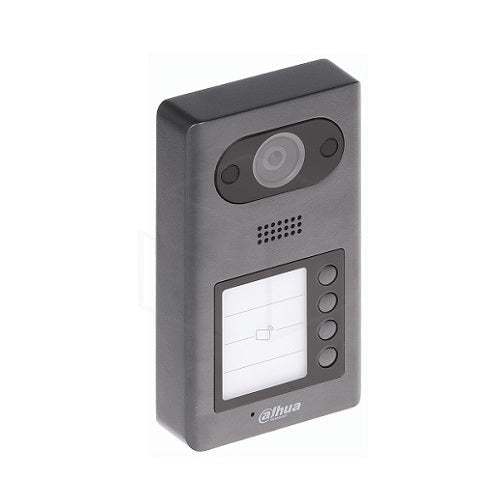

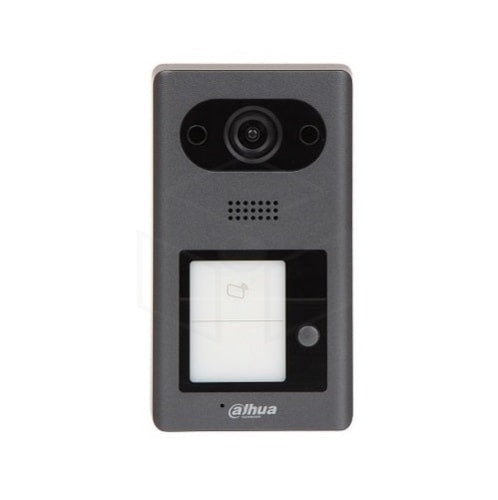

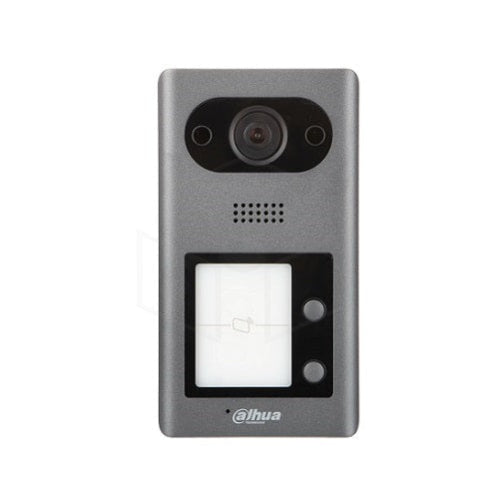

VTO3211D-P1/P2/P4-S2 is a modern door station, which is used to operate as a part of Dahua video intercom systems. The device is designed for the implementation of day and night access control, for example in single-family homes. The aesthetic appearance of the housing, emphasized by the modern design of the front panel, guarantees easy adaptation of the device to the existing architectural style of the target installation location.

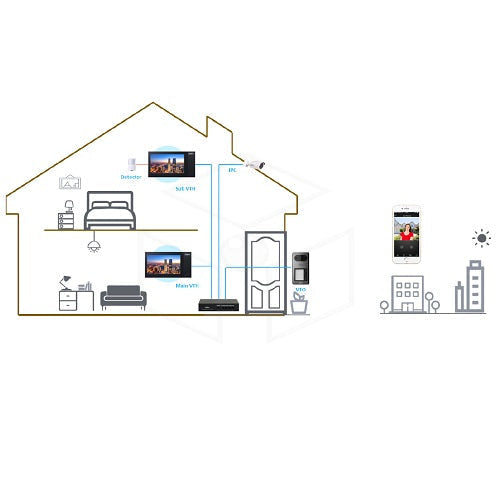

The Dahua video intercom system is a complete solution for quick and easy implementation of video access control structures. The devices available in the manufacturer's offer allow to create both single-subscriber and multi-family video intercom installations operating in TCP/IP, SIP technology.
Dahua video intercoms allow the use of an internal intercom and direct conversations with other monitor units located in a common installation. The devices also allow for quick viewing of the image of gate stations, automatic archiving of the image of visitors, independent assignment of access to the premises, remote view of IP CCTV cameras, as well as expansion of the installation with the properties of other security system devices. Control of the video intercom can be done from the monitor, as well as the application environment installed on the computer and mobile phone.
More features
- door station for single or multiple subscribers
- Sensor: 1/2.8" 2MP HD CMOS
- Lens: 1.9mm (viewing angle approx. 129°/74°)
- backlight: IR LEDs (automatic)
- mechanical call button
- Communication interface: 1x RJ45 Ethernet 10/100Mbps
- interface: 1x RS485, 1x electric lock, 1x alarm input, 1x alarm output, exit button, status signaling
- Mifare 13.56 MHz transponder reader
- built-in web service 2.0
- possible operation in stand-alone mode (without monitor)
- collaboration with CCTV and SSWiN systems
- Compatible: TCP/IP, SIP 2.0, Onvif, P2P
- built-in voice prompts for easy operation
-
processing speed and resolution:
- 25/30 fps for 1920x1080 (2Mpx) - substream
- 25/30 fps for 1280x720 (720p)
-
management and configuration:
- VDPConfig, Smart PSS, DSS Express, DSS PRO
- web browsers: IE (Web Service 2.0)
- mobile devices with the following systems: iOS, Android (DMSS)
- protection class (IP65), resistance class (IK08) *
- Power supply: DC 12V or PoE 48V (802.3af)
Download
Datasheet: Click here to download
