Ezviz HP7, 2K Smart Home Video Door Phone
Product Description
The EZVIZ HP7 video door phone is designed to provide an extremely large and clear image all day long. The intercom has a 162-degree viewing angle and a 2K resolution lens, making it easy to detect the silhouette of a man approaching the apartment.
The HP7 intercom camera also allows night observation up to 5 meters infrared, providing peace and security 24 hours a day. In addition, the device facilitates the control of the passage thanks to additional security in the form of visual verification of guests and three ways to open the door or gate: using a proximity key fob, from the internal screen and via the EZVIZ application.
Built for your comfort
EZVIZ HP7 offers better protection compared to ordinary intercoms thanks to its intelligent motion detection system. Once the video intercom detects human activity at the gate or door, it will immediately send a notification of the presence of guests. The device allows you to adjust the sensitivity and set the motion detection zone by yourself.
The intercom is also equipped with an all-in-one monitor that allows two-way communication with people standing at the entrance to the apartment. The remote opening function provides convenient operation, and the HP 7-inch color touchscreen7 ensures efficient installation and operation of the intercom. In addition, the device has a voice changer function, which gives you a sense of comfort and anonymity in case of contact with strangers, as well as saving important video recordings.
Why is two-way communication from application level so important today? We often use the delivery of orders, but we can’t always stay at home and wait for the courier all day. Thanks to the EZVIZ HP7 video intercom, we don’t have to give up our plans. If the supplier comes to us when we are not there, we can use the EZVIZ HP7 to inform you where to leave the shipment.
Stable connection and multi-level security
To ensure optimal connection between devices and better performance, the EZVIZ HP7 allows you to connect an external monitor to the 2.4 or 5 GHz Wi-Fi band. It also features H.265 file storage technology that reduces recording size by up to 50% and delivers sharp image quality. Recorded videos can be saved to a microSD card with a capacity of up to 512 GB or to the EZVIZ CloudPlay cloud.
The EZVIZ HP7 is designed to protect users' data and privacy with respect. This model allows you to set a no-movie zone to ensure that recording only occurs when appropriate and permitted. EZVIZ has obtained DNV certification m.in for Information Security (ISO/IEC 27001:2013), Personal Data Protection (ISO/IEC 27701:2019) and Cloud Security (CSA STAR).
Key Features

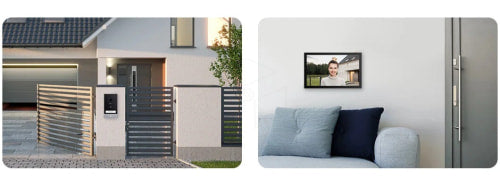

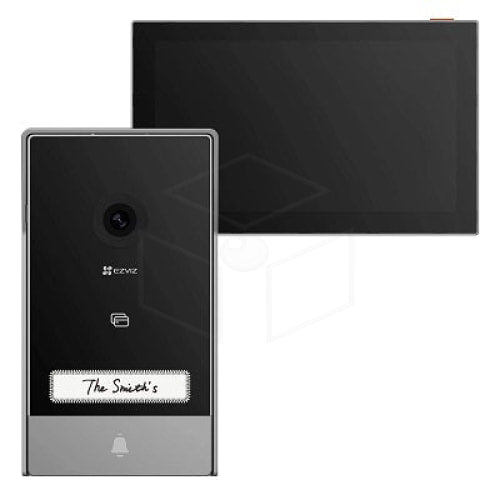

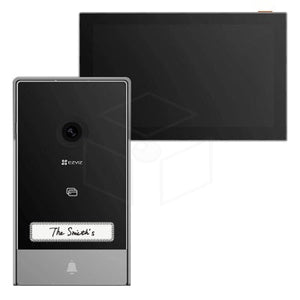

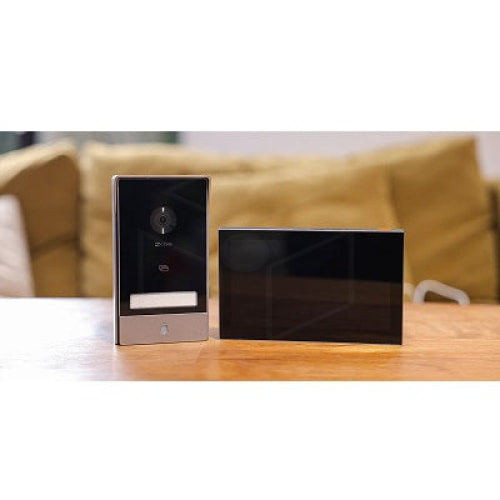

- Replace your current intercom with this HP7 and you are completely up-to-date again. This stylish set combines a 2-in-1 video doorbell for outside with a large monitor for inside and fits easily into any home style
- Easy to operate, even remotely. Open the door with a smart RFID tag, with the monitor or use the Ezviz app

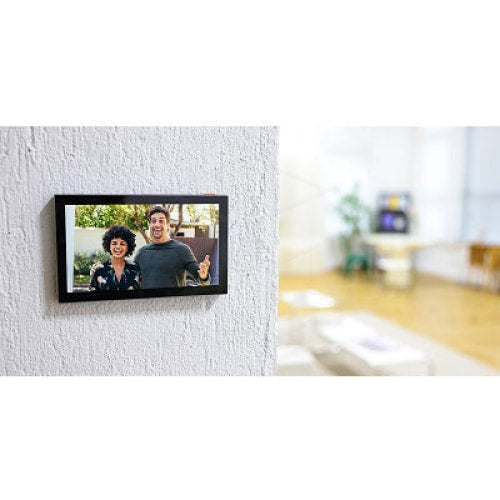

- The 7-inch colour touchscreen lets you set up and manage your outdoor door intercom, respond to visitors and save important video clips. Every time a visitor rings the doorbell, the indoor screen automatically lights up to let you know who is outside
- Ultra-wide, clear view, day or night. With a 162-degree viewing angle and a 2K lens, you can easily see a mailman from head to toe without grainy or blurry details
- Smart human motion detection. When HP7 detects human activities at the front door, it will send a notification to your smartphone. You can always update the sensitivity and detection zone as you like
- Useful additional features such as nameplate backlight and customizable ringtones
- Elegant design
- Stable dual-band connection
- Storage possible on micro SD card up to 512GB (not included) or Ezviz CloudPlay
Specifications
Image Sensor | 1/2.7" Progressive Scan CMOS (supports low light sensitivity) |
Lens | 2.0 mm @ F2.2, view angle: 162° (Diagonal) |
Day&Night | IR-cut filter with auto-switching, 850 nm infrared light x2 (max. 6m) |
Max resolution | 2048 x 1296 |
DNR | 2D/3D-DNR |
Video compression | H.264/H.264 |
Frame rate | Max: 15fps; self-adaptive during network transmission |
Connection and function | |
Connection Method | Wired connection (2-Wired, capable with 4-Wired), digital signal transmission |
Transmission Distance | Φ 2 x 0.75mm² , max. 50m Φ 2 x 1.5mm² , max. 100m Twisted pair, max. 120m |
Open the door (Gate) | Support 2 wiring ports. 1-10m distance. The intercom panel provides a “dry”-contact connection, without an electric current, to connect to the button for automated gate, gate breaking capacity: 12V / 2A |
Unlock (Electric strike plate) | Support 2 wiring ports. 1-10m distance. The electric strike plate or lock that you order must have a mechanical memory; the power supply to the electric strike plate or lock must not exceed 12V / 1.1A, otherwise should do as user manual |
By Open Methods | 1.RFID badge unlock (Badges × 3pcs) 2.App remote unlock 3.Indoor display unlock |

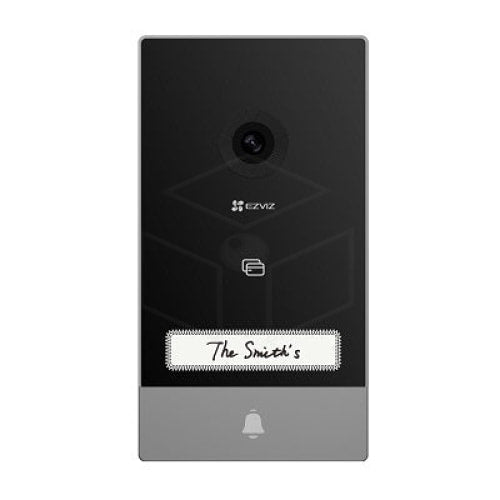

Outdoor Doorbell interface | |
Audio input | Built-in high-sensitivity microphone |
Audio output | Built-in high-power speaker |
Doorbell button | Yes. The light can be set on or off |
Name card | Three handwritten name cards in total (one already on the intercom panel). The light can be set on or off |
Terminal | Two wiring ports to connect screen. Two wiring ports to connect gate. Two wiring ports to connect electric strike plate |
Functions | |
Intelligent Alarm | Smart human motion detection, Lingering Detection |
Tamper Alarm | Supports |
Video intercom | Long-distance video two-way talk |
General | |
Operation conditions | -30° to 60°C, humidity 95% or less (non-condensing) |
IP Grade | Waterproof, with shield cover |
Size | 161 × 87 × 20 mm |
Interior display | |

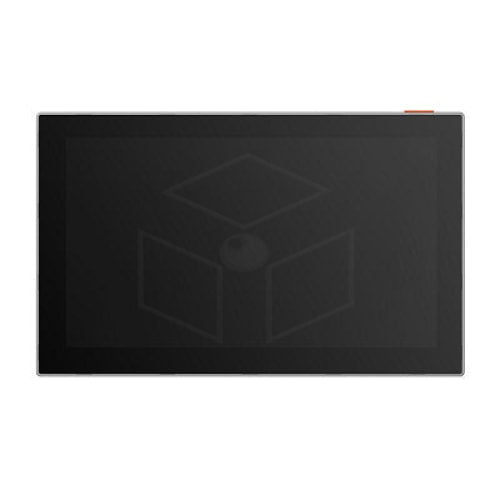

Display size | 7" touch screen |
Resolution | 1024x600 |
Interface | |
Audio input | Built-in high-sensitivity microphone |
Audio output | Built-in high-power speaker |
Button | Screen on/off button |

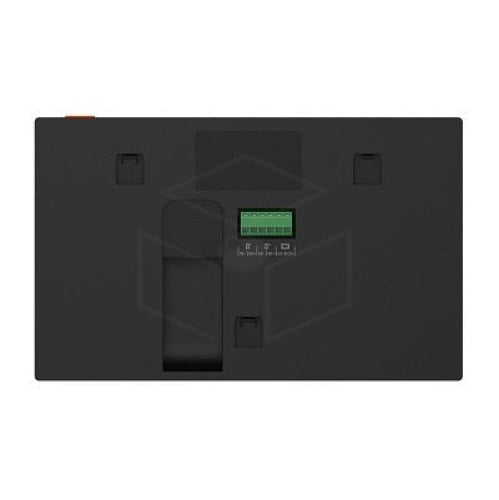

Terminal | Two wiring ports to connect 1st outdoor doorbell. Two wiring ports to connect 2nd outdoor doorbell. Two wiring ports to connect extra interior screen (not included in the kit) |
Storage | Supports microSD card up to 512 GB Supports EZVIZ Cloud storage |
Network parameters | |
Protocol | Ezviz Cloud Proprietary Protocol |
Interface protocol | Ezviz Cloud Proprietary Protocol |
Protocol | Ezviz Connect Protocol |
WiFi parameters | |
WiFi standard | IEEE802.11b, 802.11g, 802.11n, 802.11ac |
Frequency range | 2.4G: 2.4GHz ~ 2.4835GHz 5G: 5.15GHz ~ 5.25GHz |
Channel bandwidth | Supports 20MHz |
Security | 64/128-bit WEP,WPA/WPA2, WPA-PSK/WPA2-PSK |
Transmission rate | 11b: 11Mbps, 11g: 54Mbps, 11n: 150Mbps, 11ac: 433.3Mbps |
Function | |
Multiple ringtones | Up to 20 ringtones |
Functions | Live view, playback, two-way talk, video call |
General | |
Operation conditions | -10°C to 45°C, humidity 95% or less (non-condensing) |
Weight | 855 gr |
Size | 180 x 111 x 15mm |
Power supply | DC 24V / 1.5A power supply, adapter (100-240Vac) |
Power consumption | 8W, Max 24W |
In the box | Monitor Wall bracket for monitor Power adapter for monitor Drill template for monitor Intercom panel Screwdriver Badges (x3) Wires and wire connectors Screw kit (x2) Name card (x2) Regulatory Information (x2) Quick Start Guide |
Certification | CE / REACH / WEEE / RoHS |
