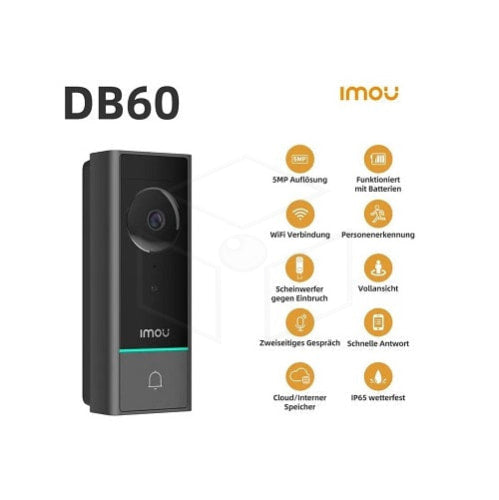

Imou DB60 Kit, 5MP smart doorbell set
Product Description

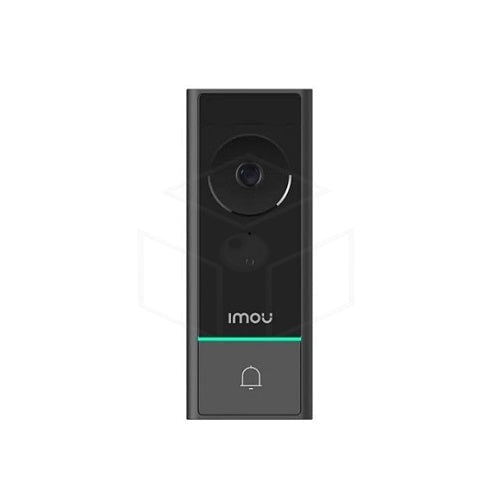

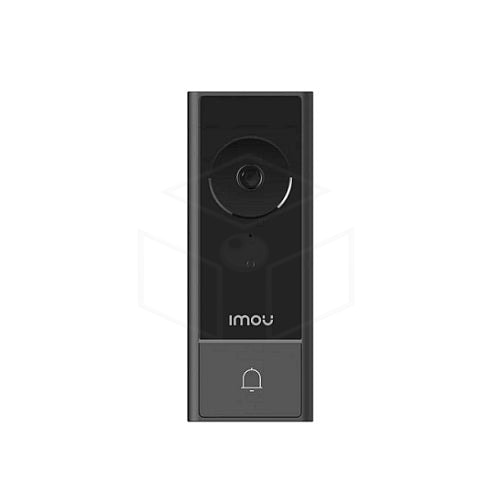

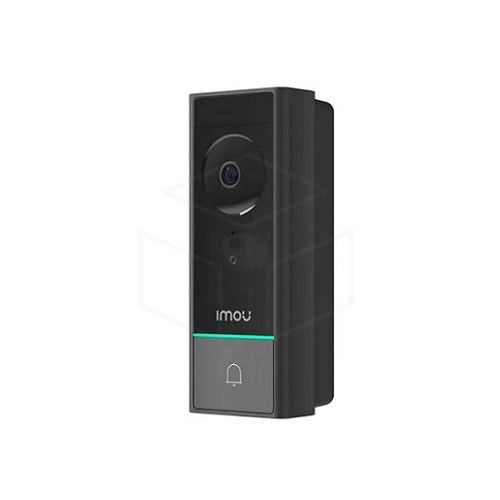

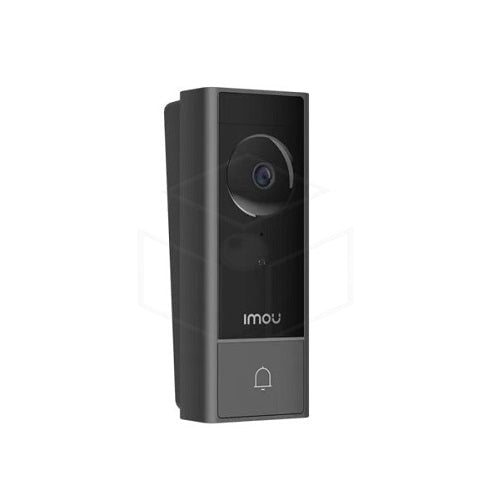

The DB60 offers 5MP live monitoring with a 5M sensor. The 6200mAh battery ensures that the doorbell can last up to 6 months. The DB60 is able to capture more details with the 164° fisheye lens. It supports night vision mode for daylight clarity even in pitch-black environments. Thanks to the IP65 certification, the doorbell can be used outdoors in various weather conditions. In addition, it is equipped with a smart night light that can be used in motion detection to scare away unwanted visitors. Bell is a wireless indoor chime that replaces mechanical or electronic bells. Connect to your home Wi-Fi and connect the doorbell at home. When the guest presses the bell button on the doorbell, the bell will ring to remind you. At the same time, it can be used as an IMOU DB60 doorbell repeater.
Key Features
- 5 Megapixel QHD photos and videos
- The DB60 doorbell set consists of a doorbell (DB60) and a gong (DS21) that can also be used as a WiFi repeater
- The built-in rechargeable battery (6200mAh) has a long lifespan of approximately 6 months
- With the fish-eye lens you have a 164° viewing angle, for more details
- The doorbell has excellent night vision, even in pitch darkness

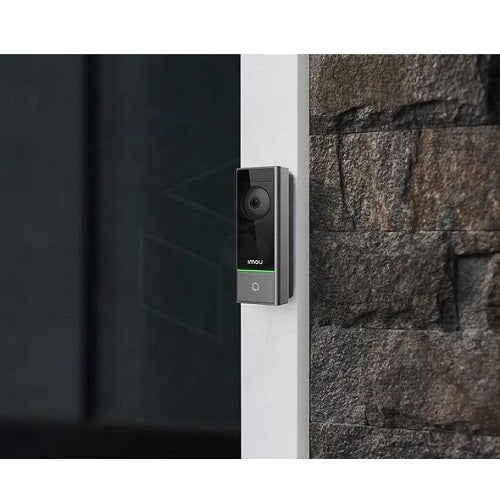

- The doorbell is IP65 certified which means it is resistant to heat, cold, rain and sun. The DB60 can therefore be placed outside in these different weather conditions
- In addition, it has a smart night light, useful for deterring unwelcome visitors
- The built-in microphone and speaker allow you to talk and listen to friends and family or the postman
- DB60 works with Smarthome devices such as Alexa
- The doorbell supports person detection and motion detection, and you can set detection areas
- You can use local storage on the internal 4GB storage card (eMMC, non-removable) or you can use Imou Cloud

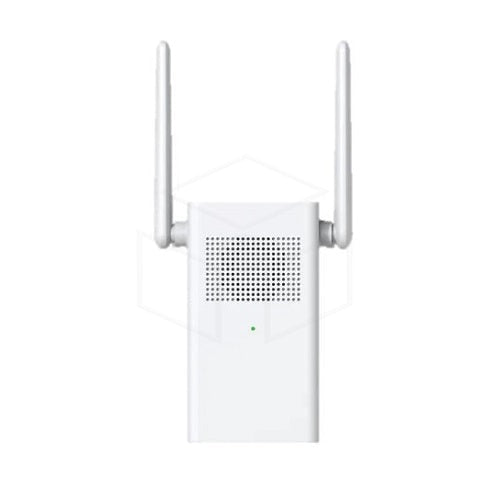

- The wireless DS21 Gong can be used to replace the existing gong
- You connect the DS21 to your WiFi and then the doorbell. As soon as someone presses the doorbell, the gong will go off to warn you
- DS21 has 2 antennas for greater range
- The DS21 can also be used as a WiFi repeater/amplifier
Specifications
Type of power source | USB |
Input voltage | 12 - 24 V |
Power consumption | 700 mA |
Dispatch | 5 W |
DC voltage input | 12 - 24 V |
Battery type | Built-in battery | |
Battery capacity | 6200 mAh |
USB charging port | Yes |

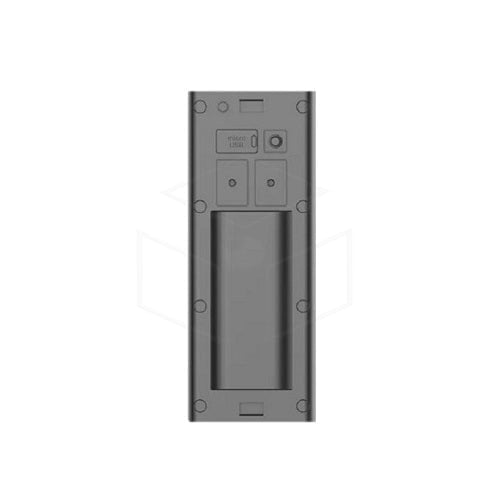

USB port type | Micro USB B |
Battery voltage (transmitter) | 240 v |
Transmitter width | 5.2 cm |
Transmitter depth | 9.5 cm |
Transmitter height | 2.8 cm |
Transmitter weight | 230 gr |
Color of the product | Black |
Best use | At home |
Number of push buttons included | 1 piece(s) |
Motion sensor supported | Yes |
Human detection | Yes |
Audio system | 2-way |
Antennas quantity | 2 |
Certification | CE EMC, CE RED, CE LVD, FCC, FCC ID, IC, ICID |
Operating temperature (TT) | -20 - 50 °C |
Operating temperature (transmitter) | -10 - 50 °C |
Operating relative humidity (RH) | 0 - 95 percent |
Built-in camera | Yes |
Megapixels | 5 MP |
Maximum video resolution | 2560 x 1920 Pixels |
Maximum frame rate | 15 fps |
Image sensor type | CMOS |
Fixed focal length | 2mm |
Field of view | 164° |
Night vision | Yes |
Night vision distance | 5 m |
Built-in microphone | Yes |
Built-in speakers | Yes |
Echo cancellation | Yes |
Call notifications | Yes |
Supported audio format | AAC |
Supported video formats | H.265 |
Reset button | Yes |
Transmitter reset button | | Yes |
Clutch button | Yes |
Connectivity technology | Wireless |
Wifi | Yes |
Wi-Fi standards | 802.11b, 802.11g, Wi-Fi 4 (802.11n) |
Frequency | 2400 MHz |
Supported mobile operating systems | Android, iOS |
