Milesight MS-C2961-REPB Mini PTZ Bullet 2MP H.265
Regular price
€739,00
Tax included.
Shipping calculated at checkout.
Product Description
This AI-equipped camera provides 360° security coverage and reliable automatic response to improve the operational efficiency of security tasks.
In addition to excellent artificial intelligence functions, it supports intelligent PTZ tracking based on advanced motor mechanisms to realize pan/tilt/zoom movements to automatically track the moving object, which is the right choice for those who demand higher security requirements.

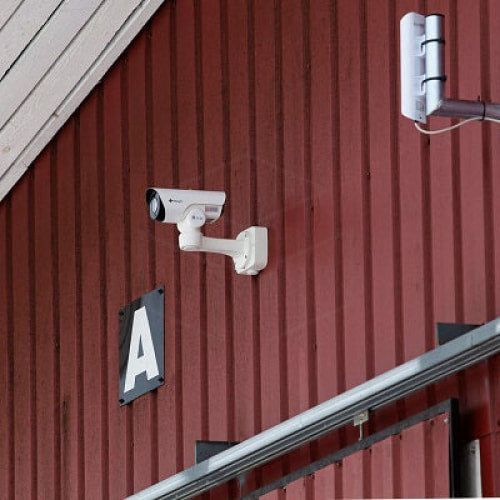

With the toughness of bullet cameras and PTZ function, this camera is especially suitable for outdoor surveillance, such as gate monitoring, parking lots, intersections, tourist attractions and perimeter monitoring.

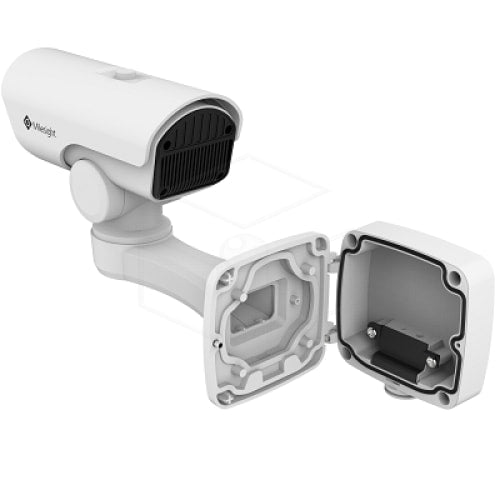

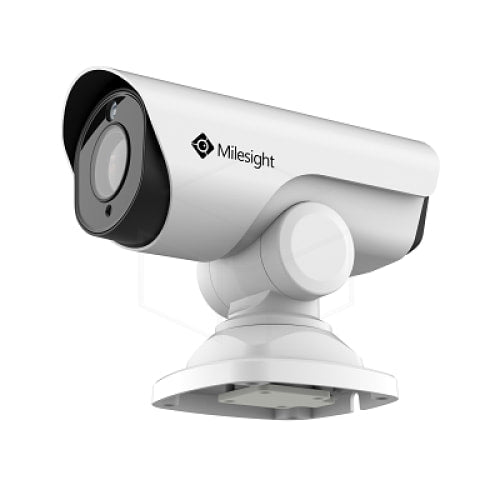

With two installation modes of wall mounting and pedestal mounting, the PTZ camera meets different installation needs for different application scenarios.
Specifications
| Resolution | 2MP (1920x1080) |
| Camera image sensor | 1/2.8" Progressive Scan CMOS |
| Minimum lighting | B/W: 0Lux with IR on Color: 0.002Lux @F1.2 Color: 0.005Lux @F1.6 |
| Wide Dynamic Range (WDR) | 140dB SuperWDR |
| Shutter speed | 1/100000s∼1s |
| Day/Night Mode | Day/Night/Auto/Customize/Schedule |
| Digital Zoom | 16X |
| Signal to Noise Ratio (S/N) | Greater than 55 dB |
| IR distance | Up to 140m |
| Lens | 5.3~64mm, 12X Optical Zoom |
| Zoom Speed | Approx 4s (Wide-Tele) |
| Lens field of view | H61°~H5°/D69°~D5°/V36°~V2° |
| Video Maximum image resolution | 1920x1080 |
| Primary video stream | 120fps@(1920x1080)(Optional for Q Series), 90fps@(1920x1080)(Optional for T Series), 60fps@(1920x1080)(Optional for R Series), 30fps@(1920x1080, 1280x960, 1280x20, 704x576) |
| Video secondary stream | 30fps@(704x576, 640x480, 640x360, 352x288, 320x240, 320x192, 320x180) |
| Video Tertiary stream | 30fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240, 320x192, 320x180) |
| Video compression |
H.265 +/H.265(HEVC)/H.264 +/H.264/MJPEG |
| Video bit rate | 16Kbps∼16Mbps (CBR/VBR adjustable) |
| Max. Vehicle Speed | 200km/h |
| Recognition Accuracy | >95% |
| Coverage | Support simultaneous detection of 4 regions |
| Vehicle Detection | Support vehicle direction detection |
| White/Black List | Up to 1000 records inside the camera |
| Pan Range/Pan Speed | 360°endless / Pan Manual Speed: 0.1°~50°/s, Pan Preset Speed: 50°/s |
| Tilt Range/Tilt Speed | -45°~30° / Tilt Manual Speed: 0.1°~25°/s, Tilt Preset Speed: 25°/s |
| Proportional Zoom | Support |
| Preset Quantity | 300 |
| Patrol | 8 Patrols, up to 48 presets each patrol |
| Pattern | 4 Patterns |
| Auto Tracking | Support |
| Power Off Memory | Support |
| Other Function | Auto Scan, Auto Home, Preset Freezing, 3D Positioning, PTZ Limits, Initial Position |
| Video Privacy Masking | Maximum 24 areas |
| Area of Interest (ROI) | Maximum 8 areas |
| Video image settings |
AAC G.711 G.722 G.726 |
| Audio bit rate | 16~256 kbps |
| Two-way audio | Support |
| Intelligent video analysis |
Advanced motion detection Line Crossing Hanging object Left object deleted Region entrance Region exit Sabotage detection |
| Ethernet interface | 1*RJ45 10M/100M Ethernet port |
| Network protocols | IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, UPnP, Bonjour, SIP, SNMP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL |
| Power input | PoE (802.3at) (Optional) / DC 12V/2A±10% |
| Energy consumption | DC 12V power supply: 10.5W MAX / 15W MAX (With IR on) / PoE power supply: 14WMAX/ 20WMAX(WithIR |
| Enclosure Ingress Protection (IP) | Up to IP67 rated for weatherproof performance |
| Dimensions of the housing | 160mmX273.5mmX210mm (Wall Mount) / 218mmX120mmX172mm(Pedestal Mount) |
| Weight | 2Kg (Wall Mount) / 1.8Kg (Pedestal Mount |
| Housing | Vandal-resistant metal housing with IK10 rating |
| Operating temperature range | -40ºC to +60ºC |
| Operating range relative humidity | ≤90% (non-condensing) |
| Audio I/O | 1/1 (Optional) |
| Alarm I/O | 1/1 (Optional) |
| Network storage |
ANR NAS (NFS, SMB/CIFS support) |
| System storage | Support microSD/SDHC/SDXC card local storage, up to 256G |
| System advanced function | BLC, HLC, 2D DNR, 3D DNR, Defog, AWB, EIS, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Blur, Watermark |
| SIP/VoIP support | Yes, Voice&Video-over-IP |
| Event trigger | Motion detection, network connection, audio alarm, external input, etc. |
| Event Action | FTP upload, SMTP upload, SD card recording, external output, SIP phone, HTTP notification, etc. |
| System Compatibility | ONVIF profile G & Q & S & T, API |
