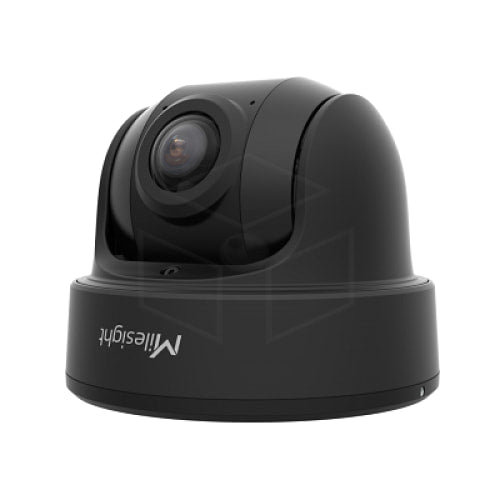

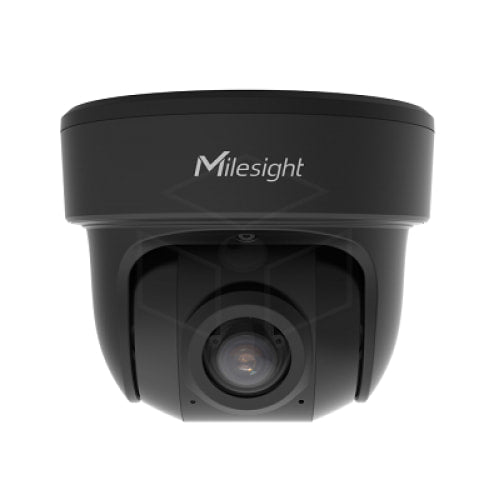

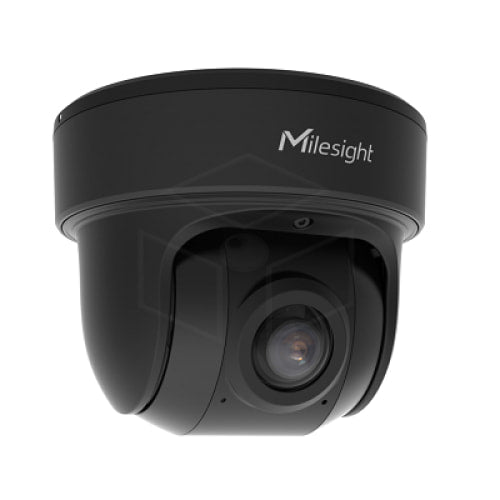

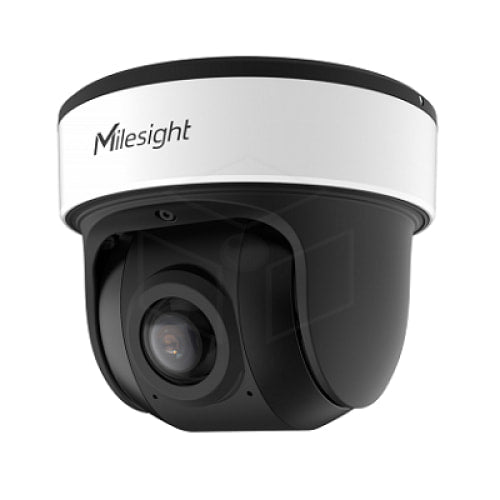

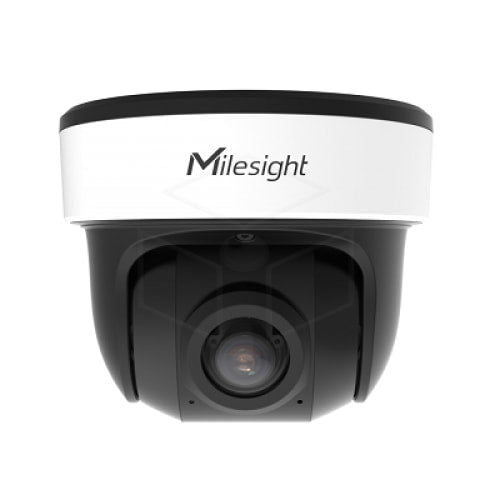

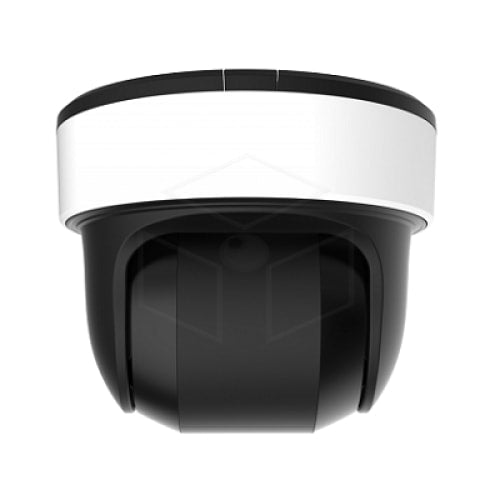

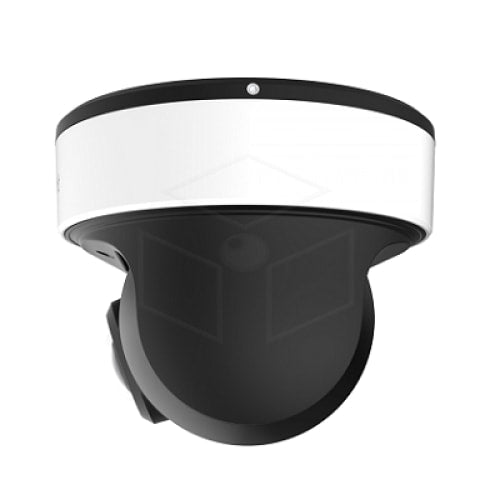

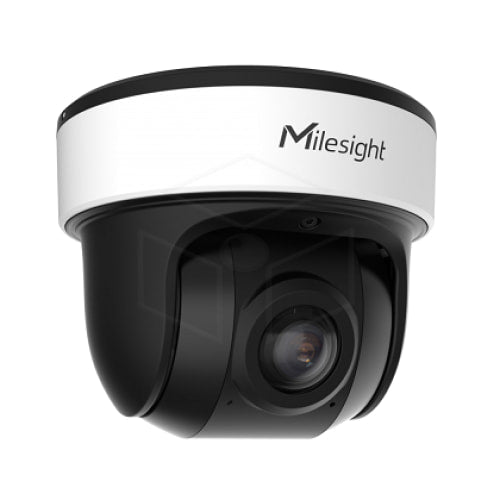

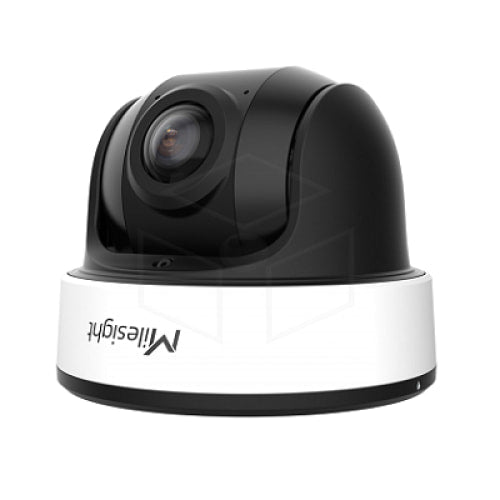

Milesight MS-C8176-PA Al-180° Panoramic Mini Dome 4K
Regular price
€389,00
Tax included.
Shipping calculated at checkout.
Product Description
The ultra-high-definition AI-powered 4K (8 Megapixels) 180° PANORAMIC mini dome camera is the perfect solution for monitoring large areas both day and night. It provides 180° horizontal coverage with 3840*2160 resolution at 30fps thanks to its 1.68 fixed lens. Adverse conditions are no longer a problem thanks to the 120dB Super WDR, as it delivers excellent performance even when the light distribution is not uniform. It features IP67 rated super ingress protection for weatherproof performance - Panoramic IR technology that provides 180° IR coverage, built-in microphone and integrated junction box.
More features
Security camera with ultra-wide 180° field of view
The Milesight AI Mini Panoramic Dome 8MP 4K 180° security camera is especially suitable for monitoring tight subjects, as the camera has a full 180-degree angle of view. The wide angle of view allows the camera to be installed close to the area to be photographed.
The camera is also ideal for time-lapse and a wide overview. The camera also has a built-in microphone.
Stunning 4K ultra HD image quality and powerful IR light
Eight megapixel Ultra HD/4K image quality ensures high-quality, sharp images day and night. The night image is illuminated by a new, updated IR light with SmartIR II technology, allowing the camera to see in the dark up to 15 meters away. This important feature is especially emphasized here in Finland, where periods of dark time are long.
Made for circumstances
The Milesight AI Mini Panoramic Dome 8 MP 4K 180° IP security camera is designed for year-round use and can be used both outdoors and indoors. The camera can withstand harsh conditions thanks to its IP67 and IK10 protection class. The compact mechanical design guarantees the functionality and long life of the device, even in severe frost. Milesight therefore works in any situation.
Easy installation and monitoring
Setting up the camera is very simple and easy with the Milesight Smart Tools connectivity program. The camera is powered by PoE technology via an Ethernet interface. There is only one cable for the camera, through which power and data pass. The camera does not need a separate AC power supply to work.
The mounting box integrated into the camera simplifies installation, as the Ethernet cable can be inserted directly into the camera, eliminating the need for separate surface-mounted boxes.
Milesight AI AI Features
In video surveillance, AI will play an important role in intelligent video analysis, greatly improving surveillance performance and saving human labor.
Milesight's AI-powered cameras are equipped with a discrete AI chip with advanced algorithms that enable a number of intelligent functions such as identifying people and vehicles, and related functions.
Identification of persons and counting of visitors
Milesight AI cameras have advanced functionality for detecting people. For example, the system can indicate the number of people entering and leaving the door and the number of people inside.
Facial recognition function
AI surveillance cameras have advanced facial recognition capabilities. The camera can distinguish the following features, among others:
- Gender
- Specifications
- Face mask
- Age
Milesight VCA Features
Milesight VCA Video Content Analysis, or advanced video image analysis, provides advanced software features.
Entrance to the region
The Region Input function allows the camera to detect whether a target arrives in the selected area. From this, alarm and recording can be triggered.
Region Exiting
With Region Exit, the camera detects if a target leaves the selected area. From this, alarm and recording can be triggered.
Advanced motion detection
With Advanced Motion Detection, motion detection adapts to normal changes in the standard image, for example, motion detection. Trees sway and alerts only for abnormal movements.
Sabotage detection
With tamper detection, the camera detects if the image is obscured or if the camera is rotated.
Crossing of the line
With the Line Crossing function, the camera can detect the crossing of the line defined in the image by the direction of travel. This function is very useful, for example, on the road or in the doorway the alarm can be activated, for example. only from incoming customers or vehicles.
Hanging out
With the Loitering function, the camera detects if an object enters the selected area and stays there for more than a certain time.
Human detection
With Humen Detection, the camera recognizes people from other objects and can trigger an alarm or recording
People counting
People Counting allows the camera to count people entering and exiting.
Security camera for versatile use
The surveillance camera can be used directly from the control panel in an internet browser. A memory card can be inserted into the camera so that it records video independently. An e-mail alert with photo is also possible.
You can also easily connect cameras to an NVR network recorder, allowing you to easily manage multiple different cameras. The recorder can be equipped with up to 4 Terabytes of disk space, resulting in a long recording archive.
Thanks to ONVIF compatibility, the camera can also be connected to other compatible systems, such as ONVIF.
Specifications
| Camera image sensor | 1/2.8" Progressive Scan CMOS |
| Minimum lighting | Color: 0.01Lux @F1.2, Color: 0.012Lux @F2.0, B/W: 0Lux with IR on |
| Wide Dynamic Range (WDR) | 120dB SuperWDR |
| Shutter speed | 1/100,000s∼1s |
| Day/Night Mode | Day/Night/Auto/Customize/Schedule |
| Signal to Noise Ratio (S/N) | Greater than 55 dB |
| IR distance | Up to 15m |
| Lens | 1.68mm at F2.0 |
| Lens field of view | H180°/V86° |
| Lens mounting point | M12 |
| Video Maximum image resolution | 3840x2160 |
| Lens aperture | F1.6∼F2.8 |
| Video Maximum image resolution | 2592x1944 |
| Primary video stream | 50Hz: 25fps@(3840x2160, 3456x1936, 3200x1800, 2880x1624, 2560x1440, 1920x1080, 1280x720) 60Hz: 25fps@(3840x2160) 60Hz: 30fps@(345 6x1936, 3200x1800, 2880x1624, 2560x1440, 1920x1080, 1280x720) |
| Video secondary stream | 50Hz: 25fps@(704x576, 640x480, 640x360, 352x288, 320x240) 60Hz: 30fps@(704x576, 640x480, 640x360, 352x288, 320x240) |
| Video Tertiary stream | 50Hz: 25fps@(1280x720, 704x576, 640x480, 640x360,352x288, 320x240) 60Hz: 30fps@(1280x720, 704x576, 640x480, 640x360,352x288, 32 0x240) |
| Video compression | H.264 H.264+ H.265(HEVC) H.265+ MJPEG |
| Video bit rate | 16Kbps∼16Mbps (CBR/VBR adjustable) |
| Video Privacy Masking | Maximum 8 areas |
| Area of Interest (ROI) | Maximum 8 areas |
| Video image settings | AAC G.711 G.722 G.726 |
| Audio bit rate | 16~256 kbps |
| Two-way audio | N/A |
| Intelligent video analysis | Advanced motion detection Line Crossing Hanging object Left object deleted Region entrance Region exit Sabotage detection |
| People Counting Analytics | Count the number of people entering or leaving, up to 4 detection areas for regional people counting |
| Ethernet interface | 1*RJ45 10M/100M Ethernet port |
| Network protocols | IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, UPnP, Bonjour, SIP, SNMP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL |
| Power input | PoE(802.3af)/DC 12V±10% |
| Energy consumption | 6W MAX, 9W MAX (with IR on) |
| Enclosure Ingress Protection (IP) | Up to IP67 rated for weatherproof performance |
| Dimensions of the housing | Φ127mmX107mm |
| Weight | 853g |
| Housing | Vandal-resistant metal housing with IK10 rating |
| Operating temperature range | -40ºC to +60ºC |
| Operating range relative humidity | ≤90% (non-condensing) |
| Audio I/O | Built-in microphone |
| Network storage | ANR NAS (NFS, SMB/CIFS support) |
| System storage | Support microSD/SDHC/SDXC card local storage, up to 256G |
| System advanced function | BLC, HLC, 2D DNR, 3D DNR, Defog, AWB, EIS, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Blur, Watermark |
| SIP/VoIP support | Yes, Voice&Video-over-IP |
| Event trigger | Motion detection, network connection, audio alarm, external input, etc. |
| Event Action | FTP upload, SMTP upload, SD card recording, external output, SIP phone, HTTP notification, etc. |
| System Compatibility | ONVIF profile G & Q & S & T, API |
