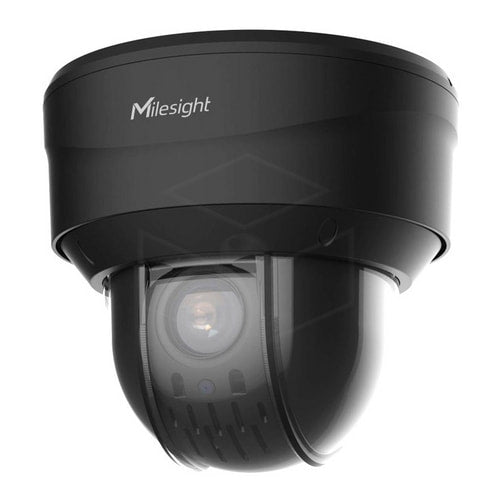

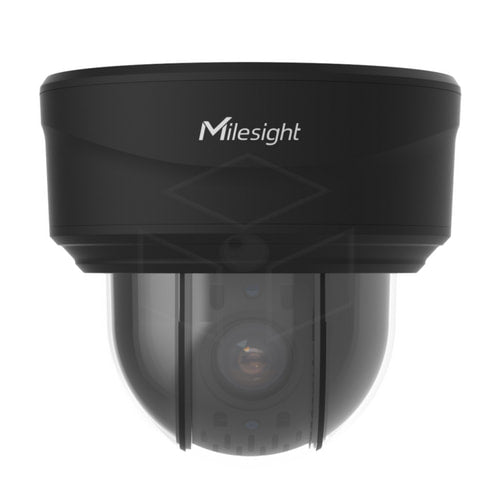

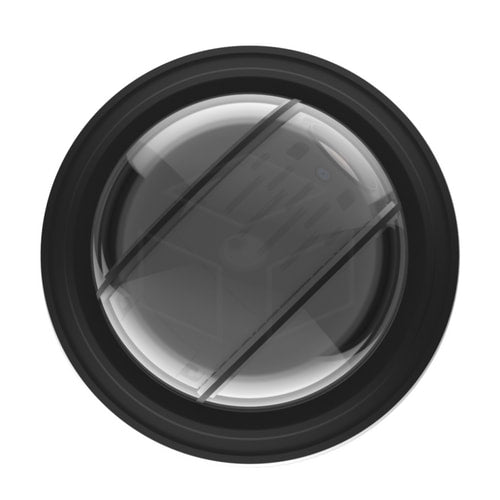

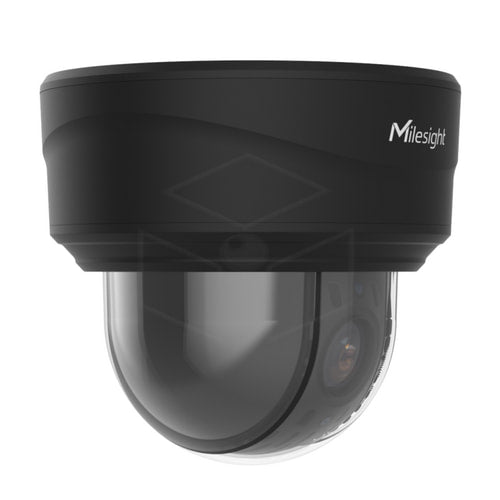

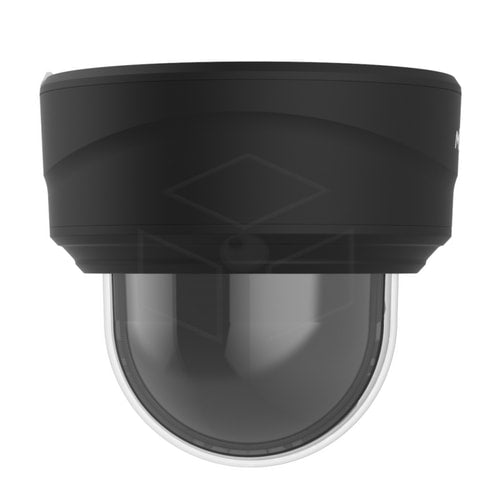

Milesight MS-C5371 X12PC AI 12X PTZ Dome 5MP
Regular price
€850,-
Tax included.
Shipping calculated at checkout.
Product Description
The 12X PTZ 5-megapixel 12X PTZ multi-lens dome network camera supports flexible installations and can be easily integrated into environments such as airports, stations, schools, shopping malls, stores, building lobbies and other open spaces.
This series offers the top features you expect from high-quality PTZ cameras. It looks stylish, is durable on the outside and is smart on the inside. In addition to excellent PTZ functions, it supports more intelligent video analysis based on advanced artificial intelligence chips, making it the right choice for those with higher security requirements.
The auto tracking function quickly focuses and captures images and is specially designed to provide unparalleled infrared performance.
More features
AI-powered Milesight surveillance cameras now available
New Milesight surveillance cameras with AI chip are now available. Even more versatile functions and, for example, people and vehicle detection. Reliable alarms.
New compact PTZ security camera for versatile use
The Milesight AI Mini PTZ dome security camera is a compact powerhouse suitable for versatile surveillance applications. 360° unlimited rotation and rotation combined with 12x optical zoom enable high-quality surveillance even in large areas. The weight of the camera is only 2kg and the dimensions are Φ183mm X 174.8mm. The camera has an ingress protection degree of IP66 and vandal resistance of IK10.
Versatile mounting options

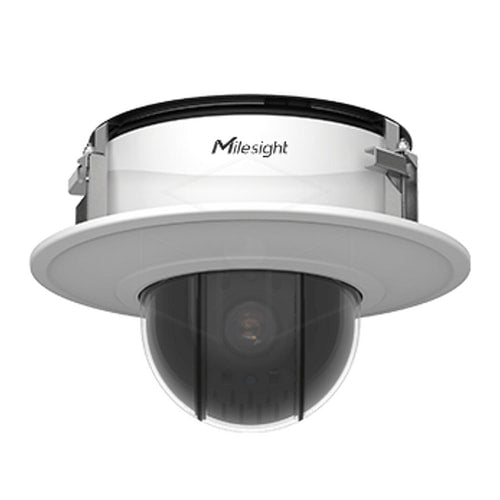

The AI Mini PTZ dome security camera offers a wide range of mounting options. The camera can be surface mounted or, using a dip collar, the camera can be embedded in ceiling structures, for example, leaving only the dome visible. Wall and ceiling mounts are also available with their own mounting brackets for easy camera installation.
Easy installation PoE+ power supply
The Milesight AI Mini PTZ dome 12× 5 MP PoE+ is equipped with advanced PoE+ technology, which enables the supply of operating voltage to the network cable. So setting up the camera is much easier than traditional, because the camera does not need a power outlet next to it and there is no need to encapsulate the power supply as is usually the case with PTZ surveillance cameras.
Milesight AI AI Features
In video surveillance, AI will play an important role in intelligent video analysis, greatly improving surveillance performance and saving human labor.
Milesight's AI-powered cameras are equipped with a discrete AI chip with advanced algorithms that enable a number of intelligent functions such as identifying people and vehicles, and related functions.
Identification of persons and counting of visitors
Milesight AI cameras have advanced functionality for detecting people. For example, the system can indicate the number of people entering and leaving the door and the number of people inside.
Facial recognition function
AI surveillance cameras have advanced facial recognition capabilities. The camera can distinguish the following features, among others:
- Gender
- Specifications
- Face mask
- Age
Milesight VCA Features
Milesight VCA Video Content Analysis, or advanced video image analysis, provides advanced software features.
Entrance to the region
The Region Input function allows the camera to detect whether a target arrives in the selected area. From this, alarm and recording can be triggered.
Region Exiting
With Region Exit, the camera detects if a target leaves the selected area. From this, alarm and recording can be triggered.
Advanced motion detection
With Advanced Motion Detection, motion detection adapts to normal changes in the standard image, for example, motion detection. Trees sway and alerts only for abnormal movements.
Sabotage detection
With tamper detection, the camera detects if the image is obscured or if the camera is rotated.
Crossing of the line
With the Line Crossing function, the camera can detect the crossing of the line defined in the image by the direction of travel. This function is very useful, for example, on the road or in the doorway – the alarm can be activated, for example. only from incoming customers or vehicles.
Hanging out
With the Loitering function, the camera detects if an object enters the selected area and stays there for more than a certain time.
Human detection
With Humen Detection, the camera recognizes people from other objects and can trigger an alarm or recording
People counting
People Counting allows the camera to count people entering and exiting.
Brilliant image quality
The image quality of the AI Mini PTZ Dome security camera is excellent. The video resolution is up to 2592×1944 @ 30 fps. Intelligent image enhancement technologies, including HLC for license plate photography, Super WDR 140 dB for challenging lighting conditions, and noise reduction.
The latest version of H.265+ video compression technology reduces video file size to less than half. At the same time, bandwidth consumption can be reduced by up to 70-80% compared to the older H.264 , which significantly reduces the burden on the network connection. New technology brings significant cost savings and improves business operations. The camera also has a built-in memory card slot.
12x optical zoom, 300 memory slots
The PTZ surveillance camera has a 12x optical zoom, which allows the camera to be used up to a hundred meters away. The angle of view is H57°∼H4°.
The head is fully rotating (HiSpeed Dome) and the rotation speed (rotation 0.1 ~ 450°/s and swivel 0.1 ~ 360°/s) is adjustable as needed, which makes the control very easy and precise. The camera can be controlled directly with the mouse thanks to 3D panning.
In addition, 300 different locations and 8 patrols (48 locations/patrol) can be stored in the device's memory.
Automatic article tracking
The Milesight AI PTZ security camera is equipped with PTZ Auto Tracking, which allows the camera to track a moving object and keep it within the camera's field of view. This feature is very useful in large yards and locations where the camera's optical zoom can be used.
Incredibly powerful IR light for photography in the dark and low light
The Milesight AI Mini PTZ Dome security camera is equipped with powerful IR light with SmartIR II technology for night photography. The camera has separate proximity and far LEDs, the power of which automatically adjusts depending on the distance to the subject. The range is up to 160 meters.
Built to last, IP66 rated and IK10 vandal resistant
The PTZ security camera is IP66 rated and can operate at an operating temperature of -40°C~60°C, making it fully weatherproof for outdoor use. The camera is also equipped with a fan that ensures proper humidity inside the camera and prevents the lens from fogging up.
The IK10 protection class also guarantees the camera good durability against physical vandalism.
ONVIF compatible security camera connects the camera to a controller or other software
The Milesight AI PTZ Speed Dome is ONVIF compatible, so it can be connected to almost any monitoring system. We recommend connecting the camera to Milesight's built-in recorder.
The camera also has a browser-based dashboard where you can view the live view, control the camera and adjust all camera settings. The camera also has a memory card slot for recording when the camera is used without a separate recorder or software.
Specifications
| Sensor resolution | 5 megapixel |
| Camera image sensor | 1/2.8" Progressive Scan CMOS |
| Minimum lighting | B/W: 0Lux with IR on Color: 0.005Lux @F1.2 Color: 0.008Lux @F1.6 |
| Wide Dynamic Range (WDR) | 120dB SuperWDR |
| Shutter speed | 1/100,000s∼1s |
| Day/Night Mode | Day/Night/Auto/Customize/Schedule |
| Digital magnification | 16X |
| Signal to Noise Ratio (S/N) | Greater than 55 dB |
| Focal length | 5.3∼64mm, 12x optical zoom |
| Zoom speed | About 4s (wide angle) |
| Lens field of view | H57°~H4°/D69°~D5°/V44°~V1° |
| Focus control | Automatic Manually Semi-automatic |
| Minimum working distance lens | 100/1500 mm (wide/telephoto) |
| Lens aperture | F1.6∼F2.8 |
| Video Maximum image resolution | 2592x1944 |
| Primary video stream | 50Hz: 25fps@(2592x1944) 50Hz: 45fps@(2048x1536) 50Hz: 50fps@(1920x1080, 1280x960, 1280x720, 704x576) 60Hz: 30fps@(2592x1944) 60Hz: 4 5fps@(2048x1536) 60Hz: 60fps@(1920x1080, 1280x960, 1280x720, 704x576) |
| Video secondary stream | 50Hz: 25fps@(704x576, 640x480, 640x360, 352x288, 320x240, 320x192, 320x180) 60Hz: 30fps@(704x576, 640x480, 640x360, 352x288, 32 0x240, 320x192, 320x180) |
| Video Tertiary stream | 50Hz: 25fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240, 320x192, 320x180) 60Hz: 30fps@(1920x1080, 1280x720, 704x5 76, 640x480, 640x360, 320x240, 320x192, 320x180) |
| Video compression | H.264 H.264+ H.265(HEVC) H.265+ MJPEG |
| Video bit rate | 16Kbps∼16Mbps (CBR/VBR adjustable) |
| Video Privacy Masking | Maximum 28 areas (24 mask areas and 4 mosaic areas) |
| Area of Interest (ROI) | Maximum 8 areas |
| Video image settings | AAC G.711 G.722 G.726 |
| Audio bit rate | 16~256 kbps |
| Two-way audio | Supported |
| Intelligent video analysis | Advanced motion detection Line Crossing Hanging object Left object deleted Region entrance Region exit Sabotage detection |
| People Counting Analytics | Count the number of people entering or leaving, up to 4 detection areas for regional people counting |
| Ethernet interface | 1*RJ45 10M/100M Ethernet port |
| Network protocols | IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, UPnP, Bonjour, SIP, SNMP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL |
| Power input | 12V/3A±10% DC 802.3 at PoE |
| Energy consumption | 11W MAX 19W MAX (with IR on) |
| Enclosure Ingress Protection (IP) | IP66 |
| Dimensions of the housing | Φ183mmX174.8mm |
| Weight | 2 kg |
| Housing | Vandal-resistant metal housing with IK10 rating |
| Surge protection | 4KV |
| Operating temperature range | -40ºC to +60ºC |
| Operating range relative humidity | ≤90% (non-condensing) |
| Audio I/O | 1/1 |
| Alarm I/O | 1/1 |
| Network storage | ANR NAS (NFS, SMB/CIFS support) |
| System storage | Support microSD/SDHC/SDXC card local storage, up to 256G |
| System advanced function | BLC, HLC, 2D DNR, 3D DNR, Defog, AWB, EIS, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Blur, Watermark |
| SIP/VoIP support | Yes, Voice&Video-over-IP |
| Event trigger | Motion detection, network connection, audio alarm, external input, etc. |
| Event Action | FTP upload, SMTP upload, SD card recording, external output, SIP phone, HTTP notification, etc. |
| System Compatibility | ONVIF profile G & Q & S & T, API |
| PTZ Pan Range/Pan Speed | 360° endless/ Manual pan speed: 0.1°∼450°/s, preset pan speed: 450°/s |
| PTZ Tilt Range/Tilt Speed | -5°∼90°(Automatic flip); Manual tilt speed: 0.1°∼360°/s, Preset tilt speed: 360°/s |
| PTZ proportional zoom | Support |
| Number of PTZ presets | 300 |
| PTZ patrol | 8 patrols, maximum 48 presets per patrol |
| PTZ pattern | 4 Patterns |
| PTZ auto follow | Support |
| PTZ power off memory | Support |
| PTZ Other function | 3D positioning Auto Home Auto Scan Starting position PTZ limits Freeze preset |
| IR irradiation distance | Up to 160m |
| IR irradiation angle | Automatic/Manual |
| Intelligent face detection | Detect and capture faces, get real-time snapshots |
