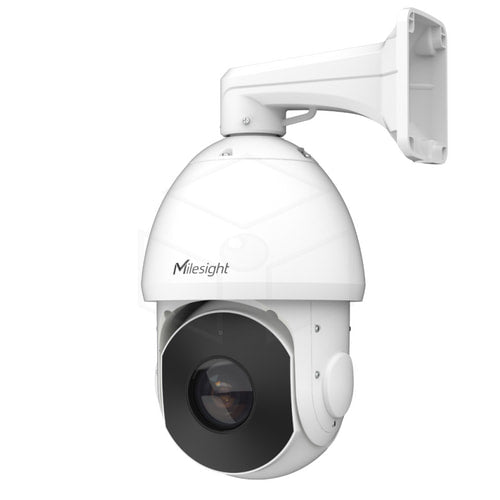

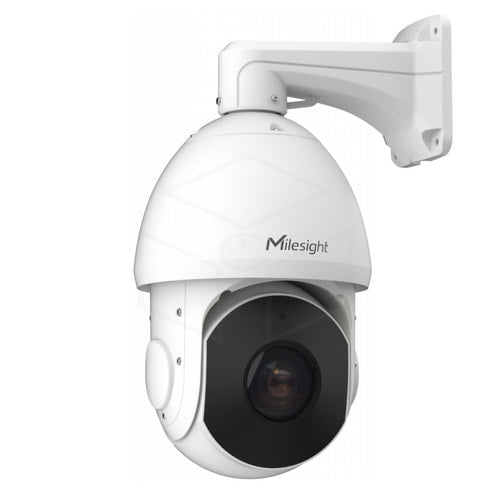

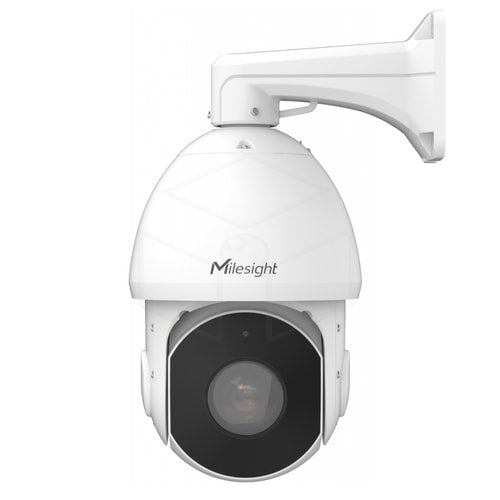

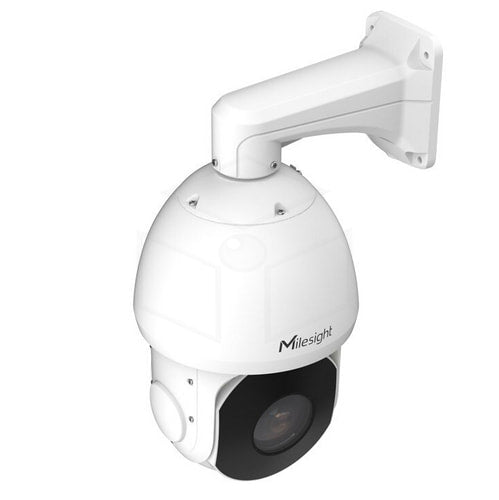

Milesight MS-C8241-X36PE 4K AI 36X Speed Dome Camera
Product Description
Are you looking for a professional PTZ camera for site surveillance? This powerful 5 MP speed dome network camera combines high image resolution with 25× optical zoom, intelligent image analysis and advanced night vision technology. Thanks to 360° PTZ surveillance, a large area can be monitored effectively with a single camera.
More Features
5 MP camera with powerful 25× optical zoom
With a 5 MP resolution, this IP camera delivers detailed images, while the 25× optical zoom lets you view subjects at a great distance with precision. Unlike digital zoom, optical zoom maintains optimal image quality.
The PTZ function allows the camera to pan and tilt, so you can quickly switch between different areas of the site.
Excellent image quality in low light
The advanced lens is designed to preserve color images for as long as possible, even in very low ambient light. This makes important details easier to recognize when traditional security cameras have already switched to black and white.
120 dB Super WDR Pro ensures that both dark and very bright areas of the image are displayed more clearly. This is particularly useful in situations with strong backlighting, such as entrances, parking lots and sites.
Night vision up to an impressive 200 meters
For reliable security in the dark, the camera is equipped with Smart IR II. The infrared illumination has a range of up to 200 meters, enabling effective nighttime surveillance of even large outdoor areas.
Intelligent AI and automatic PTZ tracking
The built-in AI image analysis technology helps recognize and analyze events. Combined with intelligent motion detection, the camera can respond specifically to relevant movement.
With automatic PTZ tracking, the camera follows moving objects quickly and accurately. 3D positioning also makes it easy to point the camera precisely at a specific point in the image.
Easy installation thanks to PoE
The camera supports Power over Ethernet (PoE). This means network communication and power can be supplied through a single network cable. This simplifies installation and can reduce the amount of cabling required.
Ideal for professional security
This 5 MP PTZ IP camera with 25× zoom is suitable for a wide range of applications, including:
- Professional site surveillance
- Business premises and industrial sites
- Parking lots
- Logistics centers and storage areas
- Ports and large outdoor areas
- Security for access roads and perimeters
- Situations where tracking and long-range surveillance are important
Specifications
| Model | MS-C5341-X25PE |
| Camera | |
| Name | 5MP 25X AI Speed Dome Network Camera |
| Image Sensor | 1/2.8″ Progressive Scan CMOS |
| Min. Illumination | Color: 0.008Lux@F1.5, B/W: 0Lux with IR on |
| WDR | 120dB Super WDR |
| Shutter Time | 1/100000s∼1s |
| DORI Distance |
D: 114~2490m O: 45~979m R: 22.5~490m l: 11~245m |
| Day/Night Mode |
Day/Night/Auto/Customize/ Schedule |
| S/N | >55dB |
| Digital Zoom | 16X |
| Lens | |
| Focal Length | 4.8~120mm, 25X Optical Zoom |
| Zoom Speed | Approx 6s(Wide-Tele) |
| Field of View |
H57°~H2.8°/D69.8°~D3.2°/ V43.8°~V1.5° |
| Focus Control | Auto/Semi-Auto/Manual |
| Minimum Working Distance | 100/1500mm (Wide/Tele) |
| Aperture | F1.5~F3.5 |
| Iris Control | Auto |
| PTZ | |
| Pan Range/Pan Speed | 360° endless/ Pan Manual Speed: 0.1°∼250°/s, Pan Preset Speed: 250°/s |
| Tilt Range/Tilt Speed | -5°∼90°(Auto Flip)/ Tilt Manual Speed: 0.5°∼160°/s, Tilt Preset Speed: 160°/s |
| Proportional Zoom | Support |
| Preset Quantity | 300 |
| Patrol | 8 Patrols, up to 48 presets each patrol |
| Pattern | 4 Patterns |
| Auto Tracking | Support |
| Power Off Memory | Support |
| Other Function | Auto Scan, Auto Home, Preset Freezing, 3D Positioning, PTZ Limits, Initial Position |
| IR | |
| Irradiation Distance | Up to 200m |
| Irradiation Angle | Auto/Manual |
| Video | |
| Max. Image Resolution | 2592x1944 |
| Primary Stream | 60Hz: 30fps@(2592x1944, 2592x1520), 45fps@(2048x1536), 60fps@(1920x1080, 1280x960, 1280x720) 50Hz: 25fps@(2592x1944, 2592x1520), 45fps@(2048x1536), 50fps@(1920x1080, 1280x960, 1280x720)60Hz: 30fps@(2592x1944, 2592x1520), 45fps@(2048x1536), 60fps@(1920x1080, 1280x960, 1280x720) |
| Secondary Stream |
60Hz: 30fps@(704x576, 640x480, 640x360, 352x288, 320x240) 50Hz: 25fps@(704x576, 640x480, 640x360, 352x288, 320x240) |
| Tertiary Stream |
60Hz: 30fps@(2048x1536, 1920x1080, 1600x1200, 1280x720, 704x576, 640x480, 640x360, 320x240) 50Hz: 25fps@(2048x1536, 1920x1080, 1600x1200, 1280x720, 704x576, 640x480, 640x360, 320x240) |
| Video Compression |
H.265+/H.265(HEVC)/H.264+/ H.264/MJPEG |
| Video Bit Rate | 16Kbps∼16Mbps (CBR/VBR Adjustable) |
| Image | |
| Privacy Masking | Up to 8 Areas (Mask Area and Mosaic Area are optional) |
| ROI | Up to 8 areas |
| Image Settings |
Saturation/Brightness/Contrast/ Sharpness |
| Image Enhancement | BLC, HLC, 2D DNR, 3D DNR, AGC, Defog, AWB, Deblur, Anti-flicker, Corridor Mode, LDC |
| Interface | |
| Ethernet | 1*RJ45 10M/100M Ethernet Port |
| Audio I/O | 1/1 (Standard) |
| Alarm I/O | 4/2 (Standard) |
| RS485 | Standard |
| Network | |
| Network Storage | NAS(Support NFS, SMB/CIFS), ANR |
| Network Protocols | IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, SNMP, UPnP, Bonjour, LLDP, SIP, VPN, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL,TLS 1.2 |
| Audio | |
| Audio Compression | G.711/AAC/G.722/G.726 |
| Audio Sampling Rate | 8/16/32/44.1/48KHz |
| Audio Bit Rate | 16~256kbps |
| Intelligent Analytics | |
| Video Analysis | VCA 2.0:Intrusion Detection, Region Entrance, Region Exiting, Advanced Motion Detection, Line Crossing, Loitering, Object Left, Object Removed |
| Attribute Extraction |
Simultaneously detect up to 50 targets and capture humans and vehicles in real time. Recognize attributes including Upper and Lower Clothing Color, Hat, and Vehicle Types (Bicycle, Car, Motorcycle, Bus, Truck, E-scooter). |
| Face Detection&Face Attribute Recognition | Detect and capture faces, get real-time snapshots and the attributes include Age, Gender, Glasses, Mask and Cap. Support Faces Privacy Mode, the detected faces in the face detection area will be mosaic automatically. |
| Object Counting & Report |
Count the number of objects crossing the line, optionally human and vehicle, Support regional people counting for up to 4 detection areas |
| Event | |
| Basic Event | Motion Detection, Tamper Detection, External Output, External Input, Audio Alarm, etc. |
| Exception | Network Disconnection, IP Address Filtering, Record Failed, SD Card Full, SD Card Uninitialized, SD Card Error, No SD Card |
| Event Action | FTP Upload Record, Snapshot , SMTP Upload Record, SD Card Record, SIP Phone, Play Audio, PTZ Motion, HTTP Notification, etc. |
| System | |
| Watermark | Support |
| Storage | Support microSD/SDHC/SDXC Card Local Storage, up to 1TB |
| SIP/VoIP Support | Yes, Voice&Video-over-IP |
| System Compatibility | ONVIF Profile G & M & S & T, API |
| General | |
| Working Condition | Temperature: -40℃∼60℃ / Humidity: 0∼95%(Non-condensing) |
| Power Supply | PoE(802.3at)/ AC 24V/ DC 24V/ 3A ±10% |
| Power Consumption |
Min.: 10.5W (DC 24V / AC 24V), 12.4W(PoE) Max.: 25W (DC 24V / AC 24V), 27.7W(PoE) |
| Heater | Support |
| Surge Protection | 6KV |
| Dimensions/Weight | Φ205mmX310mm / Approx. 4Kg |
| EMC | CE-EMC (EN 55032, EN 55035), FCC (PART 15B) |
| Safety | UL: UL 62368-1,CE-LVD (EN IEC 62368-1) |
| Environment | CE-ROHS (Directive (EU) 2015/863 amending 2011/65/EU) |
| Protection | IP66, IK10(Optional) |
