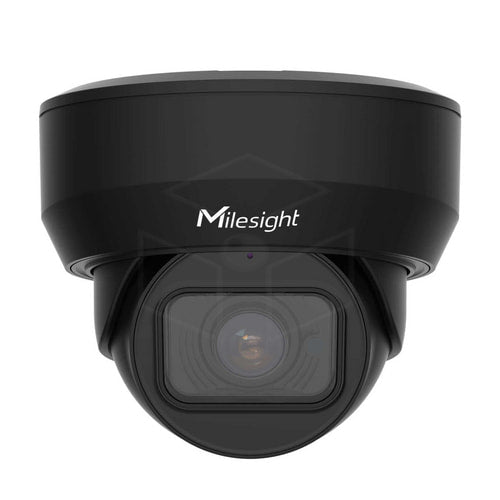

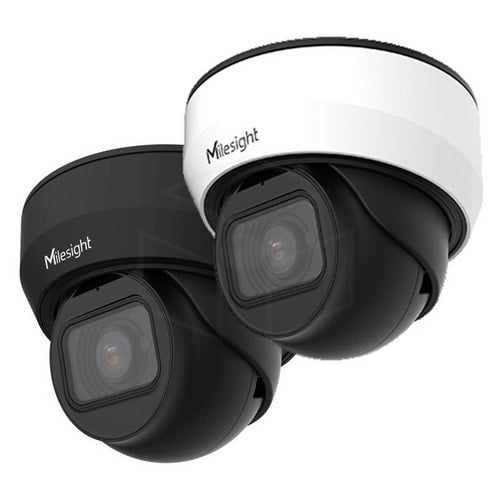

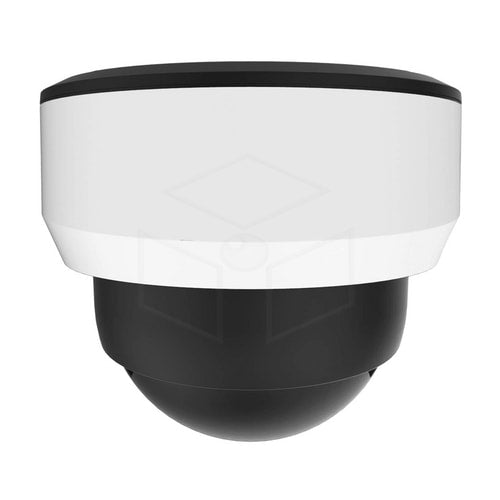

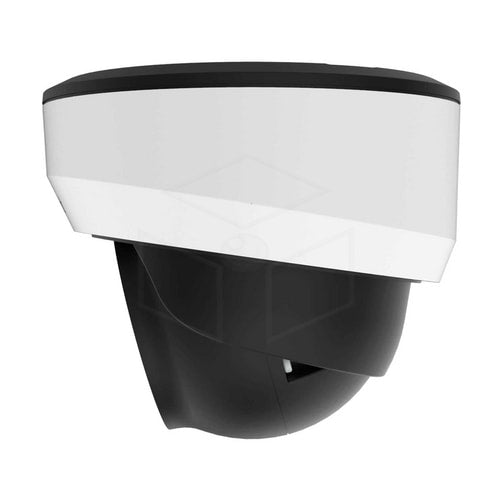

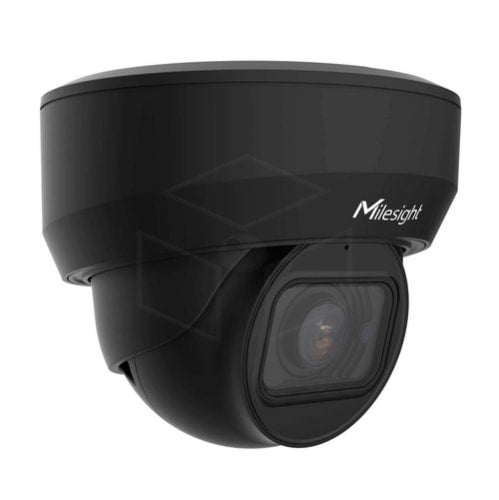

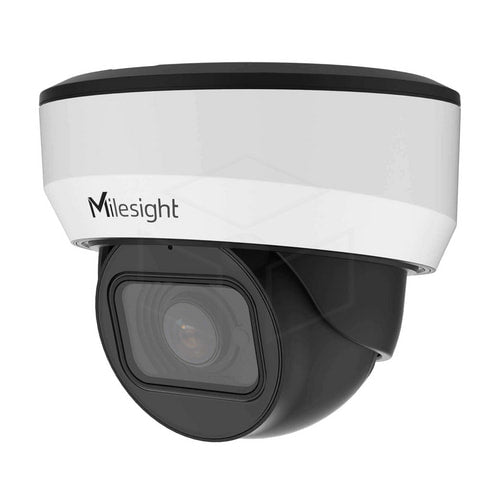

Milesight 5MP AI-Motorized Mini Dome Camera (MS-C5375-FPD)
Product description
The Milesight MS-C5375-FPD is a powerful 5MP AI dome camera from the Milesight AI series. Thanks to its motorized 2.7–13.5 mm varifocal lens, the camera offers a flexible viewing angle ranging from 31° to 99°. This allows you to combine a wide overview with the ability to easily zoom in on important details.
More features
Crystal-clear images and Smart IR II
Enjoy clear and detailed images day and night. The updated Smart IR II technology provides powerful night vision up to 50 meters. Separate LEDs for near and far distances are automatically adjusted in power and brightness, ensuring the night image is optimally illuminated without unnecessary overexposure.
5× optical zoom for maximum flexibility
With the 5× motorized zoom lens, you can easily point the camera at the desired area. The generous 99° wide-angle provides a broad overview, while the maximum telephoto setting of 31° ensures more detail from a distance.
Weatherproof and vandal-resistant
The robust housing with IP67 protection makes the camera suitable for both indoor and outdoor use. With IK10-vandal resistance, the dome camera is also capable of withstanding mechanical damage.

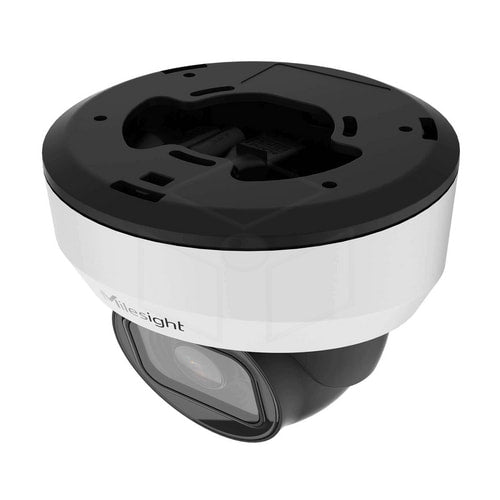

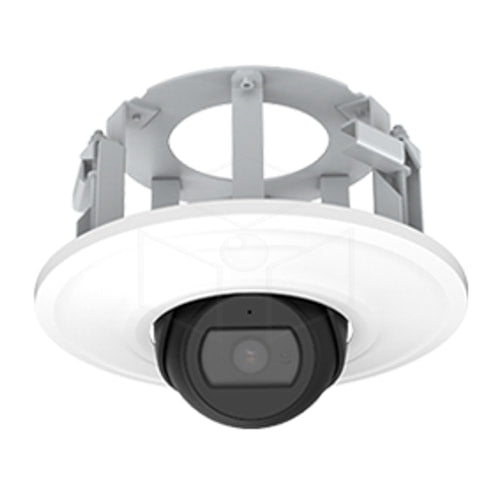

The compact design is suitable for mounting on both walls and ceilings. Thanks to the included junction box, cables can be neatly concealed.
Intelligent Milesight AI detection
The built-in AI chip supports advanced video analysis and helps to reliably recognize people and vehicles. This allows you to identify relevant events more quickly and reduce unnecessary alerts.
The camera supports, among other things:
- Person and vehicle detection
- People counting
- Face recognition
- Region entrance and exiting
- Line crossing
- Loitering detection
- Advanced motion detection
- Tamper detection
Easy storage and integration
The camera can be used independently with microSD storage and supports alerts with image material. For professional video surveillance, the camera can be easily linked to an NVR network recorder.
Thanks to ONVIF support, integration with compatible security and video management systems is possible.
Professional security, day and night
With 5MP SuperHD, 5× optical zoom, Smart IR II, 50-meter night vision, and powerful AI analysis, the Milesight AI Zoom Dome 5MP offers everything you need for modern professional video surveillance.
Specifications
| Model | MS-C5375-FPD |
| Camera | |
| Name | 5MP NDAA AI Motorized Dome Network Camera |
| Image Sensor | 1/2.8" Progressive Scan CMOS |
| Min. Illumination |
Color: 0.008Lux @F1.4 B/W: 0Lux with IR on |
| WDR | 120dB Super WDR |
| Shutter Time | 1/100000s∼1s |
| Day/Night Mode | Day/Night/Auto/Customize/Schedule |
| IR Distance | Up to 50m |
| S/N | >55dB |
| Lens | |
| Lens | Motorized 2.7∼13.5mm@F1.4 |
| Field of View | H94°~H31°/D120°~D38°/V68°~V23°(2.7∼13.5mm) |
| Mount | Φ14 |
| Focus Control | Auto/Manual |
| Video | |
| Max. Image Resolution | 2592x1944 |
| Primary Stream |
60Hz: 30fps@(2592x1944, 2048x1536, 1920x1080, 1280x960, 1280x720, 704x576) 50Hz: 25fps@(2592x1944, 2048x1536, 1920x1080, 1280x960, 1280x720, 704x576) |
| Secondary Stream |
60Hz: 30fps@(704x576, 640x480, 640x360, 352x288, 320x240, 320x192) 50Hz: 25fps@(704x576, 640x480, 640x360, 352x288, 320x240, 320x192) |
| Tertiary Stream |
60Hz: 30fps@(1280x720, 704x576, 640x480, 640x360, 352x288, 320x240, 320x192) 50Hz: 25fps@(1280x720, 704x576, 640x480, 640x360, 352x288, 320x240, 320x192) |
| Video Compression |
H.265+/H.265(HEVC)/H.264+/H.264/ MJPEG |
| Video Bit Rate | 16Kbps∼16Mbps (CBR/VBR Adjustable) |
| Image | |
| Privacy Masking | Up to 4 Areas |
| ROI | Up to 8 Areas |
| Image Settings |
Saturation/Brightness/Contrast/ Sharpness |
| Image Enhancement | BLC, HLC, 2D DNR, 3D DNR, Defog, AWB, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur |
| Interface | |
| Ethernet | 1*RJ45 10M/100M Ethernet Port |
| Audio I/O | 1/1 |
| Alarm I/O | 1/1 |
| Network | |
| Network Storage | NAS (Support NFS, SMB/CIFS), ANR |
| Network Protocols | IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, UPnP, Bonjour, SIP, SNMP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL, TLS 1.2 |
| Intelligent Analytics | |
| Video Analysis | Region Entrance, Region Exiting, Advanced Motion Detection, Line Crossing, Loitering, Object Left, Object Removed |
| People Counting & Report | Count the number of people entering or exiting |
| Event | |
| Event Trigger | Motion Detection, Tamper Detection, External Input, External Output,Audio Alarm |
| Exception | Network Disconnection, IP Address Filtering, Record Failed, SD Card Full, SD Card Uninitialized, SD Card Error, No SD Card |
| Event Action | FTP Upload Record, SMTP Upload Record, SD Card Record, Snapshot, SIP Phone, Play Audio, HTTP Notification, External Output |
| Audio | |
| Audio Compression | G.711/AAC/G.722/G.726 |
| Audio Sampling Rate | 8/16/32/48KHz |
| Audio Bit Rate | 16~256kbps |
| Built-in Microphone | Support |
| System | |
| Storage | Support microSD/SDHC/SDXC Card Local Storage, up to 1TB |
| SIP/VoIP Support | Yes, Voice&Video-over-IP |
| System Compatibility | ONVIF Profile M & G & S & T, API |
| General | |
| Working Temperature | -40℃∼60℃ |
| Working Humidity | 0∼90% (Non-condensing) |
| Power Supply | PoE (802.3af) / DC 12V±10% |
| Power Consumption |
5.5W MAX 6.5W MAX (With IR on) |
| Housing | Up to IP67-rated for weather-resistant performance/ Vandal-proof IK10-rated metal housing |
| Weight | Approx. 780g |
| Dimensions | Φ130mmX115mm |
