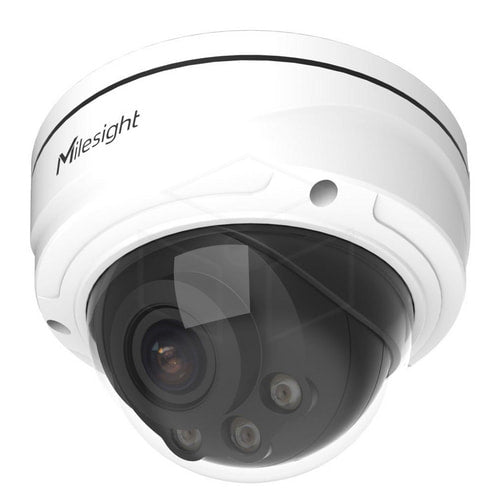

Milesight 5MP AI Motorized Pro Dome Camera (MS-C5372-FIPA)
Product Description
The Milesight MS-C5372-FIPA is a professional 5MP AI dome camera from the Milesight AI series. Thanks to its motorized 2.7–13.5 mm lens, the camera offers a flexible viewing angle of 30° to 89°. This allows you to combine a wide overview with the ability to easily zoom in on important details.
More features
5MP Ultra HD – sharp images under all conditions
The Milesight AI Pro Dome delivers 5-megapixel Ultra HD video with excellent detail, both day and night. Advanced image enhancement such as Super WDR and 3D noise reduction ensures a clear image, even in difficult lighting conditions.
Image settings can be optimized separately for day and night. In addition, the camera features functions such as digital image stabilization and HLC, which is ideal for situations with strong light sources or license plate images.
Advanced AI detection
The built-in AI chip intelligently analyzes video footage and distinguishes people and vehicles from other objects. This allows you to receive more reliable notifications and significantly reduces unnecessary alarms.
Key AI functions:
- People and vehicle detection
- People counting
- Region entrance and exiting detection
- Face detection and attribute analysis*
- Region entrance and region exiting
- Line crossing
- Loitering
- Advanced motion detection
- Tamper detection
- Human detection
* Available face and attribute features depend on the configuration and software version.
Intelligent VCA video analysis
With Milesight VCA (Video Content Analysis), camera surveillance becomes active instead of passive. Set up virtual zones and lines and have the camera respond automatically when a pre-set event occurs.
For example, a person entering a prohibited area, a vehicle crossing a virtual line, or someone remaining in one location for an unusually long time. An alarm and/or recording can be automatically triggered upon such an event.
IP67 and IK10 built for demanding environments
The robust dome housing protects the camera against weather and vandalism. With IP67, the camera is suitable for outdoor use, and thanks to IK10, it is resistant to heavy mechanical impact.

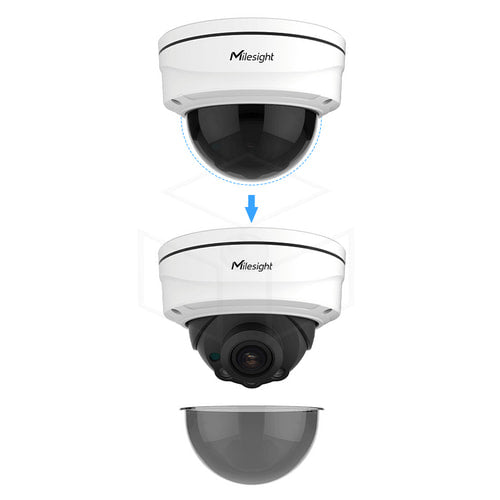

The camera can be mounted on both walls and ceilings. The dome construction also protects the optics and cabling against tampering.
H.265+ less storage and less network load
Thanks to H.265+ HEVC compression, video files become significantly smaller without sacrificing image quality. This saves storage capacity and reduces the load on your network.
Greater efficiency, lower storage costs, and a smarter camera system.
Flexible recording and management
The Milesight AI Pro Dome can be managed directly via a web browser. For local storage, a microSD card slot is available. You can also set up automatic email notifications with images.
For larger installations, simply connect the camera to an NVR network recorder. Thanks to ONVIF support, integration with compatible video management and camera systems is possible.
Specifications
| Model | MS-C5372-F(I)PC |
| Camera | |
| Image Sensor | 1/2.8″ Progressive Scan CMOS |
| Min. Illumination | Color: 0.008Lux@F1.4, B/W: 0Lux with IR on |
| WDR | 120dB Super WDR |
| Shutter Time | 1/100000s~1s |
| IR Distance | Up to 50m |
| Day/Night Mode | Day / Night / Auto / Customize / Schedule |
| S/N | >55dB |
| Lens | |
| Lens | Motorized 2.7mm~13.5mm@F1.4 P-Iris(Optional) |
| Field of View | H89°~H30°/D111°~D37°/V66°~V22° |
| Mount | Φ14 |
| Focus Control | Auto/Manual |
| IrisControl (OptionalforISeries) |
Auto/Manual |
| Video | |
| Max. Image Resolution | 2592x1944 |
| Primary Stream | 60Hz: 30fps@(2592x1944), 45fps@(2048x1536), 60fps@(1920x1080, 1280x960, 1280x720, 704x576) 50Hz: 25fps@(2592x1944), 45fps@(2048x1536), 50fps@(1920x1080, 1280x960, 1280x720, 704x576) |
| Secondary Stream | 60Hz: 30fps@(704x576, 640x480, 640x360, 352x288, 320x240, 320x192, 320x180) 50Hz: 25fps@(704x576, 640x480, 640x360, 352x288, 320x240, 320x192, 320x180) |
| Tertiary Stream | 60Hz: 30fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240, 320x192, 320x180) 50Hz: 25fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240, 320x192, 320x180) |
| Video Compression | H.265+ /H.265 (HEVC) /H.264+ /H.264 /MJPEG |
| Video Bit Rate | 16Kbps ~ 16Mbps (CBR/VBR Adjustable) |
| Privacy Masking | Up to 28 areas (24 mask areas and 4 mosaic areas) |
| ROI | Up to 8 areas |
| Image Setting | Brightness / Contrast / Saturation / Sharpness |
| Interface | |
| Ethernet | 1*RJ45 10M/100M Ethernet Port |
| Audio I/O | Built-in Microphone and 1 Audio Output interface |
| Alarm I/O | 1/1 |
| Network | |
| Network Storage | NAS(Support NFS,SMB/CIFS), ANR |
| Protocol | IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, SNMP, UPnP, Bonjour, SIP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL |
| Audio | |
| Audio Compression | G.711/AAC/G.722/G.726 |
| Audio Sampling Rate | 8/16/32/44.1/48KHz |
| Audio Bit Rate | 16~256kbps |
| Two-wayAudio | Support |
| Intelligent Analytics | |
| Video Analysis | RegionEntrance, RegionExiting, Advanced Motion Detection, TamperDetection, LineCrossing, Loitering, ObjectLeft, Object Removed |
| Face Detection & Face Attribute Recognition | Detect and capture faces, get real-time snapshots |
| Object Counting & Report | Count the number of people entering or exiting, upto 4 detection areas for regional people counting |
| System | |
| Storage | Support Micro SD/SDHC/SDXC Card Local Storage, up to 256GB |
| Advanced Function | Heat Map,BLC, HLC, 2DDNR, 3DDNR, Defog, AWB, EIS, IPAddressFiltering, AGC, Anti-flicker, Corridor Mode, Deblur, Watermark |
| SIP/VoIP Support | Yes, Voice & Video-over-IP |
| Event Trigger | Motion Detection, Network Disconnection, AudioAlarm, ExternalInput, etc. |
| Event Action | FTP Up load, SMTP Upload, SD Card Record, External Output, SIP Phone, HTTP Notification, etc. |
| System Compatibility | ONVIF Profile G & Q & S & T, One API |
| General | |
| Working Temperature | -40℃~60℃ |
| Working Humidity | 0~95% RH (Non-condensing) |
| Power Supply | PoE (802.3af) / DC 12V±10% |
| Power Consumption | 8W MAX 10W MAX (With IR on) |
| Surge Protection | 2KV |
| Housing | Vandal-proof IK10-rated Metal Housing/ Up to IP67-rated for Weather-resistant Performance |
| Weight | 1100g |
| Dimensions | Φ143mm X 108.4mm |
