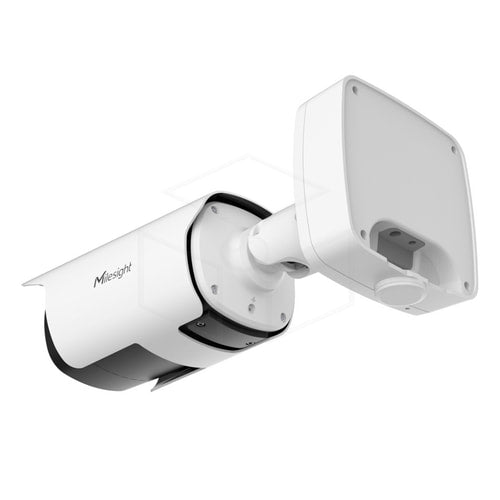

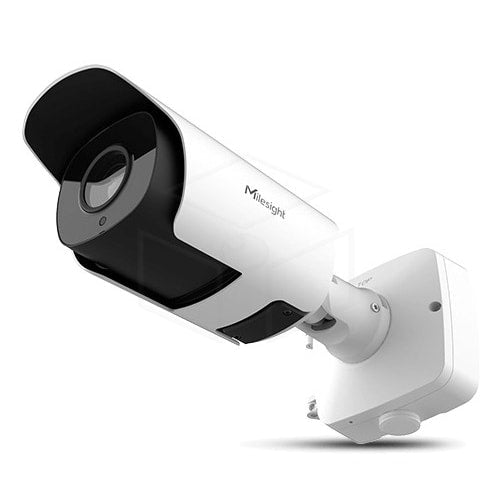

Milesight 5MP AI Road Traffic Pro Bullet Plus Camera (TS5366-X12RIPG1)
Product description
The Milesight 5MP AI LPR traffic camera is a professional solution for license plate recognition, traffic monitoring, and automatic detection of traffic violations. Thanks to its intelligent AI-powered LPR algorithm, powerful 12x autofocus lens, and high frame rate of 60 fps, the camera accurately captures vehicles and license plates, even at high speeds.
More features
Intelligent AI license plate recognition
Advanced AI LPR technology automatically recognizes license plates and enables accurate analysis of passing vehicles. This makes the camera suitable for access control, traffic management, parking lots, urban access roads, and other locations where reliable vehicle identification is essential.
Traffic violation detection
With Traffic Violation Detection, the camera can automatically analyze various traffic situations and detect relevant violations. This makes enforcement more efficient and allows important events to be automatically recorded as evidence.
Traffic flow analysis
In addition to license plate recognition, the camera offers Traffic Flow Statistics. This allows traffic flows and vehicle movements to be analyzed. These data are valuable for traffic management, capacity planning, and optimizing traffic conditions.
12x autofocus lens and 60 fps
The powerful 12x AF lens provides a flexible range for accurately capturing vehicles at different distances. Thanks to the high frame rate of 60 fps, fast-moving vehicles are recorded smoothly, enabling license plates and vehicle details to be reliably captured.
5MP image quality and Starlight
The 5-megapixel resolution delivers sharp, detailed images. The large 1/2.8" sensor and 0.008 Lux Starlight technology also ensure excellent performance in low light. This allows the camera to remain reliable in the evening and at night.
Evidence Camera Linkage
For professional traffic enforcement, the camera supports Evidence Camera Linkage. This allows the LPR camera to be linked to additional surveillance cameras to capture relevant events from multiple perspectives. This provides a more complete picture and stronger evidence.
Professional traffic monitoring solution
The combination of AI LPR, Traffic Violation Detection, traffic flow analysis, Evidence Camera Linkage, 12x autofocus, 5MP image quality, and 60 fps makes this Milesight camera a powerful solution for modern traffic surveillance and license plate recognition.
Specifications
| Model | TS5366-X12RIPG1 |
| Camera | |
| Name | AI Road Traffic Pro Bullet Plus Camera |
| Image Sensor | 1/2.8″ Progressive Scan CMOS |
| Min. Illumination |
Color: 0.008Lux@F1.6 B/W: 0Lux with IR on |
| Shutter Time | 1/100000s~1s |
| Day/Night Mode | Day/Night/Auto/Customize/Schedule |
| IR Wave Length | 850nm (Default); 740nm (Optional) |
| Illumination Distance | Up to 70m |
| S/N | >55dB |
| Lens | |
| Lens | 5.3~64mm, 12X Optical Zoom |
| Field of View | H57°~H4°/D69°~D5°/V44°~V1° |
| Mount | Φ14 |
| Focus Control | Auto/Manual |
| Aperture | F1.6~F2.8 |
| P-Iris | Support |
| Iris Control | Auto |
| Road Traffic Management | |
| Max. Vehicle Speed | 140km/h |
| Capture Rate | 99% |
| Recognition Accuracy | 98% |
| Coverage | 2 lanes |
| Country Region Supported | More than 80 countries and regions |
| ANPR Distance | Up to 60m |
| Attributes Identification |
Plate Color, Vehicle Type, Vehicle Color, Vehicle Brand, No-plate Vehicle Capture, Vehicle Direction Detection * Vehicle Color and Plate Color identification are not supported in low-light or night conditions. |
| Smart Traffic Function | Evidence Camera Linkage, Specific Lane Management, Vehicle Classification & Counting |
| White/Black List | Up to 20,000 records inside the camera |
| LPR Smart Search | Support |
| Interface | |
| Ethernet | 1*RJ45 10M/100M Ethernet Port |
| Audio I/O | 1/1 |
| Alarm Input | 2 |
| Alarm Output | 2 (1 relay output; 1 open collector output, max. 12V DC/10mA) |
| Wiegand | 1 |
| RS485 | 1 |
| Video | |
| Max. Image Resolution | 2592x1944 |
| Primary Stream |
60Hz: 60fps@(2592x1944, 2592x1520, 2048x1536, 1920x1080, 1280x960, 1280x720) 50Hz: 50fps@(2592x1944, 2592x1520, 2048x1536, 1920x1080, 1280x960, 1280x720) |
| Secondary Stream |
60Hz: 60fps@(704x576, 640x480, 640x360, 352x288, 320x240) 50Hz: 50fps@(704x576, 640x480, 640x360, 352x288, 320x240) |
| Tertiary Stream |
60Hz: 30fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 352x288, 320x240) 50Hz: 25fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 352x288, 320x240) |
| Video Compression |
H.265+/H.265(HEVC)/H.264+/ H.264/MJPEG |
| Video Bit Rate | 16Kbps~16Mbps (CBR/VBR Adjustable) |
| Privacy Masking | Up to 8 Areas (Mask Area and Mosaic Area are optional) |
| ROI | Up to 8 areas |
| Image Setting | Brightness/Contrast/Sharpness |
| Network | |
| Network Storage | NAS (Support NFS, SMB/CIFS), ANR |
| Protocol |
IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, SNMP, UPnP, Bonjour, SIP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL |
| Audio | |
| Audio Compression | G.711/AAC/G.722/G.726 |
| Audio Sampling Rate | 8/16/32/44.1/48KHz |
| Audio Bit Rate | 16~256kbps |
| Two-way Audio | Support |
| System | |
| System Compatibility | API, MQTT, HTTP, TCP, ONVIF Profile G & M & S & T |
| Storage | Support microSD/SDHC/SDXC Card Local Storage, up to 1TB |
| Advanced Function |
BLC, HLC, 2D DNR, 3D DNR, Defog, AWB, IP Address Filtering, AGC, EIS, Anti-flicker, Corridor Mode, Deblur, Watermark |
| SIP/VoIP Support | Yes, Voice & Video-over-IP |
| Event Trigger |
Black/White List, Attributes Event, Motion Detection, Network Disconnection, External Input, Audio Alarm, etc. |
| Event Action | FTP Upload, SMTP Upload, SD Card Record, External Output, SIP Phone, HTTP Notification, etc |
| General | |
| Working Temperature | -40℃~60℃ |
| Working Humidity | 0~95% (Non-condensing) |
| Power Supply | PoE (802.3at) / DC 12V±10% |
| Power Consumption |
Min.: 4.8W (DC 12V), 5.8W(PoE) Max.: 13.8W (DC 12V), 16.7W(PoE) |
| Weather Proof | Up to IP67-rated for Weather-resistant Performance |
| Housing | Vandal-proof IK10-rated Metal Housing |
| Surge Protection | 4KV |
| Weight | 1300g |
| Dimensions | 346mmX134mmX126mm |
| Certifications | |
| EMC | CE-EMC (EN 55032, EN 55035), FCC (PART 15B), RCM-EMC (AS/NZS CISPR 32:2015+A1(2020)) |
| Safety | CE-LVD (EN IEC 62368-1), RCM-LVD (IEC 62368-1:2018) |
| Environment | CE-ROHS (Directive (EU) 2015/863 amending 2011/65/EU) |
