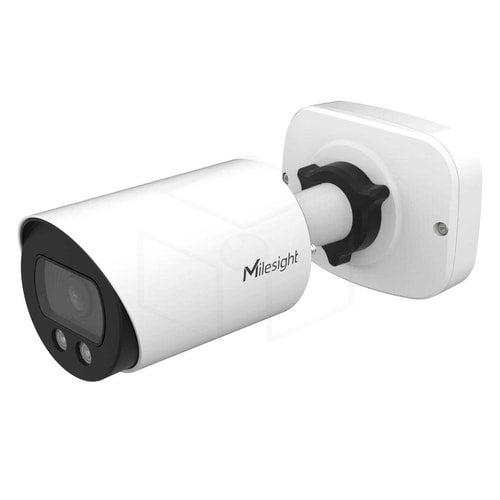

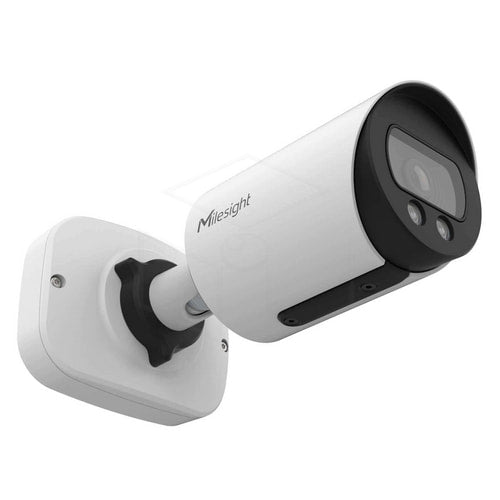

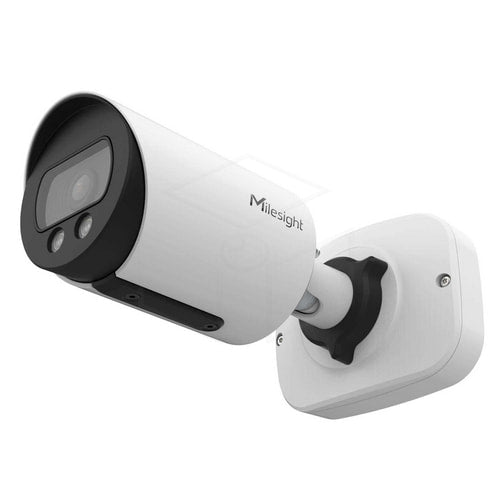

Milesight 8MP AI Color Vandal-proof Mini Bullet Camera (MS-C8164-UPD)
Product description
The Milesight MS-C8164-UPD is a powerful 8MP bullet camera from the AI Color+ series, designed for high-quality security with a focus on image quality and reliable performance in all lighting conditions. Thanks to its 8MP resolution, fixed 2.8mm lens and wide 108° field of view, the camera captures a large area with sharp, detailed images.
More features
8MP color imaging in low light
The camera combines a high-quality 8MP image sensor with Super WDR, preserving plenty of detail even in challenging lighting conditions. Even when light is limited, the camera can capture clear, true-to-life color images.
This makes the MS-C8164-UPD ideal for situations where identifying people, vehicles and other details is important.
Wide 108° field of view
The fixed 2.8mm lens offers a wide 108° field of view, allowing one camera to monitor a large area. This makes the camera an excellent choice for entrances, facades, parking lots, business premises and other locations where broad coverage is desired.
Night vision up to 30 meters
Security remains active at night. The integrated infrared illumination provides night vision up to 30 meters, so important events can be reliably captured even in complete darkness.
Robust and vandal-resistant
The MS-C8164-UPD is built for long-term use, even in harsh conditions. Its housing is IK10 vandal-resistant and carries an IP67 rating.
This makes the camera ideal for both indoor and outdoor applications, and resistant to dust, water and mechanical impact.
Easy installation with integrated PoE
The camera comes standard with a mounting box featuring an integrated PoE port. The network cable connects directly to the circuit board, eliminating unnecessary cabling.
Power over Ethernet (PoE) supplies power and data through a single Ethernet cable. This makes installation neat, quick and straightforward.
Standalone or via NVR
Footage can be stored on an NVR recorder, but the camera can also operate completely independently with a microSD card. This makes the MS-C8164-UPD a flexible choice for both small and professional camera security systems.
Specifications
| Model | MS-C8164-UPD |
| Camera | |
| Name | 4K AI Vandal-proof Mini Bullet Network Camera |
| Image Sensor | 1/2.8" Progressive Scan CMOS |
| Min. Illumination |
Color: 0.005Lux @F1.0 0Lux with whit LED on |
| WDR | 120dB Super WDR |
| Lens | 2.8mm @F1.0 |
| Mount | M12 |
| Field of View |
H108°/D125°/V49° |
| Shutter Time | 1/100000s∼1s |
| Day/Night Mode | Day/Night/Auto/Customize/Schedule |
| IR Distance | Up to 30m |
| S/N | >55dB |
| Video | |
| Max. Image Resolution | 3840x2160 |
| Primary Stream | 60Hz/50Hz: 30fps@(3840x2160, 3072x2048, 2592x1944, 2592x1520, 2048x1536, 1920x1080, 1280x960, 1280x720, 704x576) |
| Secondary Stream |
60Hz: 30fps@(704x576, 640x480, 640x360, 352x288) 50Hz: 25fps@(704x576, 640x480, 640x360, 352x288) |
| Tertiary Stream |
60Hz: 30fps@(1280x720, 704x576, 640x480, 640x360, 352x288) 50Hz: 25fps@(1280x720, 704x576, 640x480, 640x360, 352x288) |
| Video Compression | H.265+/H.265(HEVC)/H.264+/H.264/MJPEG |
| Video Bit Rate | 16Kbps∼16Mbps (CBR/VBR adjustable) |
| Image | |
| Privacy Masking | Up to 4 areas |
| ROI | Up to 8 areas |
| Image Settings |
Saturation/Brightness/Contrast/ Sharpness |
| Advanced Function | BLC, HLC, 2D DNR, 3D DNR, Defog, AWB, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur |
| Interface | |
| Ethernet | 1*RJ45 10M/100M Ethernet Port |
| Network | |
| Network Storage | NAS (Support NFS, SMB/CIFS), ANR |
| Network Protocols | IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, UPnP, Bonjour, SIP, SNMP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL |
| Intelligent Analytics | |
| Video Analysis | Region Entrance, Region Exiting, Advanced Motion Detection, Line Crossing, Loitering, Object Left, Object Removed |
| People Counting &Report | Count the number of people entering or exiting |
| Basic Event | |
| Exception | Motion Detection, Tamper Detection, Network Disconnection, IP Address Filtering, Record Failed, SD Card Full, SD Card Uninitialized, SD Card Error, No SD Card |
| Event Action | FTP Upload Record, SMTP Upload Record, SD Card Record, Snapshot, SIP Phone, HTTP Notification, etc. |
| System | |
| Storage | Support microSD/SDHC/SDXC Card Local Storage, up to 256G |
| SIP/VoIP Support | Yes, Voice&Video-over-IP |
| System Compatibility | ONVIF Profile G & Q & S & T, API |
| General | |
| Working Temperature | -40℃∼60℃ |
| Working Humidity | 0∼90% (Non-condensing) |
| Power Supply | PoE(802.3af) |
| Power Consumption | 4 W MAX, 6W MAX (With white LED on) |
| Weather Proof | Up to IP67-rated for weather-resistant performance |
| Housing | Vandal-proof IK10-rated metal housing |
| Weight | 610g (Junction Box Version) / 450g (Cable Out Version) |
| Dimensions | 97mmX74mmX180mm(Junction Box Version) / 64mmX64mmX160mm(Cable Out Version) |
