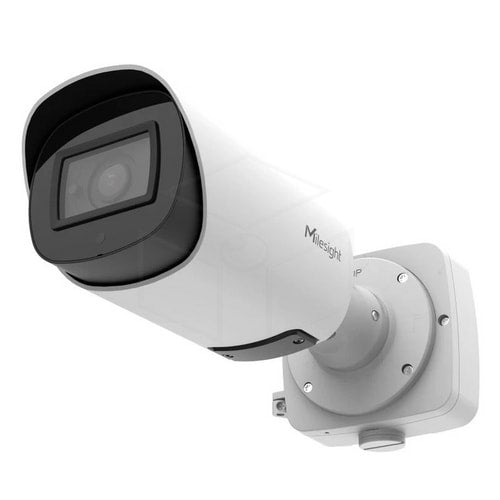

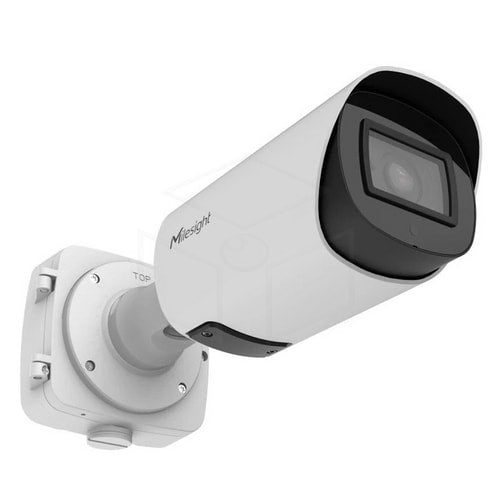

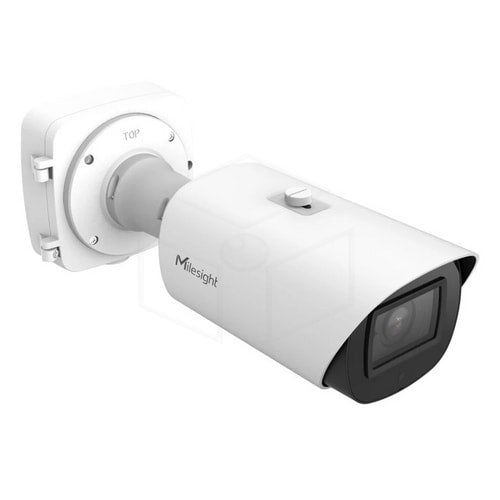

Milesight 8MP AI Motorized Bullet Plus Camera (MS-C8266-RFIPG1)
Product description
The Milesight 4K AI security camera combines razor-sharp Ultra HD image quality with advanced AI technology and excellent performance in all lighting conditions. Thanks to its 1/1.8" Progressive Scan CMOS sensor, 140 dB Super WDR and ultra-low light sensitivity of just 0.0008 Lux, this camera delivers reliable, detailed images both day and night.
More features
4K Ultra HD at 60 fps
With 4K Ultra HD resolution, images are displayed in exceptional detail. The high frame rate of 60 fps also ensures smooth video, enabling fast-moving people and vehicles to be captured accurately. Ideal for situations where image quality and motion detail are essential.
Excellent low-light performance
Thanks to ultra-low-light technology, the camera can produce clear images even in very low ambient light. Its 0.0008 Lux light sensitivity, combined with powerful 80-meter IR illumination, ensures reliable night-time surveillance over long distances.
140 dB Super WDR
Bright backlighting, dark shadows and high-contrast scenes are no problem. 140 dB Super WDR optimally balances the bright and dark areas of the image. This keeps important details visible, even in challenging lighting conditions.
Advanced AI Deep Learning
Built-in AI Deep Learning technology enables intelligent video analysis. People and vehicles can be accurately recognized, and relevant events can be detected automatically. This reduces unnecessary alerts and makes security more efficient.
Robust design for indoor and outdoor use
The camera is designed for long-term use in demanding conditions. Its IP67 rating protects the housing against dust and water. IK10 vandal resistance also provides additional protection against physical impact.
Flexible connectivity options
The camera features a wide range of connections, including Audio I/O, 2× Alarm I/O and PoE support. It can also be powered via DC 10–28V, making it suitable for a variety of security installations.
Professional 4K security camera
With 4K resolution, 60 fps, 80-meter IR, 140 dB Super WDR, 0.0008 Lux Ultra Low-Light and AI Deep Learning, this Milesight camera is a powerful solution for professional video surveillance. The combination of intelligent analytics, high image quality and a robust housing makes it suitable for a wide range of indoor and outdoor applications.
Specifications
| Model | MS-C8266-RFIPG1 |
| Camera | |
| Image Sensor | 1/1.8″ Progressive Scan CMOS |
| Min. Illumination | Color: 0.0008Lux@F1.2, B/W: 0Lux with IR on |
| WDR | 140dB Super WDR |
| Shutter Time | 1/100000s~1s |
| Day/Night Mode | Day / Night / Auto / Customize / Schedule |
| DORI Distance | D: 98.8m ~ 212m O:38.8m ~ 83.4m R:19.4m ~ 41.8m I:9.7m ~20.8m |
| S/N | >55dB |
| Illuminator | |
| Illuminator Number | 6 |
| IR Wave Length | 850nm |
| Illumination Distance | Up to 80m |
| Illuminator On/Off Control | Auto / Manual |
| Lens | |
| Lens | Motorized 2.8mm~12mm@F1.2 |
| Field of View | H105.3° ~ H46.8° / D122.6° ~ D53.9° / V55.6° ~ V26.2° |
| Close Focus Distance | W: 1m, T: 1.5m |
| Camera Angle Adjustment | Pan: 0° ~ 360°, Tilt: 0° ~ 90°, Rotation: 0° ~ 360° |
| Mount | Φ17 |
| Focus Control | Auto / Manual |
| Aperture | Max.F1.2 |
| Iris Type | P-Iris |
| Iris Control | Auto / Manual |
| Video | |
| Max. Image Resolution | 3840x2160 |
| Primary Stream |
60Hz: 60fps@(3840x2160, 3072x2048, 2592x1944, 2592x1520, 2048x1536, 1920x1080, 1280x960, 1280x720) 50Hz: 50fps@(3840x2160, 3072x2048, 2592x1944, 2592x1520, 2048x1536, 1920x1080, 1280x960, 1280x720) |
| Secondary Stream |
60Hz: 60fps@(704x576, 640x480, 640x360) 50Hz: 50fps@(704x576, 640x480, 640x360) |
| Tertiary Stream |
60Hz: 30fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360) 50Hz: 25fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360) |
| Quaternary Stream |
60Hz: 10fps@(1280x720), 30fps@(704x576, 640x480, 640x360) 50Hz: 10fps@(1280x720), 25fps@(704x576, 640x480, 640x360) |
| Video Compression |
H.265+/H.265(HEVC)/H.264+/H.264 /MJPEG |
| Video Bit Rate | 16Kbps ~ 16Mbps (CBR/VBR Adjustable) |
| Image | |
| AI ISP | Support |
| Privacy Masking | Up to 8 Areas (sMask Area and Mosaic Area are optional) |
| ROI | Up to 8 Areas |
| Image Setting | Brightness / Contrast / Saturation / Sharpness |
| Image Rotation | Off, Rotating 180°, Flip Horizontal, Flip Vertical, Clockwise 90°, Anticlockwise 90° |
| Image Enhancement | BLC, HLC, 2D DNR, 3D DNR, AGC, Defog, AWB, Deblur, Anti-flicker, LDC, DIS |
| Hybrid Zoom | Up to 32X |
| Network | |
| Network Storage | NAS(Support NFS, SMB/CIFS), ANR |
| Protocol | IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, LLDP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, SNMP, UPnP, Bonjour, SIP, VPN, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL, TLS 1.2 |
| Interface | |
| Ethernet | 1*RJ45 10M/100M Ethernet Port |
| Audio I/O | 1/1 |
| Alarm I/O | 2/2 (Alarm Output 2: Wet Contact, 10mA 12V DC) |
| Audio | |
| Audio Compression | G.711/AAC/G.722/G.726 |
| Audio Sampling Rate | 8/16/32/44.1/48KHz |
| Audio Bit Rate | 16~256kbps |
| Intelligent Analytics | |
| Video Analysis | VCA 2.0: Intrusion Detection, Region Entrance, Region Exiting, Advanced Motion Detection, Line Crossing, Loitering, Object Left, Object Removed |
| Attribute Extraction |
Simultaneously detect up to 50 targets and capture humans and vehicles in real time. Recognize attributes including Upper and Lower Clothing Color, Hat, and Vehicle Types (Bicycle, Car, Motorcycle, Bus, Truck, E-scooter). |
| Face Detection & Face Attribute Recognition | Detect and capture faces, get real-time snapshots; The attributes include Age, Gender, Glasses, Mask and Cap |
| Object Counting & Report | Count the number of objects crossing the line, optionally human and vehicle. Support regional people counting for up to 4 detection areas. |
| Heat Map | The built-in statistical behavior analysis enables you to identify the busiest areas within the environment |
| Hard Hat Detection | Detects whether individuals are wearing safety helmets. Triggers an alarm when a person is identified without a helmet, enhancing safety compliance on-site. |
| Privacy Protection | Automatically detect faces or human bodies in the video stream and overlay mosaic effects. Supported on Primary Stream/Secondary Stream, Compatible with H.265/H.264 formats. |
| Fall Detection | Detect a person's fall and trigger an alarm to alert others for timely assistance. |
| Violence Detection | Identify violent behavior and trigger an alarm to alert others to intervene or prevent the action. |
| Event | |
| One-Click Disarm | Support |
| Basic Event | Motion Detection, Tamper Detection, Audio Alarm, External Input, External Output etc. |
| Exception | Network Disconnection, IP Address Conflict, Record Failed, SD Card Full, SD Card Uninitialized, SD Card Error, No SD Card, etc. |
| vent Action | FTP Upload Record, SMTP Upload Record, SD Card Record, Snapshot, External Output, Play Audio, SIP Phone, HTTP Notification, etc. |
| System | |
| Watermark | Support |
| Storage | Support Micro SD/SDHC/SDXC Card Local Storage, up to 1TB |
| SIP/VoIP Support | Yes, Voice & Video-over-IP |
| System Compatibility | ONVIF Profile G & M & S & T, One API |
| General | |
| Working Temperature | -40℃~60℃ |
| Working Humidity | 0~95% RH(Non-condensing) |
| Power Supply | PoE+ (802.3at) / DC 10V~DC 28V |
| Power Consumption |
Min.: 4W (DC), 4.9W (PoE+) 24 Hour Average: 5.5W (DC), 6.7W (PoE+) Max.: 15.4W (DC), 17.8W (PoE+) |
| Surge Protection | 6KV |
| Net Weight | Approx. 1.6kg |
| Gross Weight | Approx. 2.4kg |
| Dimensions | 320mm X 134mm X 126mm |
| Certifications | |
| EMC | CE-EMC (EN 55032, EN 55035), FCC (PART 15B) |
| Safety | UL: UL 62368-1, CE-LVD (EN IEC 62368-1) |
| Environment | CE-ROHS (Directive (EU) 2015/863 amending 2011/65/EU) |
| Protection | IP67, IK10 |
