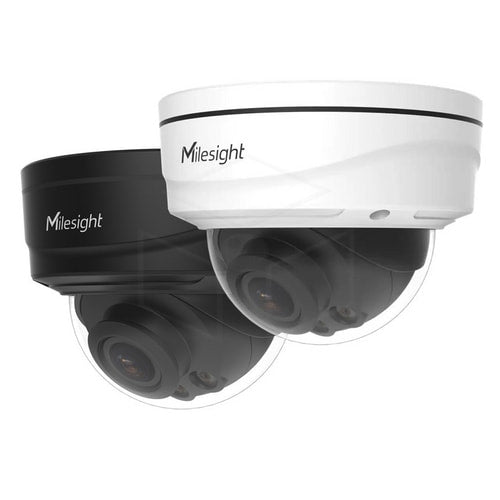

Milesight 8MP AI Motorized Pro Dome Camera (MS-C8172-FIPC)
Product description
The Milesight MS-C8172-FIPC is a professional 8MP AI dome camera that combines razor-sharp image quality with a versatile motorized lens. With a zoom range of 2.7 to 13.5 mm, the camera can be flexibly used in a wide range of indoor and outdoor applications.
More features
8MP 4K Ultra HD for maximum detail
With an 8-megapixel resolution and a large 1/1.8" image sensor, the camera delivers detailed images with excellent clarity. A frame rate of up to 30 fps, Super WDR, and 3D noise reduction ensure optimal image quality, even in challenging lighting conditions.
Image parameters can be adjusted separately for day and night use, so the camera performs optimally in different conditions.
Optical zoom from wide view to fine detail
The motorized optical zoom allows the field of view to be adjusted as needed. With a viewing angle ranging from approximately 110° at wide angle to 46° at telephoto, you can easily switch between a broad overview and a focused view of important details.
Advanced Milesight AI video analytics
The integrated AI chip analyzes video footage in real time and recognizes people and vehicles, among other things. This automatically detects relevant events, allowing alarms or recordings to be triggered selectively.
People detection and counting
The camera features intelligent people detection and counting functions. It can record people entering or leaving an area and keep track of the number of people present.
IP67 & IK10 Built for harsh conditions
The robust dome housing is designed for professional applications. IP67 protects the camera against dust and water, while IK10 provides a high level of vandal resistance.

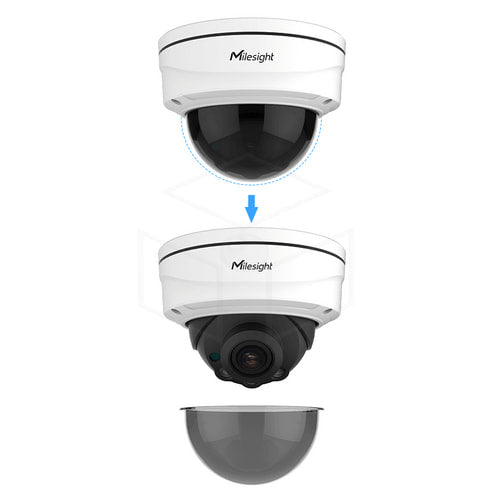

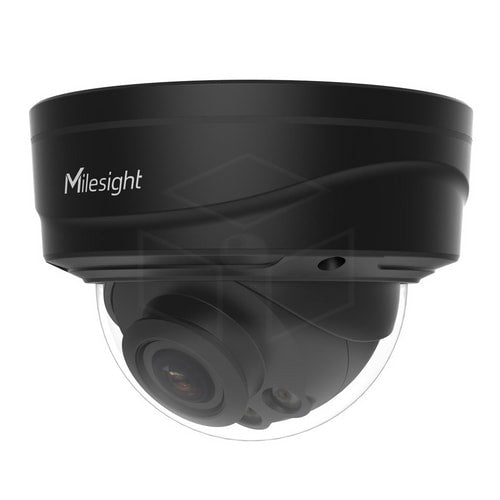

The smoke-gray dome cover also gives the camera a discreet appearance, while the optics and cabling are well protected inside the housing.
Flexible installation and storage
The camera can be mounted on either the ceiling or the wall. A microSD card can be used for local recording, enabling standalone operation.
For larger installations, the camera can be connected to an NVR network recorder for centralized management and recording. ONVIF compatibility enables integration with compatible video management and security systems.
Specifications
| Model | MS-C8172-FIPC |
| Camera | |
| Image Sensor | 1/2.8″ Progressive Scan CMOS |
| Min. Illumination | Color: 0.012Lux@F1.4, B/W: 0Lux with IR on |
| WDR | 120dB Super WDR |
| Shutter Time | 1/100000s~1s |
| Day/Night Mode | Day / Night / Auto / Customize / Schedule |
| S/N | >55dB |
| Lens | |
| Lens | Motorized 2.7mm~13.5mm@F1.4 |
| Field of View | H96°~H33°/D112°~D37°/ V53°~V18° |
| Close Focus Distance | W: 1m, T: 1m |
| Mount | Φ14 |
| Focus Control | Auto/Manual |
| IrisControl (OptionalforISeries) |
Auto/Manual |
| Video | |
| Max. Image Resolution | 3840x2160 |
| Primary Stream |
60Hz: 60fps@(3840x2160, 3072x2048, 2592x1944, 2592x1520, 2048x1536, 1920x1080, 1280x960, 1280x720) 50Hz: 50fps@(3840x2160, 3072x2048, 2592x1944, 2592x1520, 2048x1536, 1920x1080, 1280x960, 1280x720) |
| Secondary Stream |
60Hz: 60fps@(704x576, 640x480, 640x360) 50Hz: 50fps@(704x576, 640x480, 640x360) |
| Tertiary Stream |
60Hz: 30fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360) 50Hz: 25fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360) |
| Quaternary Stream |
60Hz: 10fps@(1280x720), 30fps@(704x576, 640x480, 640x360) 50Hz: 10fps@(1280x720), 25fps@(704x576, 640x480, 640x360) |
| Video Compression | H.265+ /H.265 (HEVC) /H.264+ /H.264 /MJPEG |
| Video Bit Rate | 16Kbps ~ 16Mbps (CBR/VBR Adjustable) |
| Privacy Masking | Up to 28 areas (24 mask areas and 4 mosaic areas) |
| ROI | Up to 8 areas |
| Image Setting | Brightness / Contrast / Saturation / Sharpness |
| Network | |
| Network Storage | NAS(Support NFS, SMB/CIFS), ANR |
| Protocol | IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, LLDP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, SNMP, UPnP, Bonjour, SIP, VPN, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL, TLS |
| Interface | |
| Ethernet | 1*RJ45 10M/100M Ethernet Port |
| Audio I/O | Built-in Microphone and 1 Audio Output interface |
| Alarm I/O | 1/1 |
| Audio | |
| Audio Compression | G.711/AAC/G.722/G.726 |
| Audio Sampling Rate | 8/16/32/44.1/48KHz |
| Audio Bit Rate | 16~256kbps |
| Two-wayAudio | Support |
| Intelligent Analytics | |
| Video Analysis | Region Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Object Left, Object Removed |
| Face Detection | Detect and capture faces, get real-time snapshots |
| People Counting&Report | Count the number of people entering or exiting, up to 4 detection areas for regional people counting |
| System | |
| Storage | Support Micro SD/SDHC/SDXC Card Local Storage, up to 256G |
| Advanced Function | HeatMap, BLC, HLC, 2DDNR, 3DDNR, Defog, AWB, EIS, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur, Watermark |
| SIP/VoIP Support | Yes, Voice & Video-over-IP |
| Event Trigger | Motion Detection, Network Disconnection, Audio Alarm, External Input, etc. |
| Event Action | FTP Upload, SMTP Upload, SD Card Record, External Output, SIP Phone, HTTP Notification, etc. |
| System Compatibility | ONVIF Profile G & Q & S & T ,API |
| General | |
| Working Temperature | -40℃~60℃ |
| Working Humidity | 0~95% RH (Non-condensing) |
| Power Supply | PoE (802.3af) / DC 12V±10% |
| Power Consumption | 10W MAX 13W MAX (With IR on) |
| Surge Protection | 2KV |
| Net Weight | 1100g |
| Dimensions | Φ143mm X 108.4mm |
