Milesight MS-C2973-PB Vandalproof Mini Dome 2MP
Product description

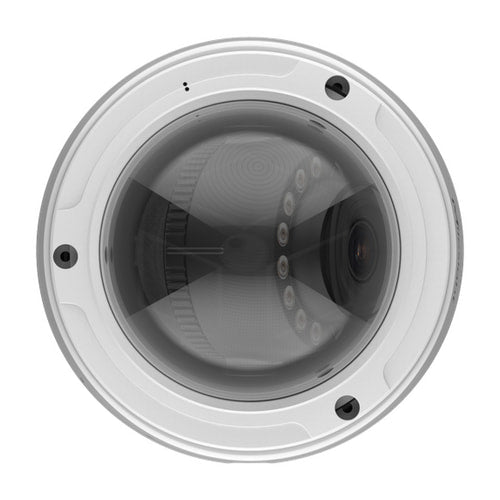

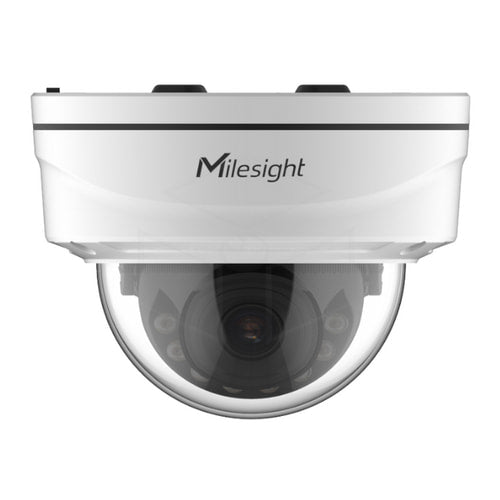

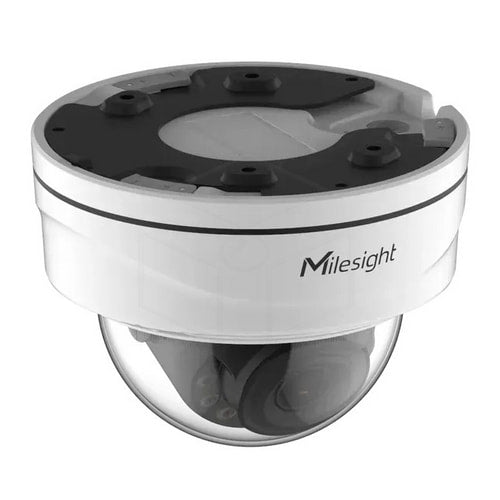

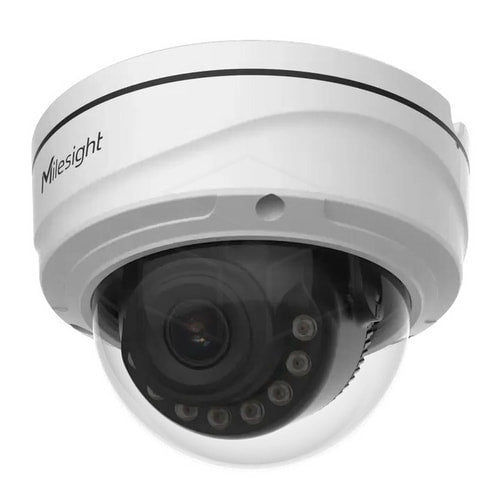

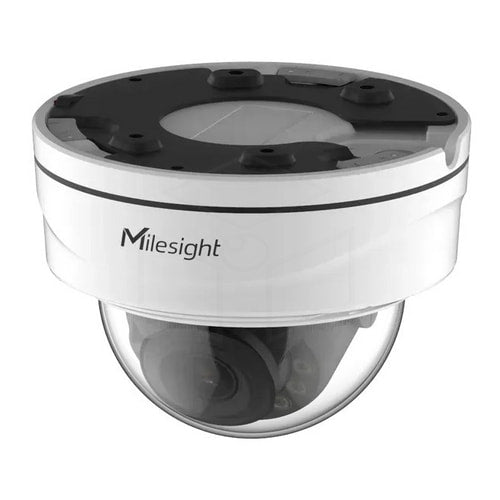

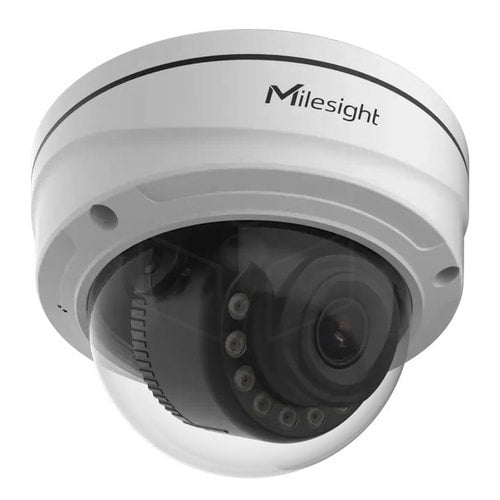

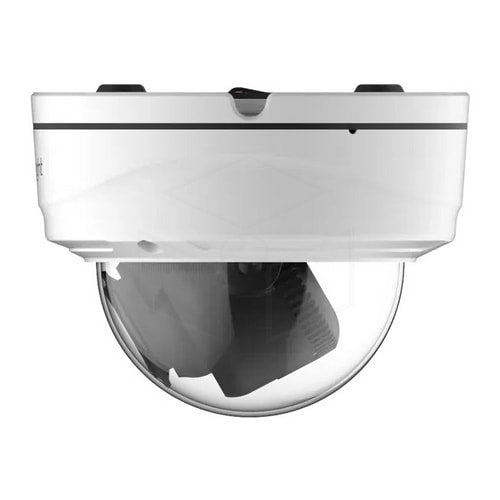

The Milesight MS-CQ8272-HPG1 is a professional 8MP 4K TrueColor dome network camera that combines maximum image quality with intelligent AI analytics and active deterrence. Thanks to its large 1/1.8” image sensor, ultra-large F1.0 lens and AI ISP technology, the camera delivers exceptionally bright, colorful and detailed images, even in very low-light conditions.
More features
Crystal-clear 8MP 4K TrueColor, day and night
The 8MP resolution delivers sharp 4K images with plenty of detail. The combination of the 1/1.8” sensor, F1.0 lens and AI ISP optimizes light, color and image noise, ensuring important details remain visible even in challenging lighting conditions.
Smart Hybrid Light for intelligent night surveillance
With Smart Hybrid Light, the MS-CQ8272-HPG1 combines infrared and full-color illumination. The camera automatically switches between the different lighting modes when a relevant event is detected. This ensures people and vehicles are clearly captured in color, even at night.

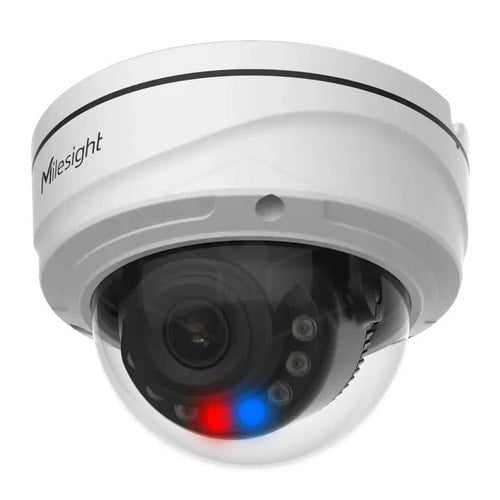

Active deterrence with red and blue flashing lights
The integrated red and blue flashing lights provide a powerful visual deterrent. In the event of suspicious activity, the camera can issue a visible warning immediately, deterring potential intruders before a situation escalates.
Advanced AI and VCA 2.0
The built-in AI functionality and VCA 2.0 enable accurate detection of people and vehicles. Intelligent object recognition filters out irrelevant motion more effectively, significantly reducing the number of false alerts.
The camera also supports features such as object counting and Face Capture, providing valuable insights from camera footage for both security and analysis.
Professional security with two-way audio
The built-in microphone and speaker enable two-way audio. This allows users to listen and communicate remotely, providing additional options for access control, security and active intervention.
Rugged IP67 and IK10 design
The sturdy dome housing is designed for long-term use in demanding conditions. IP67 protection makes the camera resistant to dust and water, while IK10 vandal resistance protects it against physical impact.
This makes the MS-CQ8272-HPG1 suitable for both indoor and outdoor applications, including commercial buildings, shops, parking lots, entrances and public spaces.
Smart 4K surveillance with maximum control
The Milesight MS-CQ8272-HPG1 brings together 4K TrueColor, AI ISP, F1.0, Smart Hybrid Light, AI VCA 2.0, Face Capture, object counting and active deterrence in one professional dome camera.
Specifications
| Model | MS-CQ8272-HPG1 |
| Camera | |
| Name | AI TrueColor Dome Camera |
| Image Sensor | 1/1.8” Progressive Scan CMOS |
| Min. Illumination |
0.0008 Lux@F1.0 (Color, 30 IRE) 0 lux (Illuminator on) |
| WDR | 120dB Super WDR |
| Shutter Time | 1/100000s ~ 1s |
| Day/Night Mode | Day / Night / Auto / Customize / Schedule |
| DORI Distance | D: 91.5m O: 36m R: 18 m I: 9m |
| S/N | >56dB |
| Illuminator | |
| Illuminator Type | 6 x Smart Hybrid Lights (Mixed IR and White Warm Lights) |
| IR Wave Length | 850nm |
| Illumination Distance | Up to 40m (IR Light), Up to 30m (White Warm Light) |
| Illuminator On/Off Control | Auto, Manual |
| Smart Hybrid Lights | Support |
| Red and Blue Flashing Lights | 1 x Red Light and 1 x Blue Light |
| Lens | |
| Lens | 2.8mm |
| Aperture | F1.0 |
| Field of View | H:112° V:61.5° D:137° |
| Close Focus Distance | 2m |
| Camera Angle Adjustment | Pan: 0° ~ 355°, Tilt: 0° ~ 80°, Rotation: 0° ~ 355° |
| Mount | M16 |
| Video | |
| Max. Image Resolution | 3840x2160 |
| Primary Stream |
60Hz: 30fps@ (3840x2160, 3200x1800, 2688x1520, 1920x1080, 1280x720) 50Hz: 25fps@ (3840x2160, 3200x1800, 2688x1520, 1920x1080, 1280x720) |
| Secondary Stream |
60Hz: 30fps@ (704x576, 640x480, 640x360) 50Hz: 25fps@ (704x576, 640x480, 640x360) |
| Tertiary Stream |
60Hz: 30fps@ (1920x1080, 1280x720, 704x576, 640x480, 640x360) 50Hz: 25fps@ (1920x1080, 1280x720, 704x576, 640x480, 640x360) |
| Video Compression |
H.265+/H.265(HEVC)/H.264+/H.264/ MJPEG |
| Video Bit Rate | 16Kbps~16Mbps (CBR/VBR Adjustable) |
| Image | |
| AI ISP | Support |
| Privacy Masking | Up to 8 Areas (Mask Area and Mosaic Area are optional) |
| ROI | Up to 8 areas |
| Image Setting | Brightness / Contrast / Saturation / Sharpness |
| Image Enhancement | BLC, HLC, 2D DNR, 3D DNR, AWB, Defog, AGC, LDC, Anti-flicker, Deblur, etc. |
| Image Rotation | Off, Rotating 180°, Flip Horizontal, Flip Vertical, Clockwise 90°, Anticlockwise 90° |
| Audio | |
| Built-in Microphone | Yes, Single Microphone |
| Audio Compression | G.711/AAC/G.722/G.726 |
| Audio Sampling Rate | 8/16/32/44.1/48KHz |
| Audio Bit Rate | 16~256kbps |
| Interface | |
| Alarm I/O | 1/1 |
| Audio I/O | 1/1 |
| Power Supply | PoE (802.3af) / DC 12V±25% |
| Network | |
| Ethernet | 1 x RJ45 10M /100M Ethernet Port |
| Network Storage | NAS(Support NFS, SMB/CIFS), ANR |
| Protocol | IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, SNMP, UPnP, Bonjour, LLDP, SIP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL,TLS 1.2 |
| Intelligent Analytics | |
| Video Analysis | VCA 2.0: Intrusion Detection, Region Entrance, Region Exiting, Advanced Motion Detection, Line Crossing, Loitering, Object Left, Object Removed |
| Object Counting & Report | Count the number of objects crossing the line, optionally human and vehicle, Support regional people counting for up to 4 detection areas |
| Heat Map | The built-in statistical behavior analysis enables you to identify the busiest areas within the environment |
| Face Capture | Capture faces, get real-time snapshots and integrate with third-party systems for advanced analysis |
| Event | |
| One-Click Disarm | Support |
| Basic Event | Motion Detection, Tamper Detection, Audio Alarm, External Input, External Output, etc. |
| Exception | Network Disconnection, IP Address Filtering, Record Failed, SD Card Full, SD Card Uninitialized, SD Card Error, No SD Card, etc. |
| Event Action | FTP Upload, SMTP Upload, Snapshot, Record, External Output, Play Audio, Alarm to SIP Phone, HTTP Notification, Warning Light, etc. |
| System | |
| Watermark | Support |
| Storage | Support Micro SD/SDHC/SDXC Card Local Storage, up to 1TB |
| SIP/VoIP Support | Yes, Voice & Video-over-IP |
| System Compatibility | ONVIF Profile G&M&S&T, One API |
| General | |
| Working Temperature | -40℃ ~ 60℃ |
| Working Humidity | 0~95% RH (Non-condensing) |
| Surge Protection | 4KV |
| Power Consumption |
Min.: 3.5W (DC 12V), 5W (PoE) Max.: 8W (DC 12V), 9.6W (PoE) |
| Casing Material | Metal |
| Net Weight | Approx. 1.0kg |
| Gross Weight | Approx. 1.3kg |
| Dimensions | Φ143mm X 108.4mm |
| Certifications | |
| EMC | CE-EMC (EN 55032, EN 55035, EN61000), FCC (PART 15B) |
| Safety | CE-LVD (EN IEC 62368-1) |
| Environment | CE-ROHS (Directive (EU) 2015/863 amending 2011/65/EU) |
| Protection | IP67, IK10 |
