Milesight MS-C2973-PB Vandalproof Mini Dome 2MP
Product description
The Milesight 8MP AI security camera combines crystal-clear 4K image quality with advanced AI, smart lighting and active deterrence. Thanks to its 1/1.8” image sensor, F1.0 aperture and AI ISP, the camera delivers exceptionally clear, detailed images, even in low light.
More features
8MP 4K image quality with AI ISP
The 8MP sensor delivers sharp Ultra HD images with plenty of detail. The combination of AI ISP, a large F1.0 aperture and the 1/1.8” sensor optimises noise reduction, brightness and detail reproduction for reliable image quality in a wide range of lighting conditions.
Smart Hybrid Light for smart day-and-night visibility
Smart Hybrid Light lets the camera intelligently switch between IR and white light. Powerful IR illumination has a range of up to 40 metres. When a relevant event is detected, additional lighting can be activated to clearly capture important details and colours.

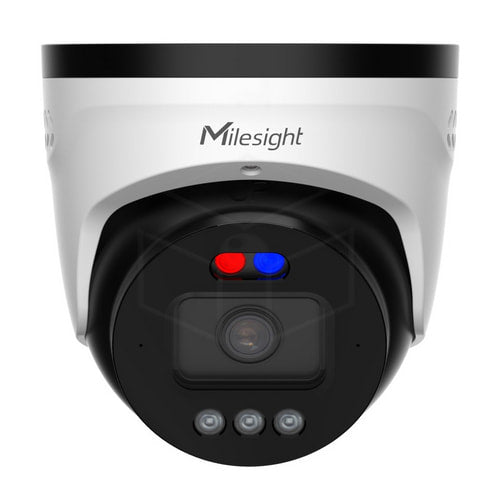

Active deterrence with red and blue flashing lights
The integrated blue and red flashing lights provide an immediate visual deterrent in the event of suspicious activity. This allows the camera to combine reliable detection with active security.
Advanced AI and video analytics
The camera features a wide range of intelligent functions for professional security. VCA 2.0, object counting, face capture and heat maps enable accurate analysis of events and visitor traffic.
Built-in dual microphone and speaker
With its built-in dual microphone and speaker, the camera supports two-way audio. This enables remote communication and allows the camera to be used for interactive security and alerts.
Electronic image stabilisation
Electronic Image Stabilization (EIS) reduces unwanted vibration and movement in the image. This provides more stable video, especially in installations where vibrations may occur.
Smart and easy to install
The One Screwdriver Design makes installation and maintenance easier and more efficient, allowing the camera to be mounted quickly and easily.
Durable and suitable for outdoor use
The sturdy housing features IP67 protection against dust and water, as well as IK10 vandal resistance. This makes this Milesight AI camera ideal for both indoor use and demanding outdoor applications.
Complete AI security in one camera
With 8MP 4K, AI ISP, F1.0, Smart Hybrid Light, 40-metre IR, active red and blue lighting, AI VCA, object counting, face capture, heat maps and two-way audio, this Milesight camera offers a complete solution for modern video surveillance.
Specifications
| Model | MS-CQ8231-HYPG1 |
| Camera | |
| Name | Milesight AI TrueColor Turret Camera |
| Image Sensor | 1/1.8” Progressive Scan CMOS |
| Min. Illumination |
0.0008 Lux@F1.0 (Color, 30 IRE) 0 lux (Illuminator on) |
| WDR | 120dB Super WDR |
| Shutter Time | 1/100000s ~ 1s |
| Day/Night Mode | Day / Night / Auto / Customize / Schedule |
| DORI Distance |
D: 91.5m O: 36m R: 18 m I: 9m |
| S/N | >56dB |
| Illuminator | |
| Illuminator Type | 3 x Smart Hybrid Lights (Mixed IR and White Warm Lights) |
| IR Wave Length | 850nm |
| Illumination Distance | Up to 40m (IR Light), Up to 30m (White Warm Light) |
| Illuminator On/Off Control | Auto, Manual |
| Smart Hybrid Lights | Support |
| Red and Blue Flashing Lights | 1 x Red Light and 1 x Blue Light |
| Lens | |
| Lens | 2.8mm |
| Aperture | F1.0 |
| Field of View |
H:112° V:61.5° D:137° |
| Close Focus Distance | 2m |
| Camera Angle Adjustment | Pan: 0° ~ 360°, Tilt: 0° ~ 90°, Rotation: 0° ~ 360° |
| Mount | M16 |
| Video | |
| Max. Image Resolution | 3840x2160 |
| Primary Stream |
60Hz: 30fps@ (3840x2160, 3200x1800, 2688x1520, 1920x1080, 1280x720) 50Hz: 25fps@ (3840x2160, 3200x1800, 2688x1520, 1920x1080, 1280x720) |
| Secondary Stream |
60Hz: 30fps@ (704x576, 640x480, 640x360) 50Hz: 25fps@ (704x576, 640x480, 640x360) |
| Tertiary Stream |
60Hz: 30fps@ (1920x1080, 1280x720, 704x576, 640x480, 640x360) 50Hz: 25fps@ (1920x1080, 1280x720, 704x576, 640x480, 640x360) |
| Video Compression |
H.265+/H.265(HEVC)/H.264+/ H.264/MJPEG |
| Video Bit Rate | 16Kbps~16Mbps (CBR/VBR Adjustable) |
| Image | |
| AI ISP | Support |
| Privacy Masking | Up to 8 Areas (Mask Area and Mosaic Area are optional) |
| ROI | Up to 8 areas |
| Image Setting | Brightness / Contrast / Saturation / Sharpness |
| Image Enhancement | BLC, HLC, 2D DNR, 3D DNR, AWB, Defog, AGC, LDC, Anti-flicker, Deblur, etc. |
| Image Rotation | Off, Rotating 180°, Flip Horizontal, Flip Vertical, Clockwise 90°, Anticlockwise 90° |
| Audio | |
| Built-in Microphone | Yes, Dual Microphone |
| Built-in Speaker | Yes, max.sound pressure level: 10cm: 95dB |
| Audio Compression | G.711/AAC/G.722/G.726 |
| Audio Sampling Rate | 8/16/32/44.1/48KHz |
| Audio Bit Rate | 16~256kbps |
| Interface | |
| Alarm I/O | 1/1 |
| Audio I/O | 1/1 |
| Power Supply | PoE (802.3af) / DC 12V±25% |
| Network | |
| Ethernet | 1 x RJ45 10M /100M Ethernet Port |
| Network Storage | NAS(Support NFS, SMB/CIFS), ANR |
| Protocol | IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, SNMP, UPnP, Bonjour, LLDP, SIP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL,TLS 1.2 |
| Intelligent Analytics | |
| Video Analysis | VCA 2.0: Intrusion Detection, Region Entrance, Region Exiting, Advanced Motion Detection, Line Crossing, Loitering, Object Left, Object Removed |
| Object Counting & Report | Count the number of objects crossing the line, optionally human and vehicle, Support regional people counting for up to 4 detection areas |
| Heat Map | The built-in statistical behavior analysis enables you to identify the busiest areas within the environment |
| Face Capture | Capture faces, get real-time snapshots and integrate with third-party systems for advanced analysis |
| Event | |
| One-Click Disarm | Support |
| Basic Event | Motion Detection, Tamper Detection, Audio Alarm, External Input, External Output, etc. |
| Exception | Network Disconnection, IP Address Filtering, Record Failed, SD Card Full, SD Card Uninitialized, SD Card Error, No SD Card, etc. |
| Event Action | FTP Upload, SMTP Upload, Snapshot, Record, External Output, Play Audio, Alarm to SIP Phone, HTTP Notification, Warning Light, etc. |
| System | |
| Watermark | Support |
| Storage | Support Micro SD/SDHC/SDXC Card Local Storage, up to 1TB |
| SIP/VoIP Support | Yes, Voice & Video-over-IP |
| System Compatibility | ONVIF Profile G&M&S&T, One API |
| General | |
| Working Temperature | -40℃ ~ 60℃ |
| Working Humidity | 0~95% RH (Non-condensing) |
| Surge Protection | 4KV |
| Power Consumption |
Min.: 4W (DC 12V), 5W (PoE) Max.: 10W (DC 12V), 11.5W (PoE) |
| Casing Material | Metal |
| Net Weight | Approx. 0.9kg |
| Gross Weight | Approx. 1.1Kg |
| Dimensions | Φ122mm X 108mm |
| Certifications | |
| EMC | CE-EMC (EN 55032, EN 55035, EN61000), FCC (PART 15B) |
| Safety | CE-LVD (EN IEC 62368-1) |
| Environment | CE-RoHS (Directive (EU) 2015/863 amending 2011/65/EU) |
| Protection | IP67, IK10 |
