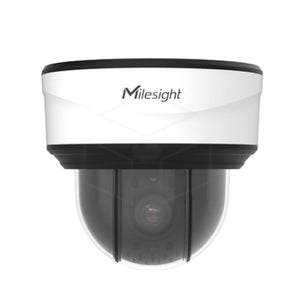

Milesight MS-C2971-X23RTPE AI Mini PTZ Dome 2MP 23x
Regular price
€1.095,00
Tax included.
Shipping calculated at checkout.
Product Description

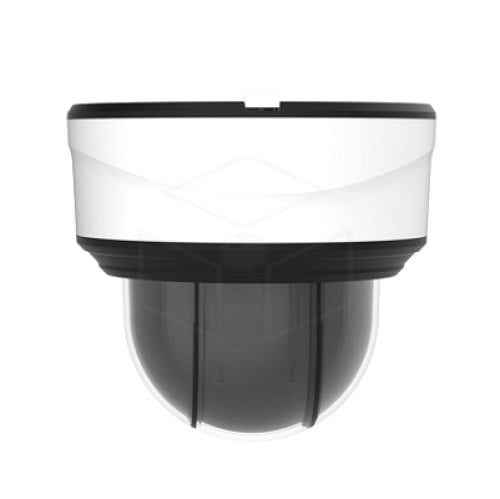

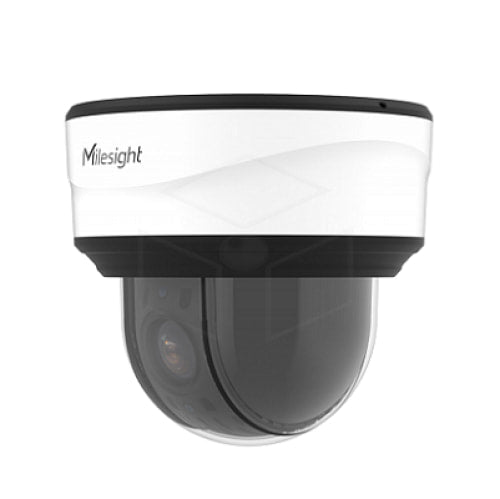

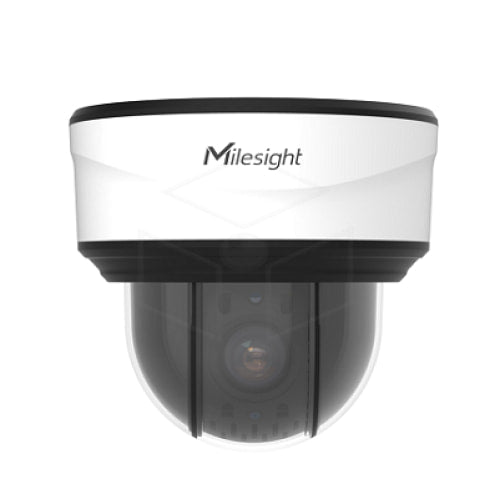

The MS-C2971-X23RTPE is a compact PTZ dome camera from the AI series of Milesight. The camera has a 2 megapixel resolution and a lens with 23x optical zoom. PTZ stands for pan, tilt and zoom and means that it is possible to move the camera and zoom in remotely. The PTZ can rotate 360° without limit.
The camera can be set to automatically detect and follow people. The images can be viewed on a recorder or the camera can be installed standalone with a micro SD card. The MS-C2971-X23RTPE is suitable for mounting both indoors and outdoors and is vandal-proof according to IP66 and IK10.
More features
compact PTZ security camera for versatile use
The Milesight Mini PTZ dome security camera is a compact powerhouse suitable for a wide range of surveillance applications. 360° unlimited rotation and rotation combined with 23x optical zoom enable high-quality surveillance even in large areas. The weight of the camera is only 2kg and the dimensions are Φ183mm X 174.8mm. The camera has an ingress protection degree of IP66 and vandalism resistance of IK10.
Versatile mounting options

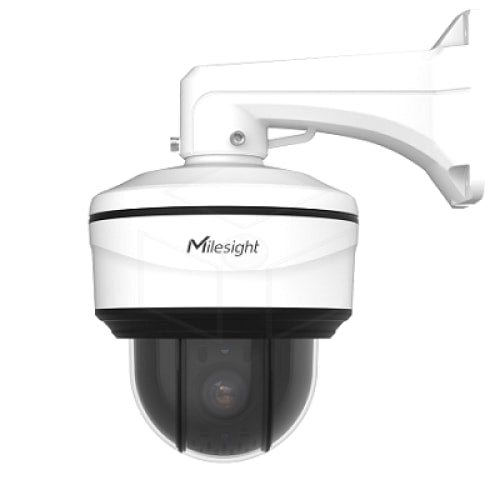

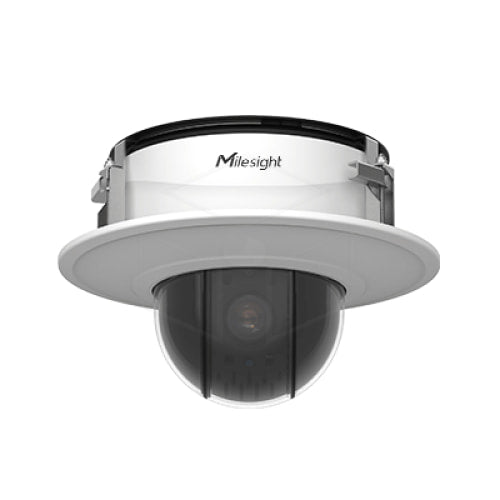

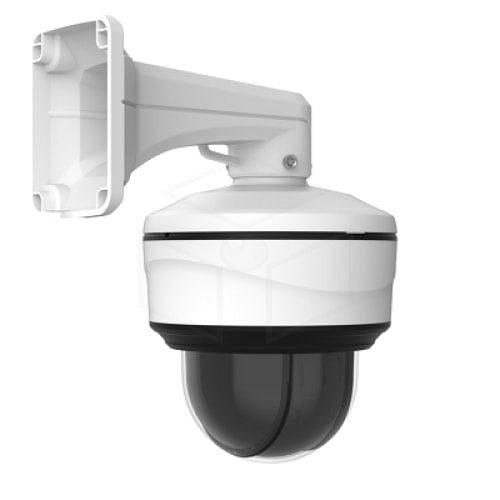

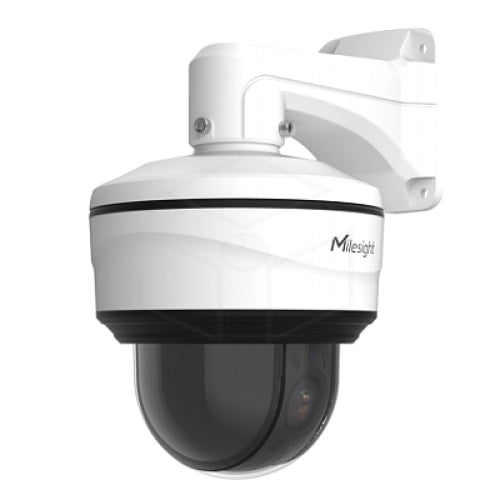

The Mini PTZ Dome security camera offers a wide range of mounting options. The camera can be surface mounted or, using a dip collar, the camera can be embedded in ceiling structures, for example, leaving only the dome visible. Wall and ceiling mounts are also available with their own mounting brackets for easy installation of the camera.
Easy installation PoE+ power supply
The Milesight Mini PTZ Dome 23× 2 MP PoE+ is equipped with advanced PoE+ technology, which enables the supply of operating voltage to the network cable. Thus, setting up the camera is much easier than traditional, because the camera does not need a power outlet next to it and there is no need to encapsulate the power supply as is usually the case with PTZ surveillance cameras.
Sharp images with high frame rates of 60 fps and 140dB Super WDR
The image quality of the Mini PTZ Dome security camera is excellent. The video resolution is 1920×1080 @ 60 fps. Fast frame rates ensure accurate images, even of fast-moving subjects. Intelligent image enhancement technologies, including HLC for license plate photography, Super WDR 140 dB for challenging lighting conditions, and noise reduction.
The latest version of H.265+ video compression technology reduces video file size to less than half. At the same time, bandwidth consumption can be reduced by up to 70-80% compared to the older H.264 , significantly reducing the burden on the network connection. New technology brings significant cost savings and improves business operations. The camera also has a built-in memory card slot.
23x optical zoom and 255 memory slots
The PTZ surveillance camera has a 23x optical zoom, which allows the camera to see up to a hundred meters away. The angle of view is 60 ° ~ 3 °.
The head is fully rotating (HiSpeed Dome) and the rotation speed (rotation 0.02 ~450°/s and pan 0.02 ~450°/s) is adjustable as needed, which makes the control very easy and precise. The camera can be controlled directly with the mouse thanks to 3D panning.
In addition, 255 different locations and 8 patrols (48 locations/patrol) can be stored in the device's memory.
Automatic article tracking
The Milesight PTZ security camera is equipped with PTZ Auto Tracking, which allows the camera to track a moving object and keep it within the camera's field of view. This feature is very useful in large construction sites and locations where the camera's optical zoom can be used.
Milesight AI AI Features
In video surveillance, AI will play an important role in intelligent video analysis, greatly improving surveillance performance and saving human labor.
Milesight's AI-powered cameras are equipped with a discrete AI chip with advanced algorithms that enable a number of intelligent functions such as identifying people and vehicles, and related functions.
Identification of persons and counting of visitors
Milesight AI cameras have advanced functionality for detecting people. The system can indicate the number of people entering and leaving the door and the number of people inside, among other things.
Facial recognition function
AI surveillance cameras have advanced facial recognition capabilities. The camera can distinguish the following features, among others:
- Gender
- Specifications
- Face mask
- Age
Milesight VCA Features
Milesight VCA Video Content A-analysis, or advanced video image analysis, provides advanced software features.
Region Entrance
With Region Entrance function, the camera can detect whether a target is coming into the selected area. From this, alarm and recording can be triggered.
Region Exiting
With Exit Region, the camera detects if a target leaves the selected area. This can trigger an alarm and recording.
Advanced motion detection
With Advanced Motion Detection, motion detection adapts to normal changes in the standard image, for example motion detection. trees sway and only warn of abnormal movements.
Sabotage detection
With tamper detection, the camera detects if the image is obscured or the camera is rotated.
Crossing the line
With the Line Crossing function, the camera can detect the crossing of the line defined in the image by the direction of travel. This function is very useful, for example on the road or in the doorway the alarm can be activated. Only from incoming customers or vehicles.
Hanging out
With the Loitering function, the camera detects if an object enters the selected area and stays there for more than a certain time.
Human detection
With Humen Detection, the camera recognizes people from other objects and can trigger an alarm or recording
People counting
People Counting allows the camera to count people entering and exiting.
Incredibly powerful IR light for photography in the dark and low light
The Milesight Mini PTZ Dome security camera is equipped with powerful IR light with SmartIR II technology for night photography. The camera has separate proximity and far LEDs, the power of which automatically adjusts depending on the distance to the subject. The range is up to 120 meters.
Built to last IP66 rated and IK10 vandal resistant
The PTZ security camera is IP66 rated and can operate at an operating temperature of -40°C~60°C, making it fully weatherproof for outdoor use. The camera is also equipped with a fan that ensures proper humidity inside the camera and prevents the lens from fogging up.
The IK10 protection class also guarantees the camera good durability against physical vandalism.
ONVIF compatible security camera connects the camera to a controller or other software
The Milesight PTZ Speed Dome is ONVIF compliant, so it can be connected to almost any surveillance system. We recommend connecting the camera to Milesight's built-in recorder.
The camera also has a browser-based dashboard where you can view the live image, control the camera and adjust all camera settings. The camera also has a memory card slot for recording when the camera is used without a separate recorder or software.
Specifications
| Name | 2MP 23X AI PTZ Dome Network Camera |
| Image Sensor | 1/2.8" Progressive Scan CMOS |
| Min. Illumination | Color: 0.005Lux @F1.5, B/W: 0Lux with IR on |
| WDR | 140dB Super WDR |
| Shutter Time | 1/100000s∼1s |
| Day/Night Mode | Day/Night/Auto/Customize/Schedule |
| S/N | >55dB |
| Digital Zoom | 16X |
| Focal Length | 5∼117mm, 23X Optical Zoom |
| Zoom Speed | Approx 6s (Wide-Tele) |
| Field of View | H60°∼H3°/D69°∼D4°/V35°∼V2° |
| Focus Control | Auto/Semi-Auto/Manual |
| Minimum Working Distance | 100/1500mm (Wide/Tele) |
| Aperture | F1.5∼F3.5 |
| Iris Control | Auto |
| PTZ | Pan Range/Pan Speed |
| Tilt Range/Tilt Speed | -5°∼90°(Auto Flip); Tilt Manual Speed: 0.1°∼360°/s, Tilt Preset Speed: 360°/s |
| Proportional Zoom | Support |
| Preset Quantity | 300 |
| Patrol | 8 Patrols, up to 48 presets each patrol |
| Pattern | 4 Patterns |
| Auto Tracking | Support |
| Power Off Memory | Support |
| Other Function | Auto Scan, Auto Home, Preset Freezing, 3D Positioning, PTZ Limits, Initial Position |
| Irradiation Distance | Up to 160m |
| Irradiation Angle | Auto/Manual |
| Max. Image Resolution | 1920x1080 |
| Primary Stream | 60Hz: 90fps@(1920x1080)(Optional for T Series), 60fps@(1920x1080, 1280x960, 1280x720, 704x576) 50Hz: 90fps@(1920x1080)(Optional for T Series), 50fps@(1920x1080, 1280x960, 1280x720, 704x576) |
| Secondary Stream | 60Hz: 60fps@(704x576, 640x480, 640x360, 352x288, 320x240) 50Hz: 50fps@(704x576, 640x480, 640x360, 352x288, 320x240) |
| Tertiary Stream | 60Hz: 30fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240) 50Hz: 25fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240) |
| Video Compression | H.265+/H.265(HEVC)/H.264+/H.264/MJPEG |
| Video Bit Rate | 16Kbps∼16Mbps (CBR/VBR Adjustable) |
| Privacy Masking | Up to 8 Areas (Mask Area and Mosaic Area are optional) |
| ROI | Up to 8 areas |
| Ethernet | 1*RJ45 10M/100M Ethernet Port |
| Audio I/O | 1/1 |
| Alarm I/O | 1/1 |
| Network | Network Storage |
| Network Protocols | IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, UPnP, Bonjour, SIP, SNMP, PPPoE, VLAN, 802.1x, QoS , IGMP, ICMP, SSL |
| Audio Compression | G.711/AAC/G.722/G.726 |
| Audio Sampling Rate | 8/16/32/44.1/48KHz |
| Audio Bit Rate | 16~256kbps |
| Two-way Audio | Two-way Audio |
| Intelligent Analytics | Intrusion Detection, Region Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Object Left, Object Removed |
| Face Detection&Face Attribute Recognition | Detect and capture faces, get real-time snapshots; The attributes include Age, Gender, Glasses, Mask and Cap; Support Faces Privacy Mode, the detected faces in the face detection area will be mosaic automatically. |
| People Counting&Report | Count the number of people entering or exiting, up to 4 detection areas for regional people counting |
| Storage | Support microSD/SDHC/SDXC Card Local Storage, up to 1TB |
| Advanced Function | BLC, HLC, 2D DNR, 3D DNR, Defog, AWB, EIS, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur, Watermark |
| SIP/VoIP Support | Yes, Voice&Video-over-IP |
| Event Trigger | Motion Detection, Network Disconnection, External Input, Audio Alarm, etc. |
| Event Action | FTP Upload, SMTP Upload, SD Card Record, External Output, SIP Phone, PTZ Motion, HTTP Notification, etc. |
| System Compatibility | ONVIF Profile G&M&S&T, API |
| Working Condition | Temperature: -40℃∼60℃ / Humidity: 0∼95%(Non-condensing) |
| Power Supply | PoE(802.3at)/ DC 12V/3A ±10% |
| Power Consumption | 12W MAX/ 20W MAX (With IR on) |
| Weather Proof | Up to IP66 rated for Weather-resistant Performance |
| Housing | Vandal-proof IK10-rated Metal Housing |
| Surge Protection | 4KV |
| Dimensions | Φ183mmX174.8mm |
| Weight | 2kg |
