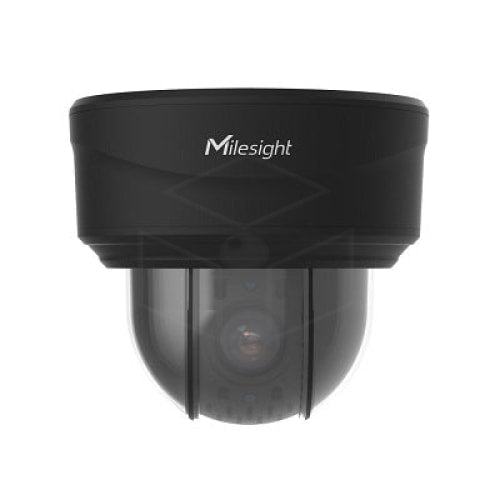

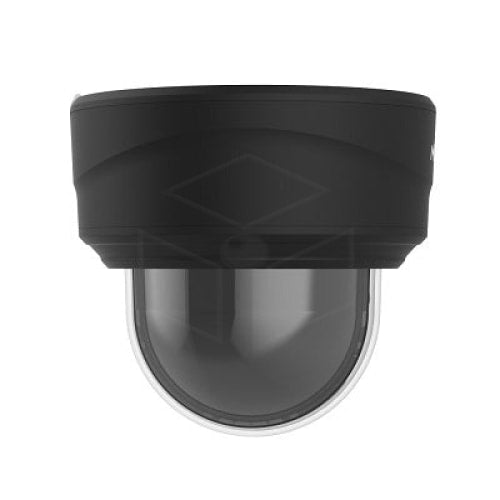

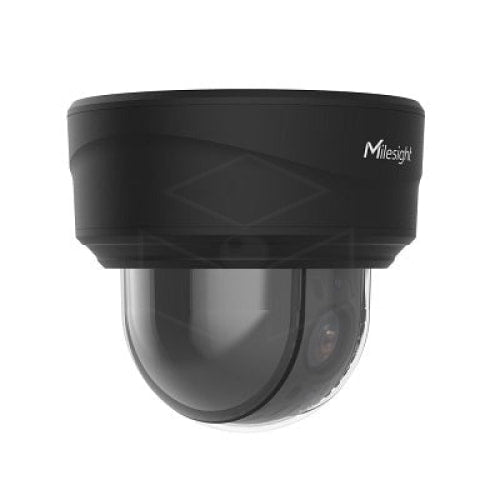

Milesight MS-C5371-X12PE AI Mini PTZ Dome 5MP 12x
Regular price
€599,00
Tax included.
Shipping calculated at checkout.
Product Description
The 12X PTZ 5-megapixel 12X PTZ multi-lens dome network camera supports flexible installations and can be easily integrated into environments such as airports, stations, schools, shopping malls, stores, building lobbies and other open spaces.
This series offers the top features you expect from high-quality PTZ cameras. It looks stylish, is durable on the outside and is smart on the inside. In addition to excellent PTZ functions, it supports more intelligent video analysis based on advanced artificial intelligence chips, making it the right choice for those with higher security requirements.
The auto tracking function quickly focuses and captures images and is specially designed to provide unparalleled infrared performance.
More features
AI-powered Milesight surveillance cameras now available
New Milesight surveillance cameras with AI chip are now available. Even more versatile functions and, for example, person and vehicle detection. Reliable alarms.
New compact PTZ security camera for versatile use
The Milesight AI Mini PTZ dome security camera is a compact powerhouse suitable for versatile surveillance applications. 360° unlimited rotation and rotation combined with 12x optical zoom enable high-quality surveillance even in large areas. The weight of the camera is only 2kg and the dimensions are Φ183mm X 174.8mm. The camera has an ingress protection degree of IP66 and vandal resistance of IK10.
Versatile mounting options
The AI Mini PTZ dome security camera offers a wide range of mounting options. The camera can be surface mounted or, using a dip collar, the camera can be embedded in ceiling structures, for example, leaving only the dome visible. Wall and ceiling mounts are also available with their own mounting brackets for easy camera installation.
Easy installation PoE+ power supply
The Milesight AI Mini PTZ dome 12× 5 MP PoE+ is equipped with advanced PoE+ technology, which enables the supply of operating voltage to the network cable. So setting up the camera is much easier than traditional, because the camera does not need a power outlet next to it and there is no need to encapsulate the power supply as is usually the case with PTZ surveillance cameras.
Milesight AI AI Features
In video surveillance, AI will play an important role in intelligent video analysis, greatly improving surveillance performance and saving human labor.
Milesight's AI-powered cameras are equipped with a discrete AI chip with advanced algorithms that enable a number of intelligent functions such as identifying people and vehicles, and related functions.
Identification of persons and counting of visitors
Milesight AI cameras have advanced functionality for detecting people. For example, the system can indicate the number of people entering and leaving the door and the number of people inside.
Facial recognition function
AI surveillance cameras have advanced facial recognition capabilities. The camera can distinguish the following features, among others:
- Gender
- Specifications
- Face mask
- Age
Milesight VCA Features
Milesight VCA Video Content Analysis, or advanced video image analysis, provides advanced software features.
Entrance to the region
The Region Input function allows the camera to detect whether a target arrives in the selected area. From this, alarm and recording can be triggered.
Region Exiting
With Region Exit, the camera detects if a target leaves the selected area. From this, alarm and recording can be triggered.
Advanced motion detection
With Advanced Motion Detection, motion detection adapts to normal changes in the standard image, for example, motion detection. Trees sway and alerts only for abnormal movements.
Sabotage detection
With tamper detection, the camera detects if the image is obscured or if the camera is rotated.
Crossing of the line
With the Line Crossing function, the camera can detect the crossing of the line defined in the image by the direction of travel. This function is very useful, for example, on the road or in the doorway – the alarm can be activated, for example. only from incoming customers or vehicles.
Hanging out
With the Loitering function, the camera detects if an object enters the selected area and stays there for more than a certain time.
Human detection
With Humen Detection, the camera recognizes people from other objects and can trigger an alarm or recording
People counting
People Counting allows the camera to count people entering and exiting.
Brilliant image quality
The image quality of the AI Mini PTZ Dome security camera is excellent. The video resolution is up to 2592×1944 @ 30 fps. Intelligent image enhancement technologies, including HLC for license plate photography, Super WDR 140 dB for challenging lighting conditions, and noise reduction.
The latest version of H.265+ video compression technology reduces video file size to less than half. At the same time, bandwidth consumption can be reduced by up to 70-80% compared to the older H.264 , which significantly reduces the burden on the network connection. New technology brings significant cost savings and improves business operations. The camera also has a built-in memory card slot.
12x optical zoom, 300 memory slots
The PTZ surveillance camera has a 12x optical zoom, which allows the camera to be used up to a hundred meters away. The angle of view is H57°∼H4°.
The head is fully rotating (HiSpeed Dome) and the rotation speed (rotation 0.1 ~ 450°/s and swivel 0.1 ~ 360°/s) is adjustable as needed, which makes the control very easy and precise. The camera can be controlled directly with the mouse thanks to 3D panning.
In addition, 300 different locations and 8 patrols (48 locations/patrol) can be stored in the device's memory.
Automatic article tracking
The Milesight AI PTZ security camera is equipped with PTZ Auto Tracking, which allows the camera to track a moving object and keep it within the camera's field of view. This feature is very useful in large yards and locations where the camera's optical zoom can be used.
Incredibly powerful IR light for photography in the dark and low light
The Milesight AI Mini PTZ Dome security camera is equipped with powerful IR light with SmartIR II technology for night photography. The camera has separate proximity and far LEDs, the power of which automatically adjusts depending on the distance to the subject. The range is up to 160 meters.
Built to last, IP66 rated and IK10 vandal resistant
The PTZ security camera is IP66 rated and can operate at an operating temperature of -40°C~60°C, making it fully weatherproof for outdoor use. The camera is also equipped with a fan that ensures proper humidity inside the camera and prevents the lens from fogging up.
The IK10 protection class also guarantees the camera good durability against physical vandalism.
ONVIF compatible security camera connects the camera to a controller or other software
The Milesight AI PTZ Speed Dome is ONVIF compliant, so it can be connected to almost any monitoring system. We recommend connecting the camera to Milesight's built-in recorder.
The camera also has a browser-based dashboard where you can view the live view, control the camera and adjust all camera settings. The camera also has a memory card slot for recording when the camera is used without a separate recorder or software.
Specifications
| Resolution | 5MP |
| Image sensor | CMOS Sony 1/2.8" |
| Min. illumination | 0.005 Lux / F1.2 |
| WDR | Super WDR up to 120dB |
| Electronic shutter | 1/100000 to 1 sec. |
| Day/Night | automatic Day/Night switching via IR cut filter |
| Spacing s/s | > 55dB |
| Digital Zoom | 16x |
| Objective | 12x optical zoom (f=5.3-64mm @F1.6-2.8) |
| Zoom speed | approx. 4 sec. from Wide - Tele positions |
| Angles of view | Horizontal: 57°-4°, Diagonal: 69°-5°, Vertical: 44°-1° |
| Min. Focus Distance | 100-1500mm (Wide-Tele) |
| Rotation range | PAN 360° (infinite rotation) |
| Rotation speed | Manual PAN: 0.5°-180°/sec., Preset PAN: 240°/sec. |
| Tilting range | -5°-90° (Auto Flip) |
| Tilting speed | Manual stroke TILT: 0.5°-120°/sec., Preset TILT: 200°/sec. |
| Proportional zoom | Yes, it supports |
| Preset Position | 300 pre-selectable position positions |
| Freezing Preset Position | Yes, it supports |
| Patrol patrols | 8 automatic motion patrols, up to 48 preset positions per patrols |
| Motion Diagrams | 4 Motion Diagrams |
| Power failure memory | Yes, it supports |
| PTZ Position Display | displaying the PTZ position in the picture (on/off) |
| 3D control | Supports 3 dimensional control |
| IR afterglow | up to 160m |
| IR angle | Automatic / Manual |
| Max. resolution | 2592x1944 / 30fps |
| Primary Stream | 30fps (2592x1944) 45fps (2048x1536) 60fps (1920x1080, 1280x960, 1280x720, 704x576) |
| Secondary stream | 30fps (704x576, 640x480, 640x360, 352x288, 320x240, 320x192, 320x176) |
| Third stream | 30fps (1280x720, 704x576, 640x480, 640x360, 320x240, 320x192, 320x176) |
| Video Compression | H.265+ / H.265 (HEVC) / H.264+ / H.264 / MJPEG |
| Image stream | 16Kbps~16Mbps (optional CBR/VBR) |
| Image Settings | Color/Brightness/Contrast/Sharpness |
| Web-based access | support for Internet Explorer/Firefox/Chrome/Safari Browser |
| LAN | 1x RJ-45, ethernet 10/100Mbit port |
| Network-Based Recording | NAS(NFS, SMB/CIFS support) |
| Ethernet protocols | IPv4/IPv6, TCP, UDP, RTP, RTSP, RTMP, RTCP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, UPnP, SIP, SNMP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP , SSL |
| Audio Compression | G.711/AAC |
| Audio I/O | Audio Input/Input |
| Alarm I/O | Alarm Input/Output |
| RS485 | - |
| SD slot | local recording on MicroSDHC/SDXC max. 256GB (memory card not included) |
| Function | Auto Tracking, Privacy Masking, BLC Backlight Compensation, Spot Backlight Compensation HLC, 2D DNR Noise Reduction, 3D DNR, Crop in Image ROI, Fog Tracking Defog, White Balance AWB, EIS Image Stabilization, IP Address Filtering, AGC Gain Control, Anti- flicker for Fluorescent Lamps, Corridor Mode, Focus Deblur |
| SIP/VoIP support | Session Initiation Protocol (SIP) support for integration with Voice over IP (VoIP) phones (for audio transmission to IP phones) |
| Alarm Events | Motion detection, network disconnection, audio detection, tamper alarm (camera intrusion), etc. |
| Alarm actions | FTP record, SMTP e-mail message sending, SD record, SIP dialing VoIP phone line, HTTP notification message |
| VCA analysis | support for VCA video analytics functions 10 AI-Powered (Deep Learning) Video Analytical Detection Features: Detection of people and vehicles Zone Entry Detection Detection of stepping out of the zone Advanced Motion Detection Detection of tampering with the camera Line Crossing Detection Detection of suspicious movement in the zone Loss of object Snooze an object |
| Onvif compatibility | ONVIF Profile S&G&T |
| Operating Temperature | -40° to +60°C |
| Feed | DC 12V/2A or POE 802.3at |
| Consumption | 9W MAX, 12W MAX(With IR on) |
| Surge protection | 4kV |
| Cover | IP66 outdoor protection |
| Anti-vandal | anti-vandal IK10 resistance |
| Dimensions | Ø183 x 174.8mm |
| Weight | 2kg |
