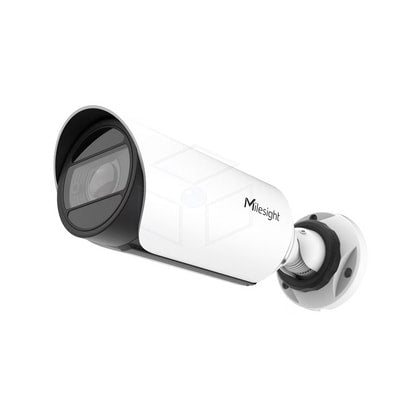

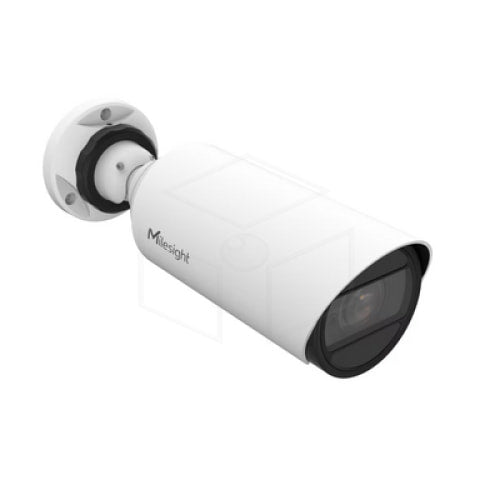

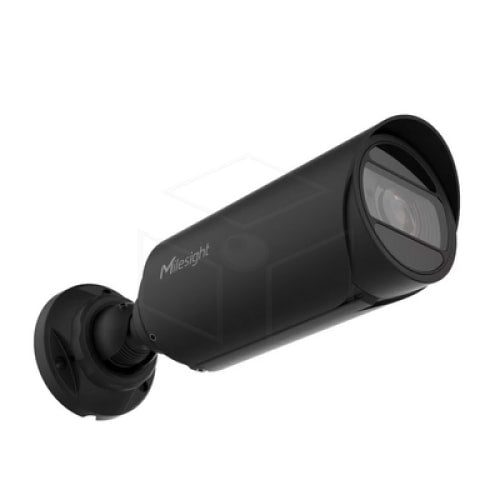

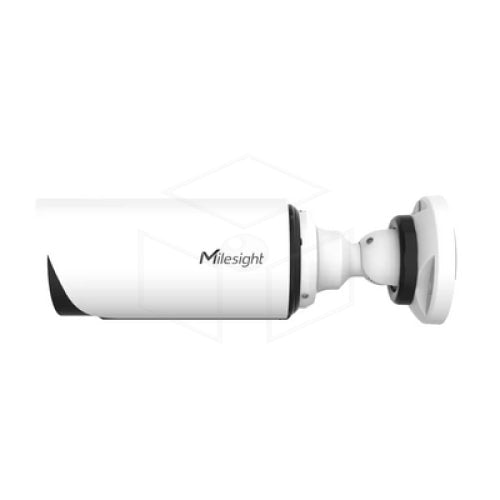

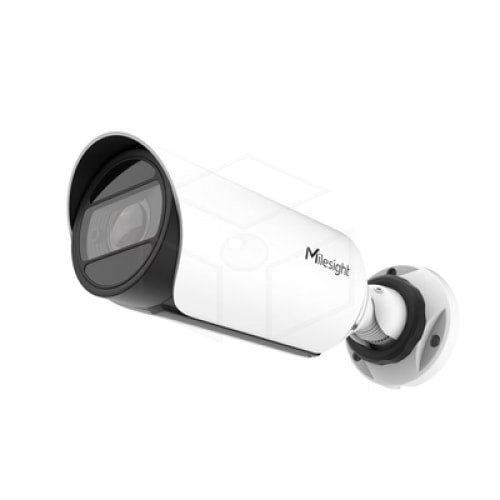

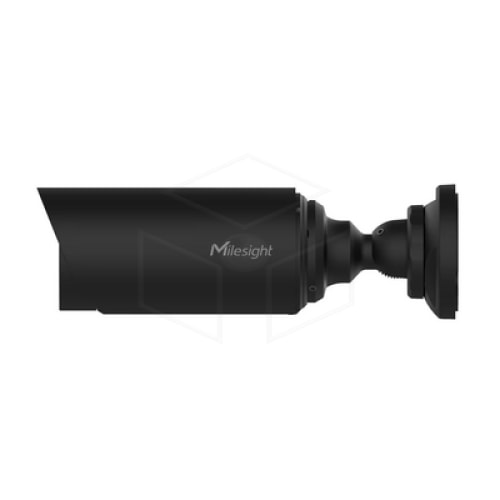

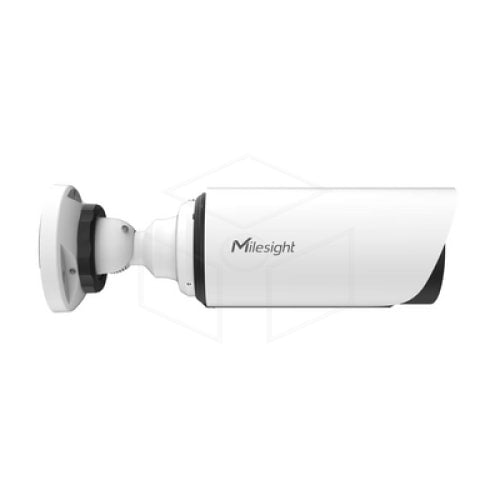

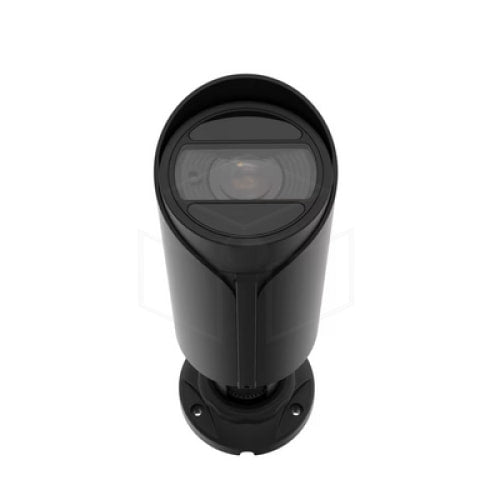

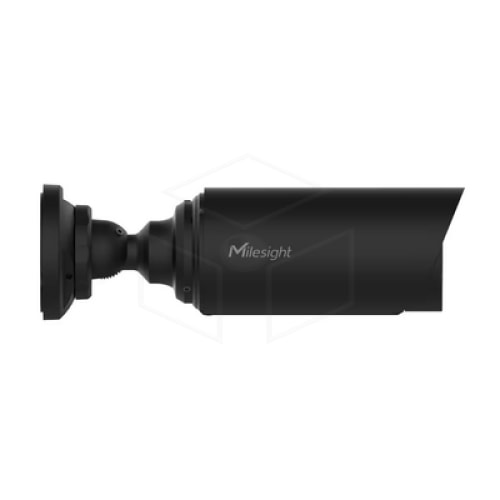

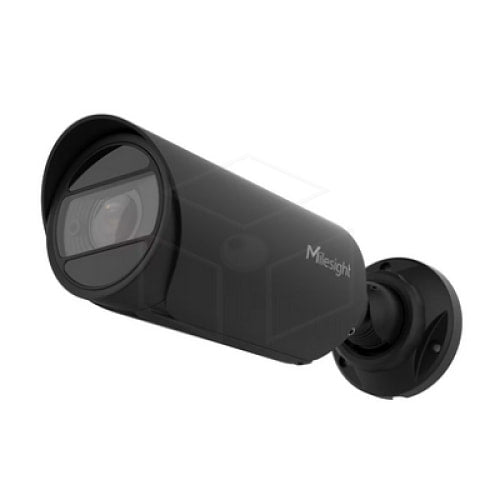

Milesight MS-C8164-FIPE 8MP AI Pro bullet camera 2.7-13.5mm
Product Description
The Milesight MS-C8164-FPA compact bullet network camera is very high-tech: it is equipped with a motorized varifocal lens, an 8 MP (4K) matrix, PoE support and built-in artificial intelligence. Suitable for both indoor and outdoor use. Designed for use in public safety, access control and business processes.
The device is a leader in the class of housing strength and the number of built-in innovative innovations. Reliability, and therefore durability indicators, are the highest, namely: IP67 on the scale of atmospheric influences and IK10 on vandalism-proof standards. It has an updated version of WDR (Wide Dynamic Range), ROI (Region of Interest), an extended heat map, the highest frame rate, an artificial intelligence algorithm and, finally, two-way audio, which means the presence of a microphone and speakers.
More features
Professional video quality
The high brightness lens and motorized zoom provide professional quality in the Milesight Motorzoom Mini Tube Camera at an affordable price, making it ahead of the competition. During installation, it provides a time-saving and practical solution, reducing the cost and number of professionals needed for installation.
IP67&IK10
Equipped with IP67 environmental protection and IK10 vandalism protection, the camera is protected against any external influences.
Smart IR II technology
Thanks to the built-in Smart IR II 4 infrared LEDs, the camera provides a clearly visible image even at night from a distance of 100 meters. The intensity of the LEDs can be adjusted both manually and automatically, so that no burned-out details appear in the recordings.
0.01Lux Ultra Low-light
The Milesight camera can deliver detailed images even in low light (0.01Lux, color), without additional lighting.
120dB SuperWDR
Thanks to the Milesight sensor-based WDR technology, the camera delivers higher quality recordings. It is able to reproduce true colors even in strong background light and high contrast conditions.
Unique design

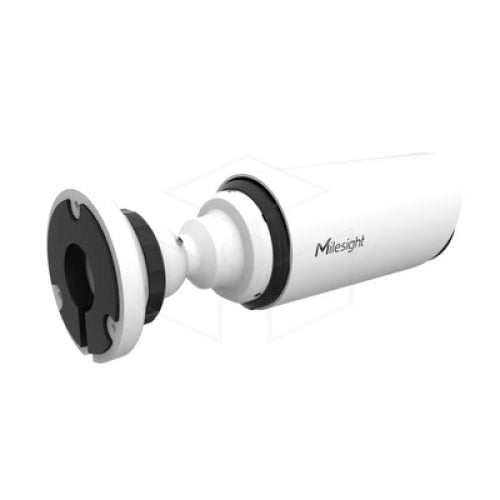

The camera is equipped with a 3-axis bracket. For easy handling and weather resistance, the camera has a mounting bracket that hides the cable and prevents dirt, water or moisture from entering the cable channel.
ONVIF Compatibility
Milesight IP products are fully ONVIF certified, allowing them to integrate with ONVIF-compliant software and systems.
Specifications
| Image Sensor | 1/2.8” 2 Megapixel progressive scan CMOS |
| Minimum Illumination | Color: 0.012Lux@F1.4 B/W: 0Lux with IR on |
| WDR | 120dB Super WDR |
| Shutter Time | 1/100000s-1s |
| IR Distance | Up to 50 m |
| Day/Night Mode | Day/Night/Auto/Customize/Schedule |
| S/N | >55dB |
| Lens Type | Motorized 2.7-13.5mm@F1.4 |
| P-Iris | Yes |
| Field of View | H107°~H33°/D125°~D37° /V58°~V18° |
| Mount | Φ14 |
| Focus Control | Auto/Manual |
| Iris Control | Auto/Manual |
| Max. Image Resolution | 3840x2160 |
| Primary Stream | 60Hz: 30fps@(3840x2160, 3072x2048, 2592x1944, 2592x1520, 2048x1536, 1920x1080, 1280x960, 1280x720, 704x576) 50Hz: 25fps@(3840x2160, 3072x2048, 2592x1944, 2592x1520, 2048x1536, 1920x1080, 1280x960, 1280x720, 704x576) |
| Secondary Stream | 60Hz: 30fps@(704x576, 640x480, 640x360, 352x288, 320x240) 50Hz: 25fps@(704x576, 640x480, 640x360, 352x288, 320x240) |
| Tertiary Stream | 60Hz: 30fps@(1280x720, 704x576, 640x480, 640x360, 352x288, 320x240) 50Hz: 25fps@(1280x720, 704x576, 640x480, 640x360, 352x288, 320x240) |
| Video Compression | H.265+/H.265(HEVC)/H.264+/H.264/MJPEG |
| Video Bit Rate | 16Kbps~16Mbps(CBR/VBR Adjustable) |
| Privacy Masking | Up to 24 areas |
| ROI | Up to 8 areas |
| Image Setting | Brightness/Contrast/Saturation/Sharpness |
| Ethernet | 1*RJ45 10M/100M Ethernet Port |
| Network Storage | NAS(Support NFS, SMB/CIFS), ANR |
| Protocol | IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, SNMP, UPnP, Bonjour, SIP, PPPoE, VLAN, 802.1x, QoS, IGMP , ICMP, SSL |
| Audio Compression | G.711/AAC/G.722/G.726 |
| Audio Sampling Rate | 8/16/32/48KHz |
| Audio Bit Rate | 16~256kbps |
| Two-way Audio | Support |
| Video Analysis | Region Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Object Left, Object Removed |
| Storage | Support microSD/SDHC/SDXC Card Local Storage, up to 256G |
| Advanced Function | Heat Map, BLC, HLC, 2D DNR, 3D DNR, Defog, AWB, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur, Watermark |
| SIP/VoIP Support | Yes, Voice & Video-over-IP |
| Event Trigger | Motion Detection, Network Disconnection, External Input, Audio Alarm, etc |
| Event Action | FTP upload, SMTP upload, SD card recording, external output, SIP phone, HTTP notification, etc. |
| System Compatibility | ONVIF profile G & Q & S & T, API |
| Working temperature | -40℃-60℃ |
| Working humidity | 0~95% (non-condensing) |
| Power supply | PoE (802.3af) / DC 12V ± 10% |
| Power consumption | 9W MAX 11W MAX (With IR on) |
| Housing | Vandal-resistant metal housing with IK10 rating / Up to IP67 rating for weatherproof performance |
| Weight | 825 grams |
| Dimensions | Φ76mmX239.5mm |
