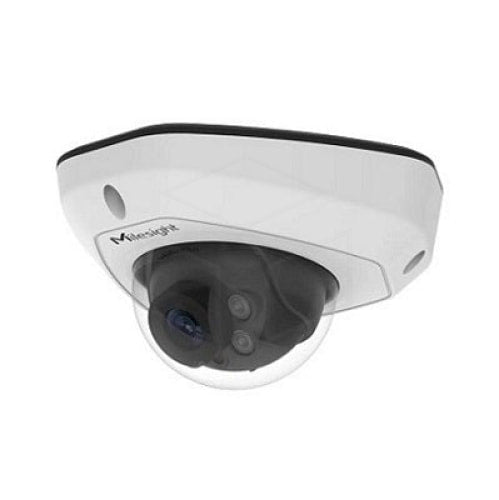

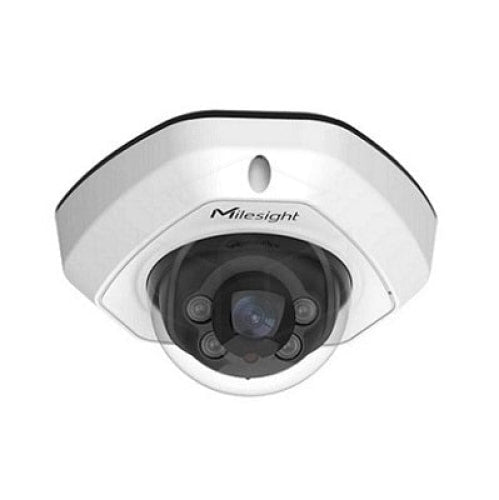

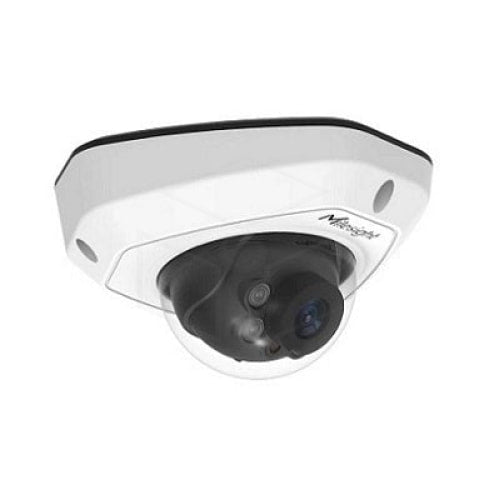

Milesight MS-C8173-PD AI Vandal-proof Mini Dome 4K
Regular price
€229,00
Tax included.
Shipping calculated at checkout.
Product Description
The MS-C8173-PD is a compact, dome-shaped, VERY rugged 8-megapixel network camera. All cameras in this series are IP67 rated for water and dust ingress and comply with the EN50155 standard, making them highly resistant to heavy vibrations, making them widely used in transportation-related applications such as train stations. They feature 120dB Super WDR and AI video content analysis.
This model delivers sharp, clear images in all lighting conditions with a maximum resolution of 3840x2160 (8MP) at 30 frames per second. Thanks to its size and robustness, it can work in any environment, no matter how tough.
Specifications
| Image sensor | 8MP CMOS Exmor 1/2.8" (starlight) |
| Min. lighting | 0.01 lux (color), 0 lux (black and white with IR) |
| WDR | SuperWDR up to 120dB |
| M12 lens | f=2.8mm F1.6 |
| Scan angle | 110° (horizontal), 61° (vertical), 126° (diagonal) |
| Electronic shutter | 1/100000 - 1/5 sec. |
| IR lighting | IR Smart LED II (glow up to 30m) |
| Day night | automatic switching using an IR cut filter (ICR) |
| Max. distinction | 3840 x 2160 / 30 fps |
| Optional resolution | 3072x2048 / 30 fps 2592×1944 / 30 fps 2592 x 1520 / 30 fps 2048×1536/30 fps 1920 x 1080 / 30 fps 1280 x 960 / 30 fps 1280 x 720 / 30 fps 704 x 576 / 30 fps |
| Video compression | H.265+ / H.265 (HEVC) / H.264+ / H.264 / MJPEG |
| Data flow | CBR (constant) / VBR (variable), 16 kbps - 16 Mbps |
| Image parameters | brightness / contrast / saturation / sharpness |
| Audio | built-in microphone |
| Ethernet | 1x RJ45 port (10/100Mbit Ethernet) |
| Protocols | IPv4/IPv6, TCP, UDP, RTP, RTSP, RTMP, RTCP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, UPnP, SIP, SNMP, PPPoE, VLAN, 802.1x, QoS |
| Web interface | support for Internet Explorer, Chrome, Firefox, Safari web browsers |
| Mobile application | Mobile APP for Android, iPhone (iOS), P2P support |
| SD slot | Compatible with MicroSDHC/SDXC card (max. 256GB, memory card not included) |
| Function | video motion detection, privacy masking, BLC, 3D-DNR, ROI |
| SIP/VoIP support | Session Initiation Protocol (SIP) support for integration with Voice over IP (VoIP) phones (for audio transmission to IP phones) |
| VCA analysis | Support for VCA video analysis functions with AI (Deep Learning) support 10 detection functions:
|
| Alarm events | motion detection, network disconnection, sabotage alarm (camera manipulation), etc. |
| Alarm actions | FTP recording, SMTP email sending, SD recording |
| Time-lapse function | periodically saves images from the camera to an FTP or SD card at a set interval |
| Compatibility | ONVIF profile S/PSIA |
| Operating conditions | -40° to +60°C |
| Power supply | POE, max. 3W (5.0W with IR LED) |
| Cover | external protection IP67, certification for installation in rolling stock EN50155 |
| To transport | anti-vandal IK10 |
| Mass | 500g |
| Dimensions | 118.5 x 110.8 x 65 mm |
