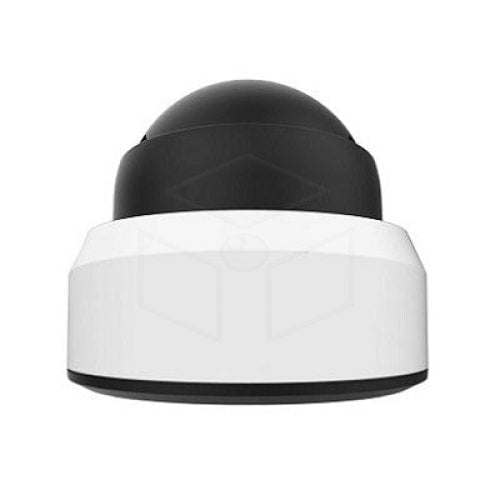

Milesight MS-C8175-FPD AI-Motorized Mini Dome 8MP (4K)
Regular price
€380,00
Tax included.
Shipping calculated at checkout.
Product Description

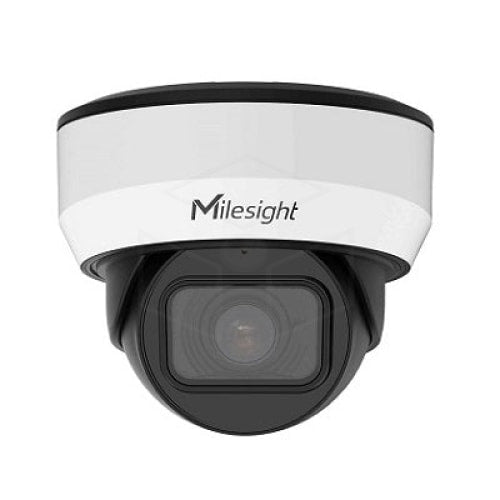

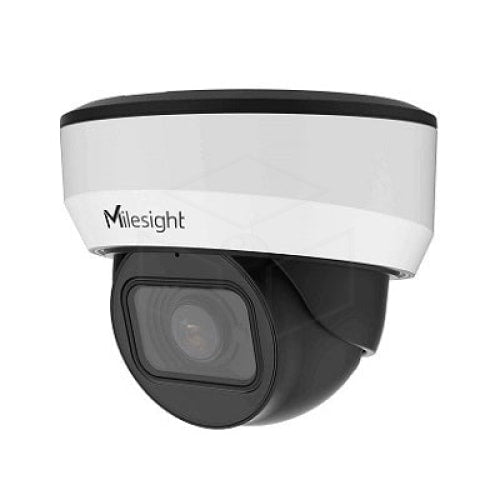

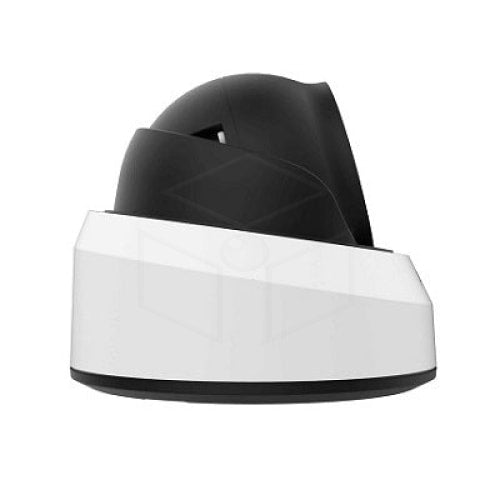

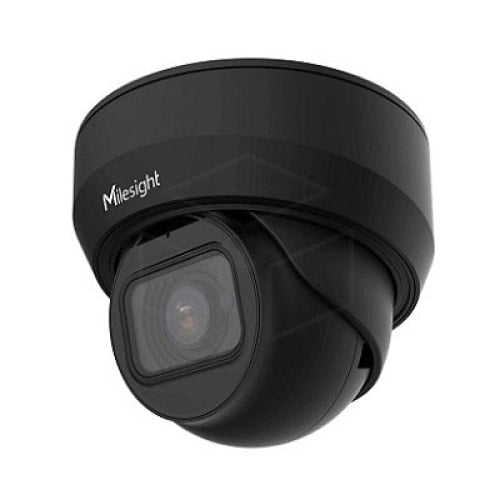

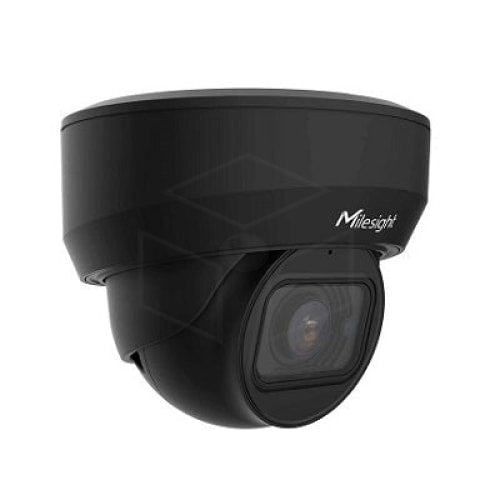

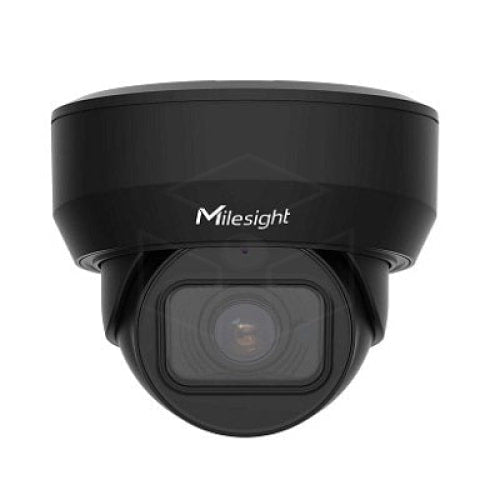

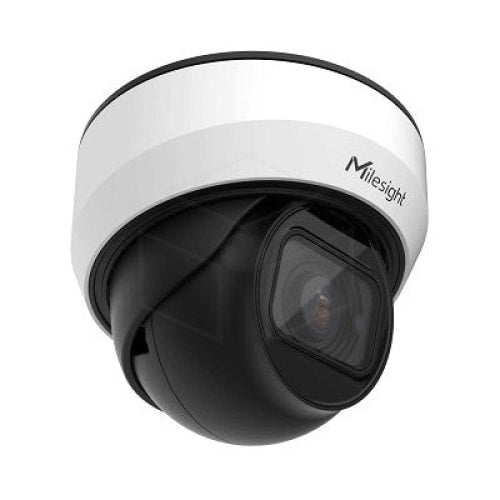

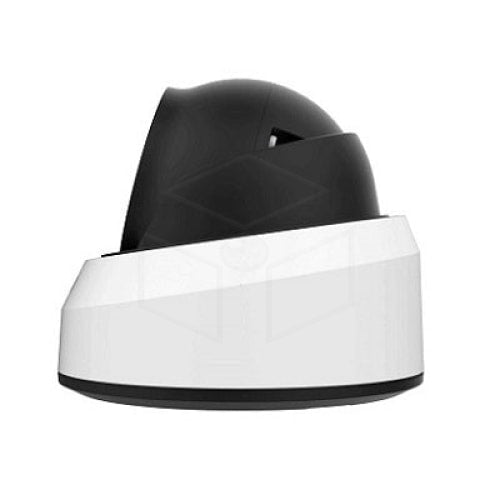

The MS-C8175-FPD is a dome camera from the Milesight brand from the AI series. The resolution of the camera is 8 megapixels and is equipped with a motorized lens from 2.7 mm to 13.5 mm. This gives the camera a wide viewing angle of 33° to 107°. Thanks to the super WDR and Starlight function, this camera needs little light to display clear images. At night, the camera has a view of no less than 50 meters.
The images can be viewed on a recorder or the camera can be installed standalone with a micro SD card. The camera is weatherproof according to PC67 and therefore suitable for both indoor and outdoor use and is vandal-proof (IP10).
More features
Stunning 4K ultra HD image quality and powerful IR light
Eight megapixel Ultra HD/4K image quality delivers high-quality, sharp images day and night. The night image is illuminated by a new, updated IR light with SmartIR II technology, allowing the camera to see in the dark up to 50 meters away.
5x optical zoom and wide angle of view
The Milesight AI Zoom Dome 8 MP is equipped with a five-time motorized zoom, making the camera very easy to orient. Thanks to the zoom, the camera can also look further away if necessary, and accordingly the wide angle is wide: 107° – 33°.
Made for circumstances
The Milesight AI Zoom Dome 8MP IP security camera is designed for year-round use and can be used both outdoors and indoors. The camera can withstand harsh conditions thanks to its IP67 protection class and also has an IK10 vandalism rating. The compact mechanical design guarantees the functionality and longevity of the device, even in severe frost. Milesight therefore works in any situation
Easy installation and monitoring
The dome camera can be mounted on the wall or ceiling. The camera is equipped with a mounting box, so that all cables can be concealed in the camera.
With the optional wall mount, the camera can also shoot straight down. The dome camera is discreet and durable when installed.
Milesight AI AI Features
In video surveillance, AI will play an important role in intelligent video analysis, greatly improving surveillance performance and saving human labor.
Milesight's AI-powered cameras are equipped with a discrete AI chip with advanced algorithms that enable a number of intelligent functions such as identifying people and vehicles, and related functions.
Identification of persons and counting of visitors
Milesight AI cameras have advanced functionality for detecting people. For example, the system can indicate the number of people entering and leaving the door and the number of people inside.
Facial recognition function
AI surveillance cameras have advanced facial recognition capabilities. The camera can distinguish the following features, among others:
- Gender
- Specifications
- Face mask
- Age
Milesight VCA Features
Milesight VCA Video Content Analysis, or advanced video image analysis, provides advanced software features.
Entrance to the region
The Region Input function allows the camera to detect whether a target arrives in the selected area. From this, alarm and recording can be triggered.
Region Exiting
With Region Exit, the camera detects if a target leaves the selected area. From this, alarm and recording can be triggered.
Advanced motion detection
With Advanced Motion Detection, motion detection adapts to normal changes in the standard image, for example, motion detection. Trees sway and alerts only for abnormal movements.
Sabotage detection
With tamper detection, the camera detects if the image is obscured or if the camera is rotated.
Crossing of the line
With the Line Crossing function, the camera can detect the crossing of the line defined in the image by the direction of travel. This function is very useful, for example, on the road or in the doorway – the alarm can be activated, for example. only from incoming customers or vehicles.
Hanging out
With the Loitering function, the camera detects if an object enters the selected area and stays there for more than a certain time.
Human detection
With Humen Detection, the camera recognizes people from other objects and can trigger an alarm or recording
People counting
People Counting allows the camera to count people entering and exiting.
Security camera for versatile use
The surveillance camera can be controlled directly from the control panel that works with an Internet browser. A memory card can be inserted into the camera to record video independently. You can also send an e-mail alert with a photo.
You can also easily connect cameras to the NVR network recorder, allowing you to easily manage multiple different cameras. The recorder can be equipped with up to 80 TB of disk space, resulting in a long storage archive.
Thanks to ONVIF compatibility, the camera can also be connected to other compatible systems, such as ONVIF.
Specifications
| Image sensor | CMOS Exmor 1/2.8" (Starlight) |
| Min. lighting | 0.012 Lux (color), 0 Lux (black and white with IR) |
| WDR | Super WDR up to 120dB |
| Zoom lens | motor-AF Zoom lens f=2.7-13.5mm F1.4, autofocus, auto iris |
| Detection angle | 107°-33° (horizontal), 58°-18° (vertical), 125°-37° (diagonal) |
| Electronic shutter | 1/100000 - 1/1 sec. |
| IR glazing | IR Smart LED II (range up to 50m) |
| Day/Night | automatic switching via IR cut filter (ICR) |
| Max. resolution | 3840 x 2160 / 30 fps |
| Selectable resolutions | 3072 x 2048 / 30 fps 2592 x 1944 / 30 fps 2592 x 1520 / 30 fps 2048 x 1536 / 30 fps 1920 x 1080 / 30 fps 1280 x 960 / 30 fps 1280 x 720 / 30 fps 704 x 576 / 30 fps |
| Video compression | H.265+ / H.265 (HEVC) / H.264+ / H.264 / MJPEG |
| Bitrate | CBR (constant) / VBR (variable), 16 kbps - 16 Mbps |
| Image Parameters | Brightness / Contrast / Saturation / Sharpness |
| Audio | Built-in microphone |
| Audio compression | G.711/AAC |
| Ethernet | 1x RJ45 port (10/100Mbit Ethernet) built-in RJ45 port (UTP cable is connected in the camera) |
| Protocols | IPv4/IPv6, TCP, UDP, RTP, RTSP, RTMP, RTCP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, UPnP, SIP, SNMP, PPPoE, VLAN, 802.1x, QoS |
| Web interface | support for Internet Explorer, Chrome, Firefox, Safari web browsers |
| The mobile application | Mobile APP for Android, iPhone (iOS), P2P support |
| Alarm. I/O | - |
| SD slot | Compatible with MicroSDHC/SDXC card (max. 256GB, memory card not included) |
| Function | video motion detection, audio detection, privacy zone masking, BLC, 3D-DNR, ROI |
| SIP/VoIP support | SIP (Session Initiation Protocol) support for integration with VoIP (Voice over IP) telephones (for audio transmission to IP telephones) |
| VCA analysis | support for AI-enabled VCA (Deep Learning) video analytics capabilities 10 detection functions: Detection of people and vehicles Zone entry detection Zone Exit Detection Advanced motion detection Detecting sabotage with the camera Line crossing detection Detection of suspicious movements in the zone Person detection People counting Loss of object Snooze an object |
| Alarm Events | Motion detection, audio detection (noise filter), external alarm. Input, network disconnection, tamper alarm (camera intrusion), etc. |
| Alarm actions | FTP Record, Send SMTP Email, SD Record |
| Time-lapse function | periodically saves images from the camera to an FTP or SD card at a set interval |
| Compatibility | ONVIF Profile S&G/PSIA |
| Operational conditions | -40° to +60°C |
| Feed | POE, max. 8W (10W with IR LED) |
| Cover | outdoor protection IP67 |
| Hardening | IK10 protection against vandalism |
| Weight | 780gr |
| Dimensions | Ø 108 x 96.5 mm |
