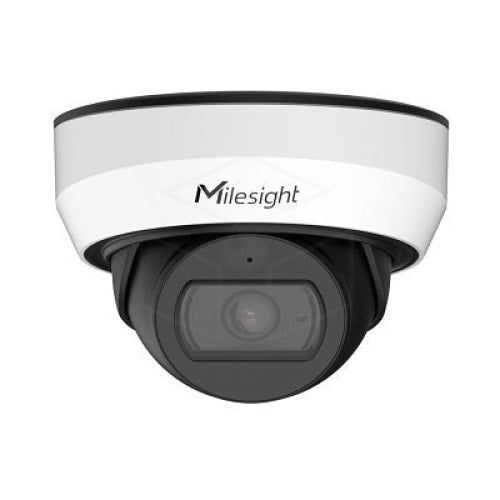

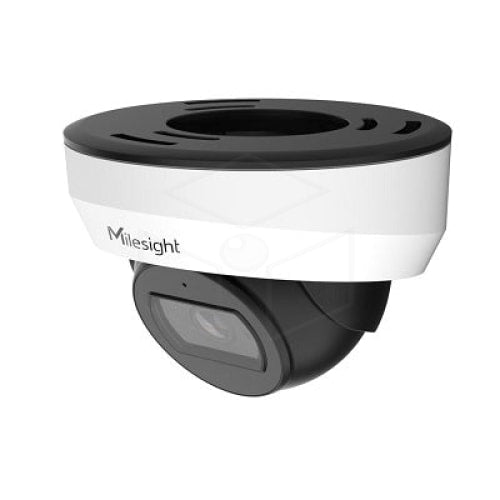

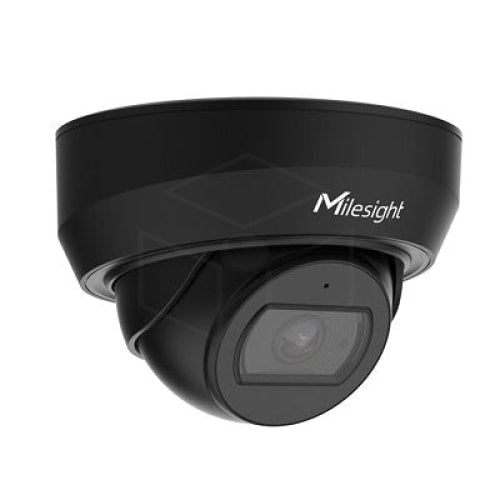

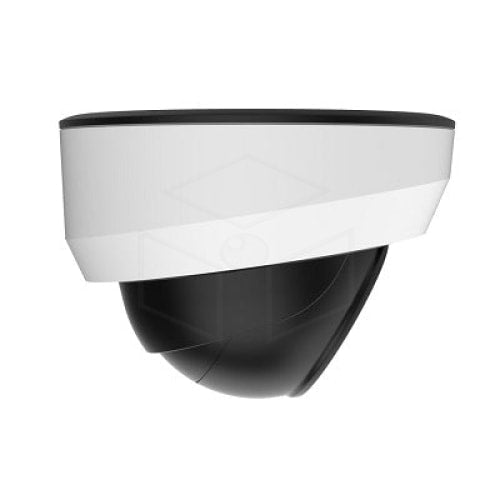

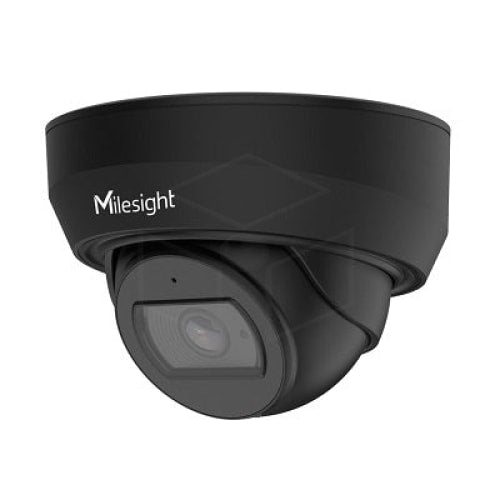

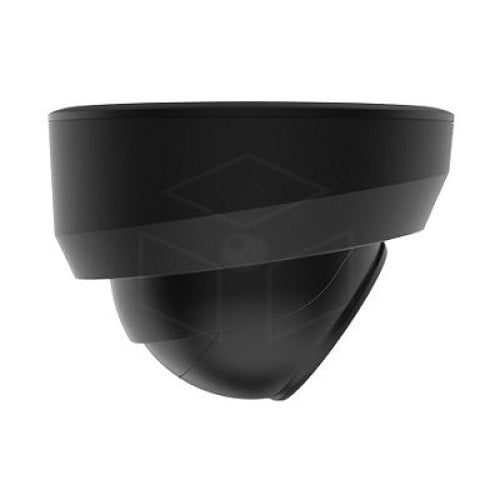

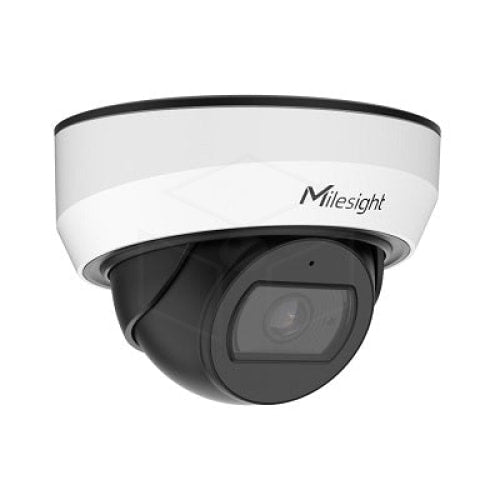

Milesight MS-C8175-PD AI Weatherproof Mini Dome 8MP (4K)
Regular price
€290,00
Tax included.
Shipping calculated at checkout.
Product Description
The MS-C8175-PD camera is a premium, weatherproof, artificial intelligence (AI) powered mini network dome camera.
Straight from Milesight’s prestigious AI series, this piece of technology features incredibly accurate human and vehicle detection capabilities across a range of scenarios, such as region entry and exit, loitering, and advanced motion detection.
We strongly believe in the saying "the customer is king", and for us this means providing the best possible service, meaning you get nothing less than the best in technology. With the MS-C8175-PD camera we are confident that we are delivering just that.
More features
Stunning image quality
The security camera produces sharp 8.0 MP Ultra HD/4K video. Advanced image enhancement algorithms such as Super WDR and 3D noise reduction ensure excellent image quality even in challenging conditions. The camera's video parameters can be adjusted separately for day and night use.
The large and luminous 1/1.8" image sensor ensures good dynamics and image quality in combination with a frame rate of 30 fps. The resolution of 8 MP ensures precise details and better recognition.
Made for circumstances
The Milesight AI Dome 8 MP IP Security Camera is designed for year-round use and can be used both outdoors and indoors. The camera can withstand harsh conditions thanks to its IP67 protection class. The compact mechanical design guarantees the functionality and long life of the device, even in severe frost. Milesight therefore works in any situation.
Easy installation and monitoring
Setting up the camera is very simple and easy with the Milesight Smart Tools connectivity program. The camera is powered by PoE technology via an Ethernet interface. There is only one cable for the camera, through which power and data pass. The camera does not need a separate AC power supply to work.
Versatile installation options

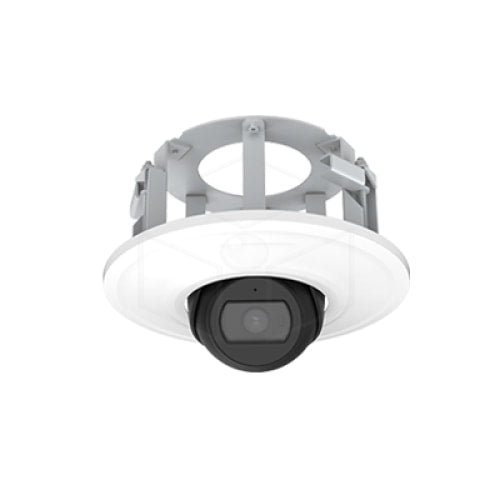

The dome camera can be mounted on the wall or ceiling. With the optional wall mount, the camera can also shoot straight down. The dome camera is discreet and durable when installed.
Milesight AI AI Features
In video surveillance, AI will play an important role in intelligent video analysis, greatly improving surveillance performance and saving human labor.
Milesight's AI-powered cameras are equipped with a discrete AI chip with advanced algorithms that enable a number of intelligent functions such as identifying people and vehicles, and related functions.
Identification of persons and counting of visitors
Milesight AI cameras have advanced functionality for detecting people. For example, the system can indicate the number of people entering and leaving the door and the number of people inside.
Facial recognition function
AI surveillance cameras have advanced facial recognition capabilities. The camera can distinguish the following features, among others:
- Gender
- Specifications
- Face mask
- Age
Milesight VCA Video Content Analysis, or advanced video image analysis, provides advanced software features.
VCA functions
Entrance to the region
The Region Input function allows the camera to detect whether a target arrives in the selected area. From this, alarm and recording can be triggered.
Region Exiting
With Region Exit, the camera detects if a target leaves the selected area. From this, alarm and recording can be triggered.
Advanced motion detection
With Advanced Motion Detection, motion detection adapts to normal changes in the standard image, for example, motion detection. Trees sway and alerts only for abnormal movements.
Sabotage detection
With tamper detection, the camera detects if the image is obscured or if the camera is rotated.
Crossing of the line
With the Line Crossing function, the camera can detect the crossing of the line defined in the image by the direction of travel. This function is very useful, for example, on the road or in the doorway – the alarm can be activated, for example. only from incoming customers or vehicles.
Hanging out
With the Loitering function, the camera detects if an object enters the selected area and stays there for more than a certain time.
Human detection
With Humen Detection, the camera recognizes people from other objects and can trigger an alarm or recording
People counting
People Counting allows the camera to count people entering and exiting.
Security camera for versatile use
The surveillance camera can be controlled directly from the control panel that works with an Internet browser. A memory card can be inserted into the camera to record video independently. You can also send an e-mail alert with a photo.
You can also easily connect cameras to the NVR network recorder, allowing you to easily manage multiple different cameras. The recorder can be equipped with up to 4 TB of disk space, resulting in a long storage archive.
Thanks to ONVIF compatibility, the camera can also be connected to other compatible systems, such as ONVIF.
Specifications
| Image sensor | 1/2.8" Progressive Scan CMOS |
| Min. Lighting | Color: 0.012Lux @F1.6, B/W: 0Lux with IR on |
| WDR | 120dB SuperWDR |
| Lens | 2.8mm at F1.6 |
| Field of view | H110°/D126°/V60°(2.8mm) |
| Shutter speed | 1/100,000s∼1s |
| Day/Night Mode | Day/ Night/ Auto/ Customize/ Schedule |
| Lighting distance | Up to 25m |
| S/N | >55dB |
| Max. Photo resolution | 3840x2160 |
| Frame rate | 60Hz/50Hz: 30fps@(3840x2160, 3072x2048, 2592x1944, 2592x1520, 2048x1536, 1920x1080, 1280x960, 1280x720, 704x576), 20fps@(3840x21 60)(Optional for S series) |
| Secondary current |
60Hz: 30fps@(704x576, 640x480, 640x360, 352x288) 50Hz: 25fps@(704x576, 640x480, 640x360, 352x288) |
| Tertiary stream |
60Hz: 30fps@(1280x720, 704x576, 640x480, 640x360, 352x288) 50Hz: 25fps@(1280x720, 704x576, 640x480, 640x360, 352x288) |
| Video compression | H.265 + / H.265(HEVC) / H.264 + / H.264/MJPEG |
| Video bit rate | 16Kbps∼16Mbps (CBR/VBR adjustable) |
| Privacy Masking | Maximum 4 areas |
| ROI | Maximum 8 areas |
| Picture settings | Saturation / Brightness / Contrast / Sharpness |
| Ethernet | 1*RJ45 10M/100M Ethernet port |
| Audio | Built-in microphone |
| Network storage | NAS (NFS, SMB/CIFS support), ANR |
| Network protocols | IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, UPnP, Bonjour, SIP, SNMP, PPPoE, VLAN, 802.1x, QoS, IGMP , ICMP, SSL |
| Audio compression | G.711/AAC/G.722/G.726 |
| Audio sampling rate | 8/16/32/48 KHz |
| Audio bit rate | 16~256 kbps |
| Video analysis | Enter Region, Exit Region, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Object Abandoned, Object Removed |
| Storage | Support microSD/SDHC/SDXC card local storage, up to 1TB |
| Advanced feature | BLC, HLC, 2D DNR, 3D DNR, Defog, AWB, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Blur |
| SIP/VoIP support | Yes, Voice&Video-over-IP |
| Event trigger | Motion detection, network connection, audio alarm, etc. |
| Event Action | FTP upload, SMTP upload, SD card recording, SIP phone, HTTP notification, etc. |
| System Compatibility | ONVIF profile G & Q & S & T, API |
| Working temperature | -40℃~60℃ |
| Working humidity | 0∼90% (non-condensing) |
| Power supply | PoE(802.3af) |
| Energy consumption | 3.8W MAX, 5.8W MAX (with IR on) |
| Housing | Up to IP67 rated for weatherproof performance / Vandal resistant metal housing with IK10 rating |
| Weight | 600 g (version with connection box) 410 g (version with cable outlet) |
| Dimensions | Φ108mmX96.5mm (version with junction box) / Φ106mmX76.5mm (version with cable outlet) |
