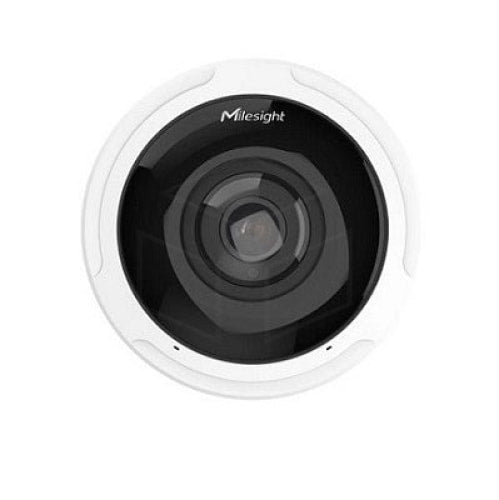

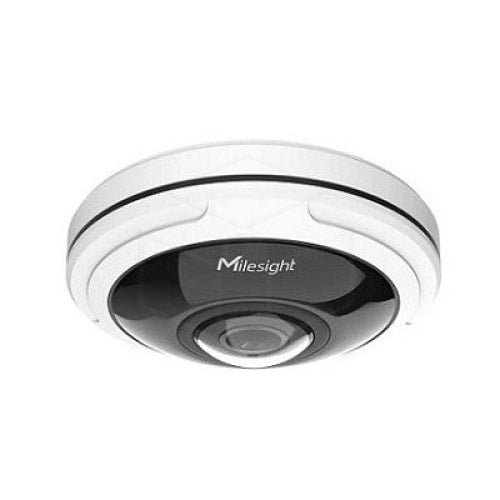

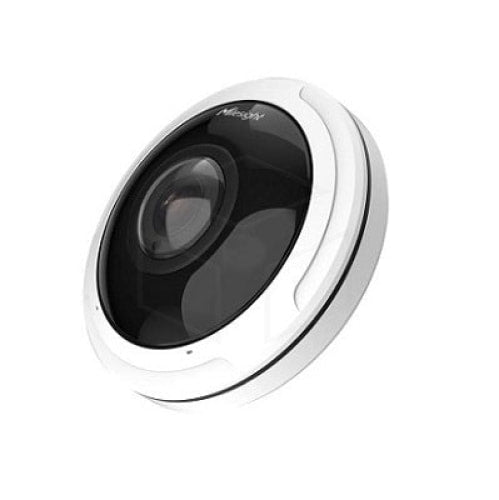

Milesight MS-C8274-PA AI 360° Panoramic Fisheye 4K
Product Description
The current generation of Milesight 360° cameras offers the premium features expected from high-end fisheye cameras.
The camera's capabilities take security management tasks to the next level with its integrated video content analysis, people counting and advanced thermal mapping functions, expanding its application possibilities.
The heart of this camera is the automatic fisheye tracking, which performs automatic tracking with 8MP super high definition in a 360° panoramic view.
The Milesight 360° Panoramic Fisheye Network Camera is born to provide excellent user experience, with beautiful design and customer-centric thinking.
The camera adapts to various installations, such as ceiling and wall, and maximizes convenience, achieving hassle-free installation and integrated cable management.
Specifications
| Sensor resolution | 8 megapixel |
| Camera image sensor | 1/1.8" Progressive Scan CMOS |
| Minimum lighting | B/W: 0Lux with IR on Color: 0.005Lux @F1.2 Color: 0.008Lux @F1.8 |
| Wide Dynamic Range (WDR) | 120dB SuperWDR |
| Shutter speed | 1/100,000s∼1s |
| Day/Night Mode | Day/Night/Auto/Customize/Schedule |
| IR distance | Up to 15 meters |
| Signal to Noise Ratio (S/N) | Greater than 55 dB |
| Lens | 1.5mm at F1.8 |
| Lens field of view | Ceiling mounting: 360°; Wall mounting: 180°; Flat mounting: 360° |
| Lens mounting point | M12 |
| Video Maximum image resolution | 3840x2160 |
| Video Primary Stream Fisheye View | 60Hz: 30fps@(2144x2144, 2048x2048, 1920x1920, 1280x1280) |
| Video Secondary Stream Fisheye View | 50 Hz: 25 fps @ (1280 x 960, 1024 x 1024, 736 x 736, 576 x 576) 60 Hz: 30 fps @ (1280 x 960, 1024 x 1024, 736 x 736, 576 x 576) |
| Video compression | H.264 H.264+ H.265(HEVC) H.265+ MJPEG |
| Video bit rate | 16Kbps∼16Mbps (CBR/VBR adjustable) |
| Video Privacy Masking | Maximum 24 areas |
| Area of Interest (ROI) | Maximum 8 areas |
| Video image settings | Brightness Contrast Saturation Sharpness |
| Video web access | Support IE/Firefox/Chrome/Safari browser |
| Audio compression | AAC G.711 G.722 G.726 |
| Audio sampling rate | 8/16/32/44.1/48 KHz |
| Audio bit rate | 16~256 kbps |
| Two-way audio | Supported |
| Intelligent video analysis | Advanced motion detection Line Crossing Hanging object Left object deleted Region entrance Region exit Sabotage detection |
| Ethernet interface | 1*RJ45 10M/100M Ethernet port |
| Network protocols | IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, UPnP, Bonjour, SIP, SNMP, PPPoE, VLAN, 802.1x, QoS , IGMP, ICMP, SSL |
| Power input | 12 ± 10% VDC 802.3 af PoE |
| Energy consumption | 6W MAX 8W MAX (with IR on) |
| Dimensions of the housing | Φ140mmX45.4mm |
| Weight | 700 gr |
| Housing | Vandal-resistant metal housing with IK10 rating |
| Weatherproof | Up to IP67 rated for weatherproof performance |
| Operating temperature range | -40ºC to +60ºC |
| Operating range relative humidity | 0% to 90% (non-condensing) |
| Audio I/O | 1/1 Built-in microphone |
| Alarm I/O | 1/1 |
| Network storage | ANR NAS (NFS, SMB/CIFS support) |
| System storage | Support microSD/SDHC/SDXC card local storage, up to 256G |
| System advanced function | Auto Tracking, Heatmap, BLC, HLC, 2D DNR, 3D DNR, AWB, IP Address Filtering, AGC, Anti-Flicker, Blur, Watermark |
| SIP/VoIP support | Yes, Voice&Video-over-IP |
| Event trigger | Motion detection, network connection, external input, audio alarm, etc. |
| Event Action | FTP upload, SMTP upload, SD card recording, external output, SIP phone, PTZ movement, HTTP notification, etc. |
| System Compatibility | ONVIF profile G & Q & S & T, API |
| Counting and reporting people | Count the number of people entering or leaving, up to 4 detection areas for regional people counting |
| Display montage mode | Ceiling mounting Flat mounting Wall mounting |
| Display mode | A total of 11 display modes. Ceiling mounting Client-side disentanglement On-board disentanglement |
