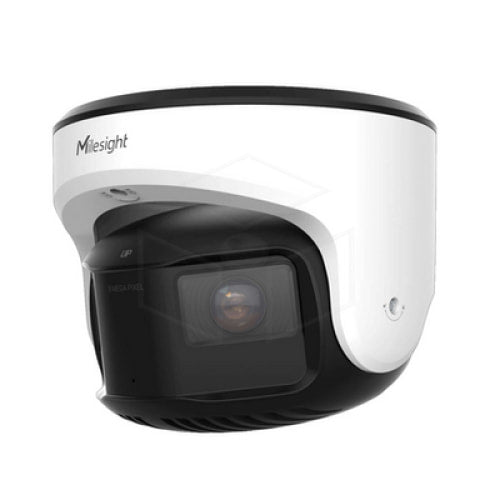

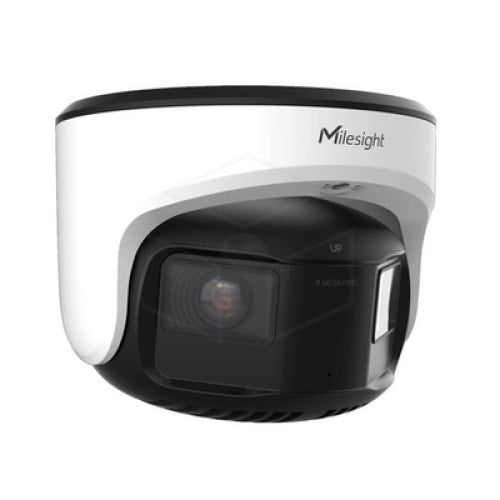

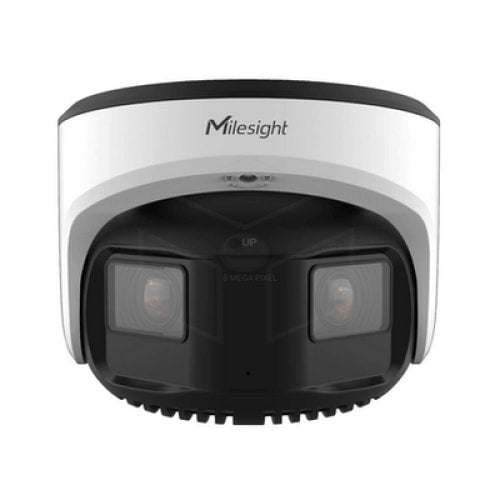

Milesight MS-C8477-PC AI Dual-sensor 180° Panoramic dome camera
Product Description
One camera seamlessly replaces two, providing the same extensive surveillance area while drastically reducing costs. Say goodbye to the expense of additional cameras, mounts, and VMS licenses. Plus, fewer cameras means a simplified installation process, reducing the labor and time costs associated with wiring and installation.
More features
See everything in a bigger picture
Get the WHOLE picture with Milesight Dual-sensor 180° panoramic camera! With a large 180° panoramic view, it provides a comprehensive monitoring experience, seamlessly tracks events and faithfully reconstructs scenes of AI-triggered suspicious activities for unparalleled monitoring precision.
People-oriented and efficiency are important!
Compared with multi-camera surveillance, using only one dual-sensor panoramic camera consolidates multiple event alerts into one, and also avoids switching between video streams to view different live, which greatly improves the user experience. In addition, customizable layouts are essential with the elongated 180° live view shape. We provide options for freely configurable layouts to meet different surveillance needs.
Heatmap for analyzing trends in people
The Milesight Heat Map feature provides more than just security. It allows you to analyze customer movements. This provides insights for better business management with intuitive and accurate statistical analysis results in time or space patterns, if necessary.
Clarity speaks louder than words
Thanks to the 2x4MP dual sensor and advanced video stitching technology, it delivers 8MP resolution. 140dB Super WDR, 0.002Lux Ultra Low-light capability and 25fps@8MP frame rate ensure excellent performance even in challenging lighting conditions.
Adaptable to various environments
This camera provides comprehensive surveillance of every detail within a single frame, making it ideal for a variety of environments, especially vast landscapes and busy areas.
Maximum installation flexibility

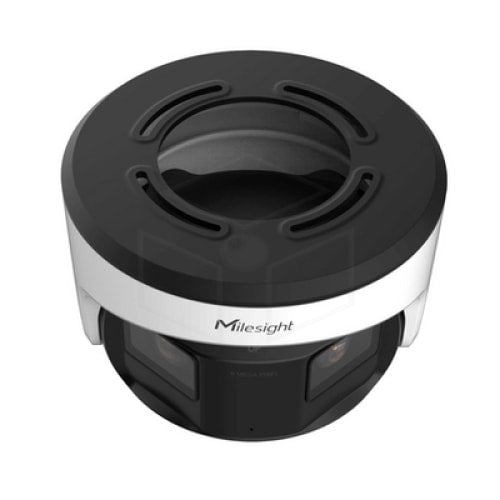

Discover the many installation options with the Milesight AI Dual-sensor 180° Panoramic Camera, whether you mount it on the wall, ceiling or on a hanging object.
Robust design, various interfaces

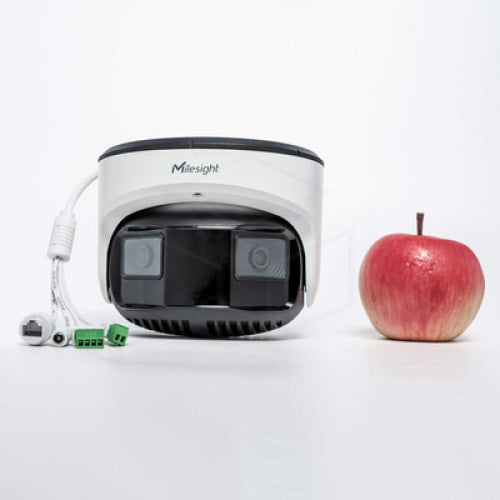

With versatile interfaces, alarm in/out and two-way audio support, and IP67 and IK10 ratings, this camera is ideally suited
Specifications
| Image sensor | Dual 1/1.8" Progressive Scan CMOS |
| Min. Lighting | Color: 0.002Lux@F1.6 B/W: 0Lux with IR on |
| WDR | 140 dB SuperWDR |
| Lens | 4mm at F1.6 |
| Assembly | M12 |
| Field of view | H180° / V50° |
| Shutter speed | 1/100,000s-1s |
| DORI Distance | D: 63m O: 24.5m R: 11.5m I: 5m |
| IR distance | Up to 30 m |
| Day/Night Mode | Day/Night/Auto/Customize/Schedule |
| Signal to noise ratio | >55dB |
| Maximum image resolution | 5084x1520 |
| Primary stream | 60 Hz: 25 fps@(5084x1520, 3618x1080, 2412x720) 50Hz: 25fps@(5084x1520, 3618x1080, 2412x720 |
| Secondary stream | 60 Hz: 25 fps @ (1160 x 344, 1008 x 296, 872 x 256, 576 x 168, 504 x 152) 50 Hz: 25 fps @ (1160 x 344, 1008 x 296, 872 x 256, 576 x 168, 504x152) < /td> |
| Tertiary stream | 60 Hz: 25 fps @ (2636 x 788, 1752 x 520, 1160 x 344, 1008 x 296, 872 x 256, 576 x 168) 50 Hz: 25 fps @ (2636 x 788, 1752 x 520, 1 160x344, 1008x296, 872x256, 576x168) |
| Video compression | H.265+/H.265(HEVC)/H.264+/H.264/MJPEG |
| Video bit rate | 16 Kbps-16 Mbps (CBR/VBR adjustable) |
| Privacy Masking | Maximum 8 mask areas |
| ROI | Maximum 8 areas |
| Image setting | Brightness/Contrast/Saturation/Sharpness |
| Ethernet | 1*RJ45 10M/100M Ethernet port |
| Built-in microphone | Support |
| Audio interface | 1*Audio Out Interface |
| Alarm I/O | 1/1 |
| Network storage | NAS (NFS, SMB/CIFS support), ANR |
| Protocol | IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, SNMP, UPnP, Bonjour, SIP, PPPoE, VLAN, 802.1x, QoS , IGMP, ICMP, SSL, TLS 1.2 |
| Audio compression | G.711/AAC/G.722/G.726 |
| Audio sampling rate | 8/16/32/44.1/48 KHz |
| Audio bit rate | 16-256 kbps |
| Two-way audio | Support |
| Video analysis | Intrusion detection, region entry, region exit, advanced motion detection, tampering detection, line crossing, loitering, object abandoned, object removed |
| Counting and reporting objects | Count the number of objects crossing the line, optionally human and vehicle, Support regional people in counting for up to 4 detection areas |
| Storage | Support for local storage of microSD/SDHC/SDXC cards, up to 1TB |
| Advanced feature | Heat Map, BLC, HLC, 2D DNR, 3D DNR, Defog, AWB, IP Address Filtering, AGC, Anti-Flicker, Image Rotation, Blur, Watermark < /td> |
| SIP/VoIP support | Yes, voice and video over IP |
| Event trigger | Motion detection, network disconnection, audio alarm, etc. |
| Event Action | FTP upload, SMTP upload, SD card recording, SIP phone, HTTP notification, etc. |
| System Compatibility | ONVIF profile G&M&S&T, API |
| Working temperature | -40°C-60°C |
| Operating humidity | 0-95% (non-condensing) |
| Power supply | PoE (802.3at) / DC 12V / 2A±10% |
| Power consumption | 6W MAX 12W MAX (with IR on) |
| Weatherproof | Rated up to IP67 for weatherproof performance |
| Housing | Vandal-resistant metal housing with IK10 rating |
| Weight | 1.5 kg |
| Dimensions | diameter 160 mm x 127.5 mm |
