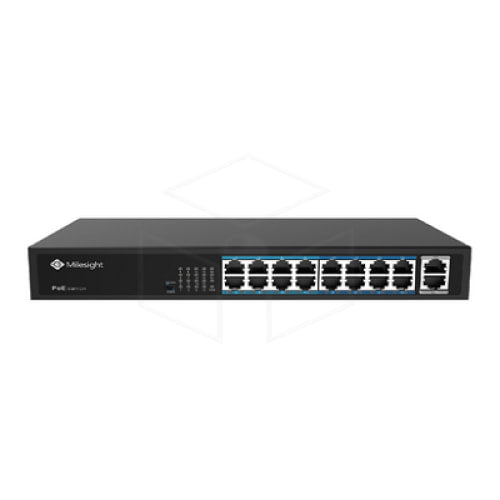

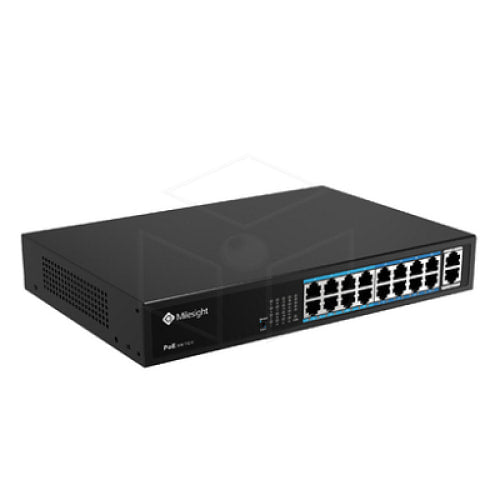

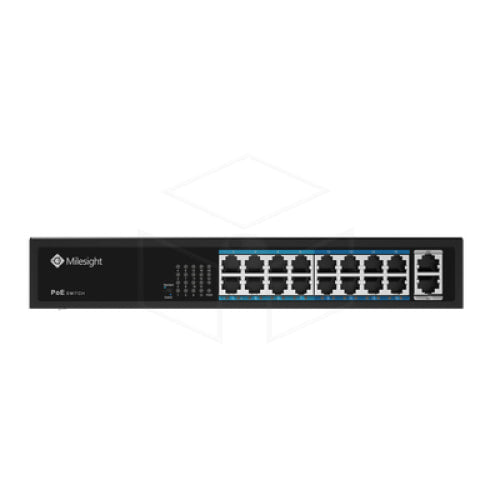

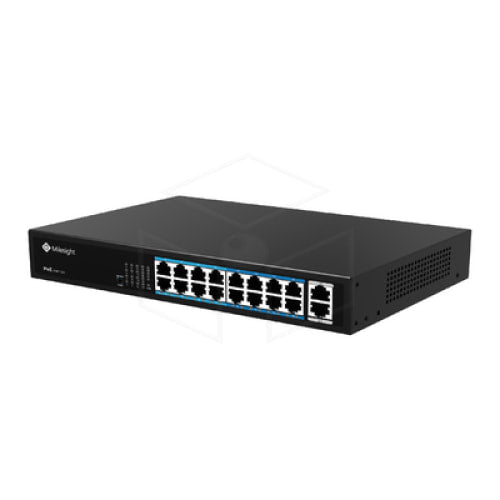

Milesight MS-S0216-GL PoE Switch 16+2
Product Description
16-port PoE switch with PoE+ (802.3at) support. Auto configuration, plug and play.
A high-quality PoE switch is an important part of a functioning surveillance camera system, as it supplies the operating voltage to the cameras and transfers video images from the cameras to the recorder. This switch is equipped with 16 PoE ports (802.3af/at) and two Gigabit Uplink ports. Rugged metal construction. Auto PoE detection – the switch can be connected to all network devices and automatically enables PoE when necessary.

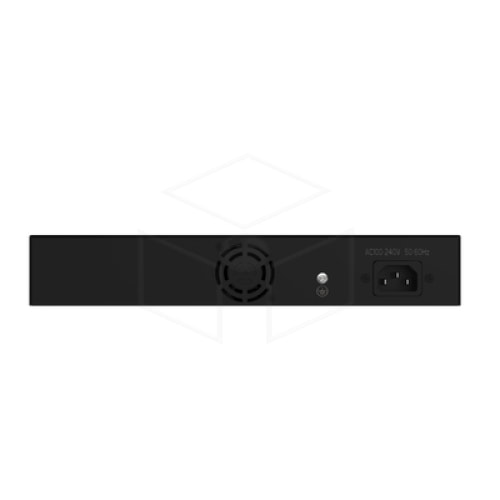

The Milesight PoE switch is robust and the metal construction ensures a long life. The switch is also protected against power surges up to 4KV and thanks to the built-in power supply, the switch is easy to install. The connection is cooled by a powerful fan, which ensures reliable operation even under heavy loads.
Specifications
| Data interface port | 2 × 1000 Mbps uplink ports 16 × 10/100 Mbps PoE ports (RJ45) |
| Network standard | IEEE802.3 10Base-T IEEE802.3i 10Base-T IEEE802.3u 100Base-TX IEEE802.3ab 1000Base-T IEEE802.3x |
| PoE Standard | IEEE802.3af/at |
| Switching capacity | 14.8Gbps (non-blocking) |
| Packet forwarding rate | 5.36Mpps |
| Packet forwarding cache | 4 M |
| MAC capacity | 16 K |
| Max PoE current | Max. capacity: 200W Max capacity for single port: 30 |
| Functional switch |
Standard Mode: Port 1~16: 10/100Mbps auto detection @100 meters Port 17~18: 1000Mbps @100 meters Extend Mode: Port 1~8: 10/100Mbps auto detection @100 meters Port 9~16: 10Mbps @250 meters Port 17~18: 1000 Mbps at 100 meters Note: When the switch status changes, the PoE switch needs to be restarted for the switching function to take effect. |
| Protection against lightning | Lightning protection port: 4KV 8/20us Protection level: IP30 |
| LED indicators | Function switch indicator: EXTEND (green) Network Indicator: Link (Yellow) PoE working indicator: PoE (green) Power indicator: PWR (green) |
| Power input | Built-in switching power supply Alternating current 100~240V, 50-60Hz, 2.5A |
| Enclosure Ingress Protection (IP) | IP30 |
| Dimensions of the housing | 270.4mm(W)X181mm(D)X44mm(H) |
| Physical installation | Desktop wall |
| Operating temperature range | -20ºC to +55ºC |
| Storage temperature range | -40°C to 75°C |
| Operating range relative humidity | 10% to 90% (non-condensing) |
| Weight | 1.5kg |
