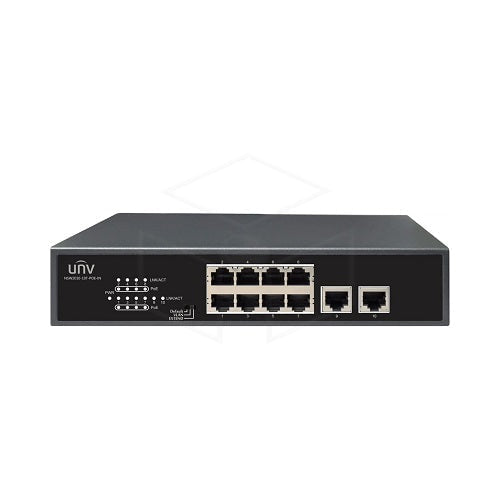

UNIView 10-port switch, 8x PoE and 2x Uplink (NSW2010-10T-POE-IN)
Regular price
€127,72
Tax included.
Shipping calculated at checkout.
Product Description
The NSW2010-6T-POE-IN PoE Switch is a device specially designed for IP surveillance systems, which enables data transmission at 10/100 Mbps and features 8 PoE+ ports and 2 uplink ports.
The 8 PoE RJ45 ports support auto-negotiation and can telepower Ethernet equipment (PoE function) up to a distance of 250 meters in CCTV mode.
NSW2010-10T-POE-IN is equipped with 2 10/100Mbs uplink ports, 1 port for NVR and one port for connecting to router.
The switch has a total PoE power of 120W (15.5W/port but max 30W/port). High protection against electric discharge, anti-interference and electrostatic voltage.
Specifications
| Gates | 10×100Mbps network ports (RJ45), including 8 PoE ports + 2 x 100Mbps Uplink ports |
| Standards | IEEE802.3,IEEE802.3u,IEEE802.3az,IEEE802.3x,IEEE802.3af,IEEE802.3at |
| Switching capacity | 2 Gbps |
| Forwarding performance | 1.49 Mpps |
| Packet buffer | 2Mbit |
| MAC | 8K |
| Dimensions (W×D×H) | 220mm x 150mm x 44mm (8.7" × 5.9" × 1.7") |
| Weight | <1.22 kg |
| Power supply | Alternating current: 100-240V, 50/60Hz |
| PoE | 802.3at/af |
| Max PoE Power | Maximum capacity: 120WMaximum capacity for one port: 30W |
| Switching capacity | 122W |
| Surge protection | Common mode ±6KV Differential mode ±4KV |
| Electrostatic standard | Common mode ±6KV Differential mode ±8KV |
| Fans | 0 |
| Mean Time Between Failures (MTBF) | >50000 hours |
| Operating temperature | 0°C-40°C (32°F-104°F) |
| Control humidity | 10%～90% (non-condensing) |
| Storage humidity | 5%~90% (non-condensing) |
| Indicator | PWR: Constant On: AC input is normal Off: No AC input |
| PoE:Off: No PoE power Constant on: PoE power is normal Flashing: PoE power is abnormal | |
| LINK/ACT:Off: No connectionStable: Connected at 10/100 MbpsFlashing: Data is being transmitted | |
| Speed:Off: Connected to 10/100MbpsOn: Connected to 1000Mbps | |
| Working mode | Standard (normal mode): All ports can communicate with each other. VLAN (Protected Mode): Downlink ports can only communicate with uplink ports. EXTEND (Monitor Mode): Transmission distance up to 250 meters, downlink ports can also communicate with uplink ports only |
