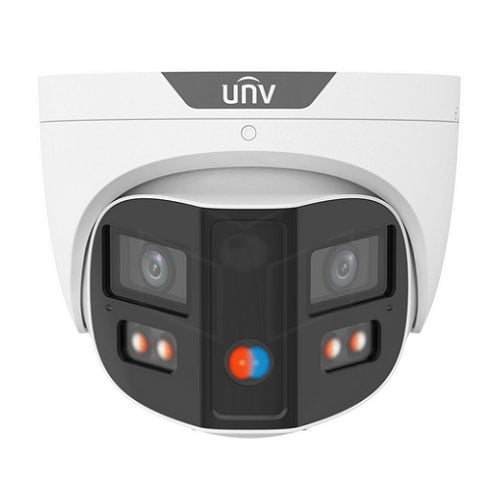

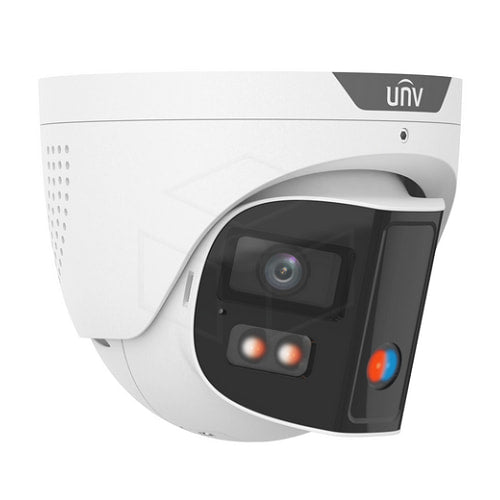

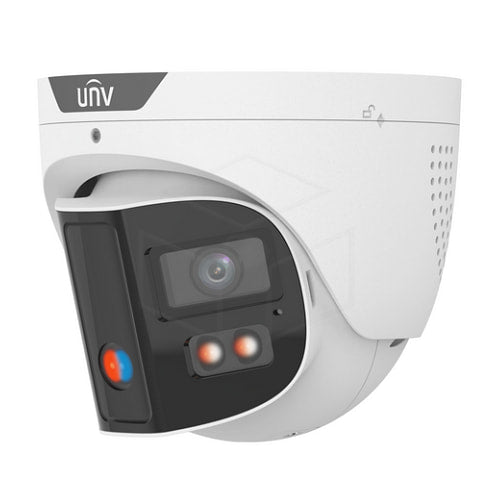

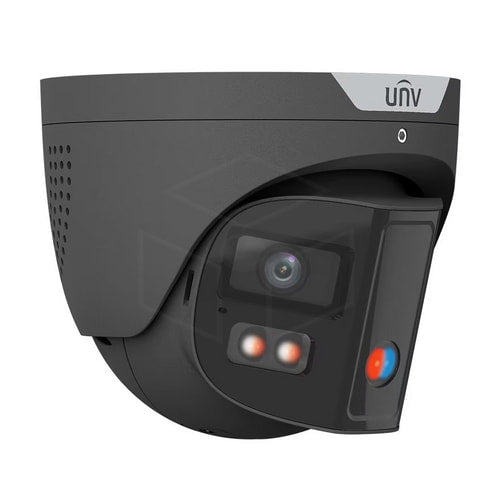

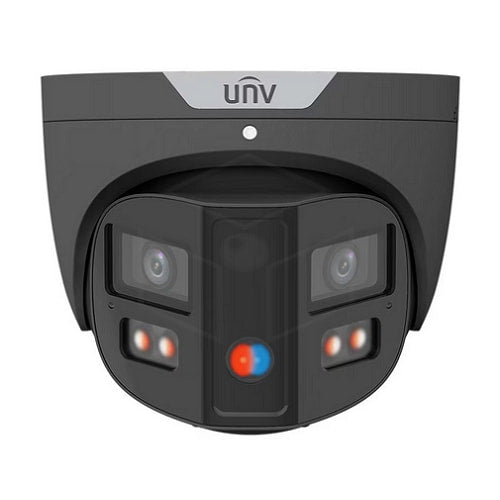

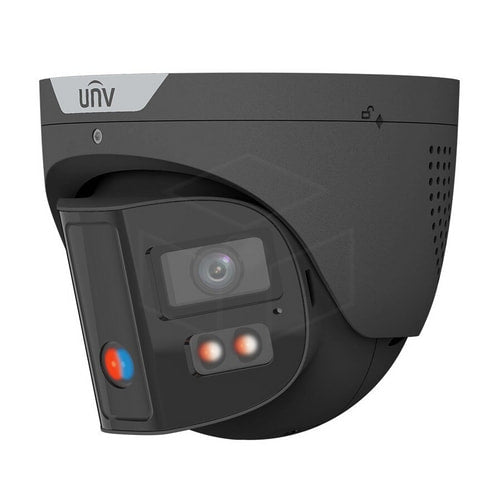

Uniview 4K HD ColorHunter Omniview Turret Camera (IPC3K28SE-ADF28KMC-DL-I0)
Product Description
The Uniview IPC3K28SE-ADF28KMC-DL-I0 8MP 4K ColorHunter OmniView Panoramic Network Camera is a unique 4k panoramic active deterrent network camera that delivers exceptional performance. Featuring Uniview's patented ColorHunter technology, the IPC3K28SE-ADF28KMC-DL-I0 is designed to deliver unparalleled clarity and detail, day and night. This camera is ideal for a wide range of applications from security surveillance to advanced surveillance needs.
More features
COLERHUNTER TECHNOLOGY
Uniview’s ColorHunter cameras utilize a combination of hardware and software upgrades to make low-light images significantly brighter and clearer, exposing dark, blurry areas of the image that would be missed with lower-quality cameras. They achieve this by utilizing a large aperture, high-transmittance glass lens, and a large back-illuminated CMOS sensor, coupled with their patented U-ISP technology to provide improved noise reduction and reduce motion blur.
ULTRA MOTION DETECTION
Conventional motion detection analyzes the differences between adjacent video frames to detect if there is a change. However, there is a challenge with this type of detection. When you have no control over the environment, it is difficult to prevent false alarms. In other words, you end up with a lot of false alarms, which is counterproductive since the goal is effective surveillance.
Ultra motion detection (UMD) is like conventional motion detection on steroids: it is more accurate and efficient than traditional motion detection. Ultra motion detection supports targeting three different object types: motor vehicle(s), non-motor vehicle(s), and human(s)/pedestrian(s). UMD filters objects based on motion detection, detects the motion of very specific object types, and triggers an alarm when the motion of that object(s) is detected.
WIDE DYNAMIIC RANGE (WDR)
WDR technology improves a camera’s image quality under high-contrast lighting conditions where both dim and bright areas are present in the field of view. It enables the camera to clearly capture details in both dimly and brightly lit areas of the video. The ability to discern details, even in videos recorded under such high-contrast lighting conditions, is extremely important for surveillance and security applications. By using a camera with strong Wide Dynamic Range (WDR) performance, it can clearly capture detailed features by properly exposing both the darkest and brightest parts of the entire scene.
SMART BURGLAR PROTECTION (SIP)
Uniview's smart intrusion prevention (SIP) technology is designed to improve the accuracy of perimeter protection and achieve the efficient management of a surveillance system, so that important areas can be monitored in real time and security personnel can be freed from the tedious and constant inspection of monitored areas. Through target classification, users can focus only on the targets they care about instead of wading through a mountain of false alarms. This enables users to retrieve the information from the NVR quickly and accurately.
- Reduce false alarms to less than 3%.
- Goal classification allows you to focus only on the goals and events that are important to you.
- Quickly and accurately find information by channel, time and target type (object).
ONVIF COMPATIBILITY
If you want to add this camera to an already set up security system, that is no problem. This camera complies with the protocols set up by the Open Network Video Interface Forum (ONVIF). This means that as long as your current recorder is ONVIF compliant, you can set up this camera with your current system.
REMOTE ACCESS
The IPC3K28SE-ADF28KMC-DL-I0 is part of our Uniview line of products. As such, it is packed with features that would please a power user, yet is simple enough for a beginner to use. Easily view and manage your cameras and recorders from anywhere in the world with the free mobile and desktop applications. For the power user, these apps give you the ability to adjust advanced settings on the fly. For the beginner, you can use the apps to easily view live feeds and play back recorded video. Whatever you need to accomplish, it's all at your fingertips.
Specifications
Camera | IPC3K28SE-ADF28KMC-DL-I0 |
Max Resolution | 8MP |
Sensor | 1/2.5" CMOS |
Min. Illumination | Colour: 0.0005 lux (F1.0, AGC ON) 0 Lux with light |
Day/Night | IR cut filter with auto switch (ICR) |
Shutter | Auto/Manual, 1 ~ 1/100000s |
Adjustment Angle | Pan: 0° ~ 360°, Tilt: 0° ~ 75°, Rotate: 0° ~ 360 |
S/N | >52dB |
WDR | 130dB |
Focal Length | 2.8 mm |
Iris Type | Fixed |
Iris | F1.0 |
Field of View | (H) 180° (V) 65° (D) 180° |
Lens Type | Fixed |
Supplemental Light | Dual Light |
Illumination Distance (IR) | IR 30 m, Warm Light 30 m |
Illumination Distance (Warm Light) | IR 30 m, Warm Light 30 m |
Video Compression | Ultra 265; H.265; H.264; MJPEG |
Frame Rate | Main Stream: 8MP (4096*1860), Max 20fps; Sub Stream: 2048*936, Max 20fps |
Video Bit Rate | 128 Kbps ~ 16 Mbps |
OSD | Up to 8 OSDs |
Privacy Mask | Up to 4 areas |
ROI | Up to 8 areas |
Video Stream | Dual Streams |
Auto Scene Match (ASM) | Support (Only WDR) |
White Balance | Auto; Outdoor; Fine Tune; Sodium Lamp; Locked; Aut |
Digital Noise Reduction | 2D/3D DNR |
Smart IR | Support |
HLC | Support |
BLC | Support |
Defog | Digital Defog |
Smart Intrusion Prevention | Cross line detection, Intrusion detection, Enter area detection, Leave area detection (support false alarm filtering and the classification of human, non-motor vehicle and vehicle) |
Statistical Analysis | People Counting; Support People Flow Counting and Crowd Density Monitoring |
Attribute Collection | SIP with color retrieval |
Basic Detection | Motion Detection; Ultra Motion Detection; Tampering Alarm; Audio Detection |
General Function | Watermark; IP Address Filtering; Access Policy; ARP Protection; RTSP Authentication; User Authentication; HTTP Authentication; Alarm Input; Alarm Output |
Audio Compression | G.711U; G.711A |
Audio Bitrate | 64 Kbps |
Two-way Audio | Support |
Suppression | Support |
Sampling Rate | 8 KHz |
Edge Storage | Micro SD, up to 512 GB |
Network Storage | ANR; NAS (NFS) |
Protocols | IPv4; IPv6; IGMP; ICMP; ARP; TCP; UDP; DHCP; PPPoE; RTP; RTSP; RTCP; RTMP; DNS; DDNS; NTP; FTP; UPnP; HTTP; HTTPS; SMTP; 802.1x; SNMP; QoS; SSL/TLS; SSH |
Compatible Integration | ONVIF (Profile S, Profile G, Profile T); API; SDK |
Security | Password Protection; Strong Password; HTTPS Encryption; Export Operation Logs; Basic and Digest Authentication for RTSP; Digest Authentication for HTTP; TLS 1.2; WSSE and Digest Authentication for ONVIF |
Web Browser | Plug-in required live view: IE 10 and above, Chrome 45 and above, Firefox 52 and above, Edge 79 and above; Plug-in free live view: Chrome 57.0 and above, Firefox 58.0 and above, Edge 16 and above |
Audio I/O | 1 Input: impedance 35kΩ; amplitude 2V [pp]; 1 Output: impedance 600Ω; amplitude 2V [pp] |
Alarm I/O | 1/1 |
Built-in Mic | Built-in two mics |
Built-in Speaker | Support |
Network | 1 x RJ45 10M/100M Base-TX Ethernet |
EMC | CE-EMC (EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 50130) FCC (FCC 47 CFR part15 B) |
Safety | CE-LVD (EN 62368-1) CB (IEC 62368-1) UL/CUL (UL 62368-1, CAN/CSA C22.2 No. 62368-1) |
Environment | CE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU) |
Protection | IP67 (IEC 60529) IK10 (IEC 62262) |
Power | DC 12V±25%, PoE (IEEE 802.3af) |
Power Interface | Ø 5.5 mm coaxial power plug |
Dimensions | Ø128.7 x 109.9mm (Ø5.1”x 4.3”) (Ø x H) |
Weight | 0.86kg (1.9lb) |
Material | Metal |
Working Environment | -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing) |
Storage Environment | -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing) |
Surge Protection | 4KV |
Web Client Language | 20 Languages Traditional Chinese, English, Simplified Chinese, Polish, German, Russian, French, Korean, Dutch, Czech, Portuguese (Europe), Portuguese (Brazil), Japanese, Thai, Turkish, Spanish (Latin America), Spanish (Europe), Hungarian, Italian, Vietnamese |
