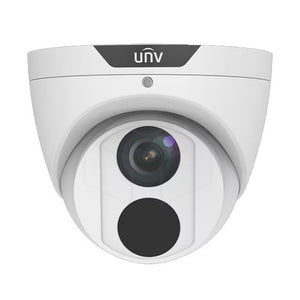

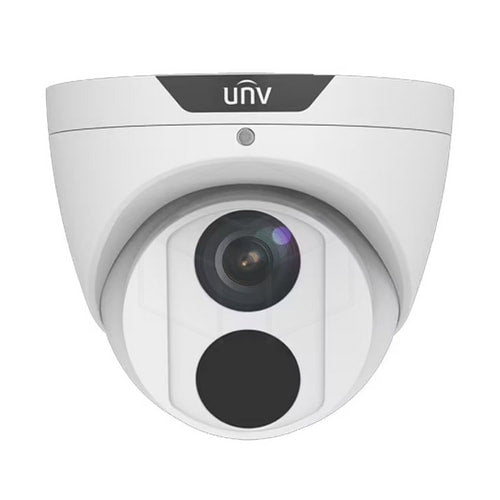

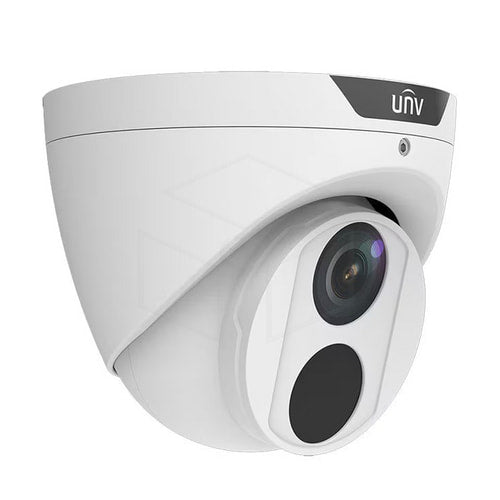

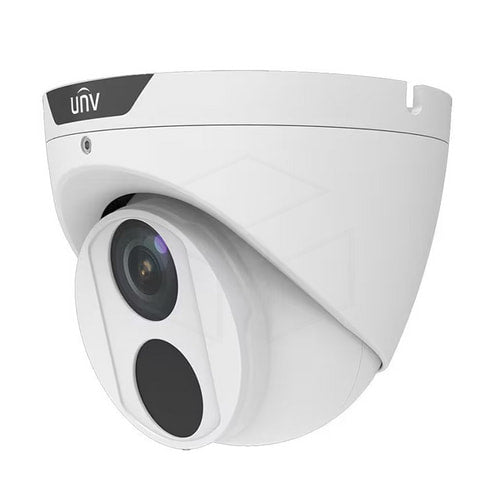

Uniview 5MP Turret dome camera (IPC3615SB-ADF40KM-I0)
Product Description
Uniview IPC3615SB-ADF40KM-I0 is a highly versatile, cost-effective camera. With LightHunter technology, the superior image sensor and large aperture lens provide clear images in low-light scenes.
This outdoor tower camera has a built-in microphone to capture audio in the scene, providing valuable information during playback. Additionally, the built-in IR provides illumination up to 30 meters in very dark environments.
The 4.0mm lens provides a slightly narrower field of view with a higher pixel density.
More features
5MP HD RESOLUTION
The PC3615SB-ADF40KM-I0 captures video at up to 5MP @ 25 FPS resolution, which is 2880 x 1620 pixels. Every pixel added to your camera's photo gives you higher quality and more detail. So at 5MP, you get a sharper, cleaner, more detailed image.
4mm fixed lens
The IPC3615SB-ADF40KM-I0 has a 4mm fixed lens . This means that it is fixed at one length - it cannot zoom in and out optically. The longer the focal length on a fixed lens camera, the more it will zoom in and the more close-up detail you will be able to see. However, the shorter the focal length, the wider the field of view and the larger the area your surveillance will cover.
The IPC3615SB-ADF40KM-I0 has a horizontal field of view of 91.2°.
Built-in microphone
Audio capabilities in your video surveillance system can be an important feature. The IPC3615SB-ADF40KM-I0 comes with a built-in microphone, so you can hear and record crisp, clear audio without having to run additional cables to power a microphone.
NDAA Compliant
This model is NDAA (National Defense Authorization Act) compliant, meaning it is safe to use and install on U.S. government property. It is built with trusted and reliable technology at its core.
IP67 weatherproof rating
This camera has an Ingress Protection (IP) rating of 67. This means that the camera is fully protected against dust and other solid particles.
Rest assured, when you install your camera outdoors, it will withstand even the toughest storms without any problems.
Up to 30m NIGHT VISION IR RANGE
When the sun goes down or the lights go out, this camera turns on its own built-in infrared LED lights. Invisible to the human eye, these lights allow the camera to keep functioning and recording 24/7, day or night. And with an IR range of up to 100 feet, you won’t miss a thing happening on your camera’s feeds, even if it’s in pitch-black darkness.
Remote access
The IPC3615SB-ADF40KM-I0 is part of our Uniview line of products. As such, it is packed with features that would please a power user, yet is simple enough for a beginner to use. Easily view and manage your cameras and recorders from anywhere in the world with the free mobile and desktop applications. For the power user, these apps give you the ability to adjust advanced settings on the fly. For the beginner, you can use the apps to easily view live feeds and play back recorded video. Whatever you need to accomplish, it's all at your fingertips.
Specification
Maximum resolution | 5 MP |
Sensor | 1/2.7" CMOS display |
Min. Lighting | Color: 0.002 lux (F1.6, AGC ON) 0 Lux with light |
Day/Night | IR cut filter with automatic switching (ICR) |
Shutter | Auto/Manual, 1 ~ 1/100000s |
Serial number | >52 dB |
WDR | 120dB |
Focal length | 4.0mm |
Iris type | Fixed |
Iris | F1.6 |
Field of view (H) | 91.2° |
Field of view (V) | 43.7° |
Field of view (D) | 95.3° |
Lens type | Fixed |
Additional light | IR |
Illumination distance (IR) | 30 meters (98.4 feet) |
Wavelength | 850nm |
Light on/off control | Automatic/Manual |
Video compression | Ultra 265, H.265, H.264, MJPEG |
H.264 code profile | Base profile, Main profile, High profile |
Frame rate | Main Stream: 5MP(2880*1620), up to 30fps; 4MP(2560*1440), up to 30fps; 3MP(2304*1296), up to 30fps; 1080P(1920*1080), up to 30fps; Substream: 720P(1280*720), max 30fps; D1(720*576) , maximum 30 fps; 640*360, maximum 30 fps; Third stream: D1 (720*576), maximum 30 fps; 640*360, maximum 30 fps; 2CIF (704*288), maximum 30 fps; CIF (352*288), maximum 30 fps |
Video bit rate | 128 Kbps to 16 Mbps |
U-code | Support |
OSD | Up to 8 OSDs |
Privacy mask | Up to 4 areas |
Video stream | Triple stream |
White balance | Auto, Outside, Fine Tuning, Sodium Lamp, Locked, Auto2 |
Digital noise reduction | 2D/3D DNR |
Smart IR | Support |
HLC | Support |
BLC | Support |
Defog | Digital defogging |
Smart burglary prevention | Boundary crossing detection, intrusion detection, area entry detection, area exit detection (support false alarm filtering and classification of people, non-motorized vehicles and vehicles) |
People counting | Support counting of people flows and monitoring of crowd density |
Basic detection | Motion Detection, Ultra Motion Detection, Tamper Alarm, Audio Detection |
General function | Watermark, IP Address Filtering, Access Policy, ARP Protection, RTSP Authentication, User Authentication, HTTP Authentication |
Audio compression | G.711U, G.711A |
Audio bit rate | 64 Kbps |
Storage | |
Edge storage | Micro SD, up to 512 GB |
Network storage | ANR, NAS (NFS) |
Protocols | IPv4, IPv6, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SSL/TLS, 802.1x, SNMP, PPPoE |
Compatible integration | ONVIF (Profile S, Profile G, Profile T, Profile M), API, SDK |
Client | UNV Link, UNV Link Pro, EZStation |
Web browser | Plugin required live view: IE 10 and above, Chrome 45 and above, Firefox 52 and above, Edge 79 and above, Plugin free live view: Chrome 57.0 and above, Firefox 58.0 and above, Edge 16 and above |
Built-in microphone | Support |
Network | 1 × RJ45 10M/100M Base-TX Ethernet |
EMC | CE-EMC (EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 55035) FCC (FCC 47 CFR Part 15 B) |
Safety | CE LVD (EN 62368-1) CB (IEC 62368-1) UL/CUL (UL 62368-1, CAN/CSA C22.2 No. 62368-1) |
Environment | CE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU) |
Protection | IP67 (IEC 60529) |
Current | DC 12V±25%, PoE (IEEE 802.3af) |
Power consumption | Maximum 4.0W |
Current interface | Ø5.5 mm coaxial plug |
Dimensions | Ø110.5 x 94.1 mm (Ø4.4” x 3.7”) (Ø x H) |
Weight | 0.42 kg (0.93 lb) |
Material | Metal |
Working environment | -30℃ to 60℃ (-22℉ to 140℉), Humidity: ≤95%RH (non-condensing) |
Storage environment | -30℃ to 60℃ (-22℉ to 140℉), Humidity: ≤95%RH (non-condensing) |
Surge protection | 4 kV |
