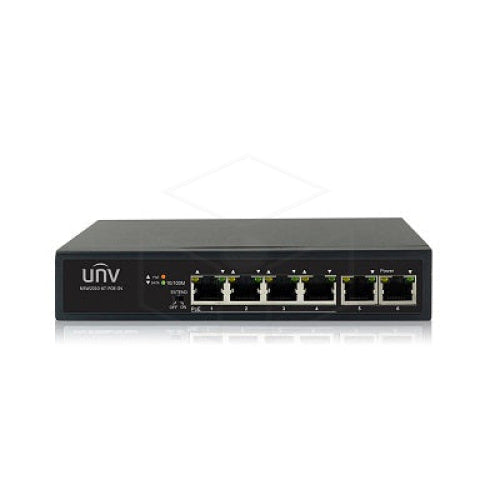

UNIView 6-port switch, 4x PoE and 2x Uplink (NSW2010-6T-POE-IN)
Regular price
€90,00
Tax included.
Shipping calculated at checkout.
Product Description
The NSW2010-6T-POE-IN PoE Switch is a device specially designed for IP surveillance systems, which enables data transmission at 10/100 Mbps and features 4 PoE+ ports and 2 uplink ports.
The 4 PoE RJ45 ports support auto-negotiation and can telepower Ethernet equipment (PoE function) up to 250 meters away in CCTV mode.
NSW2010-6T-POE-IN is equipped with 2 10/100Mbs uplink ports, 1 port for NVR and one port for connecting to router.
The switch has a total PoE power of 65W (15.5W/port but maximum 30W/port). High protection against electrical discharge, anti-interference and electrostatic voltage.
Specifications
| Gates | 6 x 100 Mbps network ports (RJ45), including 4 PoE ports |
| Standards | IEEE802.3,IEEE802.3u,IEEE802.3az,IEEE802.3x,IEEE802.3af,IEEE802.3at |
| Switching capacity | 1.2 Gbps |
| Forward performance | 0.90Mpps |
| Packet buffer | 768 Kbit |
| MAC | 2K |
| Dimensions (W×D×H) | 160mm x 93mm x 32mm (6.3″×3.7″×1.3″) |
| Weight | <0.6kg |
| Power supply | Alternating current: 100-240V, 50/60Hz |
| PoE | 802.3at/af |
| Max PoE current | Max. capacity: 65W Max. capacity for single port: 30W |
| Fans | 0 |
| Mean Time Between Failures (MTBF) | >50,000 hours |
| Operating temperature | 0°C-40°C (32°F-104°F) |
| Control humidity | 10%~90% (non-condensing) |
| Storage humidity | 5%~90% (non-condensing) |
| Indicator | PWR: Steady on: AC input is normal Off: No AC input |
| PoE: Off: No PoE power Steady on: PoE power is normal Blinking: PoE power supply is abnormal |
|
| LINK/ACT: Off: No connection Continuous: Connected at 10/100 Mbps Flashing: Data is being sent |
|
| Speed: Off: Linked at 10/100 Mbps On: Connected at 1000 Mbps |
|
| Working mode | Standard (normal mode): All ports can communicate with each other. EXTEND (monitoring mode): transmission distance up to 250 meters. |
