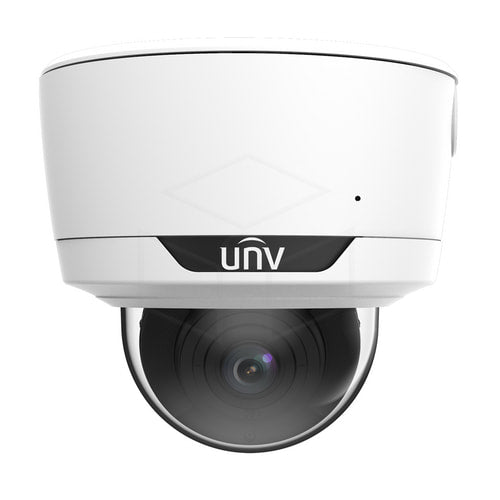

Uniview 8MP Lighthunter WDR IR Network Dome Camera (IPC3738SE-ADZK-I0)
Product Description
The IPC3738SE-ADZK-I0 Uniview 8MP IP Vandal Dome Camera is an I0 series dome with motorized zoom and advanced intrusion prevention. These new 8MP IP cameras now feature Deep Learning technology, Lighthunter and up to 40 meters night vision. Additionally, the camera has built-in PoE for convenience. A built-in MicroSD card slot means you can have on-board recording, for redundancy and ANR.
With an extreme temperature range of -40°C to +70°C, you can rest assured that this IP camera can handle a variety of harsh environments. The built-in heater can also assist with normal start-up in low temperatures. The weatherproof rating of this professional camera is IP67, giving you maximum protection against the elements. Even better, the Dome is IK10 vandal-proof, which is the highest rating available for impact resistance! That means you can install the camera in harsh environments without any hassle. Uniview cameras have a wide voltage range and are capable of long-distance PoE runs of up to 250 meters (800 feet) when used with a Uniview NVR. Therefore, no additional equipment is needed for your long cable runs.
There is more! This amazing IP Vandal Dome has True WDR for complex light scenes and a 'Corridor Mode' function. Corridor Mode is used for applications such as corridors and allows you to change the aspect configuration. Therefore, cameras placed in narrow corridors have a more usable image area.
The IPC3738SE-ADZK-I0 Uniview 8MP IP Dome Camera has a 2.8-12mm motorized zoom lens with autofocus. That means it's easy to get the perfect focus, which reduces your time on the job. Additionally, this camera has a built-in microphone, so you can record audio to your NVR. Prime IO series cameras are capable of smart features such as line crossing, intrusion detection, and area exit/area entry detection.
More features
On-board storage
This Prime Series UNV IP Vandal Dome also has a MicroSD card slot for On Board Recording. On-board recording can be used as a redundant video storage with saved data even if your network connection is lost.
Real WDR
The IPC3738SE-ADZK-I0 Uniview Prime Series Vandal Dome features True 120dB WDR (Wide Dynamic Range). Scenes with variable light range are difficult for most cameras to capture. However, with True WDR cameras, scenes are displayed in full detail for both bright and dim areas at the same time. This is especially useful in applications such as entrances where you may have dim lighting indoors, but your doorway or windows have bright sunlight. You can see our example image below!
Smart burglary detection
You can set Uniview IO series IP cameras to notify you when someone enters or leaves a designated perimeter.
Line crossing detection
Perimeter detection functions include line crossing detection, entry and area detection, and area exit detection. You can also count people for crowd monitoring. Smart function provides better target classification. Therefore, your false alarms are greatly reduced.
4K ULTRA HD RESOLUTION
The IPC3738SE-ADZK-I0 captures video up to 4K @ 30 FPS resolution, that's 3840x2160 pixels. Every pixel added to your camera's image gives you higher image quality and more detail. So at 4K you get a sharper, cleaner, and more detailed image.
2.8-12MM MOTORIZED VARIFOCAL LENS
The IPC3738SE-ADZK-I0 has a motorized varifocal lens, ranging from 48°-101.1°. This means you can easily and quickly adjust the zoom to your liking, directly from the camera's interface.
The motorized varifocal lens gives you more control over your view. Zoom in optically to see finer details and a tighter shot. Or keep the camera zoomed out to enjoy the bigger picture with a wider field of view.
IK10 VANDAL-RESISTANT CLASSIFICATION
The IPC3738SE-ADZK-I0 has an Impact Protection (IK) rating of 10, which is as high as the scale goes. If a vandal wants to try and break this camera open, more power to them. Literally, they're going to need a lot more power, because this thing is incredibly durable. That's why these dome-style cameras are often called vandal-resistant domes, or vandal domes for short.
UP TO 40m NIGHT VISION IR RANGE
When the sun goes down or the lights go out, this camera turns on its own onboard infrared LED lights. These lights, which are invisible to the human eye, allow the camera to keep functioning and recording 24/7, day or night. And with an IR range of up to 40m, you won’t miss anything happening on your camera’s meters, even if it’s in pitch-black darkness.
PLUG & PLAY
If you are creating a new system from our Uniview cameras, installation is insanely easy with our Uniview line of POE NVRs. Simply plug the camera into the back of the Uniview NVR and you will have video instantly on the recorder’s HDMI interface. You can also view and manage the NVR via free desktop and mobile apps, such as EZView and EZStation.
REMOTE ACCESS
The IPC3738SE-ADZK-I0 is part of our Uniview line of products. As such, it is packed with features that would please a power user, yet is simple enough for a beginner to use. Easily view and manage your cameras and recorders from anywhere in the world with the free mobile and desktop applications. For the power user, these apps give you the ability to adjust advanced settings on the fly. For the beginner, you can use the apps to easily view live feeds and play back recorded video. Whatever you need to accomplish, it's all at your fingertips.
ONVIF COMPATIBILITY
If you want to add this camera to a security system that is already set up, that is no problem. This camera is compliant with the Open Network Video Interface Forum (ONVIF) protocols. This means that as long as your current recorder is ONVIF compliant, you can set this camera up with your current system.
Specifications
| Sensor | 1/1.8", 8.0 megapixel, progressive scan, CMOS |
| Min. Lighting | Color:0.0008 lux (F1.2, AGC ON) 0 lux with IR |
| Day/Night | IR-cut filter with automatic switch (ICR) |
| Shutter | Auto/Manual, 1 ~ 1/100000s |
| Angle adjustment | Pan: 0° to 360°, Tilt: 0° to 75°, Rotate: 0° to 360° |
| WDR | 120dB |
| S/N | >56dB |
| Lens type | 2.8~12mm@F1.2, AF auto focus and motorized zoom lens |
| Iris | Fixed |
| Field of view (H) | 48.0°~101.1° |
| Field of view (V) | 23.9°~57.2° |
| Field of view (D) | 4.12°~74.38° |
| IR range | IR range up to 40 m (131 ft) |
| Wavelength | 850nm |
| IR on/off control | Automatic/Manual |
| Video compression | Ultra 265, H.265, H.264, MJPEG |
| Frame rate | Main stream: 8 MP (3840 * 2160), maximum 30 fps; Substream: 720P (1280*720), Max 30fps; Third stream: D1 (720*576), Max 30fps; |
| Video Bitrate | 128 Kbps~16 Mbps |
| ROI | Up to 8 areas |
| Video stream | Triple streams |
| OSD | Maximum 8 OSDs |
| Privacy mask | Maximum 4 areas per scene |
| White balance | Auto/Outside/Fine Tuning/Sodium Lamp/Locked/Auto2 |
| Digital noise reduction | 2D/3D DNR |
| Smart IR | Supports |
| Flip | Normal/Vertical Flip/Horizontal Flip/180° |
| HLC | Supports |
| BLC | Supports |
| Defogging | Digital defogging |
| Smart burglary prevention | Support false alarm filtering: Cross Line Detection, Intrusion Detection, Enter Area Detection, Leave Area Detection; |
| People counting | Support for counting people flows and monitoring crowd density |
| Basic detection | Motion detection, audio detection, tamper alarm; |
| General function | Watermark, IP address filtering, Alarm input, Alarm output, Access policy, ARP protection, RTSP authentication, User Authentication |
| Audio compression | G.711U, G.711A |
| Audio Bit Rate | 64 Kbps |
| Two-way audio | Supports |
| Oppression | Supports |
| Sampling frequency | 8KHz |
| Edge storage | Micro SD, up to 256 GB |
| Network storage | ANR, NAS (NFS) |
| Protocols | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, RTMP, SSL/TLS |
| Compatible integration | ONVIF (Profile S, Profile G, Profile T), API, SDK |
| User/Host | Up to 32 users. 3 user levels: administrator, operator and common user |
| Safety | Password protection, strong password, HTTPS encryption, basic and digest authentication for RTSP, digest authentication for HTTP, TLS 1.2, WSSE and digest authentication for ONVIF |
| Customer | EZStation EZLive EZView |
| Web browser | Plugin requires live view: IE 10 and above, Chrome 45 and above, Firefox 52 and above, Edge 79 and above |
| Audio I/O | 1/1 |
| Alarm I/O | 2/1 |
| Built-in microphone | Yes |
| Built-in speaker | NVT |
| Video output | 1 BNC |
| Network | 1 * RJ45 10M/100M Basic TX Ethernet |
| Protection | IP67 (IEC 60529:1989+AMD1:1999+AMD2:2013) IK10 (IEC 62262:2002) |
| Power | DC12V (±25%), PoE (IEEE 802.3af) |
| Power consumption: Max 9W | |
| Dimensions (Ø x H) | Φ129mm x 110mm (Φ5.1'' x 4.3'') |
| Weight | 0.71 kg (1.57 pounds) |
| Working environment | -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing) |
| Storage Environment | -40°C ~ 70°C (-40°F ~ 158°F), Humidity: ≤95% RH (non-condensing) |
| Surge protection | 6KV |
