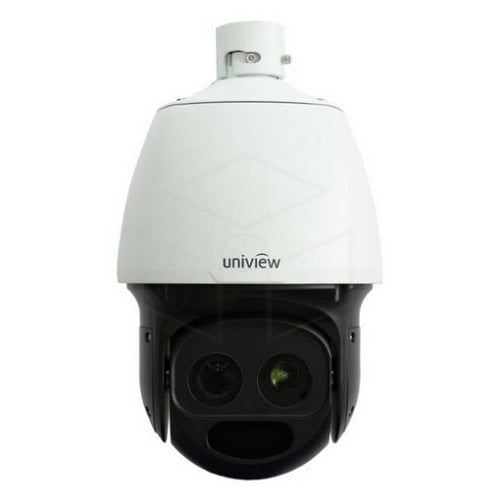

UNIView PTZ camera 2MP, 22x optical zoom (IPC6242SL-X22)
Product Description
This UNV (Uniview) 2MP VF Laser Network IR PTZ Dome Camera has multiple golden features that are much needed for your professional/residential place. It is 2 megapixels and has a fixed lens size of 148.5mm with 33x optical zoom function. With laser infrared night vision and an added feature called Smart IR, the camera allows you to maintain perfect visibility in total darkness in an area as wide and large as 500 meters. The structure is built in a sturdy way to endure bad weather such as dust storms with its IP66 protection. The H.264 compression greatly reduces the size of your digital video files without compromising the image quality and saves storage space on your hard drive. With the intelligent technology that this security camera is made of, you can control its movement and direction by simply using your mobile phone applications or monitoring prefixes. With the pan/tilt/zoom function of this camera, it is easy for you to keep an eye on all your surroundings.
Specifications
| Camera Model | IPC6242SL-X22 |
| Sensor | 1/2.8", 2Megapixel, progressive scan, CMOS |
| Lens | 4.7 ~ 103mm (22x optical zoom) |
| Angle of view (H) | 61.9° (wide) ~ 3.4° (tele) |
| Iris | Auto / Manual; F1.6 ~ F3.2 |
| Shutter | Auto / Manual; Shutter speed: 1/6 s ~ 1/8000 s |
| Min. Lighting | Color: 0.03 lux (F1.6, 50IRE)B/W: 0.01 lux (F1.6, 50IRE) |
| S/N | >52dB |
| Day/Night | IR-cut filter with automatic switch (ICR) |
| Video | |
| Max. resolution | 1920 × 1080 |
| Video compression | H.264,MJPEG |
| Frame rate |
1080P (1920×1080): Max.30 fps; 720P (1280×720): Max.30 fps; D1 (720×576): Max.25 fps |
| Video streaming | Triple |
| Privacy mask | Up to 8 areas |
| Digital zoom | Yes |
| Audio | |
| Audio compression | G.711 |
| Two-way traffic | Yes |
| Storage | |
| Edge storage | SD, up to 32 GB |
| Back-end storage | Dual Direct-to-iSCSI Data Block Storage |
| Cache after recording | Supports |
| Network | |
| Protocols |
L2TP, IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, Qos, NTP, FTP, HTTP, SNMP, SIP |
| Compatible integration | ONVIF, IMOS, API |
| Pan & Tilt | |
| Pan range | 360° (endless) |
| Pan speed | 0.1°/s ~ 240°/s |
| Preset speed: 300°/s | |
| Tilt range | –15° ~ +90° (automatic reverse) |
| Tilt speed | 0.1° ~ 160°/s |
| Preset speed: 240°/s | |
| Number of presets | 255 |
| Patrol |
Up to 16 patrols, up to 32 presets per patrolNote: The total number of patrols and patterns is 16. |
| Cartridge | Up to 16 cartridges, with a total recording time of no less than 15 minutes per cartridge |
| Interface | |
| Audio I/O | 3.5mm audio interface |
| Input: impedance 35 kΩ; amplitude 2 V [pp] | |
| Output: impedance 600 Ω; amplitude 2 V [pp] | |
| Alarm I/O | 2 / 1 |
| Serial port | 1 RS485 |
| Network | 10M/100M Base-TX Ethernet |
| Video output | 1 BNC, impedance 75 Ω; amplitude 1 V [pp] |
| General | |
| Power supply | 24 V AC |
| Power consumption: 8 ~ 45 W (IR: 7.5W, laser: 5W, motor: 7.5W, heater: Max. 14 W , fan: 3W) | |
| Dimensions (Ø x H) | Ø227 x 359.4 mm (Ø8.9" x 14.2") |
| Weight | 5.6 kg (12.3 lb) |
| Working environment | –40°C ~ +70°C (-40°F ~ 158°F), Humidity ≤ 90% RH (non-condensing) |
| IP certification | Ip66 |
