ABUS magnetic contact for metal constructions
Product Description

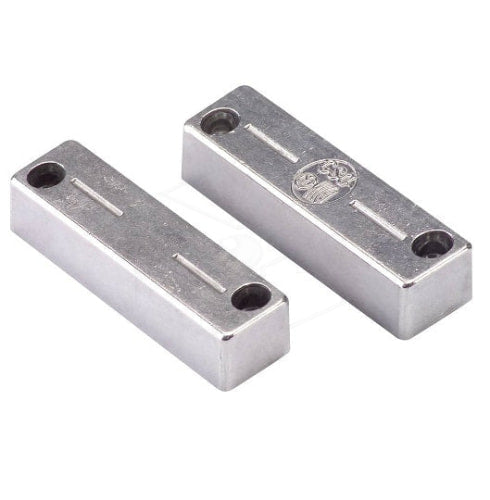

The robust aluminium opening detector is a magnetic contact with which larger doors (e.g. garages) are secured. Unauthorised opening is detected and reported to the wireless alarm centre. This opening detector is ideal for mounting on steel and metal doors. The special construction makes it possible to use on these materials. The wireless opening detector consists of a magnetic contact (reed) and a magnet. These are mounted parallel to each other. The circuit of an NC opening detector is closed in the rest state. When the distance between the reed and the magnet increases, the circuit is interrupted and an alarm signal is given. Thanks to the extremely robust aluminium housing, the detector is resistant to damage from being driven over. The opening detector for steel doors is VdS certified.
Specifications
| Dimensions | (wxhxd) 19x80x18 mm |
| Connections | NC, max. contact load capacity 200 V DC/1 A/10 W |
| Width | 19 mm |
| Detection method | Magnetic field measurement |
| Protection against interference field | No |
| Material of the housing | Aluminum |
| Height | 80 mm |
| Cable type | 4-wire |
| Cable length | 1.2 m |
| Length | 18 mm |
| Max. operating temperature | 55 °C |
| Assembly location | Surface mounted, switching distance on metal 14 mm, switching distance non-metal 21 mm |
| Sabotage protection | Yes |
| Protection class IP | 65 |
| Sensor type | Reed contact |
