ABUS Opening detector, 4 m, 4-wire (white)
Product Description

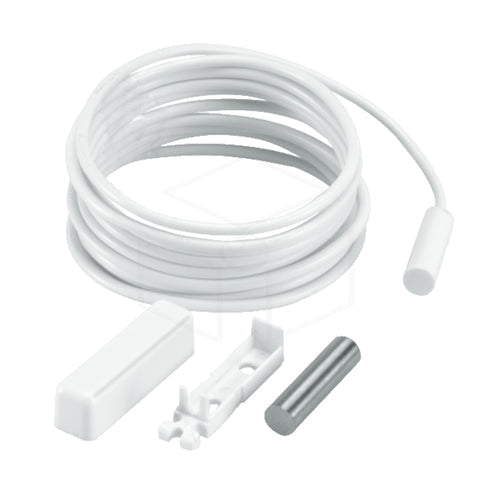

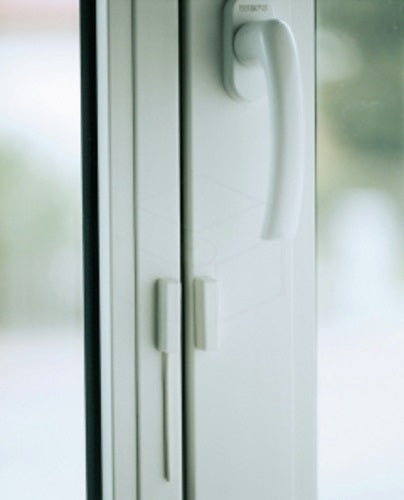

The opening detector is a magnetic contact for securing doors and windows. Unauthorised opening is detected and reported to the alarm centre. The opening detector consists of a magnetic contact (reed) and a magnet. These are mounted parallel, in front of or at right angles to each other at a distance of 13 to 25 mm from each other. The electrical circuit of this NC opening detector is normally closed (NC). If the distance between the reed and the magnet increases, the circuit is broken and an alarm is reported. The detector is protected against sabotage. The optimum mounting location is the centre of the door or window frame. It can also be mounted on the bottom of the window frame if a specific window with a magnetic contact is to be tilted open. The detector is suitable for both flush-mounted and surface-mounted mounting. The opening detector is VdS-certified.
Specifications
| Model | MK1010W |
| Installation type | Surface/Flush-mounting |
| Colour | white |
| VdS class | B |
| VdS approval number | G 105519 |
| Dimensions | (WxHxD) 11x12x48 mm |
| Connections | NC, max. contact power 24 V DC / AC / 0.2 A / 4.8 W |
| Width | Thickness 11 mm |
| Type detection | Magnetic field measurement |
| Protection of the external field | Support |
| Housing material | ABS |
| Height | Thickness 12 mm |
| Cable type | 4-core |
| Cable length | 4 m above NN |
| Compatible with | Secoris, Secvest, Terxon |
| Length | Thickness 48 mm |
| Max. operating temperature | 55 °C |
| Min. operating temperature | -40 °C |
| Installation location | Integration / construction |
| Sabotage monitoring | Support |
| Sensor type | Reed contact |
| Environmental class | IIIa |
| Certifications | VdS B, EN 50131 Grade 2 |
