Ajax 12-24V PSU (type A)
Regular price
€28,-
Tax included.
Shipping calculated at checkout.
Product Description

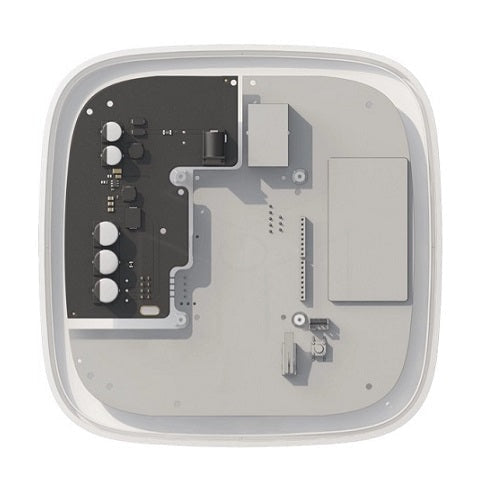

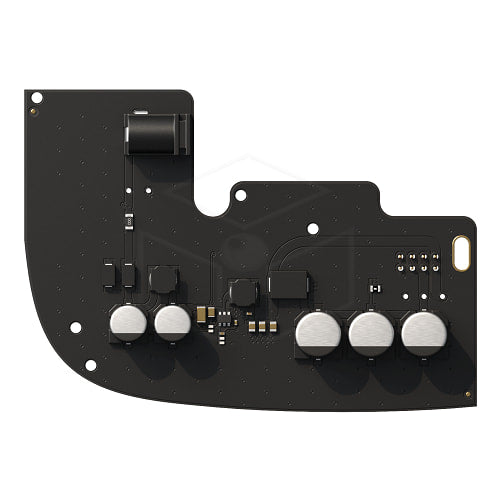

With an alternate 12-24V⎓ power supply, an Ajax hub or range extender can operate from a low-voltage source instead of a regular electrical grid. This setup is ideal for protecting properties with unstable or no electricity.
Lack of electricity is no longer a problem, as 12-24V PSU (type A) allows connecting the Ajax hub or radio signal repeater to a low-voltage power source instead of a normal power grid. This ensures that the property is protected for many years and opens up numerous possibilities to use Ajax systems wherever professional security is required.
More features
12-24V PSU (type A) is compatible with:Specifications
| Input voltage | 8-20V DC |
| Output voltage | 4.65 V DC ± 3% |
| Turn on power | 8 V DC ± 2.5% |
| Turn off the power | 6.9-7.5 V (depending on load) |
| Max input current | < 1 A |
| Max output current | 1.5 A |
| Connection to the mains | Socket: 6.5 × 2 mm Plug: 5.5 × 2.1 mm |
| Dimensions | 98 × 70 × 17 mm |
| Weight | 28 gr |
| Lifespan | 10 years |
