Ajax Alarm Cable

Product Description

Cable designed for transferring data and power over long distances between wired Ajax devices

elbaC cable is specially designed for wired Ajax devices and Hub Hybrid and is available in white or black.

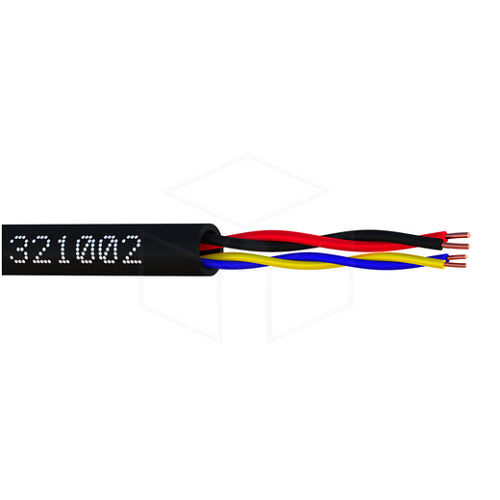

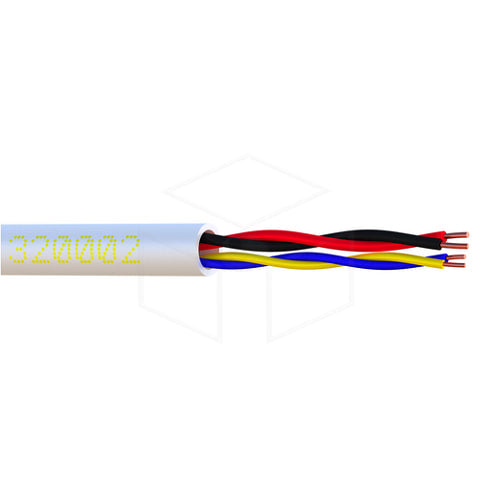

The cable consists of a double twisted pair: a pair of AWG 22 wires to power Fibra devices and a pair of AWG 24 wires to transmit data via the Fibra protocol. One of the main advantages of the new cable is its solid stability over long distances. The cable uses high-quality copper conductors for durable and excellent conductivity and efficient performance.

The data pair is optimized for Fibra data transmission technology with a precise characteristic impedance of 100 ohms. The conductor of the power pair has a diameter of 0.64 mm and consists of red and black wires. The AWG 24 data pair has a conductor with a diameter of 0.51 mm and consists of blue and yellow wires. The high number of turns reduces interference and thanks to the optimized conductor design the cable offers reliable signal transmission over distances of up to 2,000 m. The matching Fibra colors and solid core of the wires simplify installation and maintenance, while the meter indication on the cover helps to check the remaining cable length on the reel.

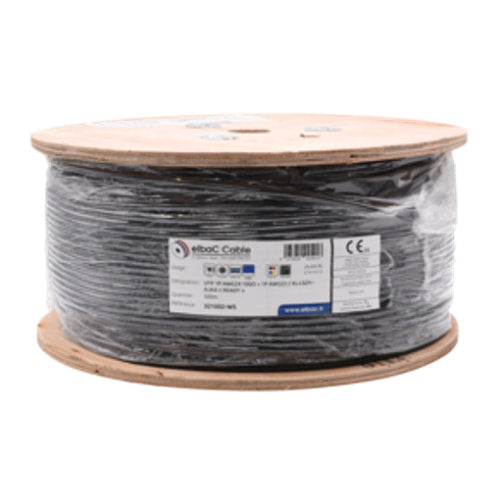

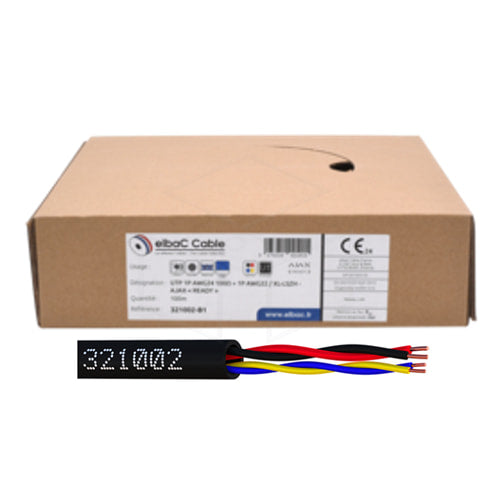

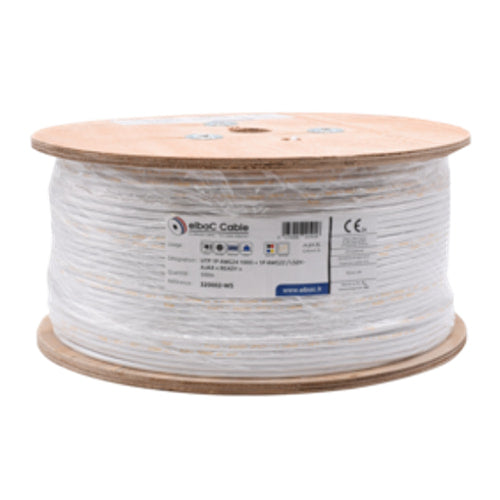

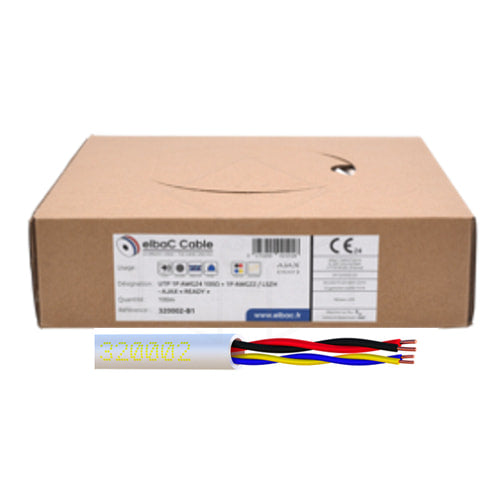

The cable is designed to meet various installation requirements. It comes with a highly resistant white LSZH sheath for indoor use or a reinforced black XL-LSZH sheath for outdoor use; in places where moisture or water is possible.

Specifications
