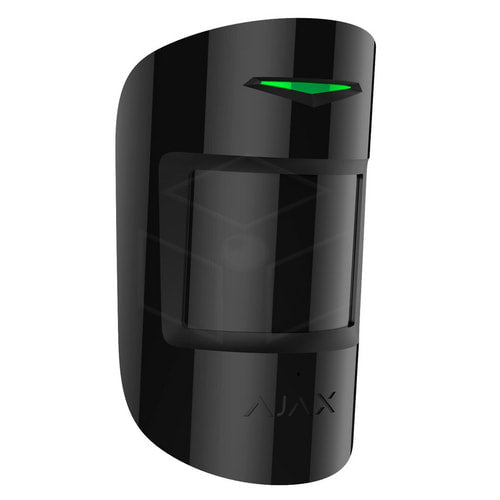

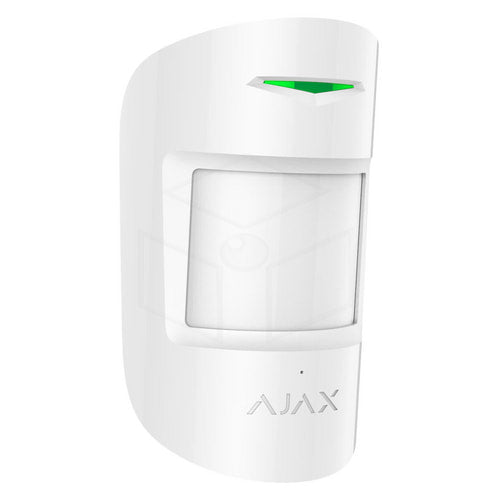

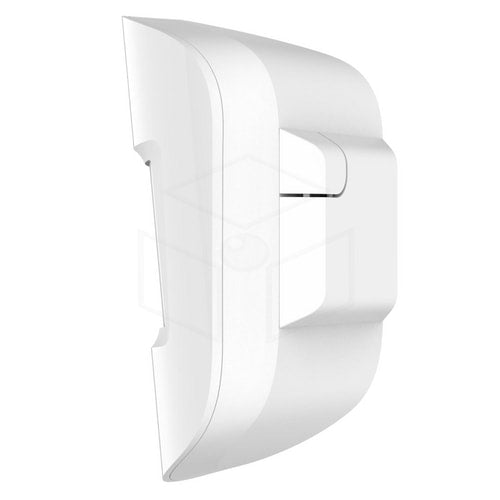

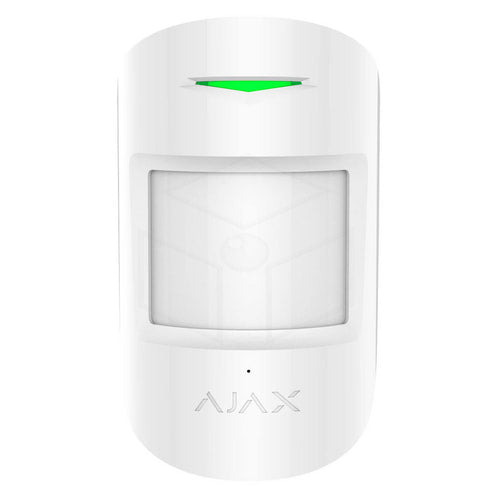

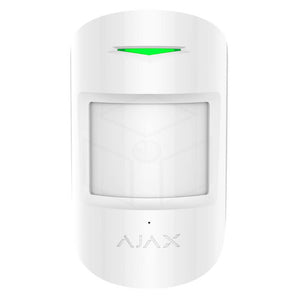

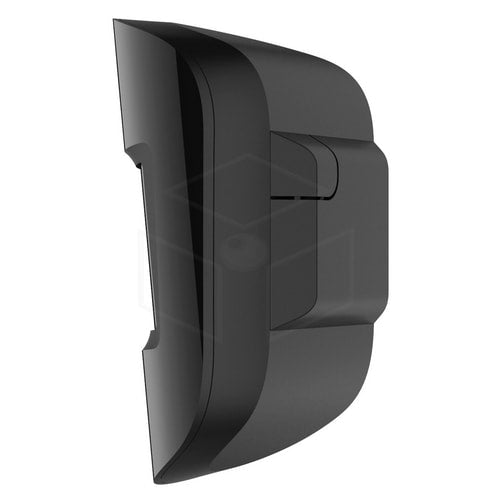

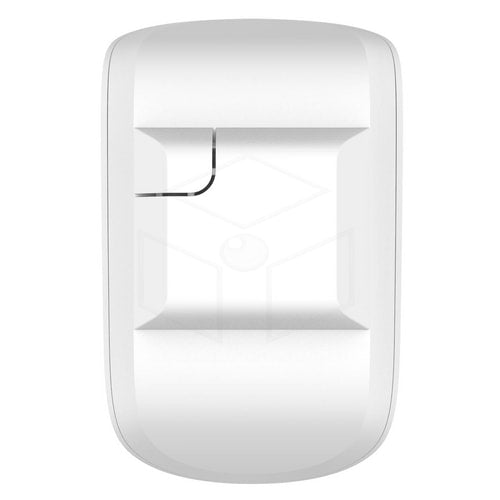

Ajax CombiProtect, glass break and motion detector Wireless
Product Description

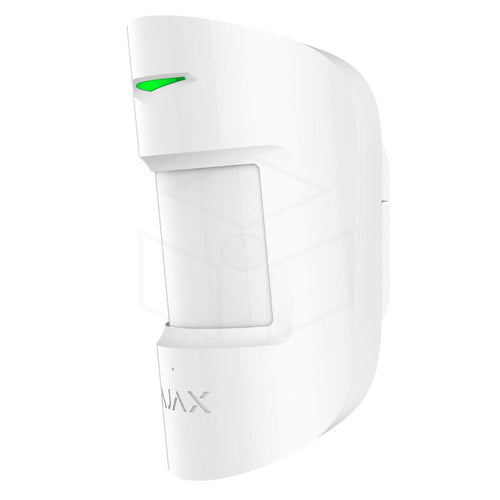

CombiProtect is a device that combines a wireless motion detector with the viewing angle of 88.5° and a distance of up to 12 meters, as well as a glass break detector with the distance of up to 9 meters. It can ignore animals and detects a person within the protected zone from the first step. It can work up to 5 years from a pre-installed battery and is used inside buildings.
More features
CombiProtect works within the Ajax security system, connected to the hub via the protected Juwelier protocol. The communication range is up to 1200 meters in the line of sight. In addition, the detector can be used as a part of third-party security control panels via the Ajax uartBridge or Ajax ocBridge Plus integration modules.
The detector is set up via a mobile application for iOS and Android based smartphones. The system alerts the user of all events via push notifications, SMS messages and calls (if activated).
The Ajax security system is self-sufficient, but the user can connect it to the central monitoring station of a private security company.
Once activated, the armed detector immediately sends an alarm signal to the hub, activates the sirens and alerts the user and the security company.
If the detector has detected motion before the system is armed, it will not be armed immediately, but during the next investigation by the hub.
Specifications
| Colour | White and Black |
| Sensitive element | PIR sensor (motion) electret microphone (glass break) |
| Motion detection distance | Up to 12 m |
| Viewing angles of motion detectors (H/V) | 88.5° / 80° |
| Time for motion detection | From 0.3 to 2 m/s |
| Immunity in pets | Yes, weight up to 20 kg, height up to 50 cm |
| Glass break detection distance | Up to 9 m |
| Microphone coverage angle | 180° |
| Protection against manipulation | Yes |
| Radio communication protocol | Jeweler |
| Radio frequency band | 866.0 – 866.5 MHz 868.0 – 868.6 MHz 868.7 – 869.2 MHz 905.0 – 926.5 MHz 915.85 – 926.5 MHz 921.0 – 922.0 MHz Depending on the region of sale. |
| Compatibility | Works with all Ajax hubs, radio signal range extenders, OcBridge Plus, uartBridge |
| Maximum RF output power | Up to 20 mW |
| Modulation of radio signals | GFSK |
| Range of radio signals | Up to 1,200 m (no obstacles) |
| Power supply | 1 battery CR123A, 3 V |
| Attery life | Up to 5 years |
| Installation method | Inside |
| Operating temperature range | From -10°С to +40°С |
| Operating humidity | Up to 75% |
| General dimensions | 110 × 65 × 50 mm |
| Weight | 92 gr |
| Lifespan | 10 years |
| Certification | Safety class 2, environmental class II in accordance with the requirements of EN 50131-1, EN 50131-2-7-1, EN 50131-2-2, EN 50131-5-3 |
