Ajax MotionProtect Dual Curtain Outdoor Wireless
Regular price
€249,00
Tax included.
Shipping calculated at checkout.
Product Description

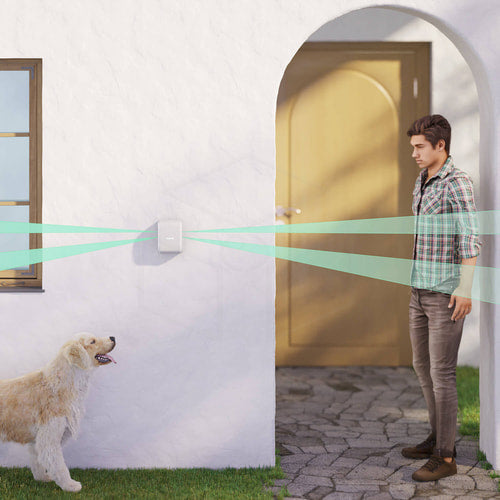

DualCurtain Outdoor is a wireless bidirectional motion detector for outdoor curtains with an adjustable detection range of up to 30 meters. The detector is equipped with an anti-masking system and ignores pets if set up and installed correctly.

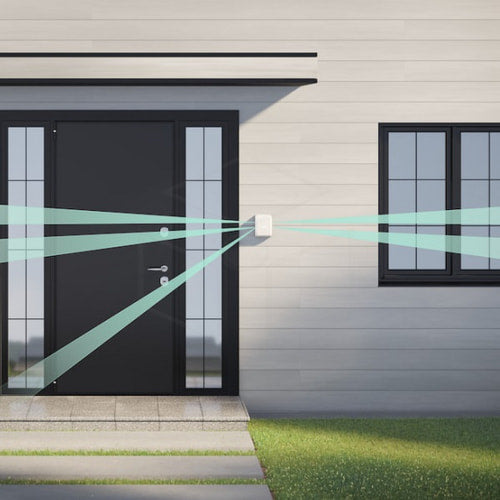

DualCurtain Outdoor has a narrow horizontal detection angle and is designed to control the perimeter and passageways of properties: windows, arches, doors, gates.
More features
DualCurtain Outdoor works as part of an Ajax security system by connecting via the Juwelier protected radio communication protocol. The communication range with a hub in the line of sight is up to 1,700 meters.
Specifications
| Compatibility | Hub Plus Hub 2 Hub 2 Plus Rex Rex 2 |
| Detection element | IR sensor, 2 on each side |
| Motion detection distance |
4 to 15 meters (each side, depending on settings) |
| Detection angle, horizontal | 4.5° |
| Ability to deviate the horizontal viewing angle | Yes, with 3° |
| Motion detection speed | From 0.3 to 2 m/s |
| Pet Immunity Option | Yes, the detector will ignore animals up to 80 centimeters high when properly installed and set up |
| Nearby detection | + |
| Protection against false triggering | + |
| Protection against manipulation | + |
| Protection against masking | + |
| Installation | Outside and inside |
| Radio communication protocol | Jeweler |
| Radio frequency band | 866.0 – 866.5 MHz 868.0 – 868.6 MHz 868.7 – 869.2 MHz 905.0 – 926.5 MHz 915.85 – 926.5 MHz 921.0 – 922.0 MHz Depending on the region of sale. |
| Maximum radio signal strength | 6.35 mW (limit up to 20 mW) |
| Modulation of radio signals | GFSK |
| Range of radio signals | Up to 1,700 m (without obstacles) |
| Power supply | 2 CR123 batteries, 3 V |
| Battery life | Up to 4 years |
| Protection class | IP54 |
| Operating temperature range | From -25°C to +60°C |
| Operating humidity | Up to 95% |
| Dimensions | 174 × 123 × 88 mm |
| Weight | 615 gr |
| Lifespan | 10 years |
| Warranty | 24 months |
