Ajax KeyPad Plus Wireless
Regular price
€137,-
Tax included.
Shipping calculated at checkout.
Product Description

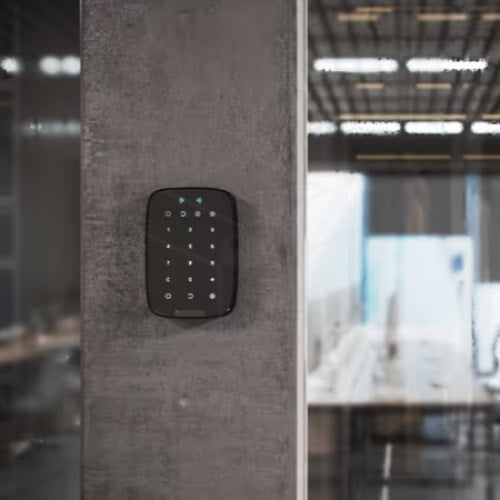

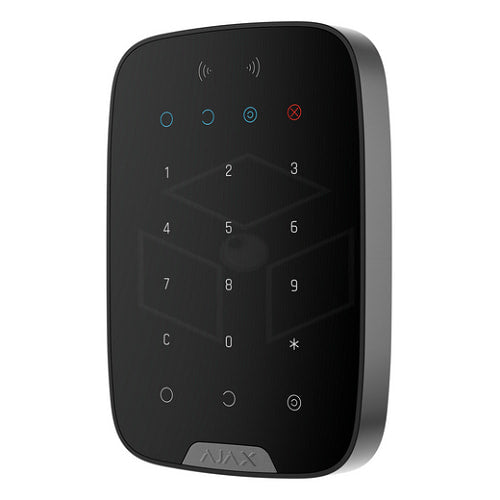

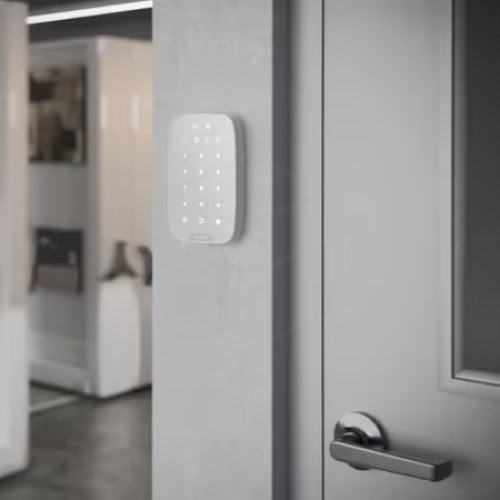

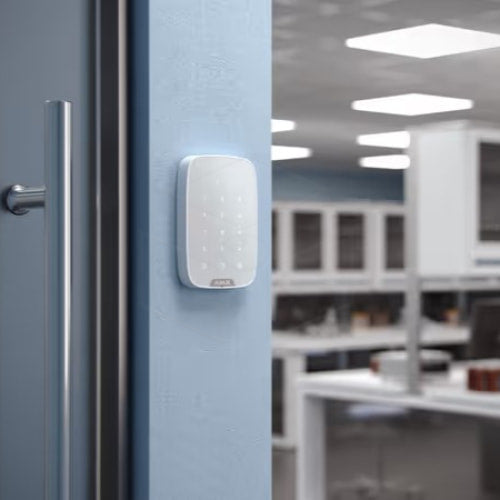

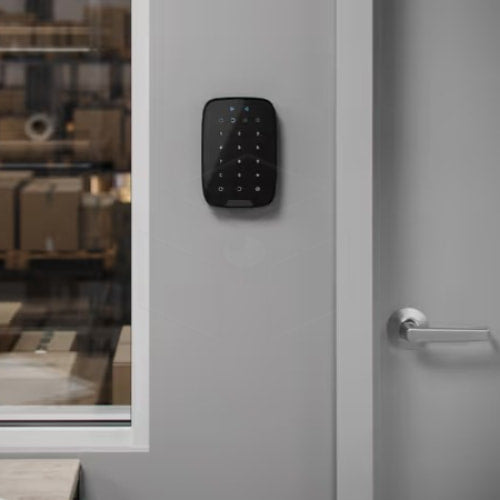

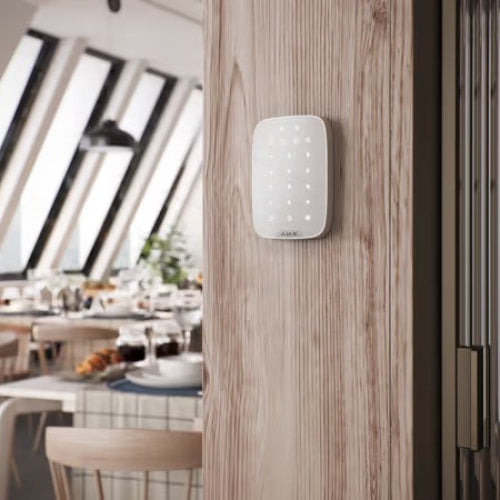

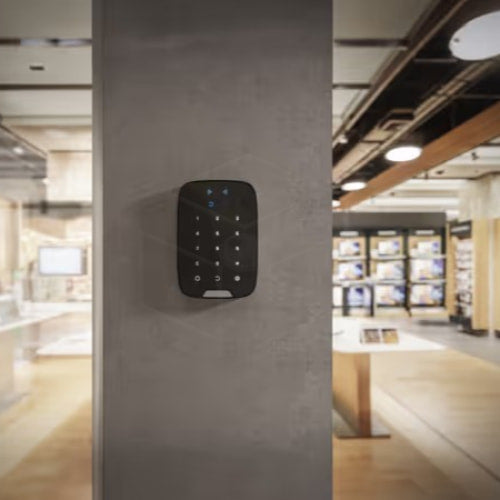

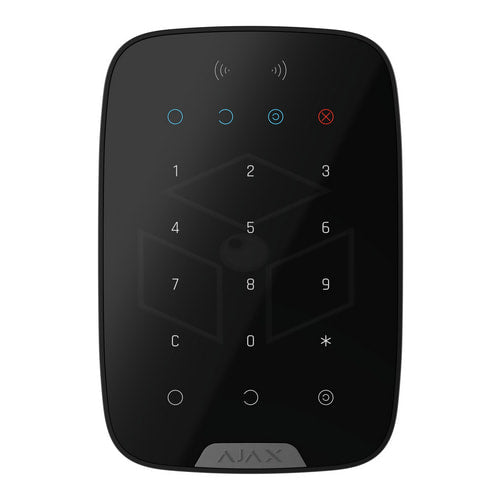

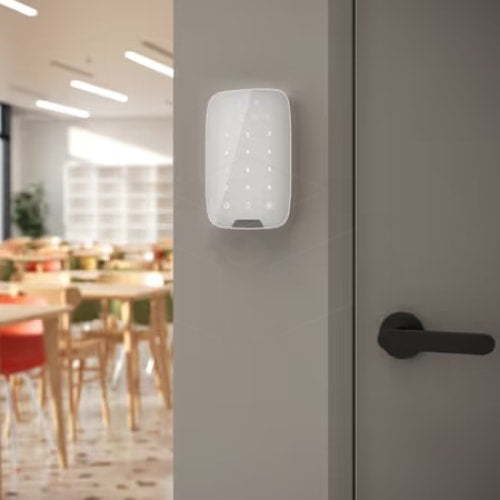

KeyPad Plus is a wireless touch keypad for managing the Ajax security system with coded contactless cards and key fobs. Designed for indoor installation. Supports "silent alarm" when entering the duress code.
Manages security modes using passwords and cards or key fob. Indicates current security mode with LED light.
Specifications
| Compatibility | Hub Plus Hub 2 Hub 2 Plus ReX ReX 2 |
| Colour | Black White |
| Installation | Only inside |
| Keyboard type | Touch sensitive |
| Sensor type | Capacitive |
| Contactless access | DESFire EV1, EV2 ISO14443-A (13.56MHz) |
| Protection against manipulation | Yes |
| Password guessing security | Yes, the keyboard will be locked for the time set in the settings if an incorrect password is entered three times |
| Protection against attempts to use anything not bound to the system pass/tag | Yes, the keyboard is locked for the time defined in the settings |
| Radio communication protocol with hubs and range extenders | Jeweler |
| Radio frequency band | 866.0 – 866.5 MHz 868.0 – 868.6 MHz 868.7 – 869.2 MHz 905.0 – 926.5 MHz 915.85 – 926.5 MHz 921.0 – 922.0 MHz Depending on the region of sale. |
| Modulation of radio signals | GFSK |
| Maximum radio signal strength | 6.06 mW (limit up to 20 mW) |
| Range of radio signals | Up to 1,700 m (without obstacles) |
| Power supply | 4 lithium batteries AA (FR6). Voltage 1.5V |
| Battery life | Up to 3.5 years (if reading of passes/tags is enabled) Up to 4.5 years (if reading of passes/tags is disabled) |
| Operating temperature range | From -10°C to +40°C |
| Operating humidity | Up to 75% |
| Dimensions | 165 × 113 × 20 mm |
| Weight | 267 gr |
| Lifespan | 10 years |
| Warranty | 24 months |
