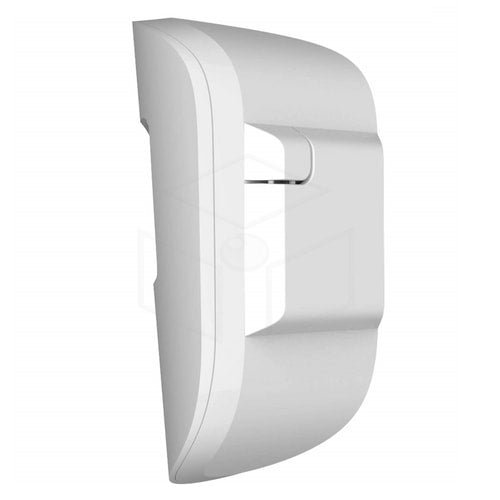

Ajax MotionCam Wireless
Product Description

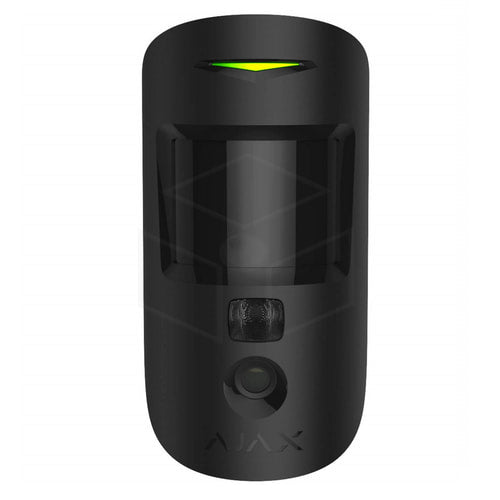

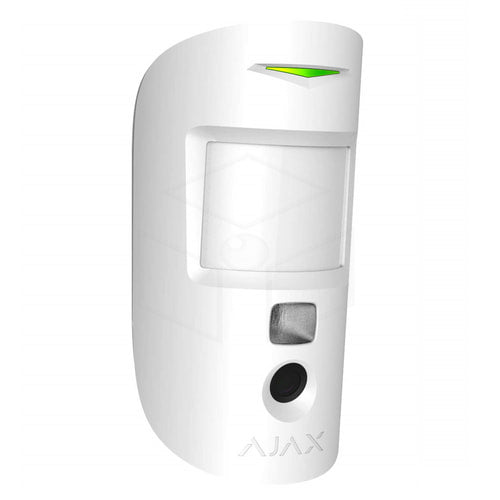

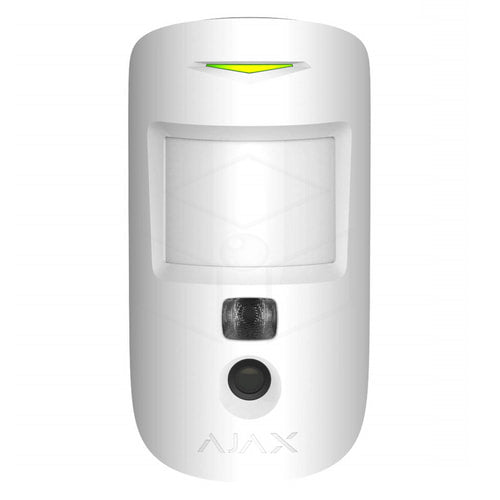

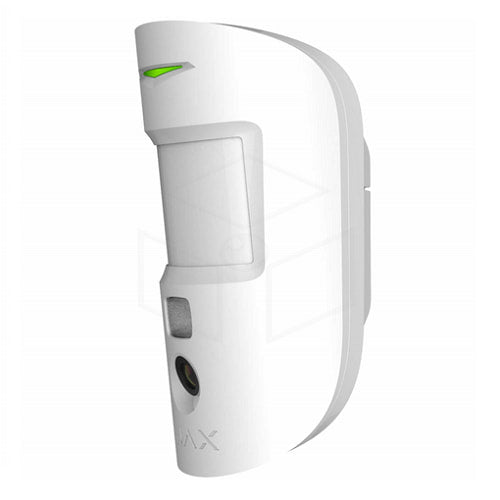

MotionCam is a wireless motion detector with visual alarm verification for indoor use. It works up to 4 years on bundled batteries, detects motion up to 12 meters, ignores animals, but recognizes human movement immediately. MotionCam works within Ajax security systems and connects to a hub via the two secure radio protocols. The detector uses Juwelier to send alarms and events and Wings to send photos. Wireless coverage can reach up to 1,700 m line of sight.
The detector is configured via iOS, Android, macOS and Windows Ajax apps. Users are notified of all alarms and events via push notifications, SMS and calls (if enabled).
The Ajax security system can be used for self-reliant surveillance or can be connected to the central monitoring station of a security company.
More features

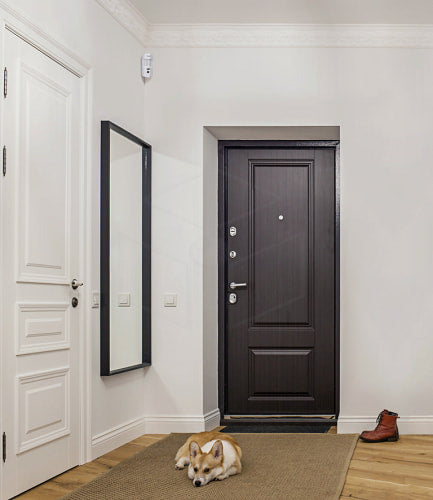

MotionCam's infrared sensor detects intrusion into the protected premises by identifying moving objects with a temperature close to that of the human body. The temperature compensation function makes the detector effective inside buildings with temperatures ranging from 0 to +40 °C. If properly positioned and adjusted, MotionCam ignores pets.
When motion is detected, the armed detector immediately sends an alarm signal to the hub. The hub activates the connected sirens and alerts the user and the security company. MotionCam uses Juwelier radio protocol to send alarms and events to the hub.
The built-in MotionCam camera can take 1 to 5 shots with a resolution of 320×240 and up to 3 shots with a resolution of 640×480 pixels. A series of photos is displayed in the app as an animation, allowing the user to evaluate the unfolding of the event over time. Photos are available both in Ajax apps and on the security company's Central Monitoring Station software. MotionCam uses the Wings radio protocol to send photos to the hub.
Specifications

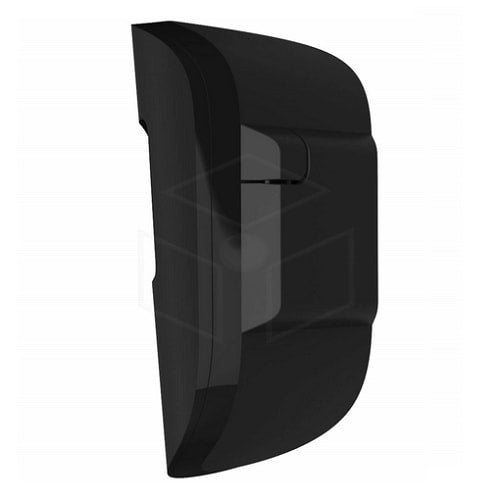

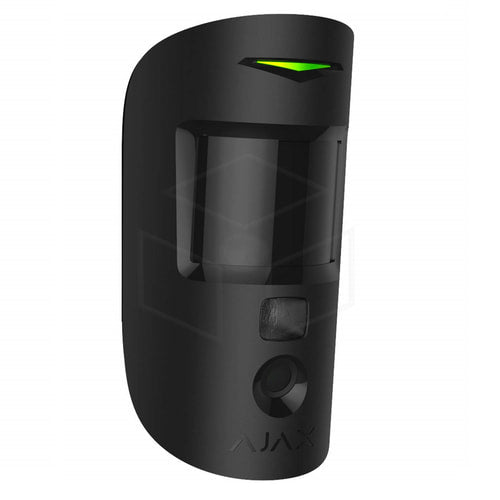

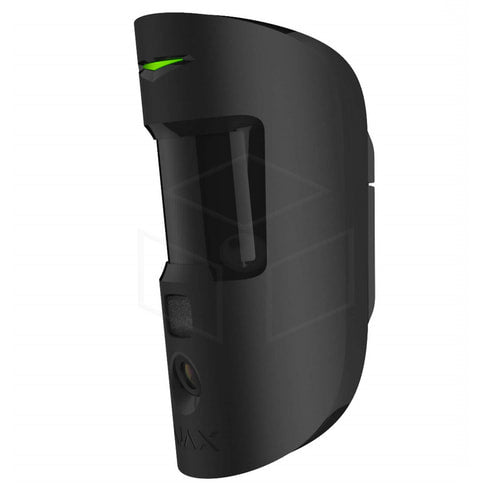

| Colour | White and Black |
| Sensitive element | PIR sensor |
| Motion detection range | Up to 12 m |
| Motion detector viewing angle (H/V) | 88.5°/80° |
| Time for motion detection | From 0.3 to 2 m/s |
| Image resolution | Up to 640 × 480 pixels |
| Number of photos taken when alarm is raised | Up to 5 photos/single alarm |
| Infrared lighting for photographing in the dark | Yes |
| Immunity in pets | Weight up to 20 kg, height up to 50 cm |
| Protection against manipulation | Yes |
| Radio communication protocols with Ajax detectors and devices |
Jeweler — for sending events and alarms. Wings — for sending photos. |
| Radio frequency band | 866.0 – 866.5 MHz 868.0 – 868.6 MHz 868.7 – 869.2 MHz 905.0 – 926.5 MHz 915.85 – 926.5 MHz 921.0 – 922.0 MHz Depending on the region of sale. |
| Hub Compatibility | Hub 2 (2G) Hub 2 (4G) Hub 2 Plus Hub Hybrid (2G) Hub Hybrid (4G) |
| Compatibility with radio signal range extenders | Rex 2 |
| CMS compatibility | Motion alarms are sent to CMSs that support SIA (DC-09) and Contact ID protocols. CMS software that supports visual alarm verification |
| Maximum RF output power | Up to 20 mW |
| Modulation of radio signals | GFSK |
| Range of radio signals (line of sight) | Up to 1,700 m |
| Power supply | 2 CR123A batteries, 3 V |
| Battery life | Up to 4 years |

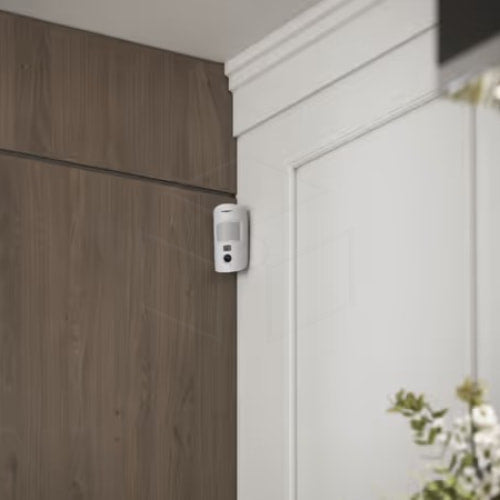

| Installation | Inside |
| Operating temperature range | From 0°C to +40°C (date of manufacture until June 1, 2020) From -10°C to +40°C (manufacturing date June 1, 2020) |
| Operating humidity | Up to 75% |
| General dimensions | 135 × 70 × 60 mm |
| Weight | 167 gr |
| Lifespan | 10 years |
