Ajax MotionCam Outdoor Wireless
Product Description

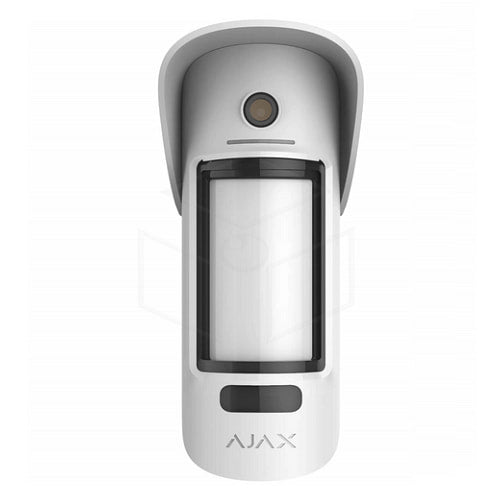

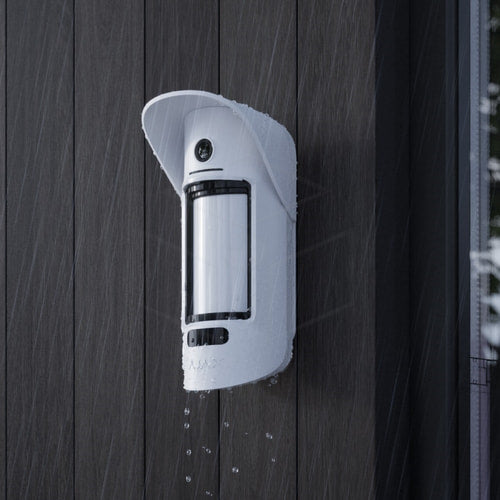

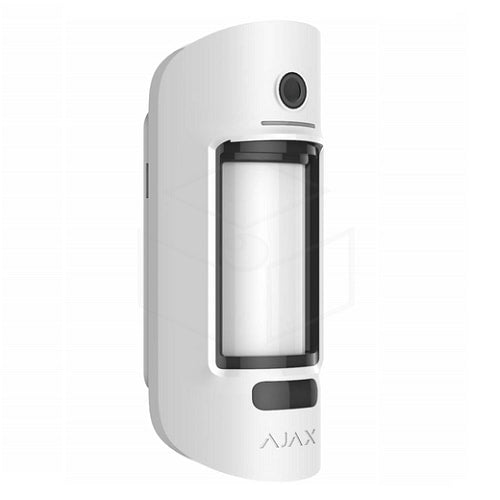

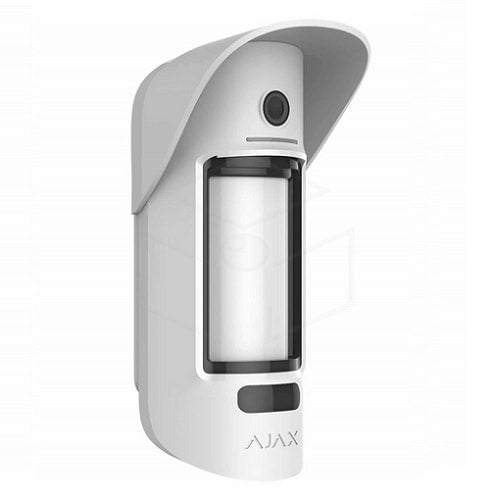

MotionCam Outdoor is a wireless outdoor motion detector with a camera for alarm verification. Detects motion at a distance of up to 15 meters. Has anti-masking protection, ignores animals when properly configured and installed.
More features
MotionCam Outdoor works as part of the Ajax security system by connecting to the hub via Juwelier and Coulissen encrypted radio protocols. The communication range without obstacles is up to 1,700 meters.
MotionCam Outdoor is an outdoor motion detector with a camera. IR sensors of the detector identify intruders by detecting moving objects with temperatures close to that of the human body. Visual verification helps you to immediately assess the situation, relieve users from unnecessary anxiety, and security companies - from false calls from patrols.
In armed mode, the detector constantly reads signals from infrared (IR) sensors. When motion is detected, MotionCam Outdoor sends an alarm to the hub and signals this by flashing the LED indicator (if indication is enabled).
An alarm is detected when both IR sensors detect a movement. The detector takes 1 to 5 photos at a time (depending on the settings) and sends them to the hub. You can enable the Send photo in case of alarm function in the detector settings.
When activated, the hub activates sirens, starts scenarios, and notifies users and the security company. In case of an alarm, photos are sent to the security company's monitoring station and to all system users who have access to the hub's event feed. All alarms, photos, and events from MotionCam Outdoor are recorded in the Ajax app's event feed.
Specifications
| Classification | Radio interconnected photoelectric security detector |
| Installation method | Outside and inside |
| Detector type | Wireless |
| Compatibility | Hub 2, Hub 2 Plus, ReX 2 Does not work with ReX range extenders |
| Detection element | Two IR sensors |
| Sensitivity | Adjustable, 3 levels |
| Motion detection distance | 3 to 15 meters when installed at 0.8-1.3 meters (user set) 1 to 13 meters when installed at 0.5 meters (user set) |
| Horizontal viewing angle of the detector | 90° |
| Motion detection speed | From 0.3 to 2.0 m/s |
| Pet Immunity Option | Yes. When installed at 0.8-1.3 meters and set correctly, the detector will ignore animals up to 80 centimeters high |
| Camera angle | Horizontal — 105° Vertical — 50° |
| TV distortion (EBU standard) | Barrel — 77% |
| Send photo in case of alarm | Photo resolution: 320 × 176 pixels (standard) 640 × 352 pixels Photo series of up to 5 photos |
| Infrared backlight for taking pictures in the dark | Yes |
| Protection against false triggering | + |
| Protection against manipulation | + |
| Protection against masking | + |
| Temperature sensor | + |
| CMS compatibility | Motion alarms are sent to CMSs that support SIA (DC-09) and Contact ID protocols CMS software with support for photo verification of alarms |
| Radio communication protocols with Ajax detectors and devices |
Jeweler — for sending events and alarms. Wings — for sending photos. |
| Radio frequency band | 866.0 – 866.5 MHz 868.0 – 868.6 MHz 868.7 – 869.2 MHz 905.0 – 926.5 MHz 915.85 – 926.5 MHz 921.0 – 922.0 MHz Depending on the region of sale. |
| Maximum radio signal strength | ≤ 20 mW |
| Modulation of radio signals | GFSK |
| TDMA | + |
| Range of radio signals | Up to 1,700 m (without obstacles) |
| Ping interval | From 12 to 300 seconds |
| Power supply | 4 CR123 batteries |
| Supply voltage | 6 V |
| Battery life | Up to 3 years (up to 2.5 years with Entry Delay setting enabled) |
| Protection class | IP55 |
| Operating temperature range | From –25°C to +60°C |
| Operating humidity | Up to 95% |
| Dimensions | 206 × 108 × 93 mm |
| Weight | 470 gr |
| Lifespan | 10 years |
| Warranty | 24 months |
