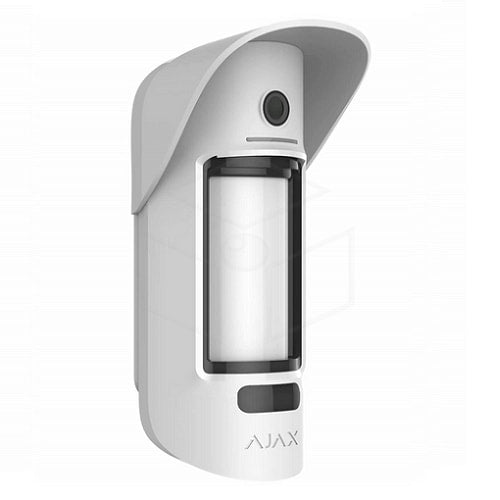

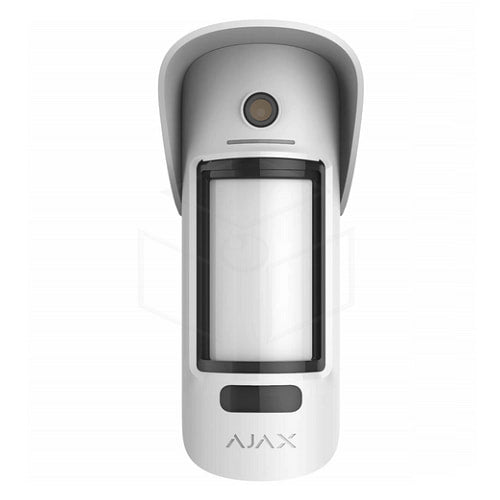

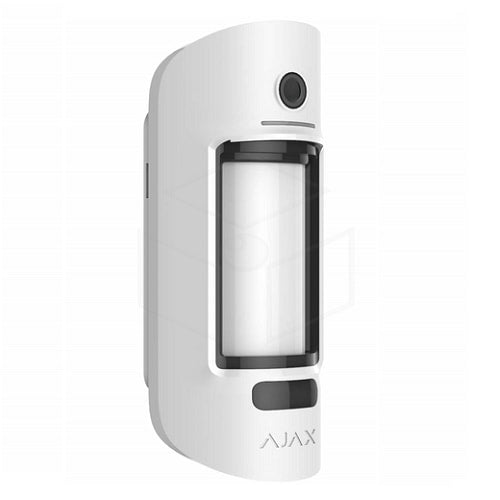

Ajax MotionCam Outdoor Photo On Demand Wireless
Product Description
MotionCam Outdoor is equipped with two independent PIR sensors, whose signals are analyzed by a two-step LISA algorithm. When both sensors detect movement, LISA performs correlation and spectral analysis of the signals, which helps to immediately distinguish real threats from interferences.
MotionCam Outdoor is equipped with a camera to quickly assess the situation in the protected facility. The detector takes an automatic series of photos as soon as it detects an intrusion into the territory. A series of photos combines into an animation that shows the development of the situation in dynamics. MotionCam Outdoor PhOD can take a series of photos at the user's request from the Ajax mobile application, regardless of the security mode.
More features

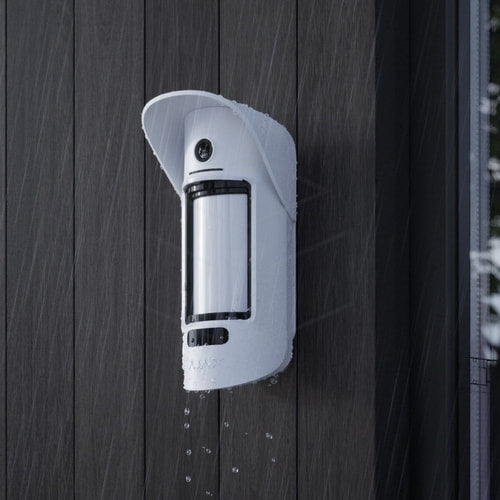

Don't miss anything By combining the best optics, fast processor and advanced software algorithms, MotionCam Outdoor takes informative photos in any weather, day and night.
- HDR camera
- IR backlight
- Series of 2-5 photos
Outdoor motion detectors operate in a complex environment full of natural sources of false alarms. With MotionCam Outdoor, system users and control room operators can see within seconds whether the alarm is real and respond accordingly.
More safetyBoth system users and the rapid response unit must have a clear understanding of what is happening in the facility where the security alarm has been activated. The detector will show how many criminals are still at the entrance to the property and whether they are armed. This will help a security patrol to prepare and users to avoid danger.
Evidence in a smartphoneA series of animated photos in the app makes it possible to convey the peculiar characteristics of burglars to law enforcement without wasting time. Thanks to the infrared backlight, the detector spots them even in complete darkness. The chance of catching criminals on the spot increases.
Privacy first MotionCam Outdoor (PhOD) Jeweller is designed to manage security without compromising privacy. Photos are protected from prying eyes at the detector, system and app level.
Detector uses two radio protocols at once: Jeweller for alarm notification and Wings for photo transmission. Jeweller provides instant alarm delivery and Wings delivers the first photo of the scene in 9 seconds. Even with communication interruptions and weak signal. Thanks to the communication range with Ajax hub of up to 1,700 meters the detector is easy to install where it will be most effective.
Complex anti-sabotage system
- Detect communication loss in 36 seconds
- Notification of dismantling
- Sensors to detect masking
- Data protection with encryption and hopping
- Anti-counterfeiting verification
Specifications
| Brand | Ajax |
| Model | MotionCam Outdoor (PhOD) |
| Number of motion sensors | 1 |
| Type of motion sensor | Pyroelectric sensor |
| Installation type | Wall mounting |
| Possibility of external use | Yes |
| Image resolution | Up to 640 × 480 pixels |
| Motion detection range | From 3 to 15 meters (user set) |
| Monitoring area | N/A |
| Speed of motion detection | From 0.3 to 2 m/s |
| Sensitivity adjustment | Adjustable, 3 levels |
| Horizontal motion detection angle | 105 ° |
| Vertical motion determination | 50° |
| Immunity against pets | The sensor will not respond to animals up to 80 centimeters high with proper installation and configuration. |
| Installation height | 0.8 - 1.3 m |
| Tampere burglary protection | Yes |
| Wireless signal transmission range | Up to 1700 m in open space |
| Transmit frequency | 868.0 – 868.6 MHz or 868.7 – 869.2 MHz |
| Sensor radio transmit power | Up to 20 mW |
| Modulation of the detector radio signal | GFSK |
| Jeweller radio protocol | Block encryption based on AES algorithm, two-way communication between devices, sensor polling period - 12-300 seconds |
| Wings radio protocol | Yes, transfer a series of photos |
| Remote configuration | Yes |
| Anti-sabotage | Anti-counterfeiting, Jamming Alerts |
| Temperature sensor | Yes |
| Connection method | Wireless |
| Color indication | Yes |
| The sensor lifespan from one battery | Up to 3 years |
| Operating voltage | 3 V |
| Operating temperature range | -25°С ~ +60°С |
| Operating humidity | Up to 95% |
| Lifespan | 10 years |
| Certification | DSTU EN 50131, Meets the requirements of the technical regulations for radio equipment |
| Protection class | Ip50 |
| Possibility to connect offline power | N/A |
| Body material | Plastic |
| Sizes | 206 × 108 × 93 mm |
| Weight | 470 gr |

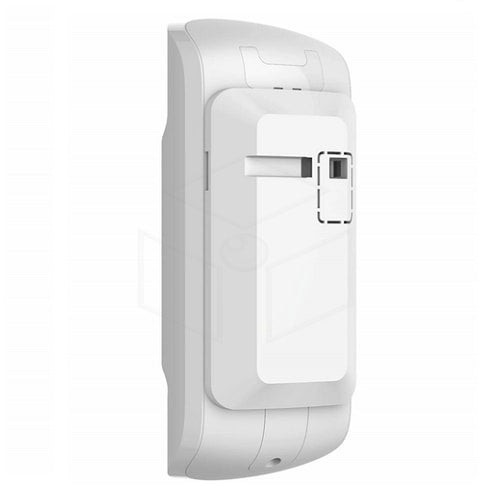

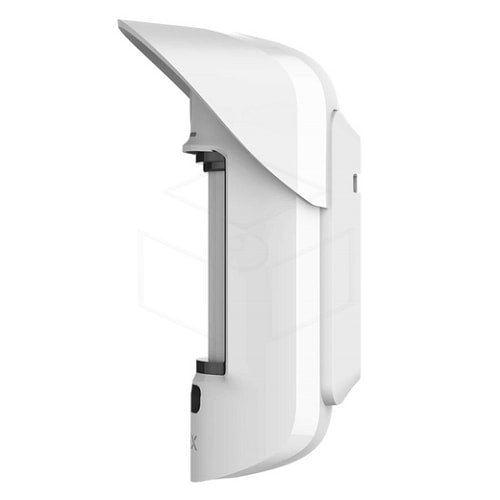

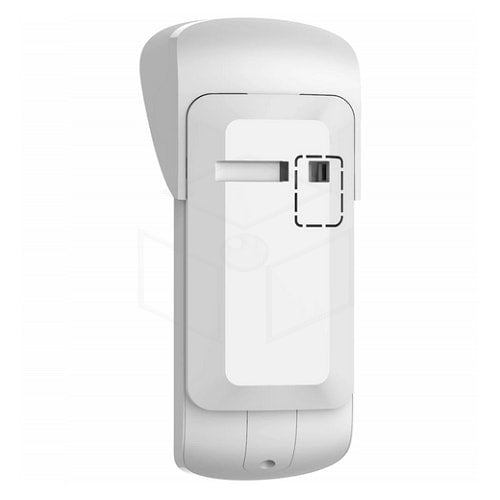

| Equipment | MotionCam Outdoor (PhOD), SmartBracket Mounting Panel, Four CR123 Batteries (Installed), Quick Start Guide, Mounting Kit (Mounting Kit), Visor Cover |
| Operating temperature range | −35 °C ~ + 60 °C |
| Additional features | 2 sensitivity levels, fault warning, communication encryption, alarm delivery in 0.15 s |
