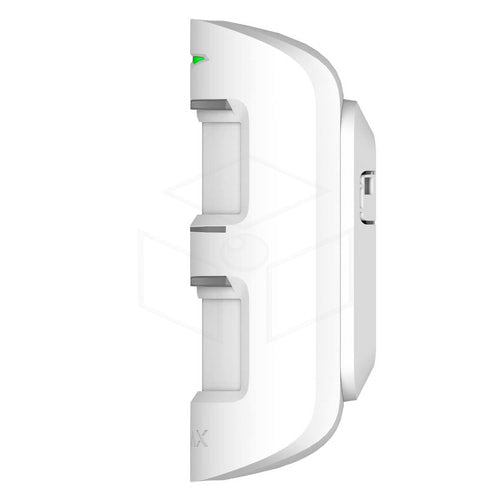

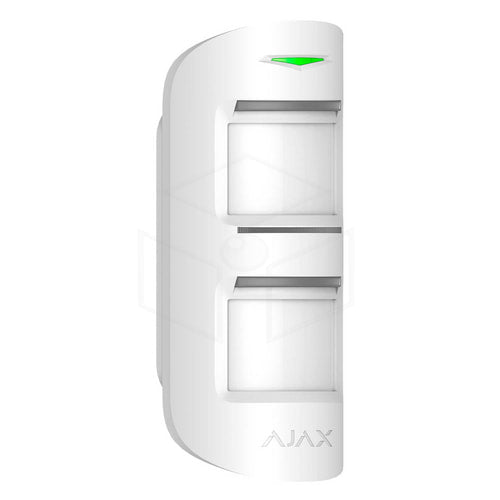

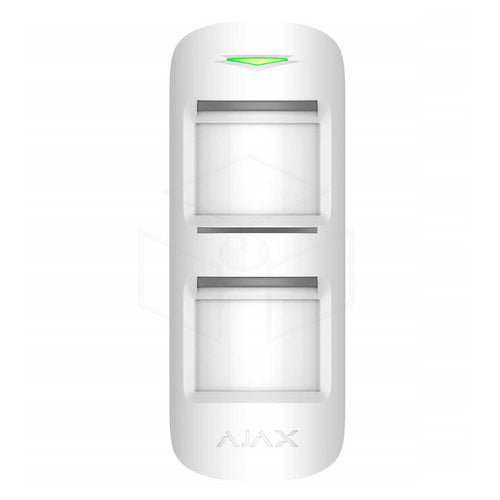

Ajax MotionProtect Outdoor Wireless
Product Description

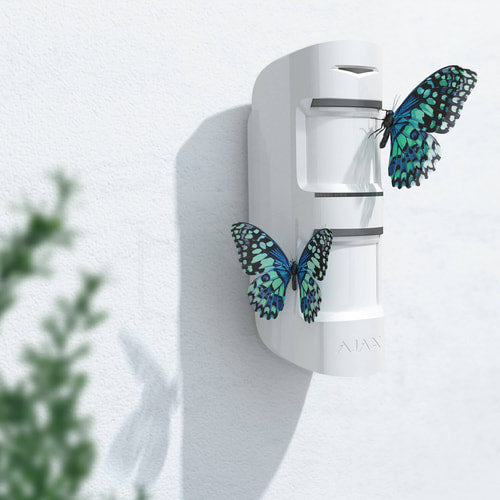

MotionProtect Outdoor is a wireless outdoor motion detector for the Ajax security system. The detector communicates with the hub via protected Juwelier radio protocol at a distance of up to 1,700 meters in the line of sight. MotionProtect Outdoor provides protection against blocking of the detector display (anti-masking system) and triggering by pets (pet immunity). The motion detection distance is adjustable: from 3 to 15 meters.
MotionProtect Outdoor can operate on pre-installed batteries or use an external power supply. Depending on the detector settings, the battery life is up to 5 years.
The user can configure the detector via the Ajax app for iOS, Android, macOS and Windows. The security system notifies users of all events via push notifications, SMS and calls (if activated).
The Ajax security system can be connected to a central control room of a security company.
More features
When the system is armed, the detector continuously receives signals from two PIR sensors. If both sensors detect identical movement, MotionProtect Outdoor immediately sends an alarm signal to the hub and flashes a green LED. MotionProtect Outdoor ignores animals, birds, insects, but also swaying plants and trees.
Specifications
| Detection element | PIR sensor, 2 pieces |
| Detection angle, horizontal | 90° |
| Time for motion detection | From 0.3 to 2 m/s |
| Motion detection distance | Adjustable, 3-15m when detector is at 1m height installed |
| Protection against masking | Yes |
| Pet Ignore Feature | Yes, height up to 80 cm when the detector is installed at 1 m height |
| Protection against false triggering | Yes, algorithmic analysis |
| Radio communication protocol | Jeweler |
| Radio frequency band | 866.0 – 866.5 MHz 868.0 – 868.6 MHz 868.7 – 869.2 MHz 905.0 – 926.5 MHz 915.85 – 926.5 MHz 921.0 – 922.0 MHz Depending on the region of sale. |
| Compatibility | Only works with all Ajax hubs and radio signal range extenders |
| Maximum radio signal power | Up to 20 mW |
| Modulation of radio signals | GFSK |
| Range of radio signals | Up to 1,700 m (where there are no obstacles) |
| Power supply | 2 × CR123A, 3V |
| Battery life | Up to 5 years |
| External power supply | 5 – 28 V DC, 200 mA |
| Level of protection for the body | IP55 |
| Anti-tamper switch | Yes |
| Installation method | Outside/Inside |
| Operating temperature range | From -25°С to +60°С |
| Operating humidity | Up to 95% |
| Accessories | Hood for MotionProtect Outdoor |
| General dimensions | 183 × 70 × 65 mm |
| Weight | 322 gr |
| Lifespan | 10 years |
