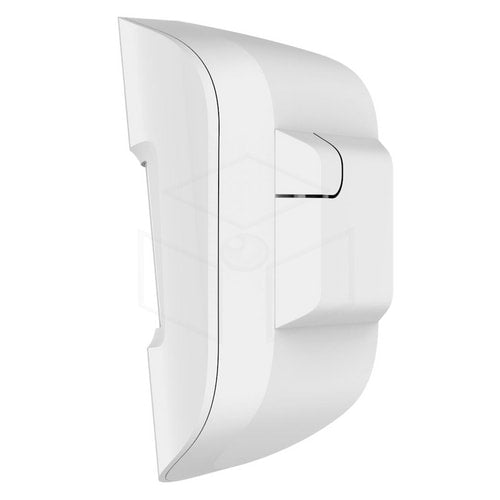

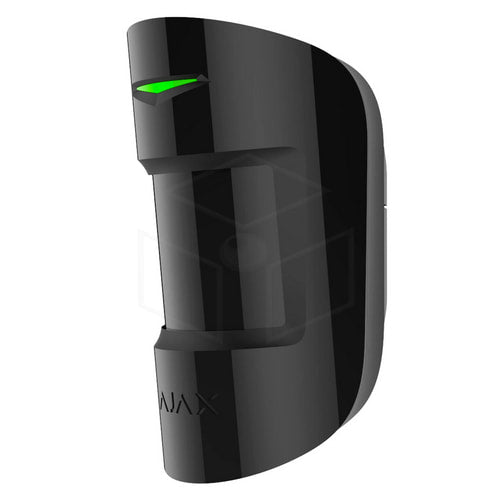

Ajax MotionProtect Plus Wireless
Product Description

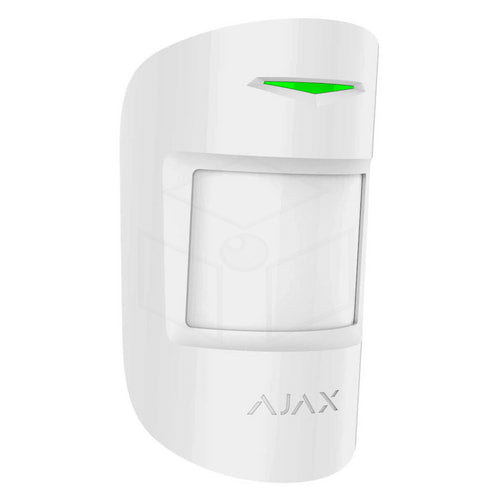

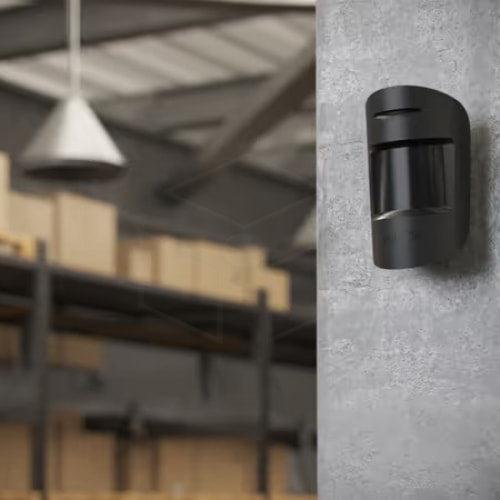

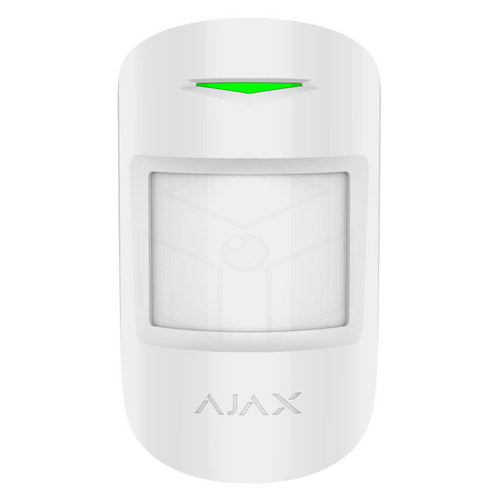

MotionProtect is a wireless motion detector designed for indoor use. It can operate for up to 5 years from a built-in battery and monitors the area within a radius of 12 meters. MotionProtect ignores animals, while it recognizes a human from the first step.
MotionProtect Plus uses radio frequency scanning together with a thermal sensor, filtering out interference from thermal radiation. Can last up to 5 years from a built-in battery.
MotionProtect (MotionProtect Plus) works within the Ajax security system, connected to the hub via the protected Juwelier protocol. The communication range is up to 1700 (MotionProtect Plus up to 1200) meters in the field of view. In addition, the detector can be used as a component of third-party security control panels via the Ajax uartBridge or Ajax ocBridge Plus integration modules.
The detector is set up via the Ajax app for iOS, Android, macOS and Windows. The system notifies the user of all events via push notifications, SMS and calls (if activated).
The Ajax security system is self-sufficient, but the user can connect it to the central monitoring station of a security company.
More features
MotionProtect Thermal PIR sensor detects intrusion into a protected space by detecting moving objects whose temperature is close to the human body temperature. However, the detector can ignore pets if the correct sensitivity is chosen in the settings.
In addition, when MotionProtect Plus detects motion, it will perform radio frequency scans of the room, preventing false operation due to thermal interferences: air flows from sun-heated curtains and louvered shutters, operating thermal air fans, fireplaces, air conditioning units, etc.
Once activated, the armed detector immediately sends an alarm signal to the hub, activates the sirens and alerts the user and the security company.
If the detector has detected motion before the system is armed, it will not be armed immediately, but during the next investigation by the hub.
Specifications

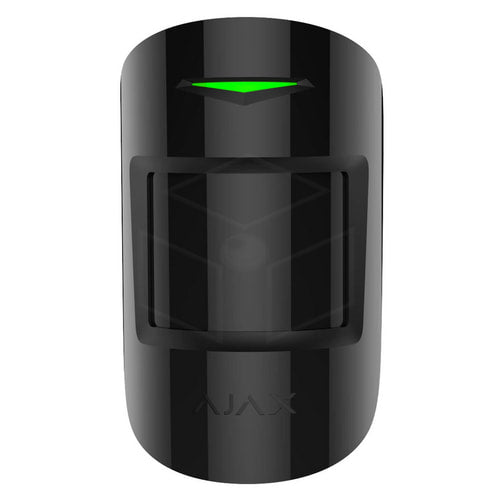

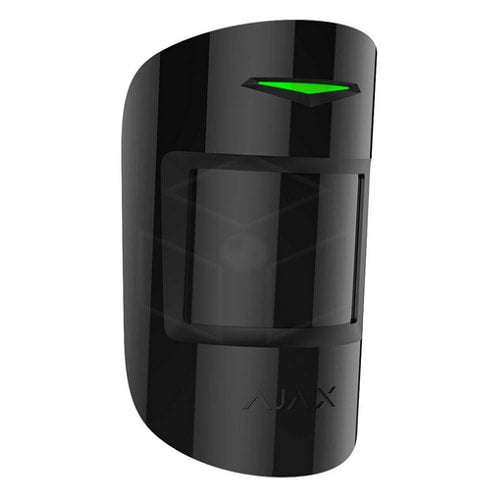

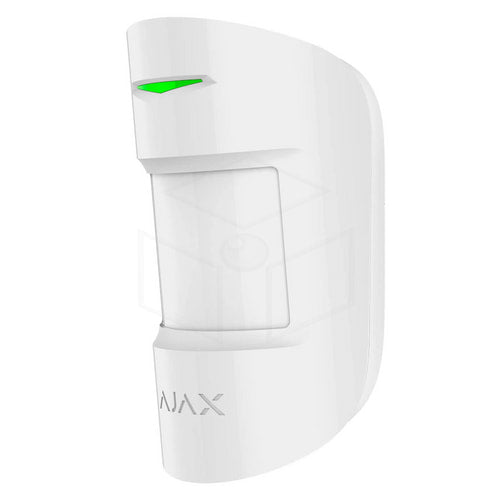

| Colour | White and Black |
| Sensitive element | PIR sensor | ( Motion Protect Plus: PIR and microwave sensor) |
| Motion detection distance | Up to 12 m |
| Viewing angles of motion detectors (H/V) | 88.5° / 80° |
| Time for motion detection | From 0.3 to 2 m/s |
| Immunity in pets | Yes, height up to 50 cm, weight up to 20 kg |
| Protection against manipulation | Yes |
| Radio communication protocol | Jeweler |
| Radio frequency band | 866.0 – 866.5 MHz 868.0 – 868.6 MHz 868.7 – 869.2 MHz 905.0 – 926.5 MHz 915.85 – 926.5 MHz 921.0 – 922.0 MHz Depending on the region of sale. |
| Compatibility | Works with all Ajax hubs, radio signal range extenders, OcBridge Plus, uartBridge |
| Maximum RF output power | Up to 20 mW |
| Modulation of the radio signal | GFSK |
| Range of radio signals | Up to 1700 m (no obstacles) ( Motion Protect Plus up to 1200 m) |
| Power supply | 1 battery CR123A, 3 V |
| Battery life | Up to 5 years |
| Installation method | Inside |
| Operating temperature range | From -10°С to +40°С |
| Operating humidity | Up to 75% |
| General dimensions | 110 × 65 × 50 mm |
| Weight | 86g ( Motion Protect Plus – 96g) |
| Lifespan | 10 years |
| Certification | Safety class 2, environmental class II in accordance with the requirements of EN 50131-1, EN 50131-2-2, EN 50131-5-3 ( Motion Protect Plus – EN 50131-1, EN 50131-2-4, EN 50131-5 -3) |
